*** Features:
- High Torque Output: Delivers powerful performance for small-scale crawlers.

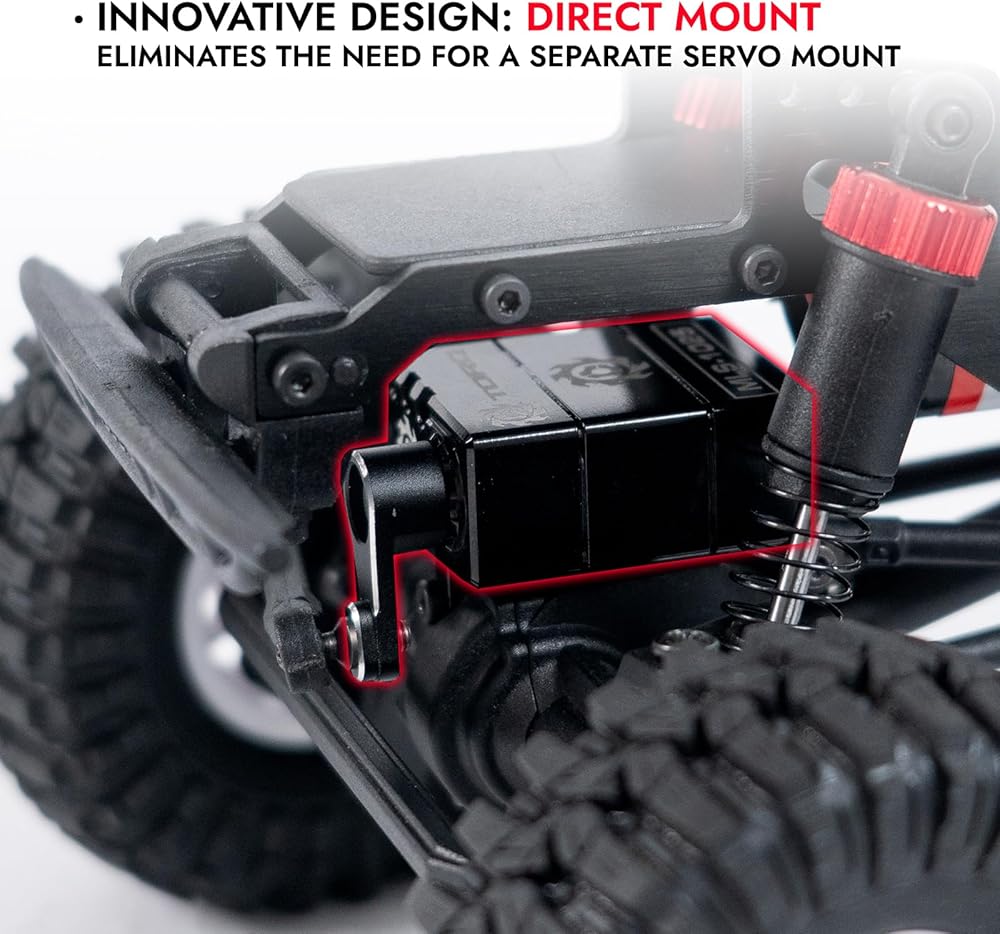

- Mountless Design: Eliminates the need for a separate micro servo mount, reducing the overall cost.
- No Servo Ears: Provides ample clearance between the mini servo and frame rails, ensuring smooth suspension movement.

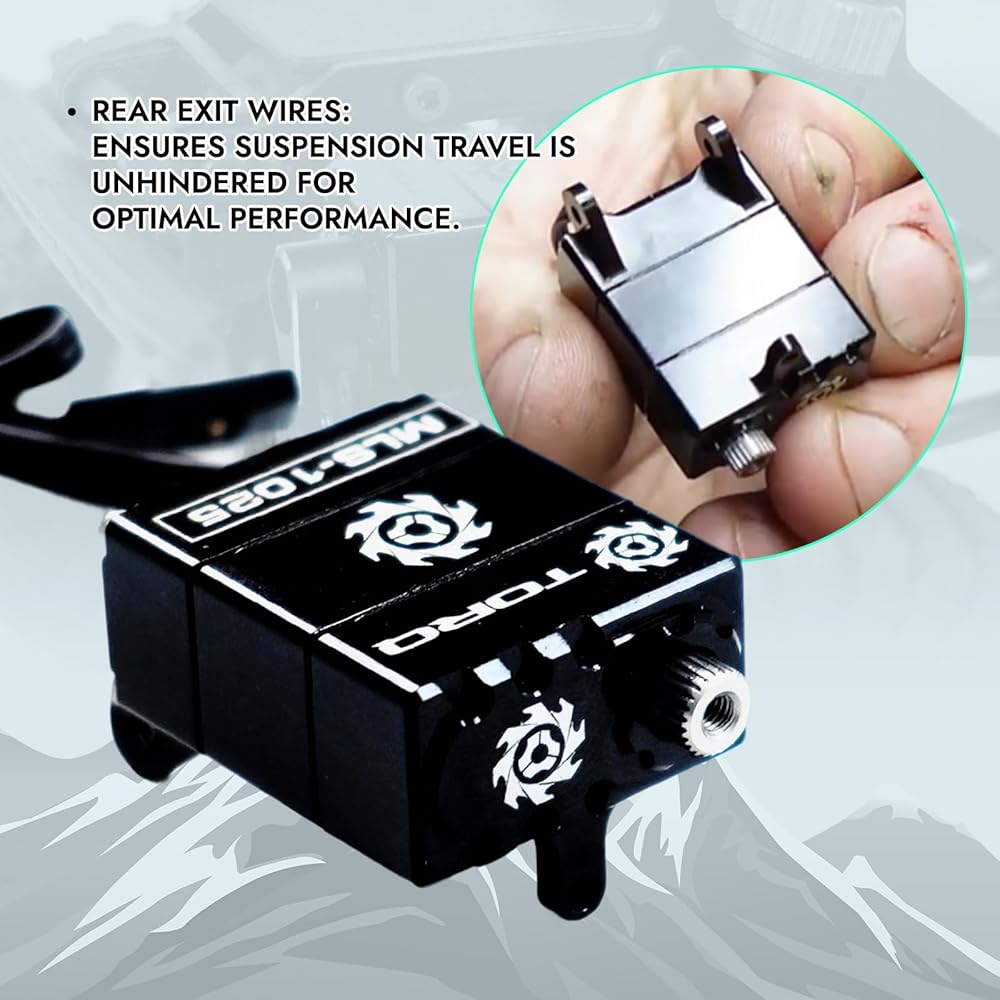

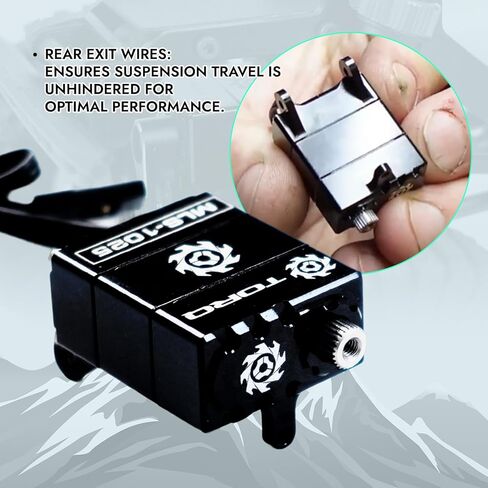

- Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
- Simplified Installation: Easy to mount due to its unique design.
- Enhanced Clearance: Designed for ultimate clearance around the servo.

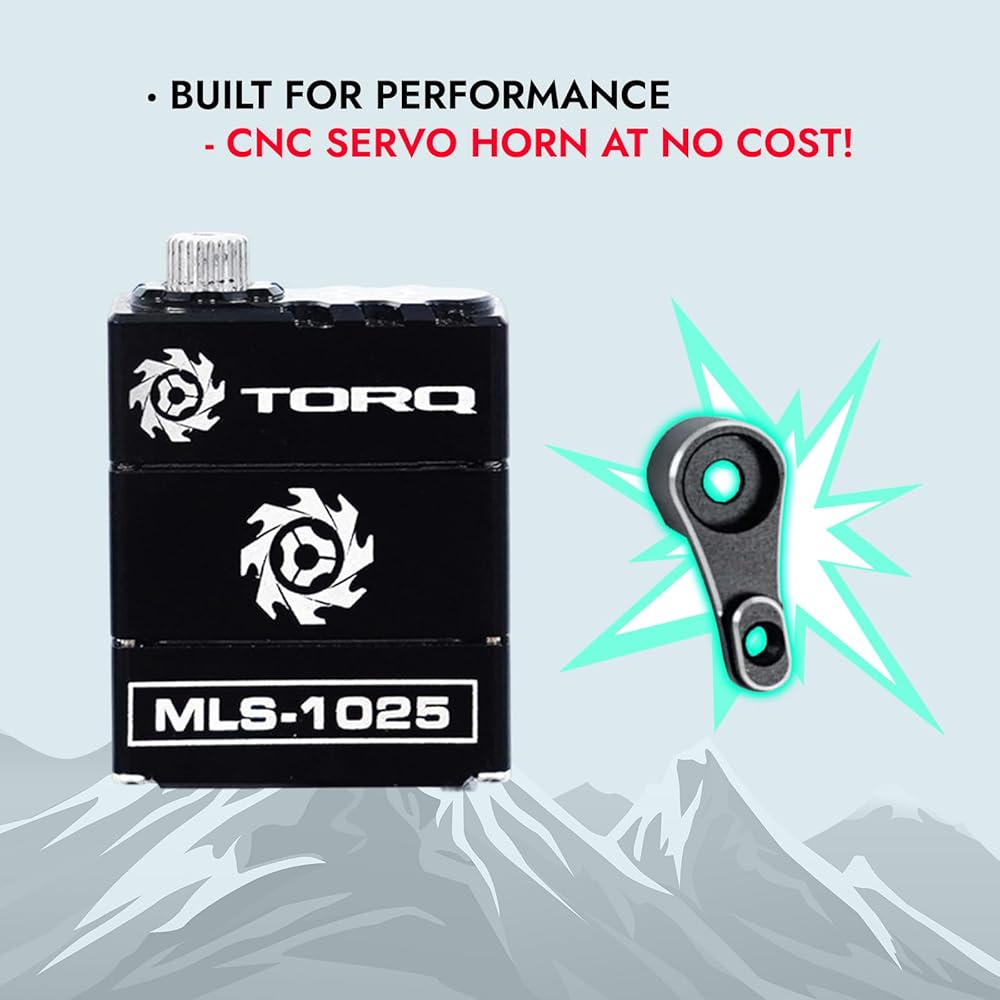

- Full precision CNC Metal Gears
- Full precision CNC Aluminum Case with black anodizing color.
- Waterproof
- Patent Pending: The innovative design is currently under patent protection.

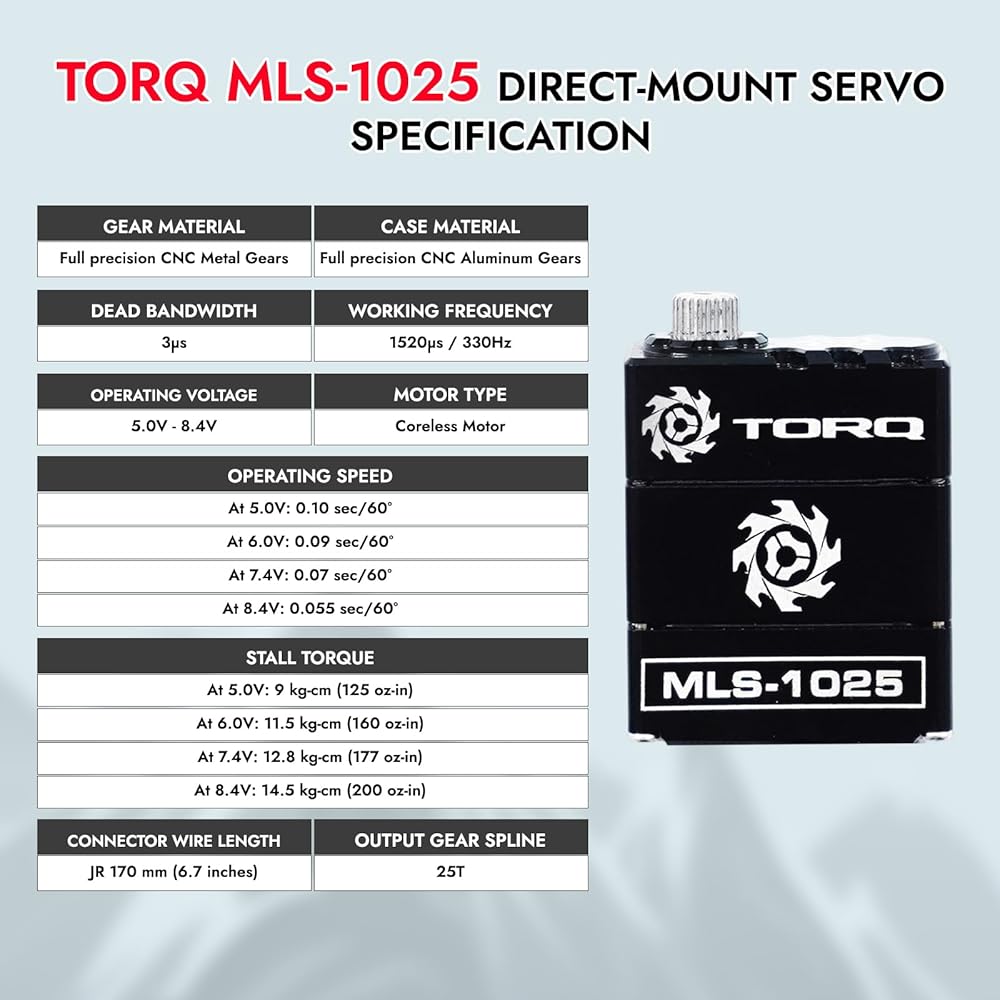

*** Specifications:
- Dead Bandwidth: 3μs
- Working Frequency: 1520μs / 330Hz
- Operating Voltage: 5.0V - 8.4V
- RC Motor Type: Coreless Motor
- Operating Speed:
· At 5.0V: 0.10 sec/60°
· At 6.0V: 0.09 sec/60°
· At 7.4V: 0.07 sec/60°
· At 8.4V: 0.055 sec/60°
- Stall Torque:
· At 5.0V: 9 kg-cm (125 oz-in)
· At 6.0V: 11.5 kg-cm (160 oz-in)
· At 7.4V: 12.8 kg-cm (177 oz-in)
· At 8.4V: 14.5 kg-cm (200 oz-in)

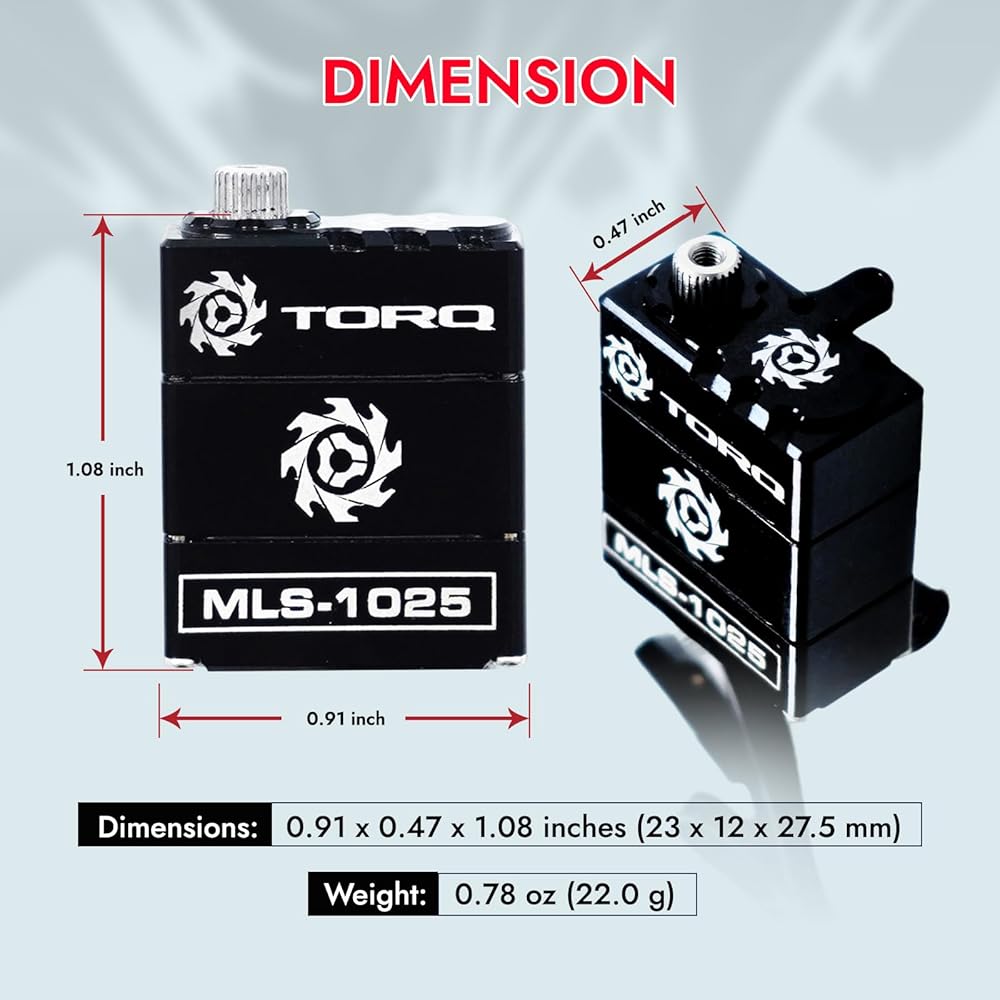

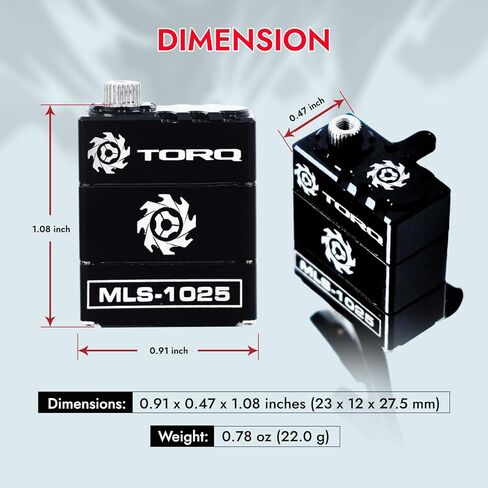

- Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
- Weight: 22.0 g (0.78 oz)
- Connector Wire Length: JR 170 mm (6.7 inches)
- Output Gear Spline: 25T
*** Benefits:

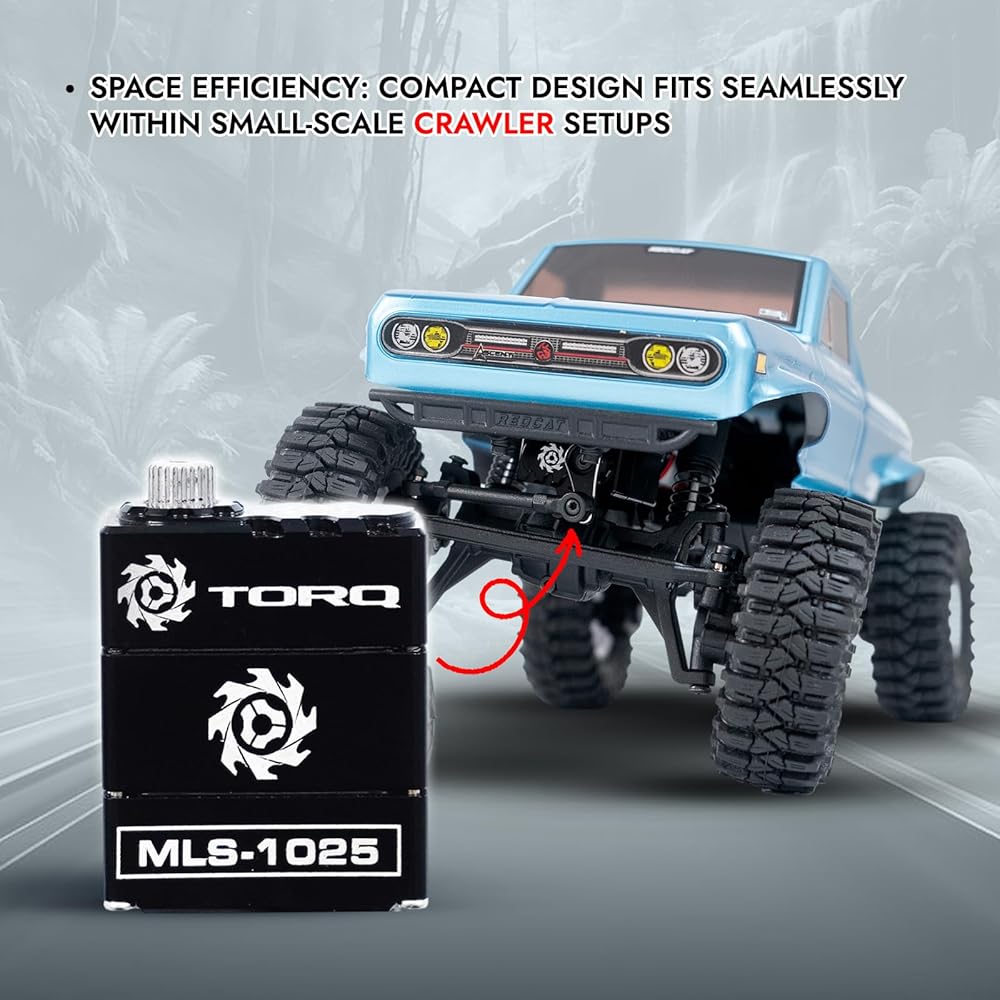

- Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.
- Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.
- Performance Enhancement: Unhindered suspension movement leads to better crawler performance.
- Ease of Installation: Simplifies the mounting process, saving time and effort.

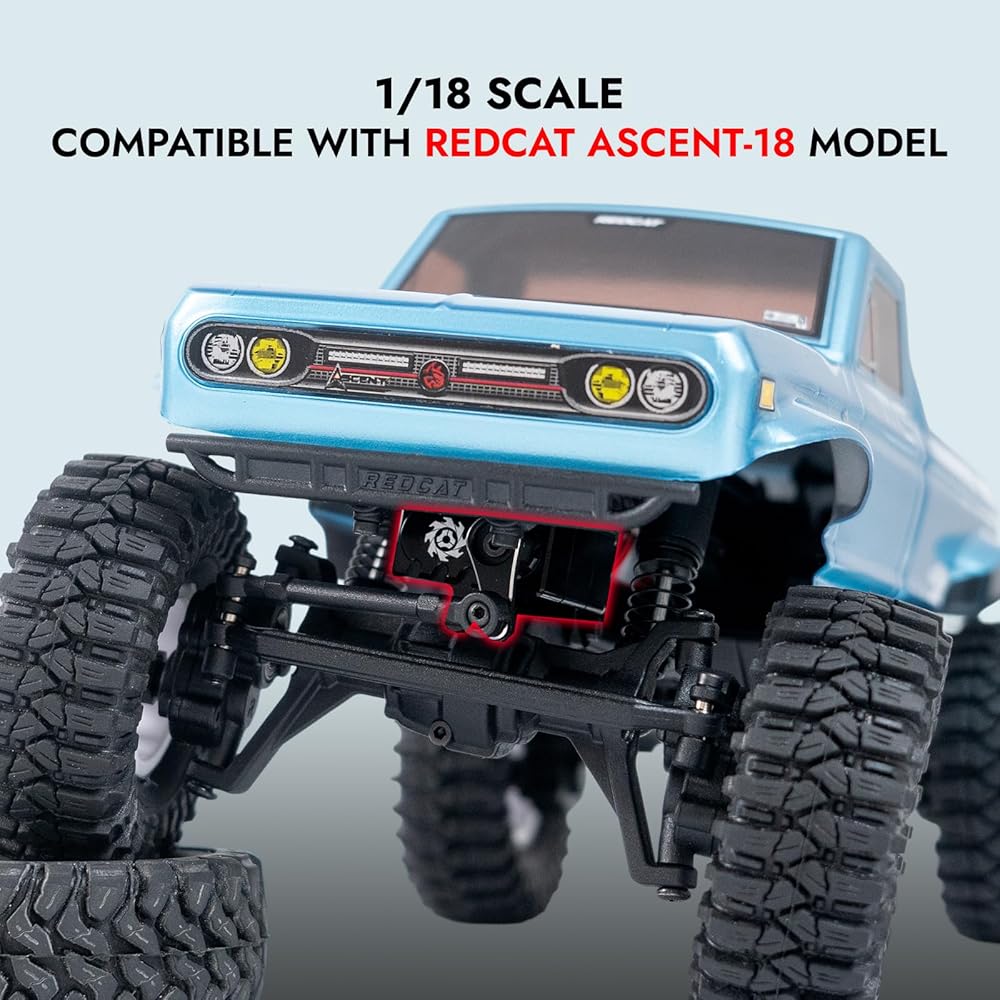

- The TORQ MLS-1025 Premium High Torque Servo for REDCAT Ascent-18 is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
