Specification:
Material: ABS
Quantity: 1 PCS
Color: Black
Weight: 44 g

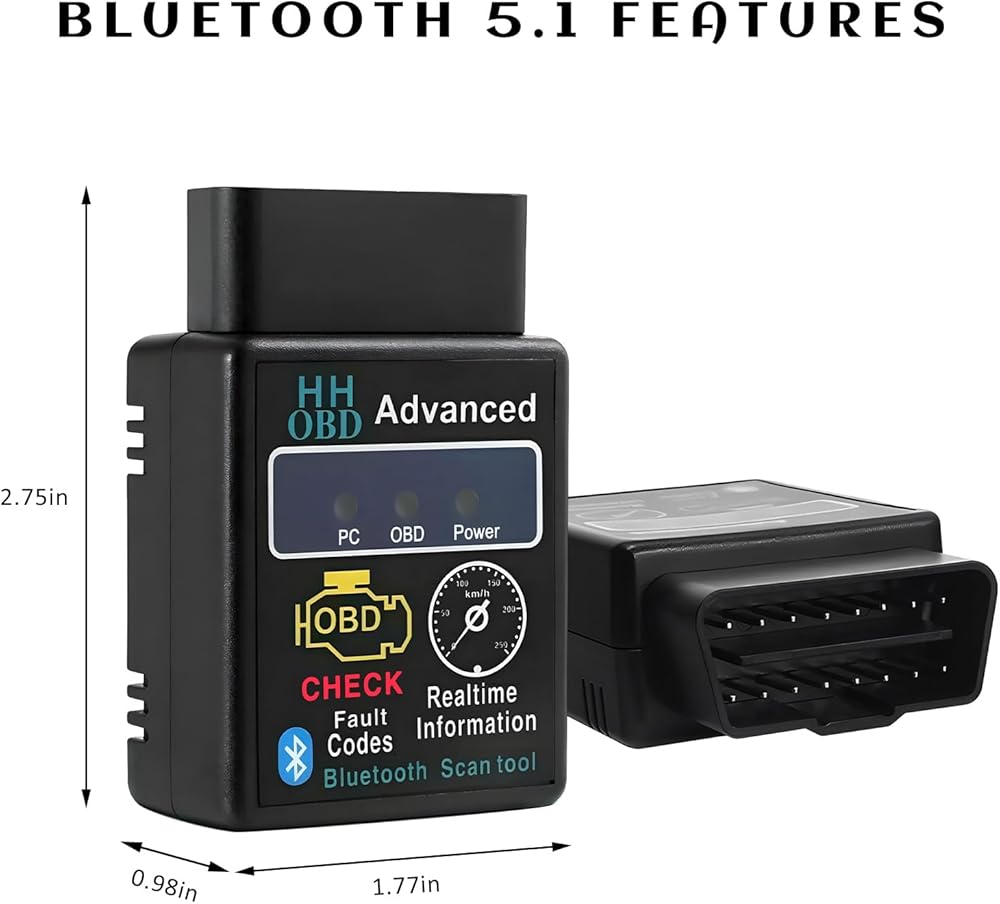

Size: 1.77×2.76×0.98 inches
Voltage: 7-18 V (Typical: 12 V)
Current: 13-19 mA (Typical: 16 mA)
Working Temperature: -40 ℉ to 185 ℉
Feature: Sensitive, Practical, Durable
Fit Type: Universal Fit
Product Function:
-The diagnostic tester supports reading parameters such as VIN, CID, CVN, etc.
-It can read both generic and manufacturer-specific diagnostic fault codes, displaying their meanings (the database includes more than 3,000 generic code definitions).

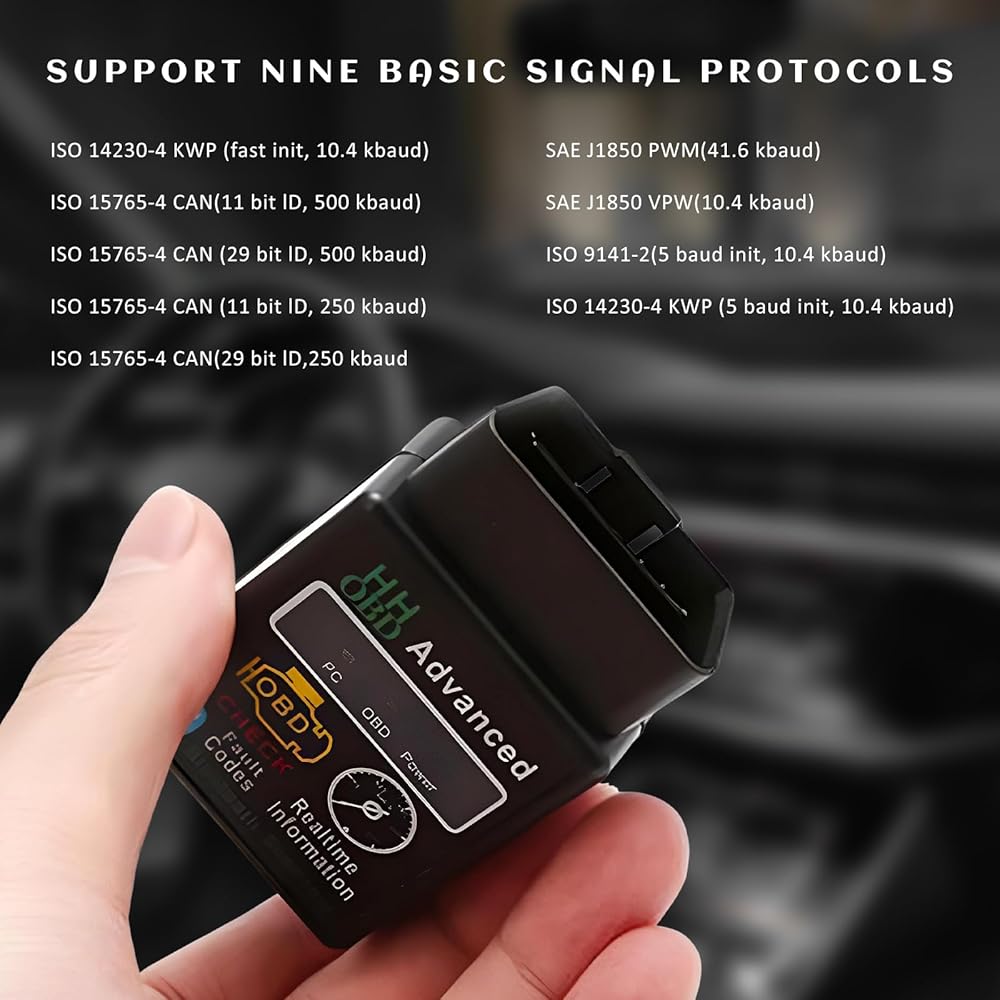

Protocols Supported:
-SAE J1850 PWM (41.6 kbaud)
-SAE J1850 VPW (10.4 kbaud)
-ISO 9141-2 (5 baud init, 10.4 kbaud)
-ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
-ISO 14230-4 KWP (fast init, 10.4 kbaud)
-ISO 15765-4 CAN (11 bit ID, 500 kbaud)
-ISO 15765-4 CAN (29 bit ID, 500 kbaud)
-ISO 15765-4 CAN (11 bit ID, 250 kbaud)
-ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Displays current sensor data, including:
-(1)Engine speed
-(2)Calculate the load value
-(3)Coolant temperature
-(4)Fuel system status
-(5)Speed
-(6)Short-term fuel adjustment
-(7)Long-term fuel adjustment
-(8)Intake manifold pressure
-(9)Time advance
-(10)Intake air temperature
-(11)Air flow
-(12)Absolute throttle position
-(13)Oxygen sensor voltage/associated short-term fuel adjustment
-(14)Fuel system status
-(15)Fuel pressure
