SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board in Saudi Arabia SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board in Saudi Arabia SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board in Saudi Arabia SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board in Saudi Arabia SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board in Saudi Arabia SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board in Saudi Arabia

SMD Soldering Practice Kit – Build a LED Light Rotating Display | DIY Electronics Training Kit for STEM Education, Beginner Soldering School Project with PCB Board

SAR 47
Brand
AKEYSRC
Set nameSMD Kit
– 1 +

Special Features

  • 🔹【Master SMD Soldering Skills】 This comprehensive soldering practice kit features 140+ SMD components across 16 package types (0402/0603/0805/1206/SOT-23/SOIC-16), providing progressive difficulty levels. Perfect for beginners to advance from basic resistors to complex ICs, building confidence before tackling expensive projects. Includes dedicated practice columns with test points for skill verification.
  • 🔹【Fun & Functional Circuit Design】 Features an engaging rotating LED water light circuit powered by classic NE555 timer and CD4017 decade counter chips. Once assembled, watch 10 LEDs chase in sequence creating a mesmerizing flowing effect. The functional circuit provides immediate visual feedback, making learning rewarding and entertaining for all ages.
  • 🔹【Professional Grade Materials】 High-quality FR-4 PCB (89×58mm, 1.6mm thickness) with lead-free HASL finish and blue solder mask. Fire-resistant, anti-fall construction allows repeated assembly/disassembly for continuous practice. Silkscreen markings clearly indicate component placement and polarity, while the backside includes measurement rulers and PCB design references.
  • 🔹【Complete Educational Package】 Ideal for STEM education, vocational training, and electronics enthusiasts. Kit includes all necessary components: PCB, NE555/CD4017 ICs, 11 LEDs (red/blue), resistors, capacitors, transistors, and diodes. Operates on 3-12V DC (battery holder not included). Detailed instruction manual with schematic diagrams ensures successful assembly even for first-time solderers.
  • 🔹【Versatile Learning Tool】 Dual-purpose board design: Left/right columns offer structured soldering practice with 274+ solder joints, while the center circle contains the working LED circuit. Suitable for self-study, classroom instruction, workshop training, or hobby projects. Makes an excellent gift for engineering students, makers, and DIY electronics fans looking to upgrade from through-hole to surface mount technology.

Description

Take Your Soldering Skills to the Next Level

Whether you're an electronics student, hobbyist, or professional looking to master Surface Mount Device (SMD) soldering, this Rotating LED Water Light Practice Kit provides the perfect hands-on training platform. Move beyond basic through-hole soldering and develop the precision skills required for modern electronics assembly.

What's Inside the Kit?

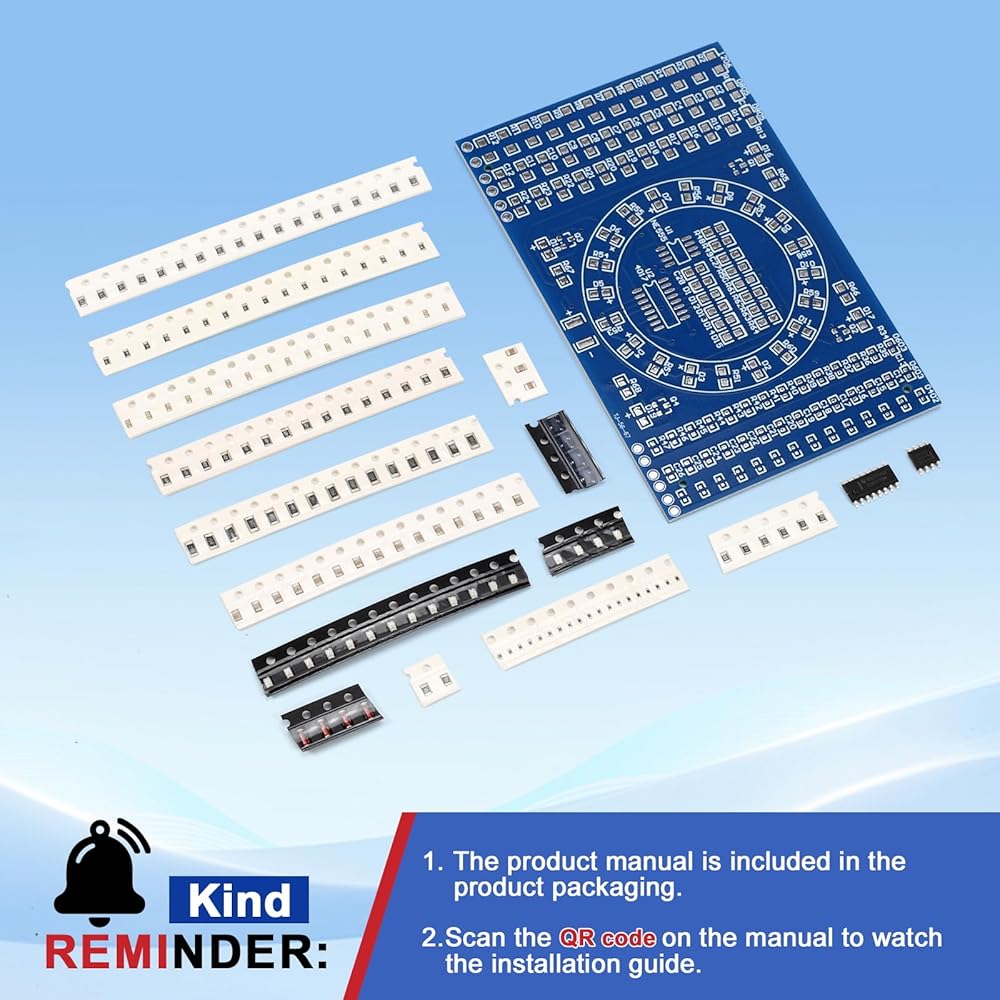

Professional PCB: 89×58mm blue solder mask board with clear silkscreen markings and gold-plated pads
Complete Component Set: 125+ SMD parts including resistors (0402/0603/0805/1206), capacitors, LEDs, transistors (SOT-23), and ICs (SOIC-8/SOIC-16)
Functional Circuit: NE555 oscillator driving CD4017 decade counter to create chasing LED effect
Practice Areas: Dedicated columns with test points for skill building before attempting the main circuit
Reference Materials: Detailed instruction manual with schematics, component identification charts, and soldering tips

Progressive Learning Path
The intelligent board layout guides you from simple to complex:
Stage 1: Practice on side columns with larger 1206/0805 packages
Stage 2: Master medium 0603 components
Stage 3: Challenge yourself with tiny 0402 packages
Stage 4: Solder the functional NE555/CD4017 circuit and enjoy the light show!

Technical Specifications
Working Voltage: DC 3-12V (battery holder or power supply, not included)
PCB Dimensions: 90mm × 60mm × 1.6mm
Component Count: 125+ pieces
Solder Joints: 274+ practice points
LED Colors: Red (chasing) + Blue (corner indicators)
Operating Temperature: -25°C to 85°C

Perfect For:
✓ Electronics engineering students and apprentices
✓ STEM education programs and vocational schools
✓ DIY makers transitioning to SMD technology
✓ Repair technicians skill upgrading
✓ Hobbyists seeking challenging weekend projects
✓ Gift for tech enthusiasts and future engineers

Why Choose This Kit?
Unlike generic practice boards, this kit combines skill training with functional results. The rotating water light circuit isn't just for show—it demonstrates proper soldering technique through immediate visual feedback. When those LEDs start chasing, you'll know your skills are job-ready.

Note: Basic soldering tools required (soldering iron, solder wire, tweezers). 3-12V power source needed for operation (not included).
