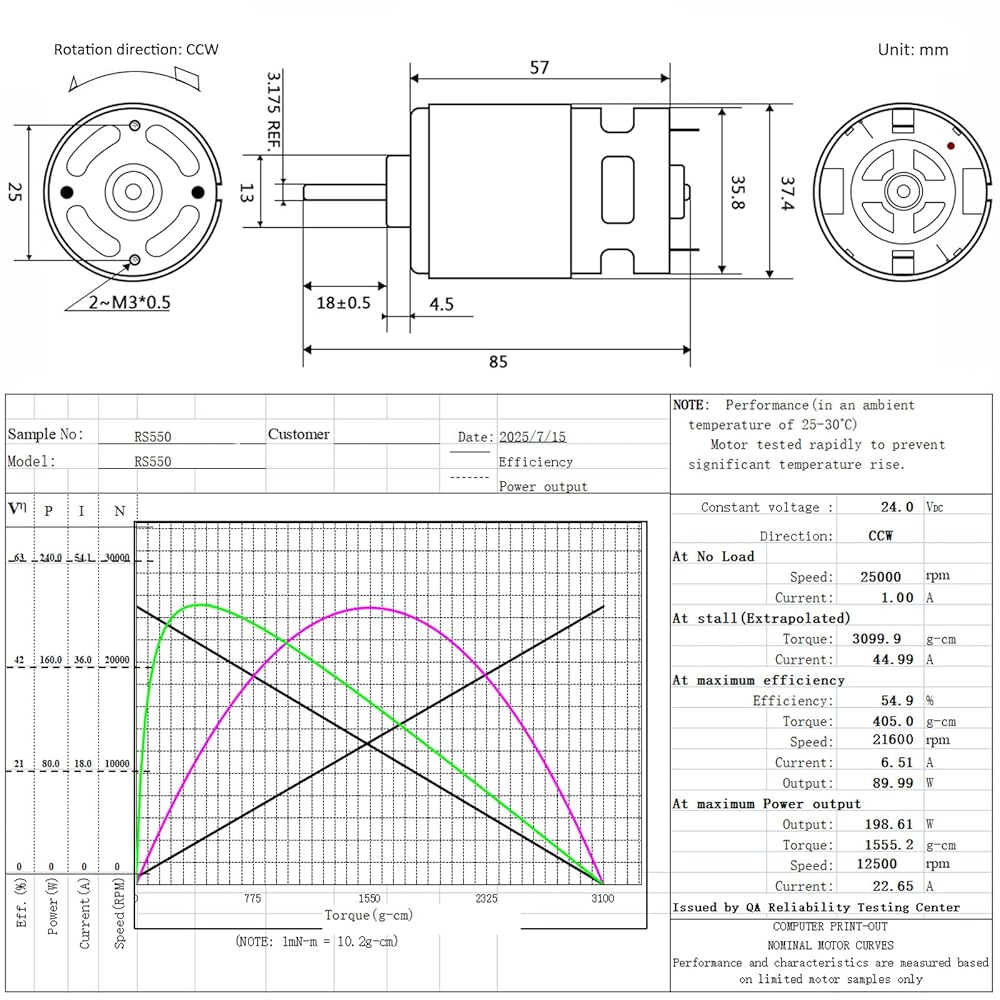

Model Number: RS550
Voltage: 12 - 24V DC
No Load Current: 1.1A
Working Current: 6.53A
No Load Speed: 25000RPM
Torque: 1555.3g.cm
Power: 200W

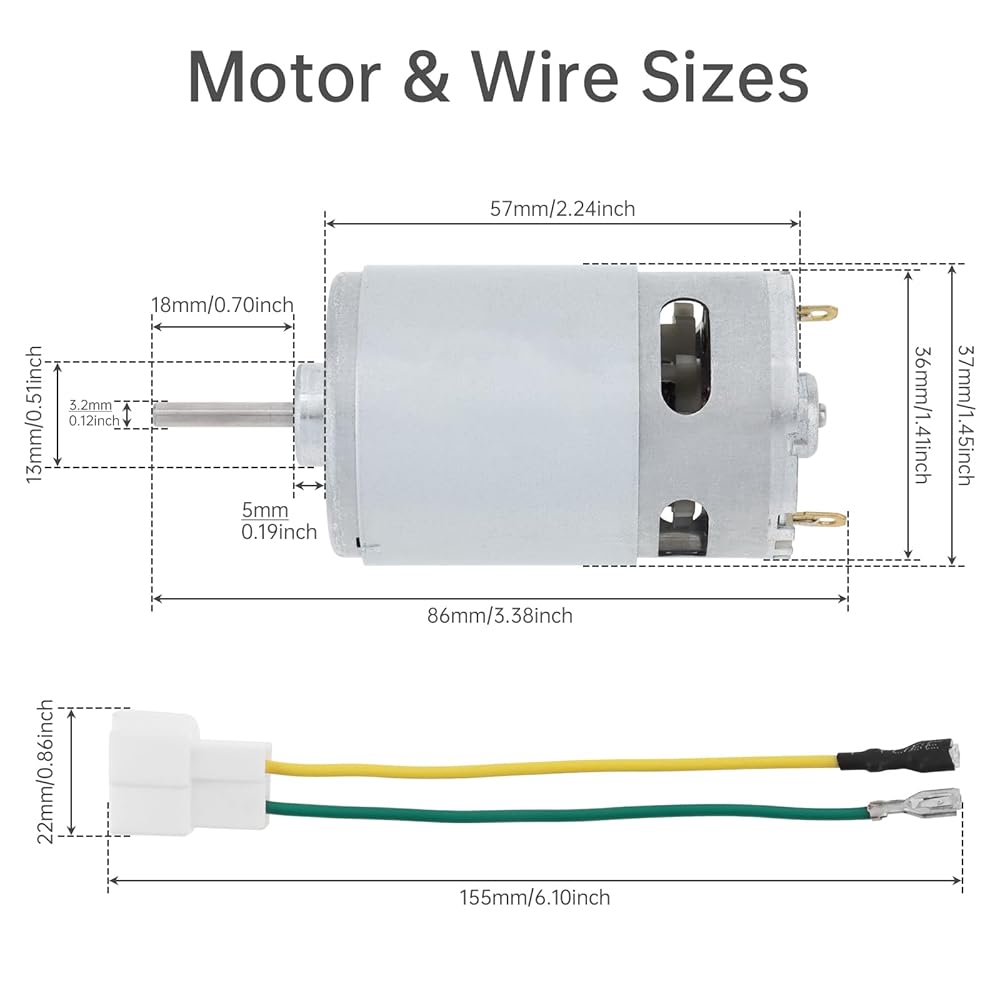

Shaft Diameter: 3.175mm
Output Shaft Length: 18mm

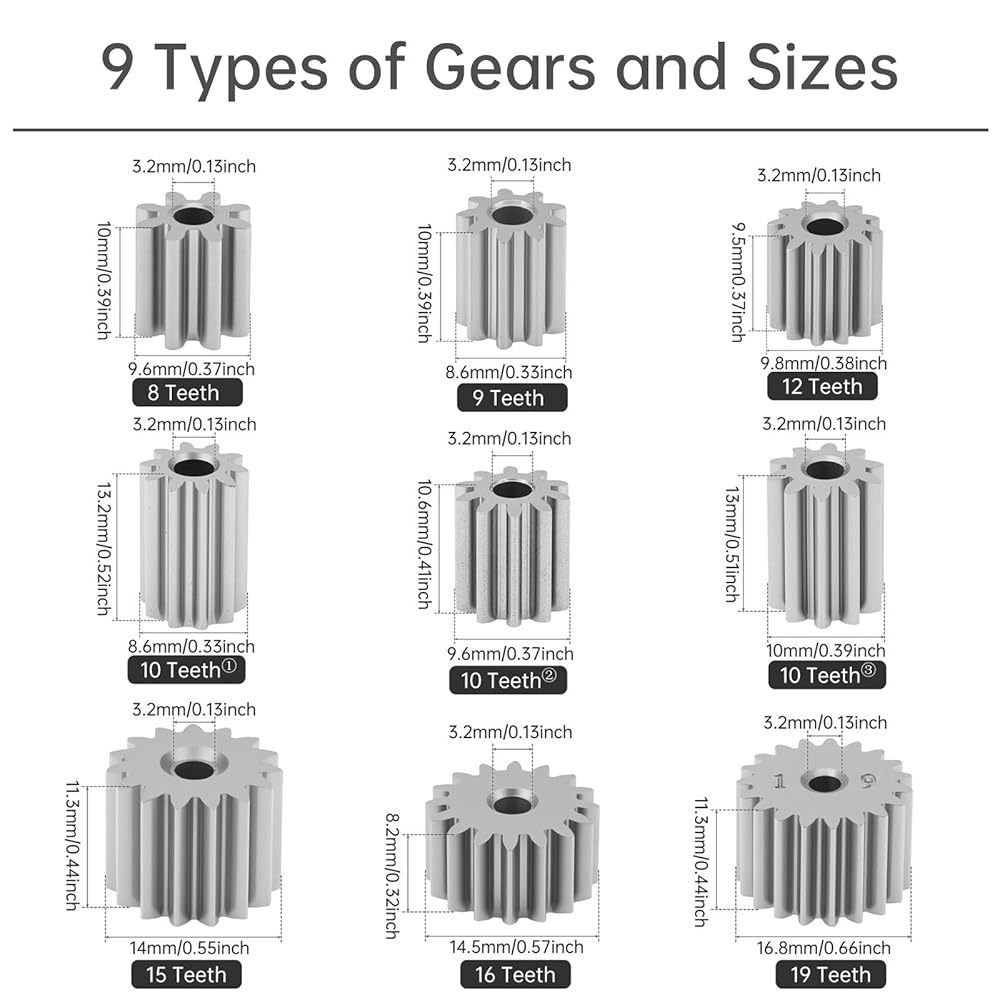

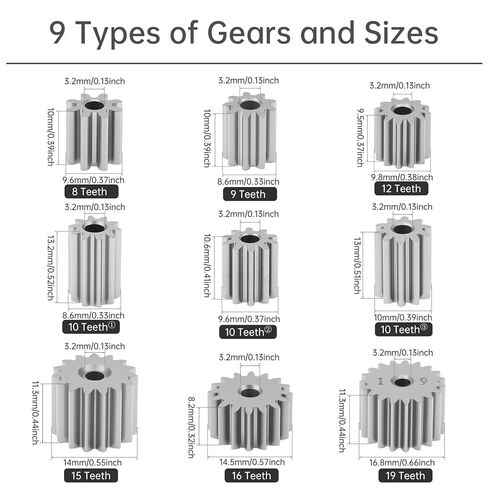

Gear Teeth: 8 - 19 Teeth

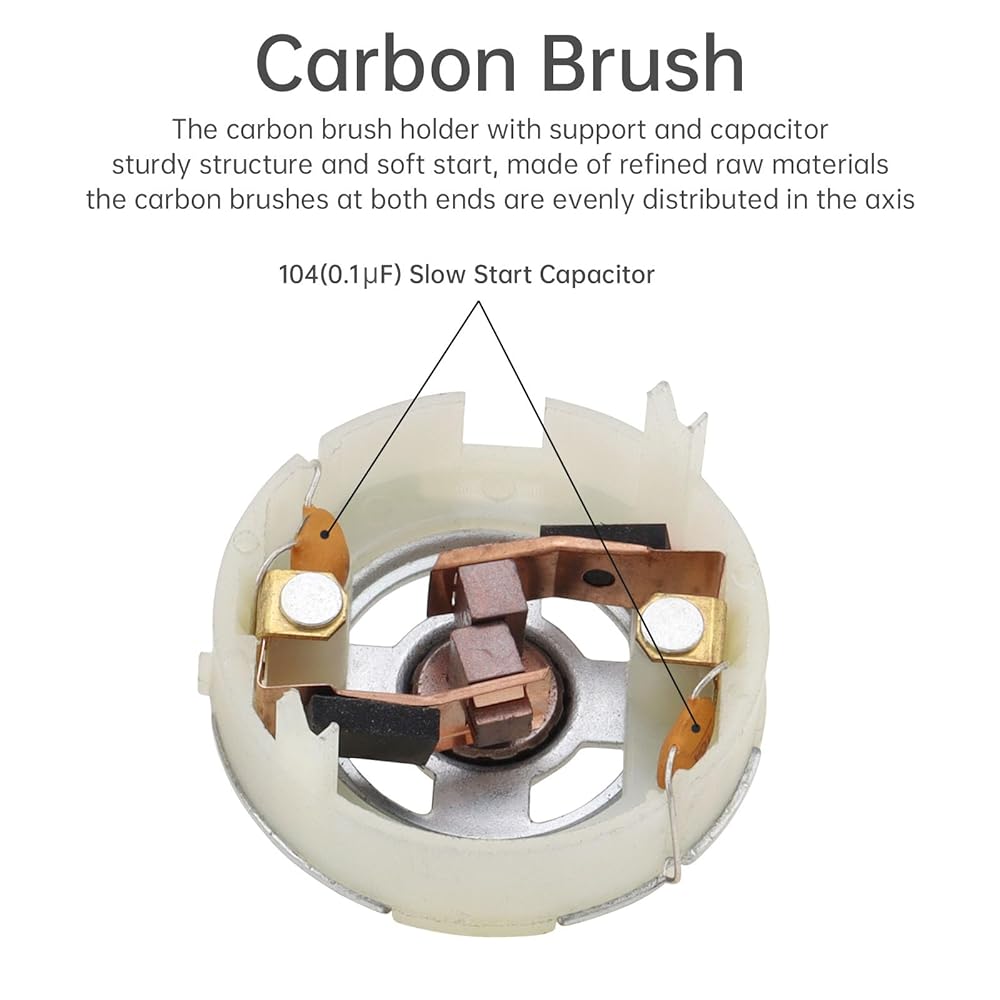

Commutation: Brush
Installation Screw Size: M3 (Not included)
Installation Screw Spacing: 25mm
Rotation Direction: CW/CCW
Stall Current: 45A

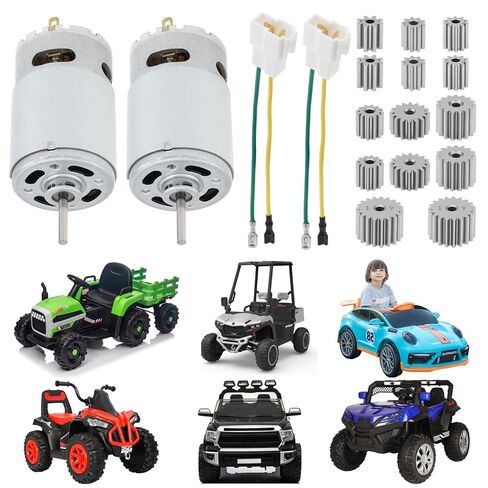

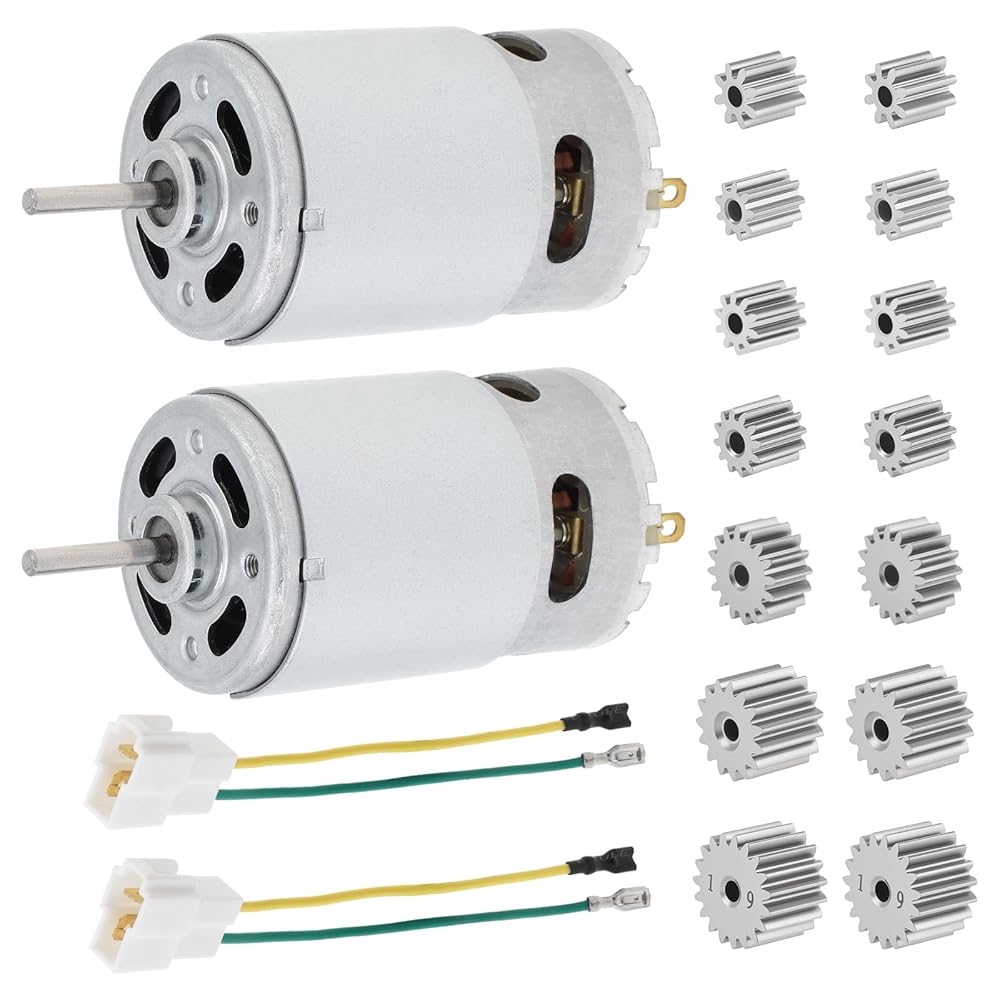

Product Name: RS550 DC Motor with 8 - 19Teeth Gears
Features:

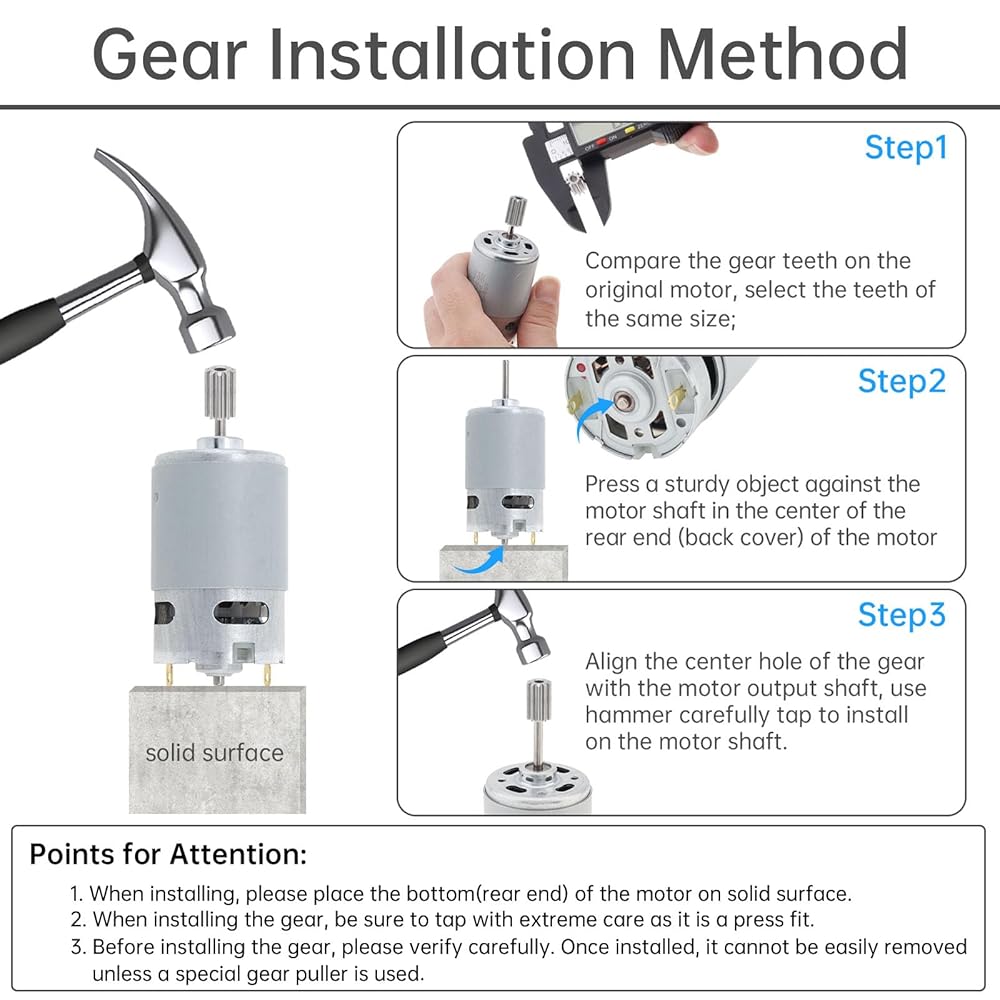

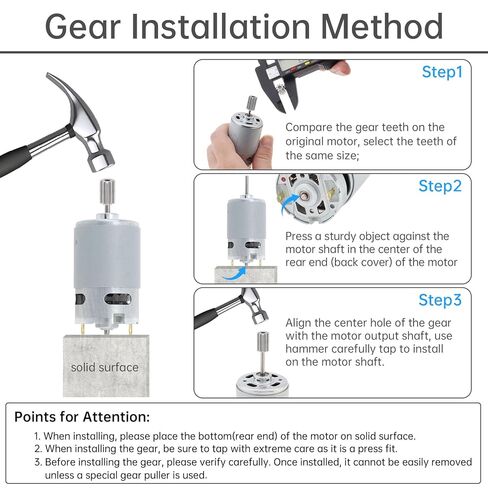

Gear Installation Steps and Attention Points:
1. Compare the gear teeth on the original motor, select the teeth of the same size;
2. Press a sturdy object against the motor shaft in the center of the rear end (back cover) of the motor;
3. Align the center hole of the gear with the motor output shaft, use hammer carefully tap to install on the motor shaft.
Note:
1. When installing, please place the bottom(rear end) of the motor on solid surface.
2. When installing the gear, be sure to tap with extreme care as it is a press fit.
3. Before installing the gear, please verify carefully. Once installed, it cannot be easily removed unless a special gear puller is used.
Note:
1.When installing the gear, be sure to tap with extreme care as it is a press fit. Once installed, it cannot be easily removed unless a special gear puller is used.
