Smaeti A2212 1400KV RC Brushless Motor 30A ESC Motor SG90 Micro Servo 8060 Propeller Set Compatible with RC Plane Quadcopter Fixed Wing Plane Helicopter Aircraft Repair Kit

KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm

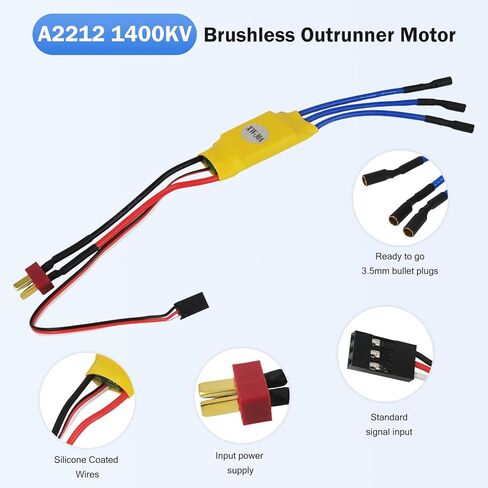

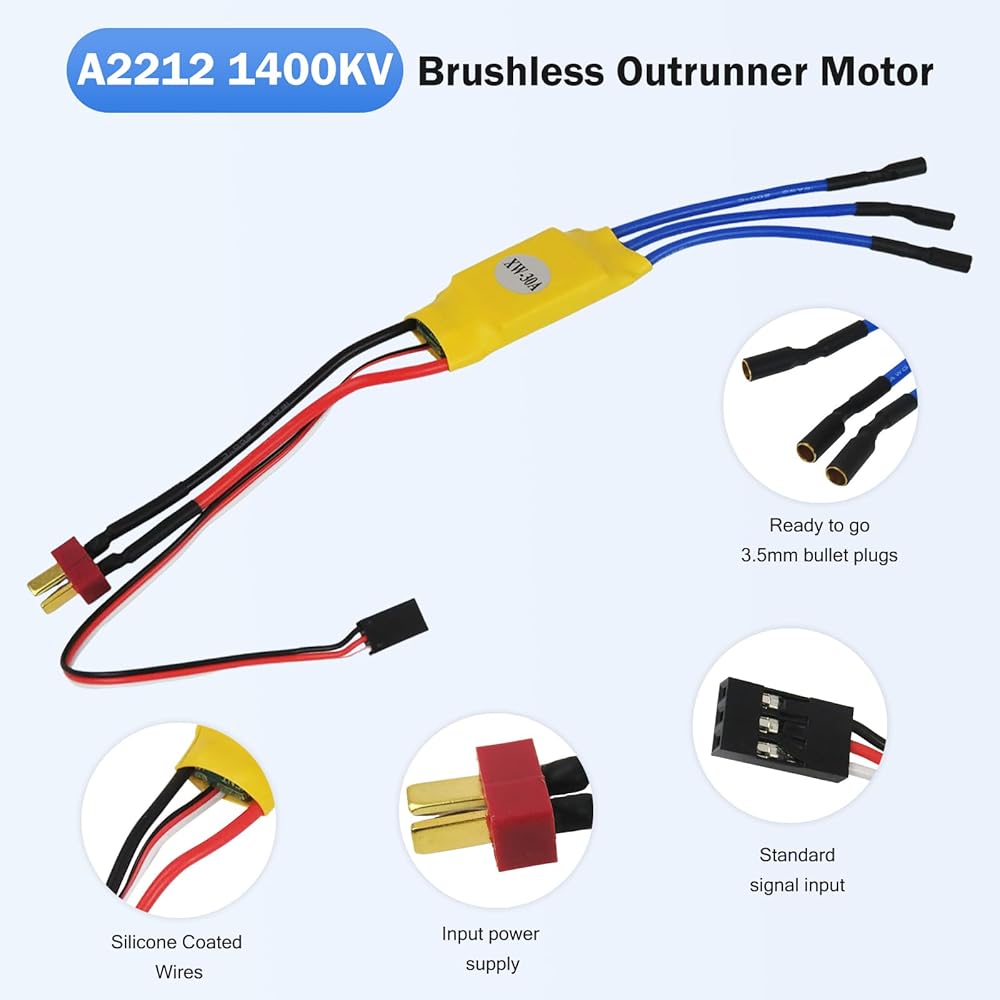

30A ESC Specification:
Continuous / peak current: 30A
Number of battery sections: 2-3S LiPo
BEC output: linear mode: 5V, 2A
Power cord: red -16AWG-100mm*1; black -16AWG-100mm*1
Output line: 190mm
Power plug: T Plug (can be customized according to requirements)
Output plug: 3.5mm bananer connect (female)

SG90 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

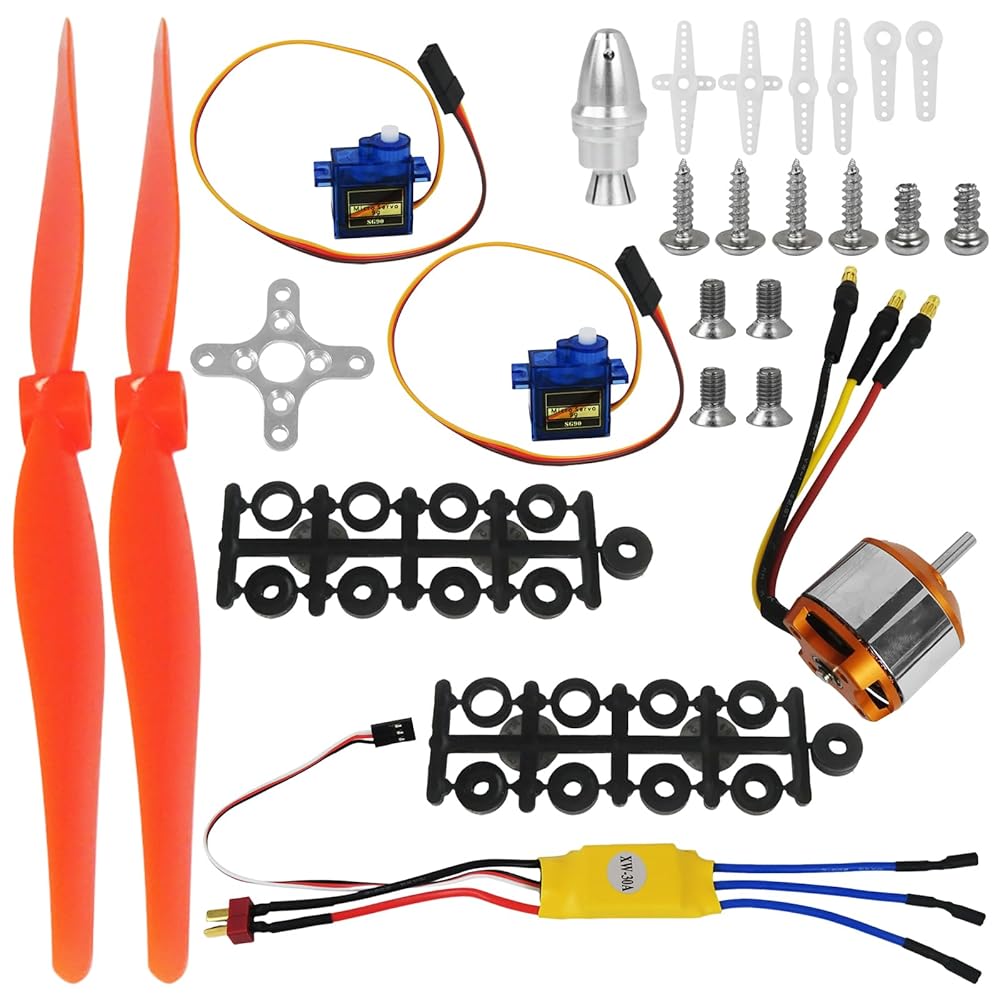

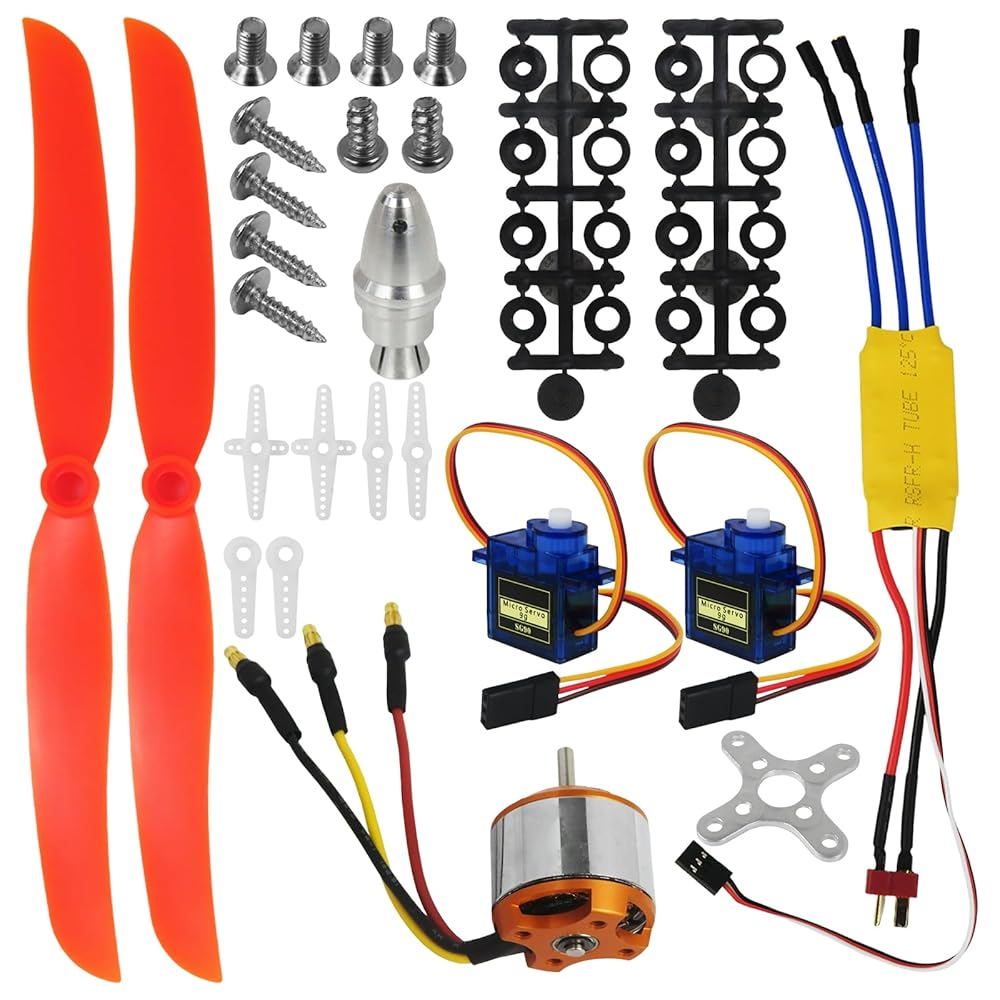

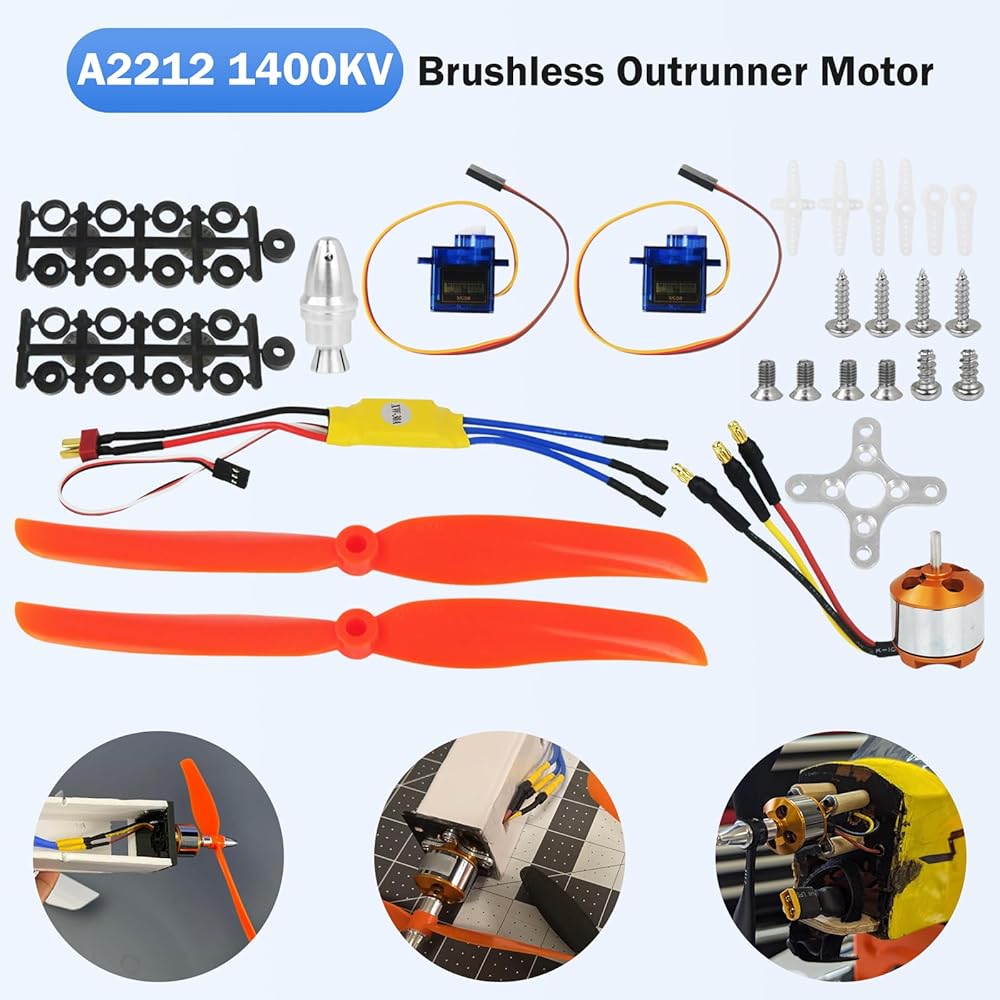

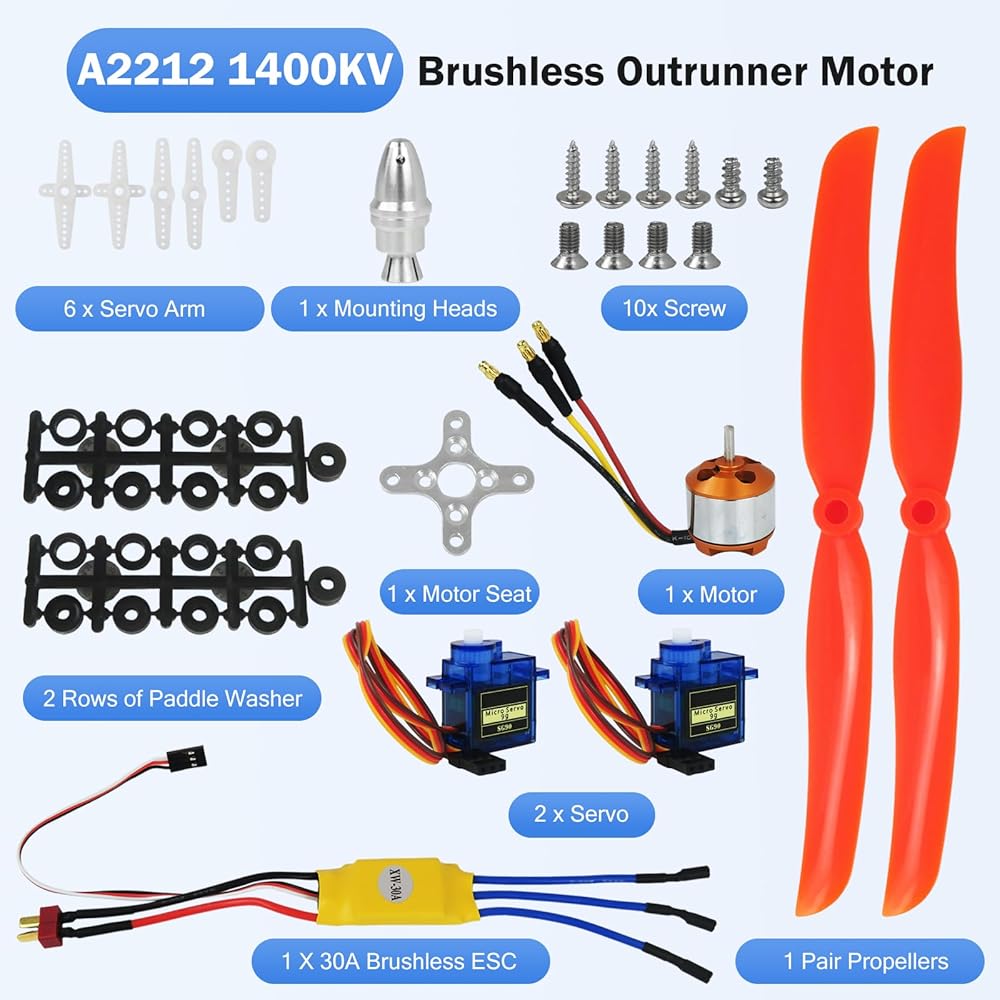

Product List: 1X A2212 1400kv Brushless Motor; 1X 30A Brushless ESC; 2X SG90 9G Servos; 1 Pair 8060 Propellers and other mounting Accessories.

Usage Tip: For first-time use, motor replacement, or inexperienced working of RC models, calibrate the throttle stroke as instructed. Incorrect setup may result in ESC overheating, smoking, or burning

How to set Throttle stroke calibration:
1.Connect the ESC with motor ,another end connect with receiver.
2.Turn on the remote controller and push the throttle to the highest point
3.Plug the ESC into ba*tteries
4.There has double click sound (the highest point of the throttle confirm)
5.After get the click sound take the throttle stick to the lowest point
6.Confirm the three click sound that means OK

Note: The three lines of the brushless ESC can be connected at will. If the steering is not correct, you can adjust any two of them.
