Adjustable Output power and High -efficiency Heat Sink： 5.8Ghz 40CH PIT/25mW/200mW/400mW/800mW/1000mW Switchable Video transmitter
IRC Tramp Protocol Support: Support to Modify the Image transmitter Parameters through the remote control .
Protective Shield Included : The VT5804HV max come with an optional Protective shield to keep your transmitter safe when the drone fall
Pit Mode Support: The Pit Mode Function allows you to safely test and Make adjustments to your drone without interfering with other pilots' frequencie
Why Choose us: we are the Original PandaRC VTX manufacture， If you have any questions or need any help, please do not hesitate to contact us, we will reply to you in 24 hours .

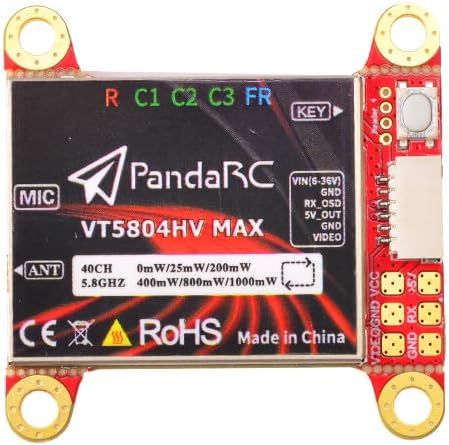

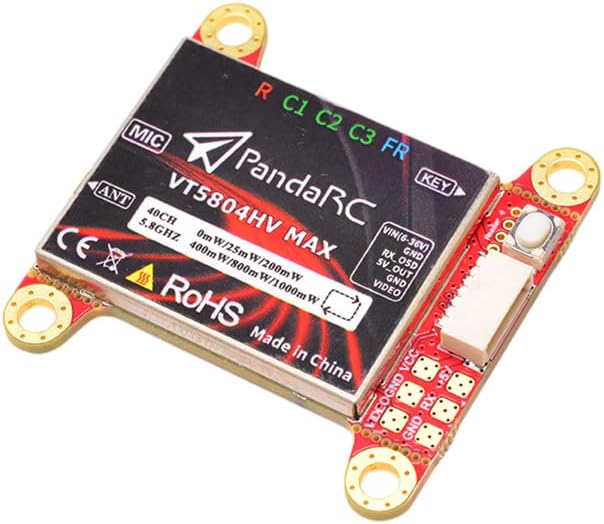

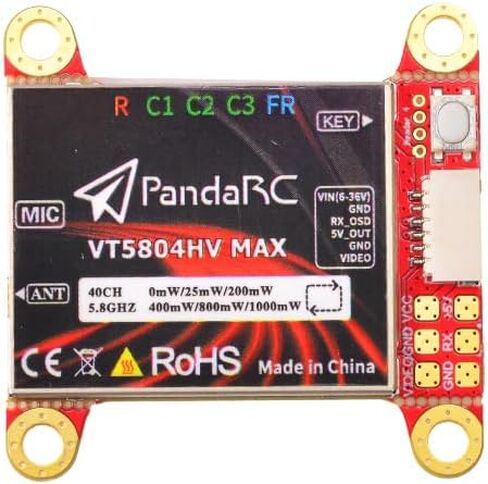

Item： PandaRC VT5804HV MAX VTX FPV Transmitter

Patameters:

Product name : VT5804 HV MAX

Output power : 0-25-200-400-800-1000mW

Input voltage : 6V-36V

Parameter adjustment method : Key /OSD

Working current: 40CH(A-B-E-F-R)

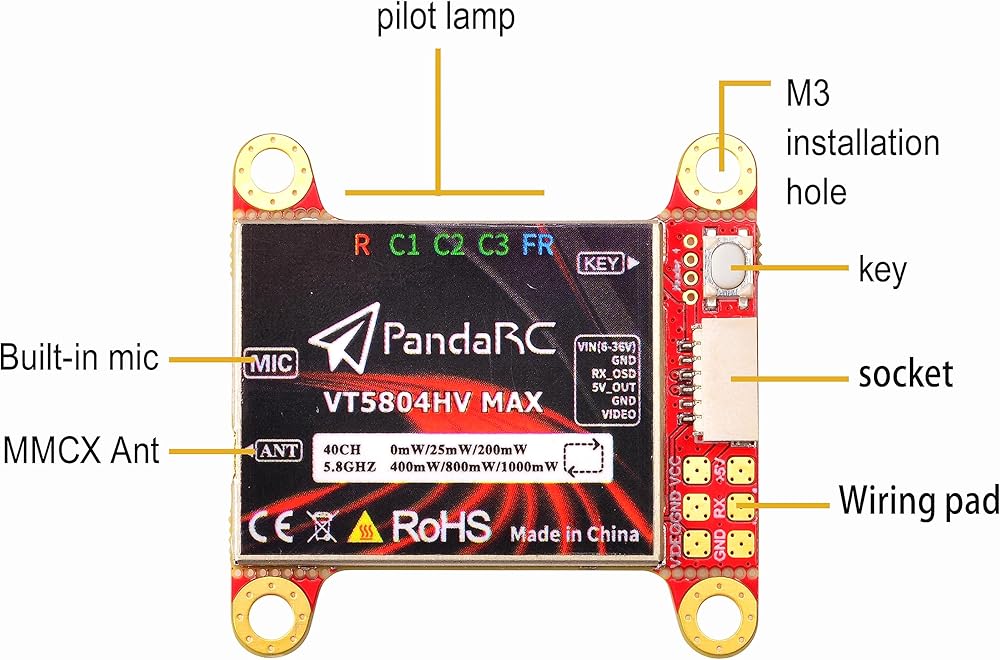

Antenna Interface: MMCX

Installation hole : 30.5*30.5mm

Size : 36*36*4.2mm

Video Format: NTSC/PAL

Weight : 7g

Main Features:

Stable Output power, Long transmission Range (0.5KM+@25mW 1KM+@200mW; 2KM+@400mW; 5KM+@800mW,10KM+@1000mW)

0mW/25mW/200mW/400mW/800mW/1000mW Switchable

Channel. Frequency and output power controlled though OSD configuration

Fast Frequency Locking Function, start up does not interfere with companions

Support Self-checking Function, you can quickly check whether the VTX works normally

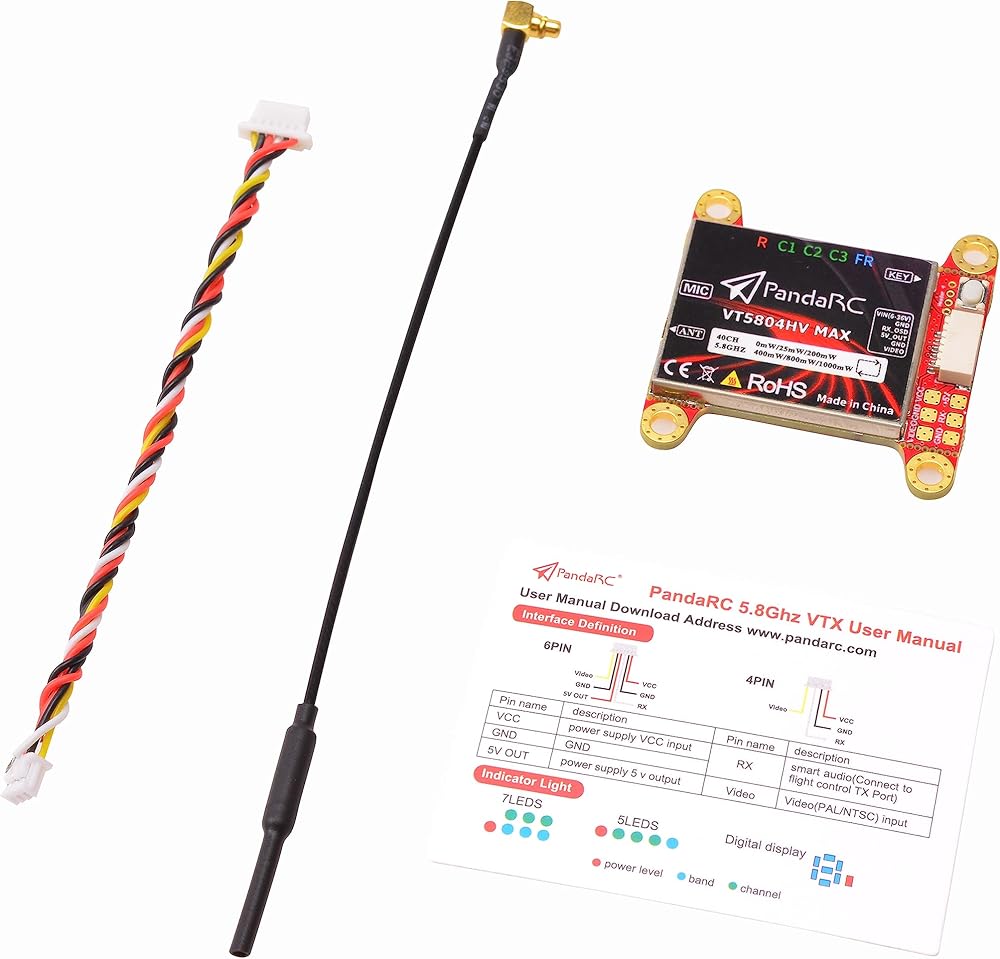

Package Including :

1XPandaRC VT5804 HV max

1XAntenna
