Battery Disconnect SwitchCompatible with 12-16 V Systems

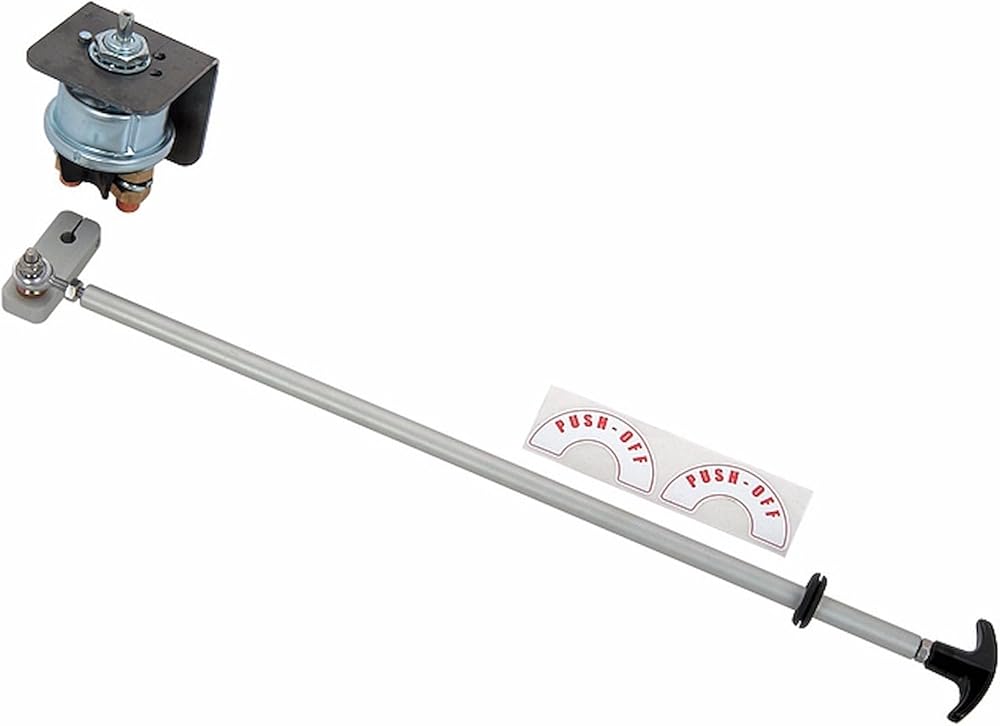

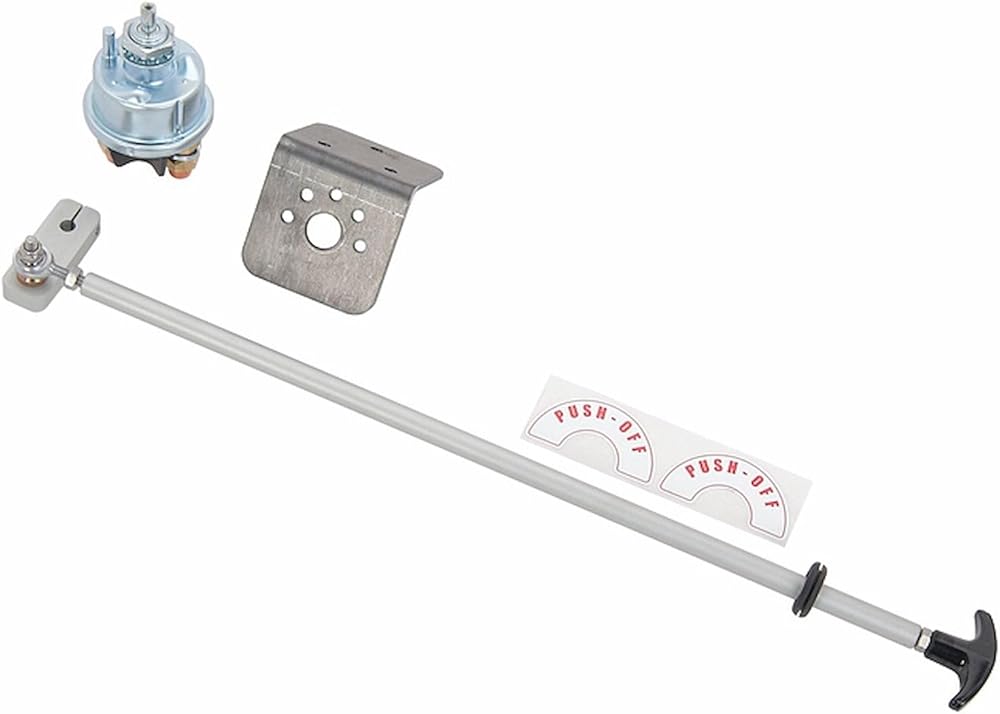

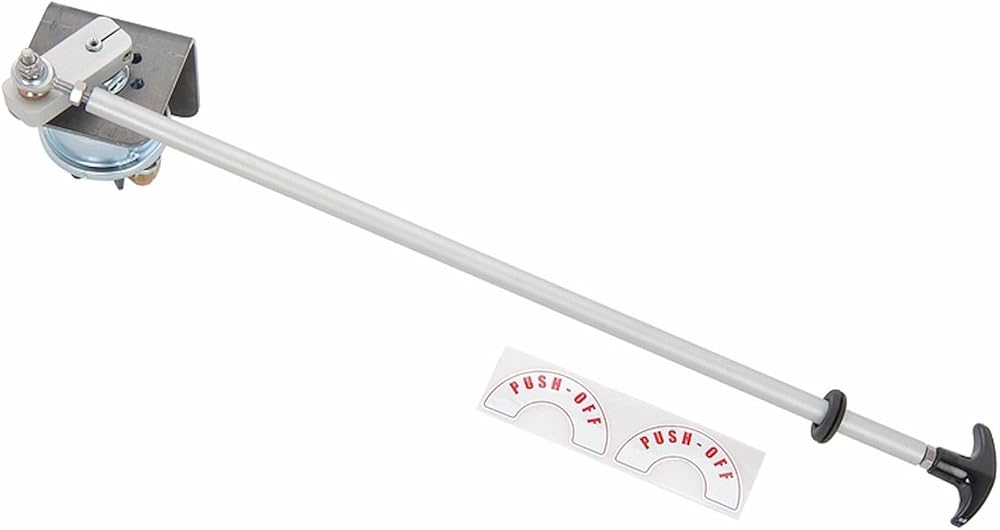

Includes:17 7/8 in. Push-Pull RodSwitch (300 amps Continuous/2000 amps Momentary)Mounting BracketT-Handle"Push Off" DecalMade in the USA Features:Single Pole, Two Positions: Off-On; Disconnects battery circuit only.Push-Pull Rod Assembly for easy shut downUL listed: Not listedSwitch Rating: 6-36 V DC; 300 amp continuous, 2000 amp intermittent 30 sec. On, 3 min. OffSwitch Terminals: (2) 1/2 in.-20 thread copper studsSwitch Actuator: Aluminum Single Throw lever with Push-Pull RodSwitch Mounting Stem: Brass, 3/4 in.-16 thread, 23/32 in. long, fits supplied mounting bracketSwitch Contacts: CopperSwitch Case: Plated steelInstallation: L Mounting Bracket can be located almost anywhereIncludes:(1) Disconnect Switch(1) Push-Pull Rod : 17 7/8 in. L x 1/2 in. O.D. with 1/4 in.-20 & 1/4 in.-28 threaded ends(1) Rod End: 1/4 in.-28 thread & 1/4 in. I.D. mounting hole(1) Set Screw: 1 in. L x 1/4 in.-28 thread(1) 1/4 in.-28 thread nut(1) 1/4 in.-20 thread nut(1) 1/4 in.-20 thread nyloc nut(1) 1/4 in. flat washer(1) 1 3/4 in. x 1/4 in.-28 thread bolt(1) Sleeve: Flat, 5/8 O.D. x 1/4 in. I.D.(1) Sleeve: Tapered, 5/8 O.D. x 1/4 in. I.D.(1) Aluminum Switch Arm(1) Switch Mounting Bracket(1) Ergonomic T-Handle(1) Rubber Grommet(1) "Push Off" Decal
