Specifications:
Rows: 1-Row
Material: Aluminum
Core Height: 23 5/8"
Core Width: 14 1/16
Inlet Size: 1 1/4"
Outlet Size: 1 1/4"

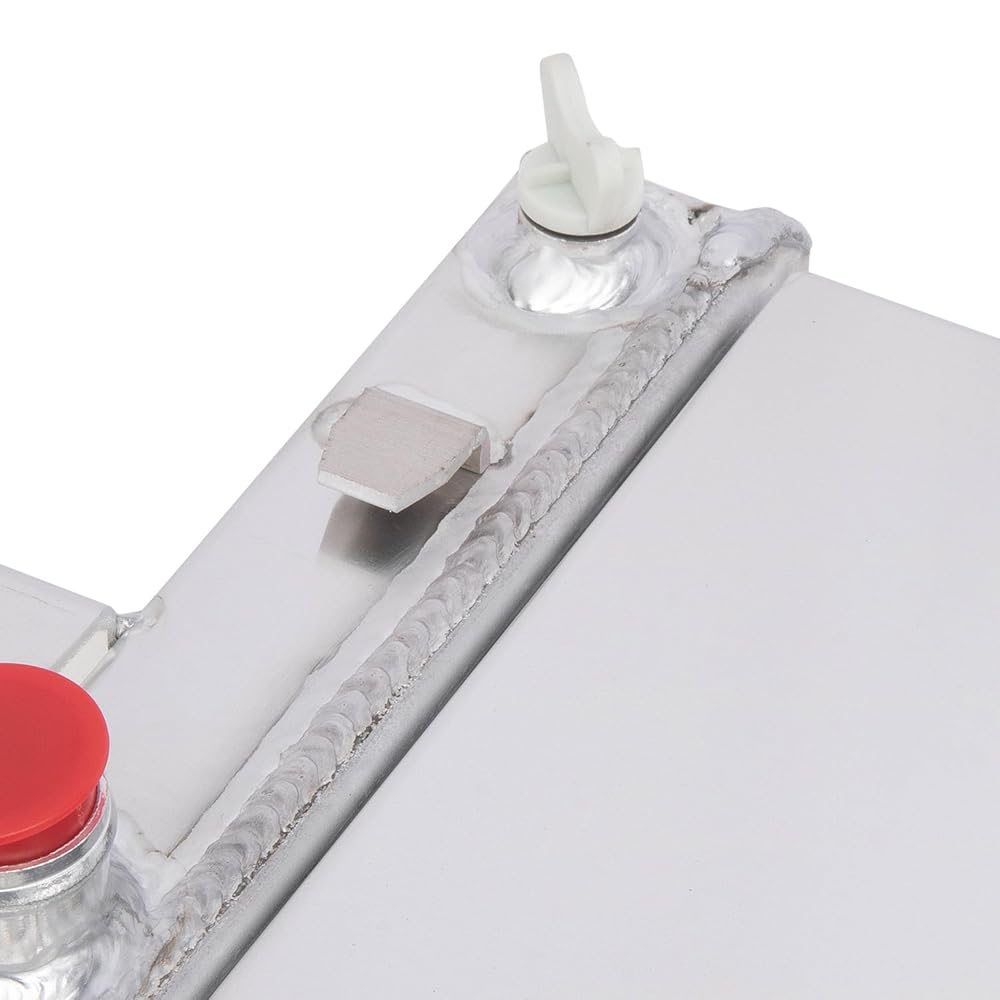

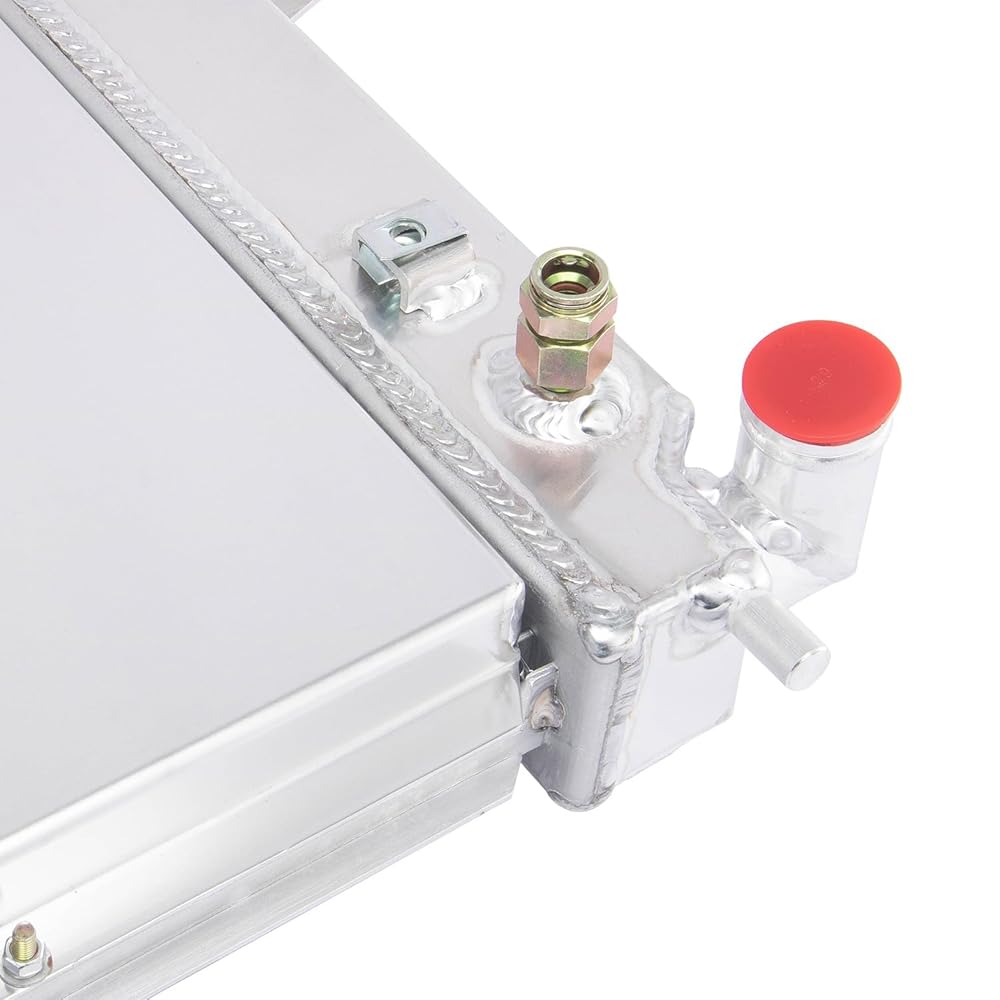

100% Tig welded,no epoxy
Application:
For Saturn SC1 1994-2002 L4 1.9L
For Saturn SC2 1994-2002 L4 1.9L
For Saturn SL 1994-2002 L4 1.9L
For Saturn SL1 1994-2002 L4 1.9L
For Saturn SL2 1994-2002 L4 1.9L
For Saturn SW1 1994-1999 L4 1.9L
Interchange Part Number: CU2191, 41-2191A, 52463488, 52472670, 52474360, 52476876
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.

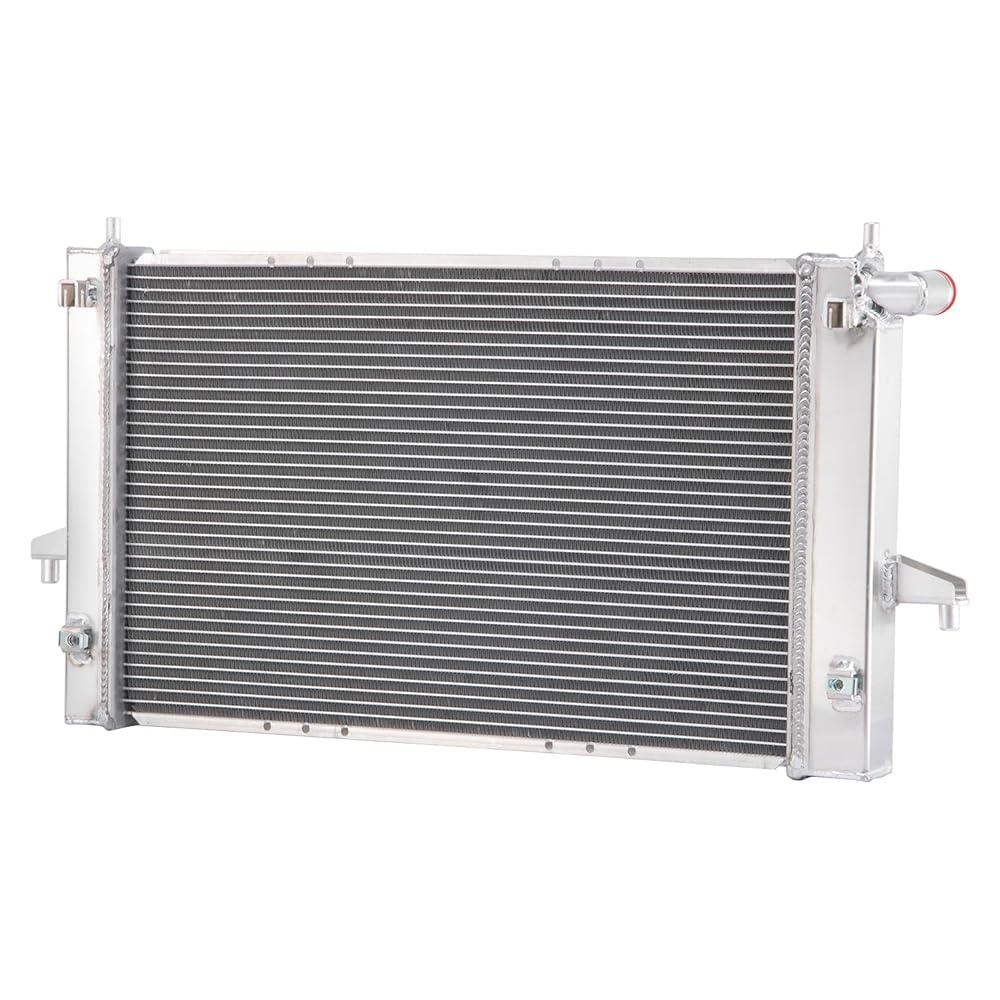

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones.

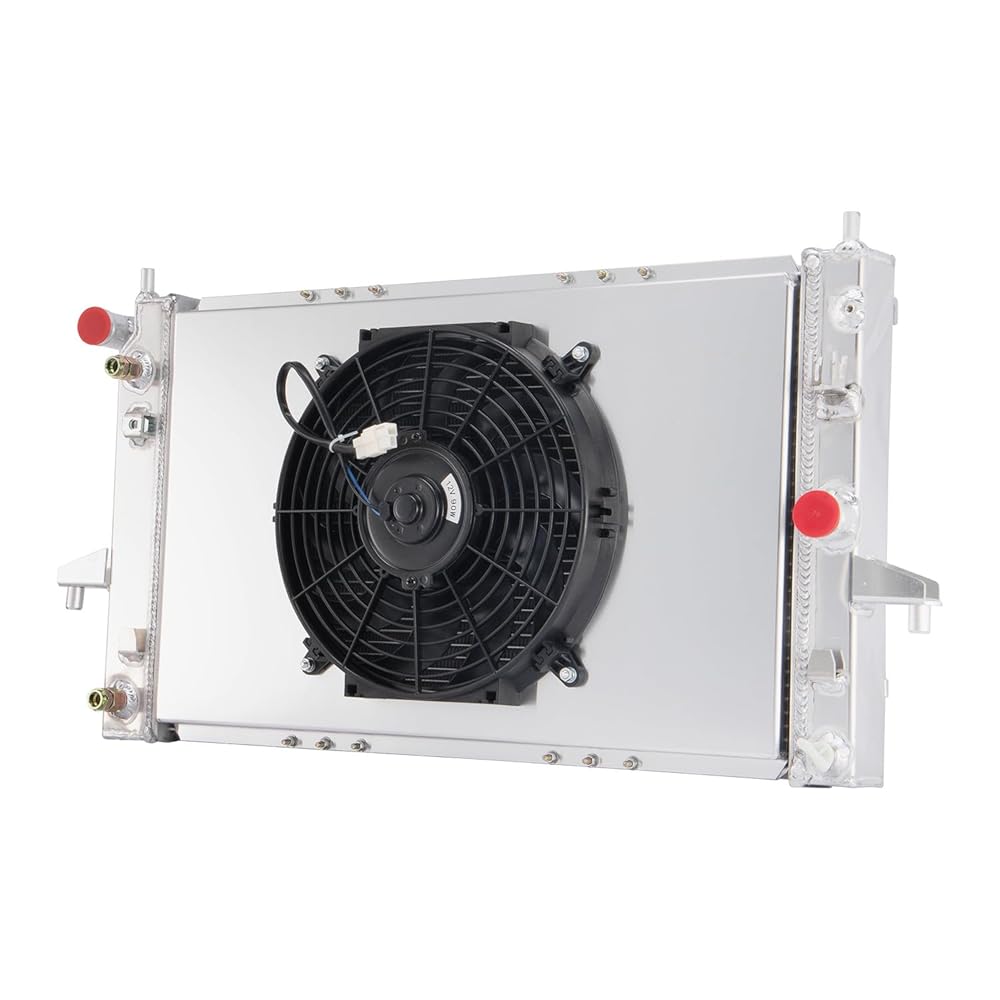

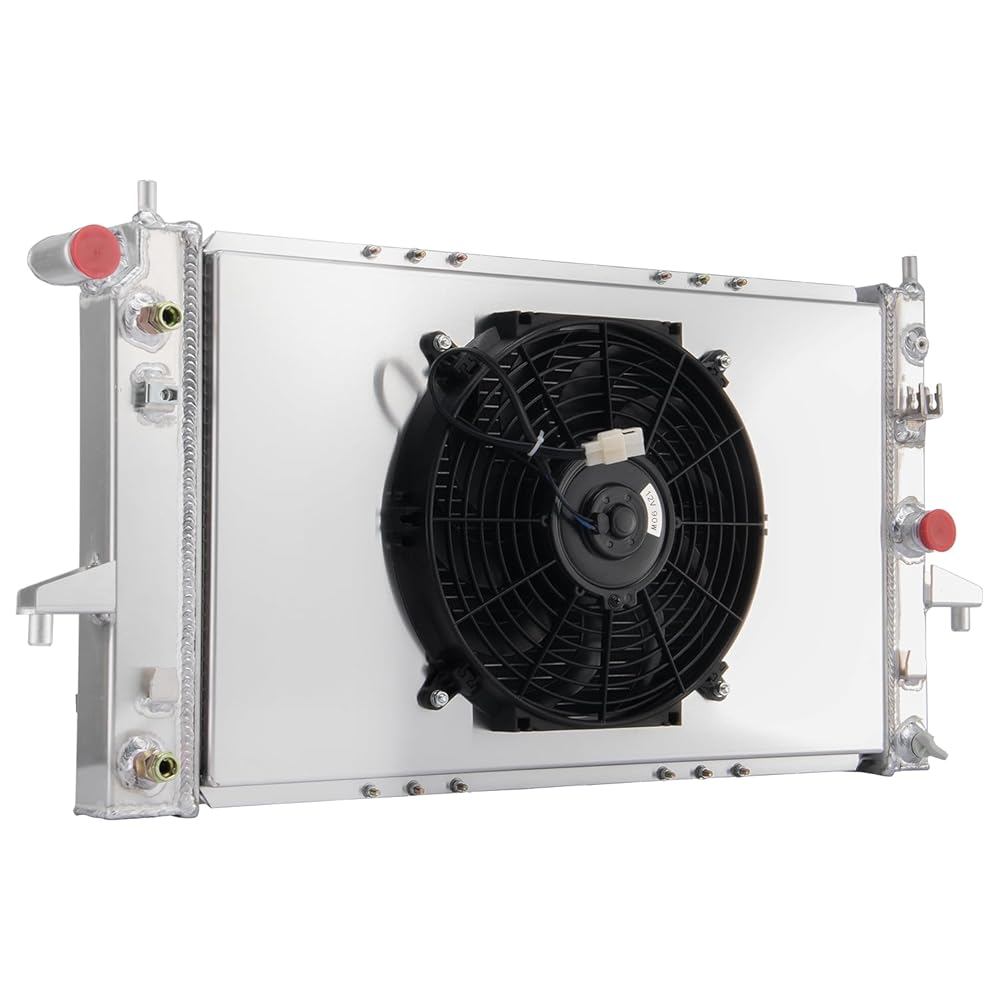

Aluminum Shroud+Fan:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
