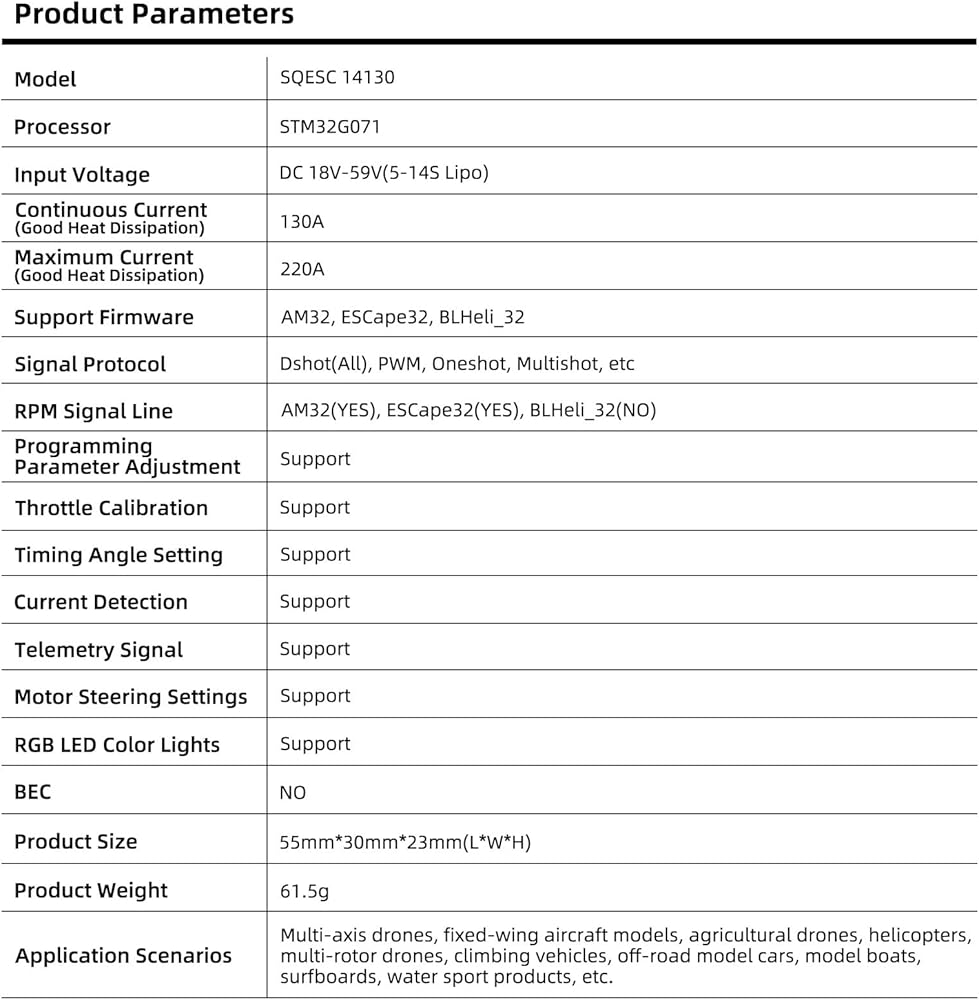

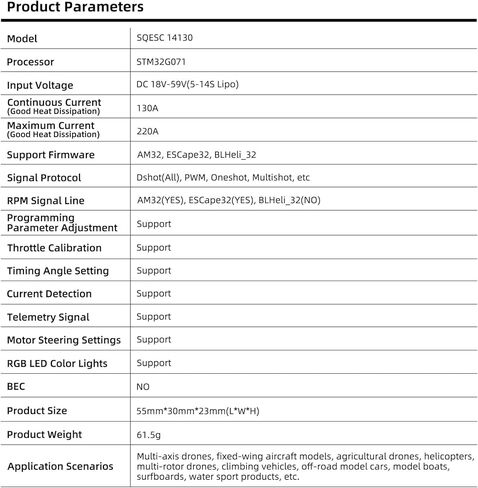

Parameters:

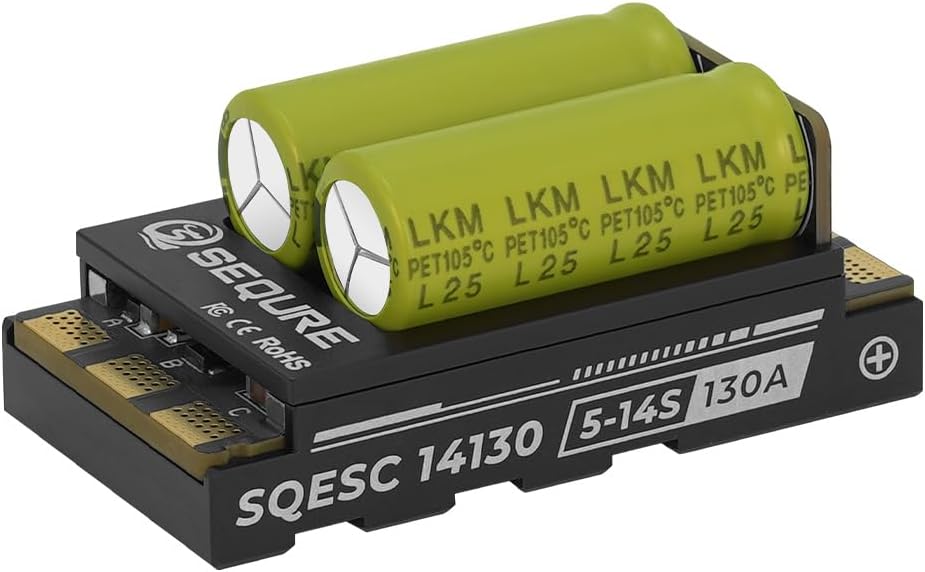

Model Name: SQESC 14130
Processor: STM32G071
Input Voltage: DC 18V-59V(5-14S Lipo)
Continuous Current (Good Heat Dissipation): 130A
Maximum current (Good Heat Dissipation): 220A
Firmware: AM32
Signal Protocol: Dshot(All), PWM, Oneshot, Multishot, etc.
Programming Parameter Adjustment: Yes
Motor Steering Settings: Yes
RGB LED Color Lights: Yes
Timing Angle Setting: Yes
Throttle Calibration: Yes
Current Detection: Yes
Telemetry Signal: Yes
RPM Signal Line: Yes
BEC: NO
Product Size: 55*30*23mm(L*W*H)
Product Weight: 61.5g
Application Scenarios: Multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc

Main Features:
Adopting 32-bit high-performance processor STM32G071. It can program multiple motion modes of a motor, like unidirectional, bidirectional, and brake.

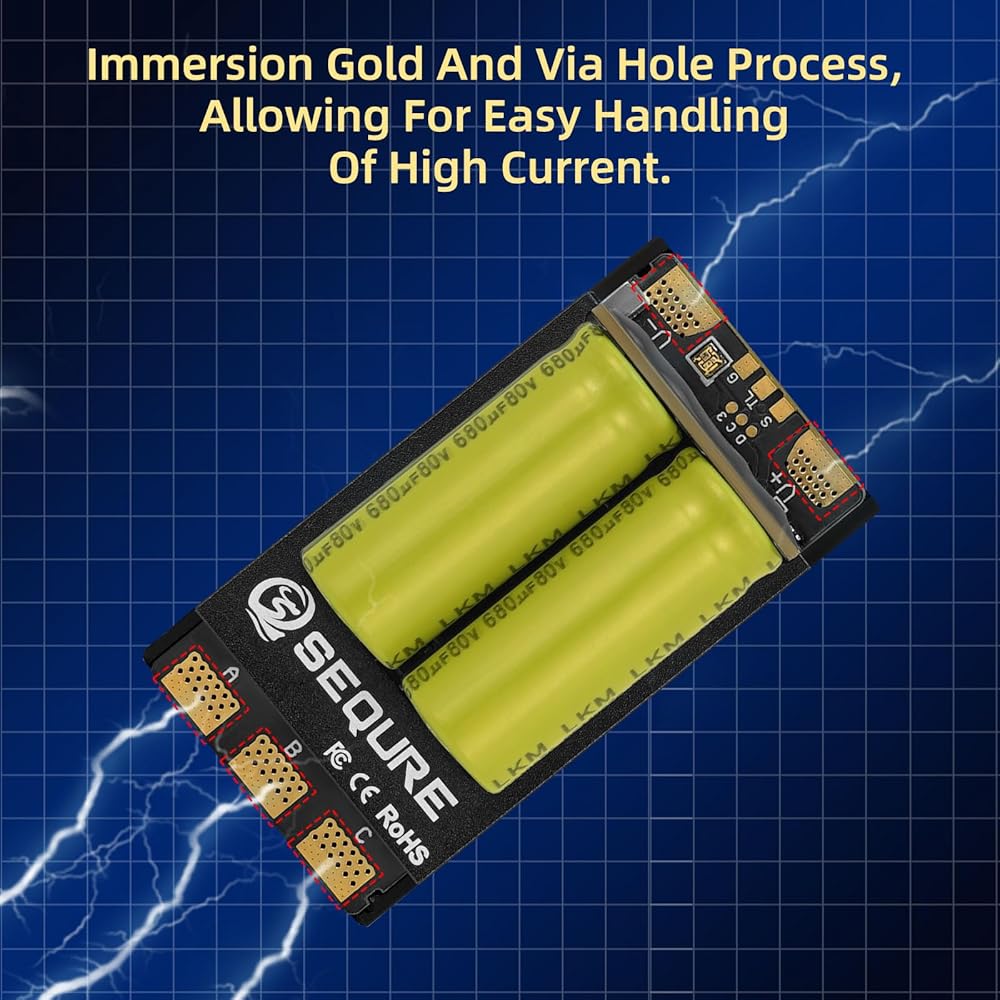

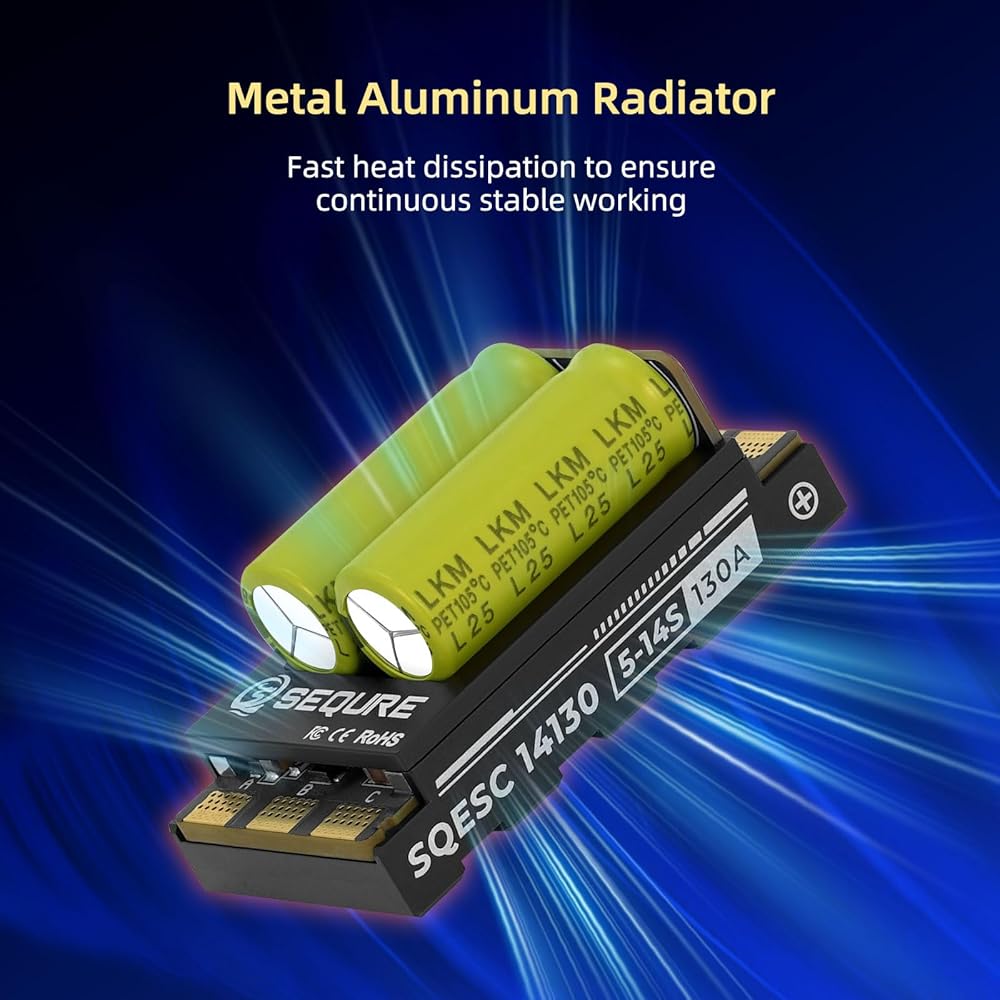

Equipped with high-power MOSFET, and combines with metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.

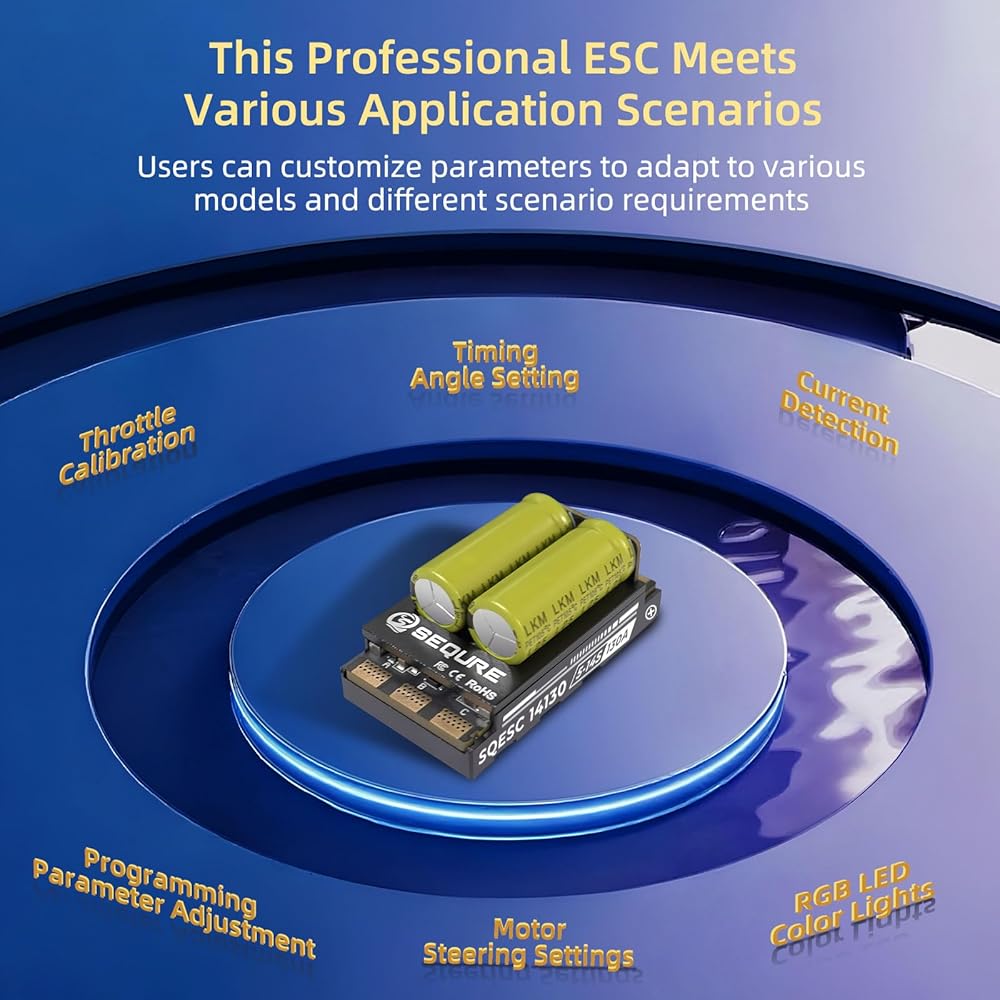

Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
Onboard RGB LED color light settings, multiple LED colors can be customized.
