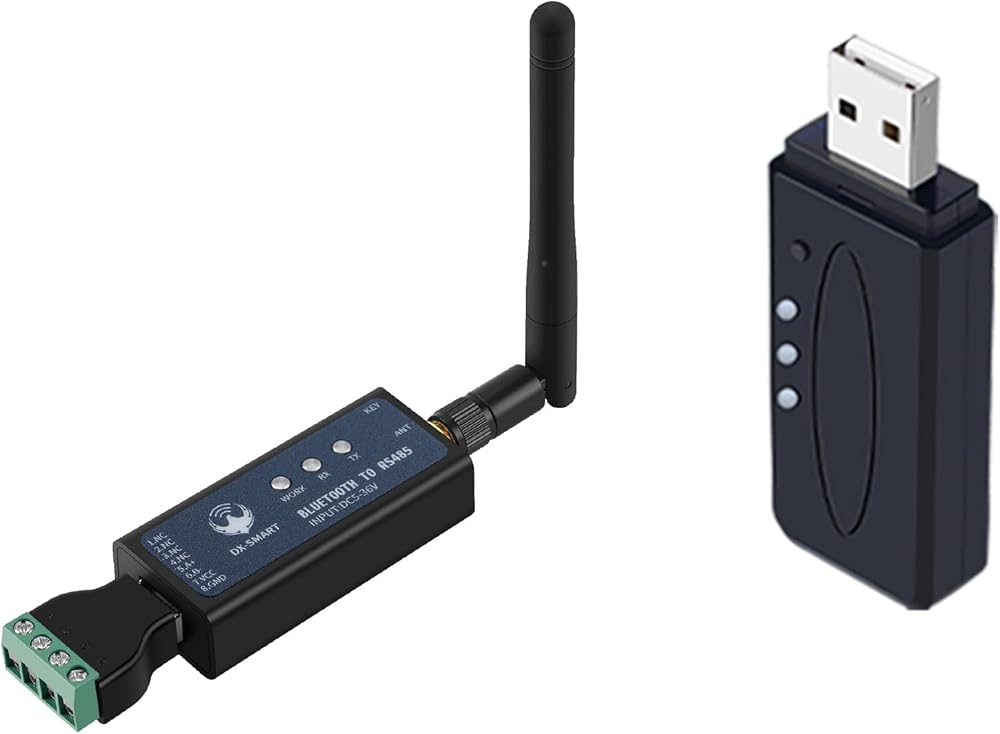

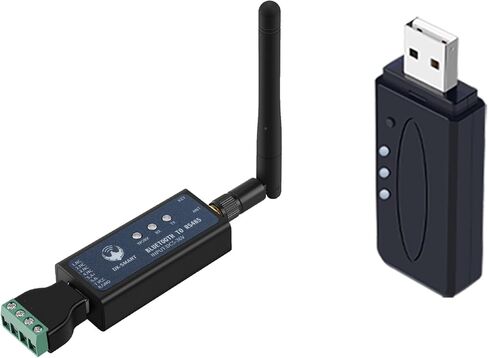

DX-CP24 RS485 to Bluetooth Serial Adapter Industrial Wireless Bluetooth Communication Module to RS485 Converter, Change 485 Wired Device to Wireless, Supports Modbus Protocol, DC 5-36V (for Device)
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features
Built-in BLE 5.1 Bluetooth Module(DX-BT27): This product is suitable for Changing two RS485 devices from wired to wireless communication. Has paired and can be connected directly when powered on.
Wired RS485 Devices to Wireless: Bluetooth to RS485 Converter is very easy to use. Due to its fast communication speed, stability, reliability and security, it is ideal for updating PLC programs, frequency converters, motors, relays, sensors, temperature control equipment, industrial instruments, CNC machine tools and other industrial equipment.
RS485 Communication Port: default 9600bps/8/n/1 (baud rate/data bit/no parity/stop bit). Supported baud rate: 2400,4800,9600,19200,38400,57600,115200. The VCC power supply voltage range is DC 5V-36V.
Baud rate switching method: Briefly press the key twice to switch the baud rate once. The times of flashes of the blue light represent the baud rate number; One flash is 2400, two/4800, three/9600, four/16200, five/38400, six/57600, and seven/115200
Technical Support: Out of the box, plug and play. You can find out testing softwares,user's manuals,devlopment documents,and all resources related to this bluetooth module on our offical website. You can access the user guide for complete product information by clicking on the product guide and document link below.
