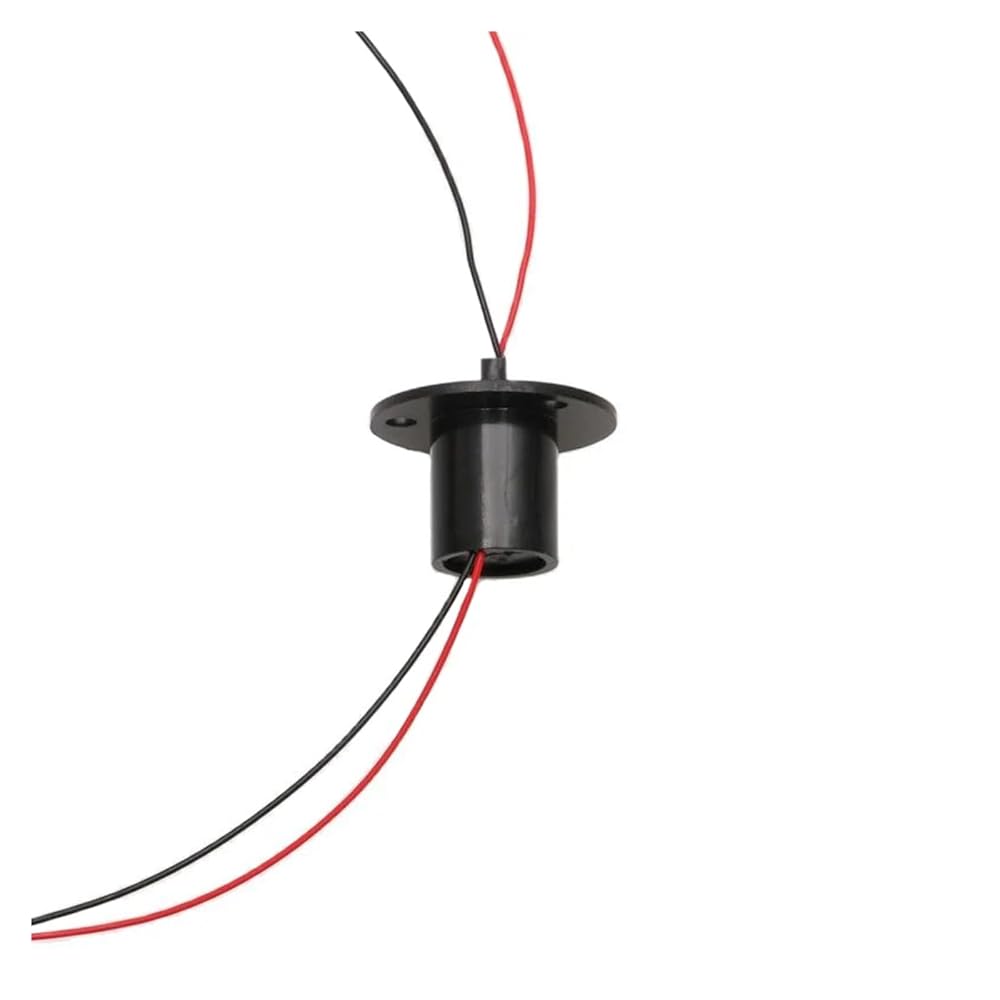

Small Capsule Slip Ring 1PC 2/4/6/8/12/18/24/36 Channels Wires Capsule Slip Ring 1-2A Slipring 8.5/12.5/15.5/22mm Rotary Conductiv Joint Connectors(U Type 8.5mm 4ch) in Saudi Arabia

Dia 12.5mm 12ch 2A

SAR 167
Brand
HDBNCAP
Weight
20 g
ColorDia 12.5mm 12ch 2A
– 1 +

Special Features

  • 1.High temperature resistance, corrosion resistance, oxidation resistance, hardness, wear resistance, pressure resistance
  • 2.Smooth operation, low torque, and minimal resistance fluctuations
  • 3.Small slip ring, large load-bearing capacity, wide applicability, long service life
  • 4.Reliable quality, safe and durable, waterproof and dustproof
  • 5.Worry free rotation, stable current, easy to use

Description

- Rotation Speed: max. 250rpm
- Channels: 2-36 channel
- Rated Voltage: 220VAC/DC
- Rated Current: 1A,1.5A,2A,10A,15A/channel
- Working Temp.: -20~+60
- Wire Specification: AWG32, AWG30, AWG28, AWG16
- Wire Length: standard 200mm
- Pressure Strength: >(=)500V/50Hz
- Insulation Resistance: 500M Ohm/500VDC
