8in1 Parameter Display In One Colourful DIsplay
Voltage, Current, Power, Timing, Electric Energy, Temperature, Power Factor
intelligent control. Where there is signal, you can control the device whenever and wherever you want, unlimited distance.
Power Failure Protecting Function (KWS-302WF and KWS-302L Support):
Support over-voltage, under-voltage, over-current, over-power, over-temperature, Timed Power Off protections setting, and screen hibernation setting.
Specifications:
Name: 8in1 Energy Meter
Material: ABS+PC

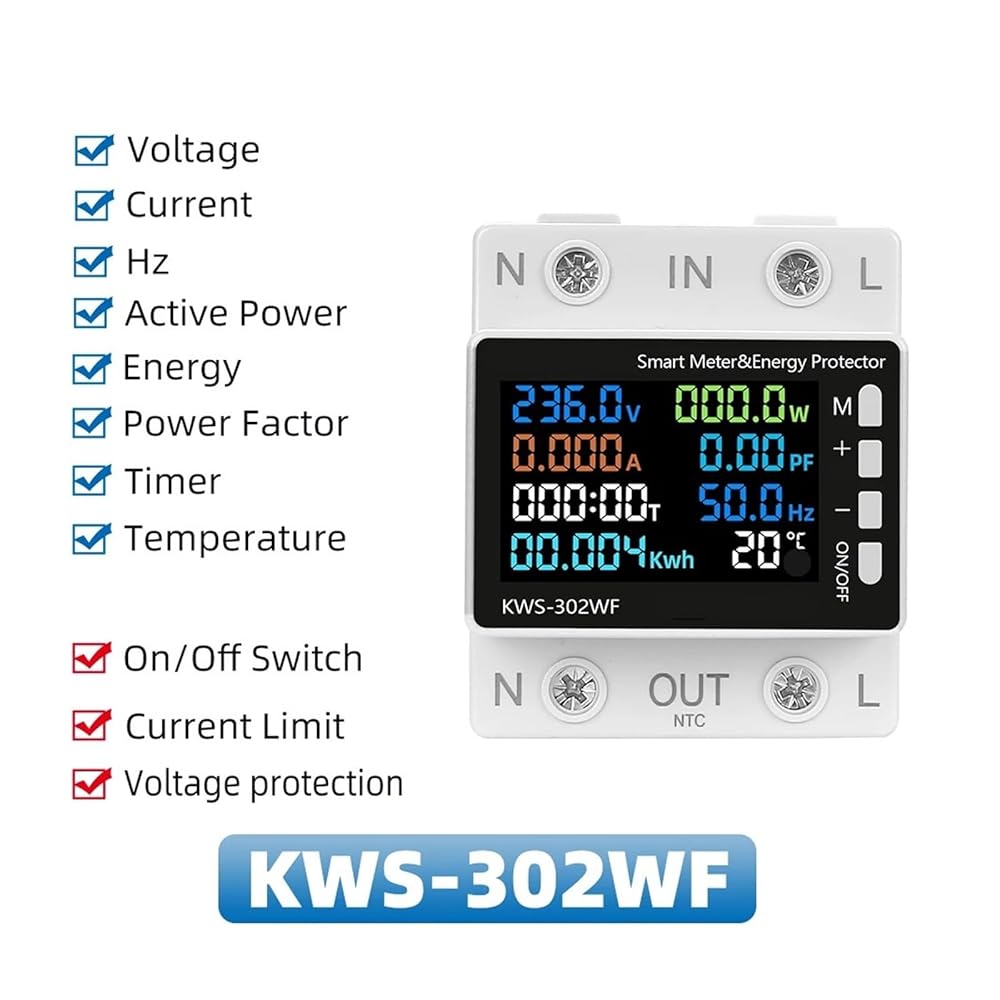

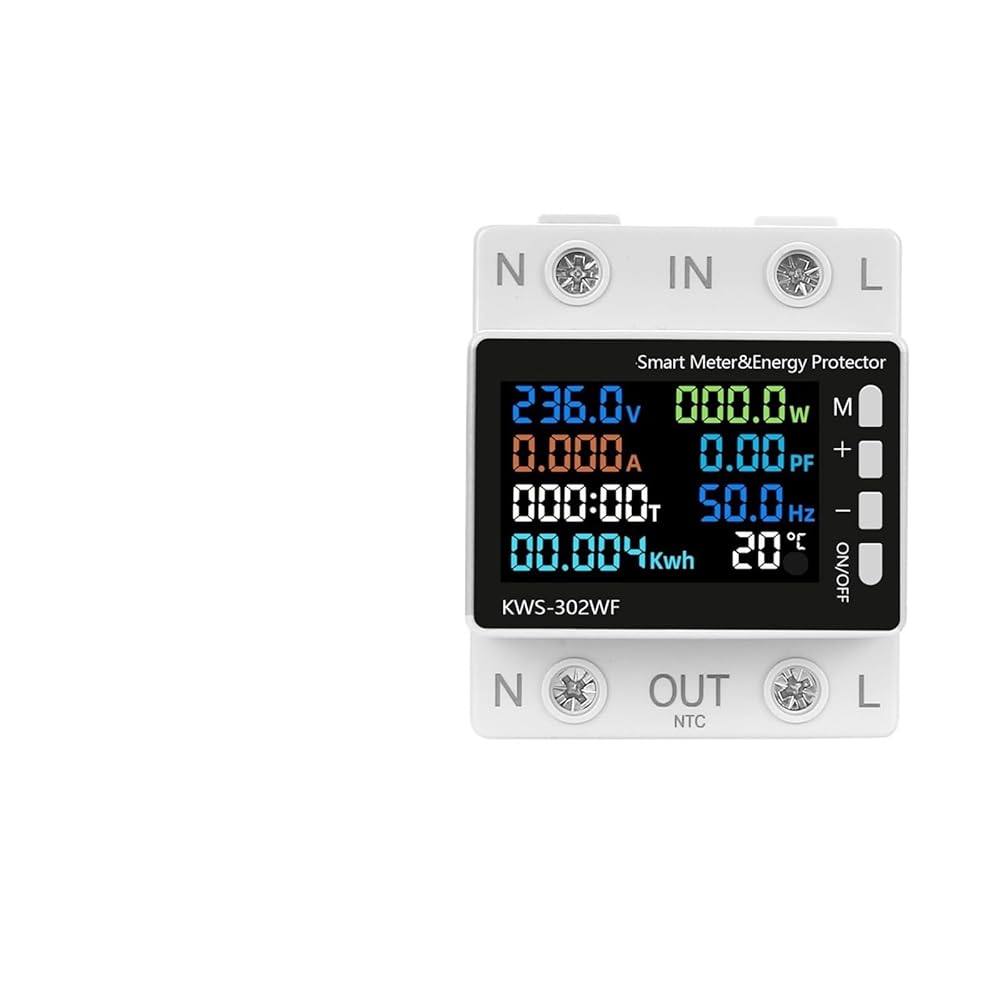

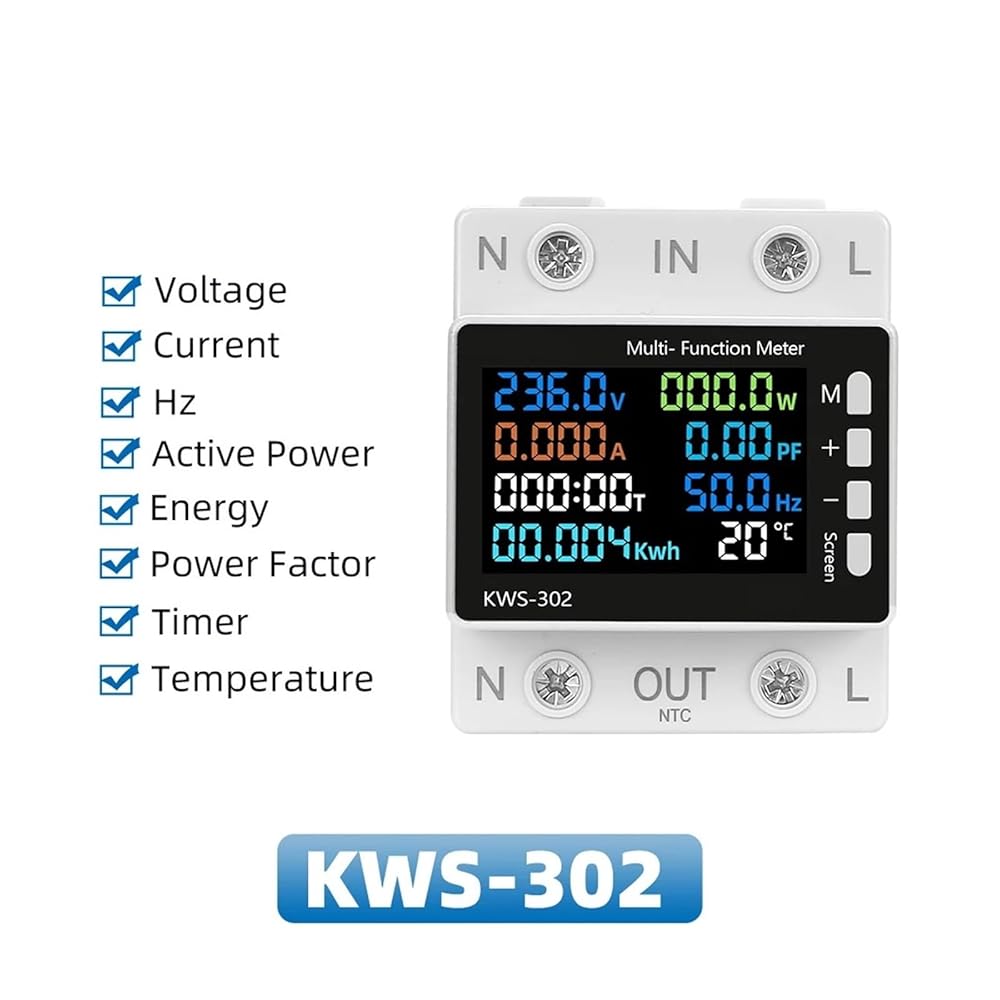

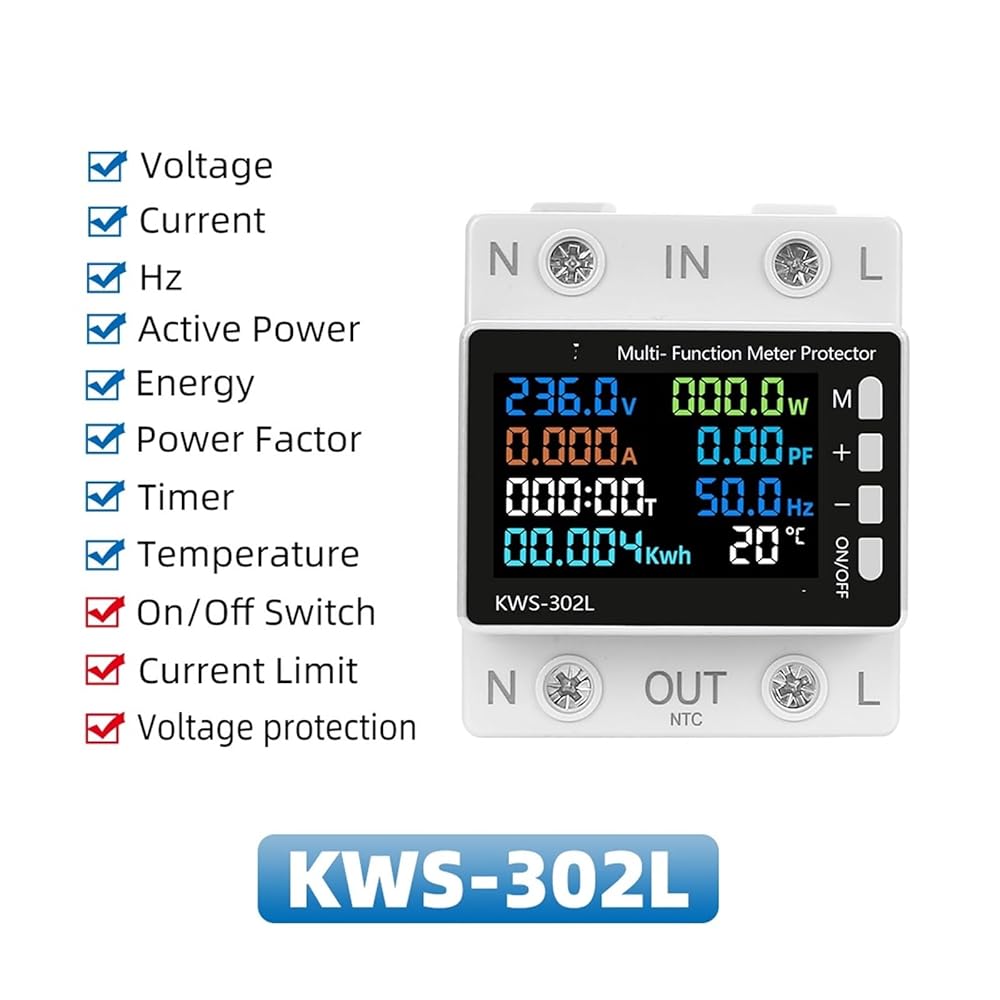

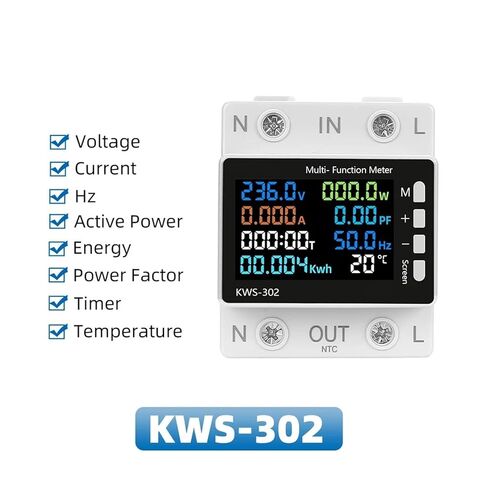

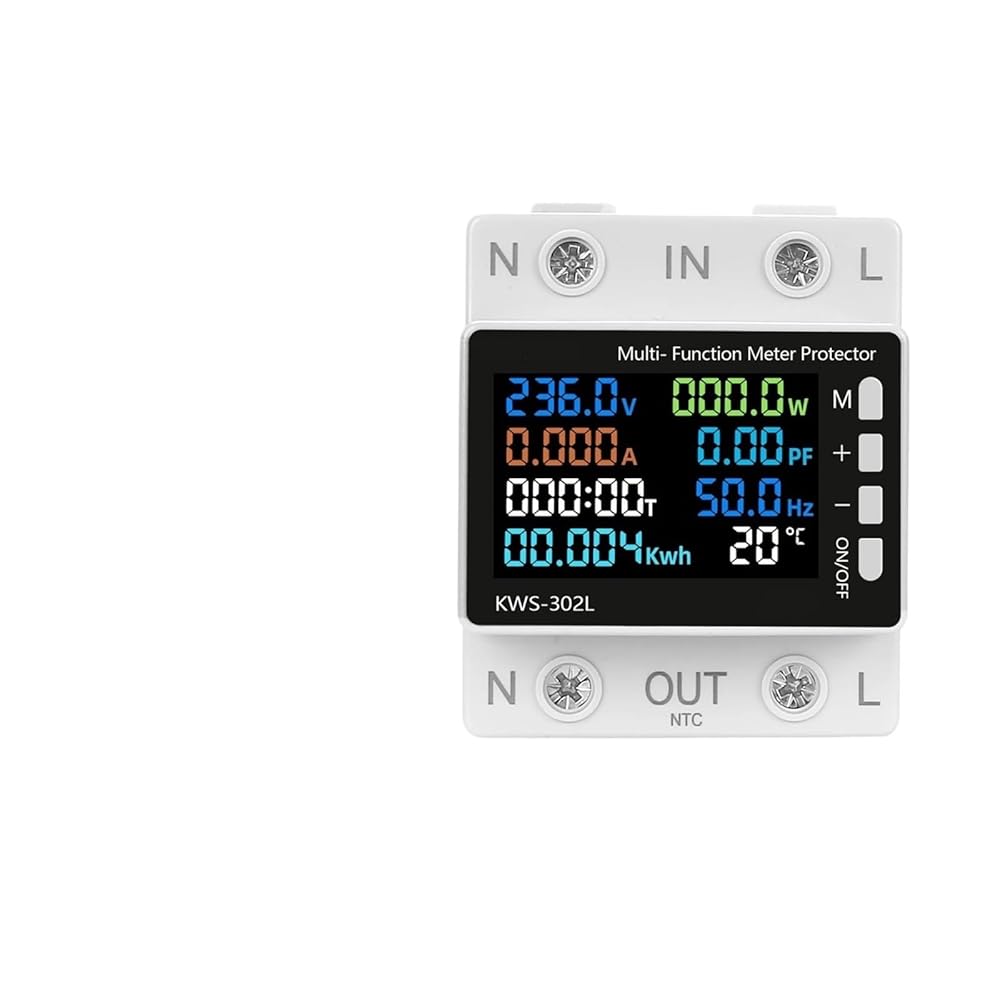

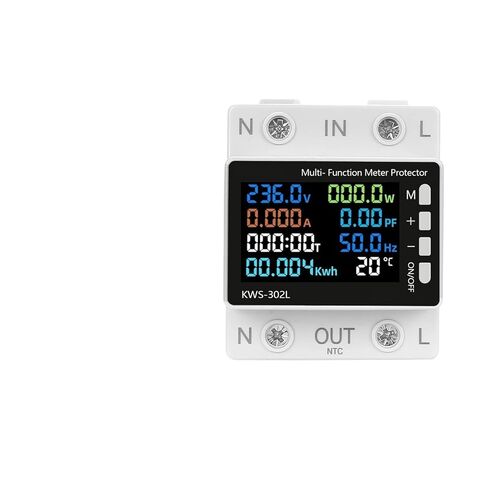

Model: KWS-302WF, KWS-302L, KWS-302
Voltage measurement ranges: 100-290V
Current measurement ranges: 0-63A
Power measurement ranges: 0-17KW
Timing measurement ranges: 0-999Hrs
Electricity measurement ranges: 0-99999Kwh
Temperature ranges: -20-150
measurement ranges: 50-60Hz
Power factor: 0.00-1.00PF
Power failure memory: KWS-302WF Yes, KWS-302L Yes, KWS-302 Yes
Under-voltage protecting: KWS-302WF Yes, KWS-302L Yes, KWS-302 None
Over-voltage protecting: KWS-302WF Yes, KWS-302L Yes, KWS-302 None
KWS-302WF Yes,KWS-302L None, KWS-302 None

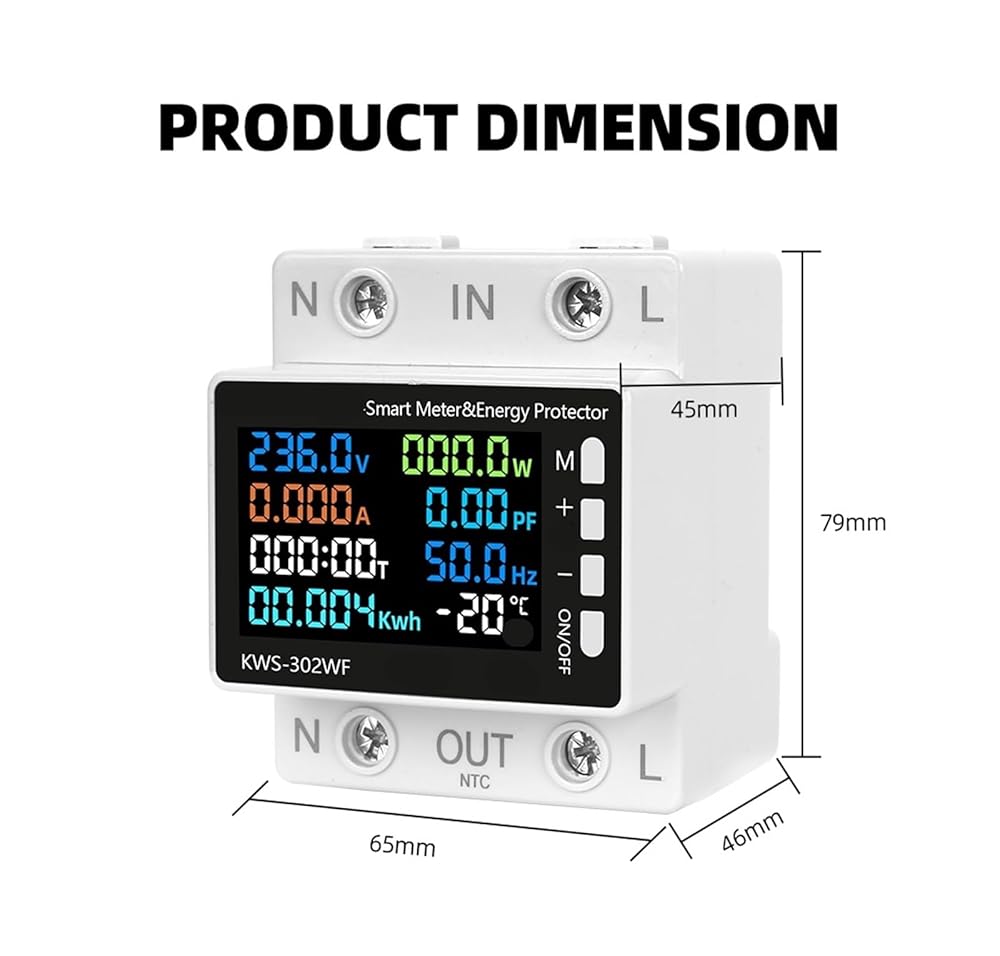

Item size: 66 * 66 * 82mm / 2.60 * 2.60 * 3.23in
Package size: 89 * 73 * 75mm / 3.50 * 2.87 * 2.95in
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
