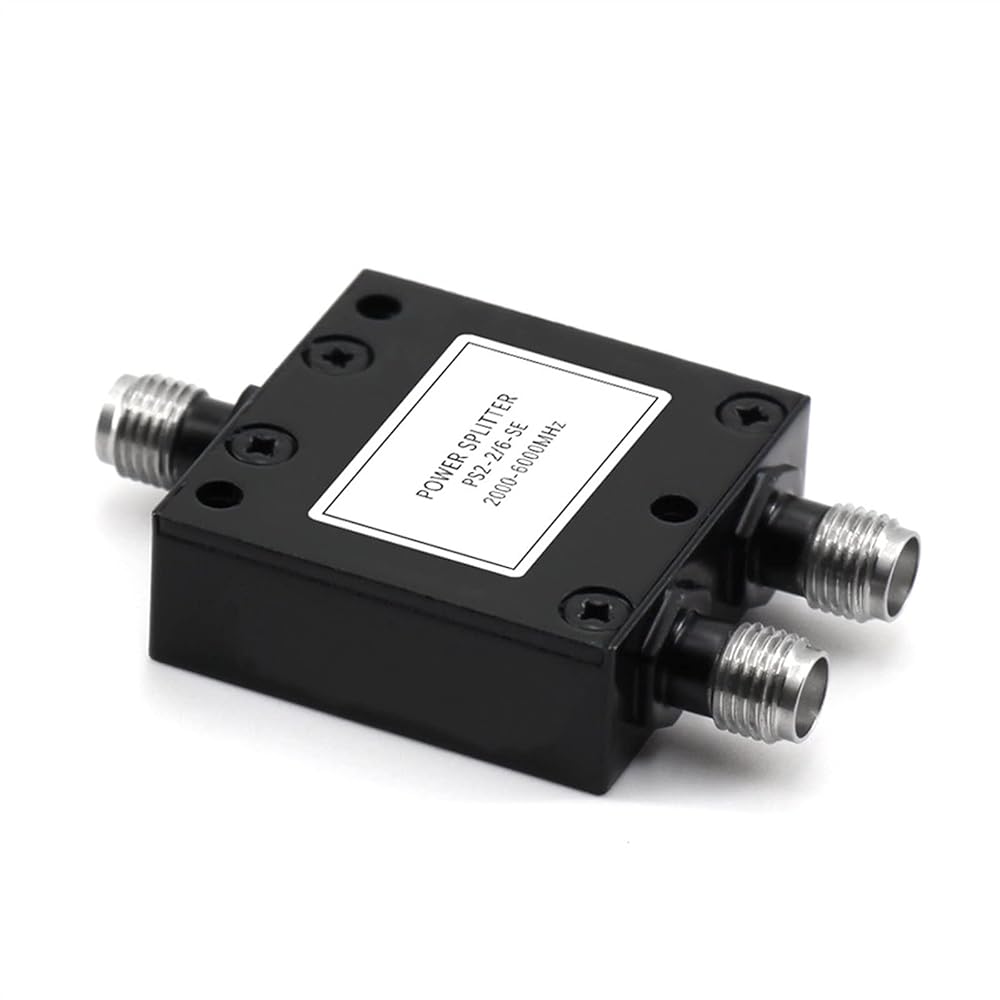

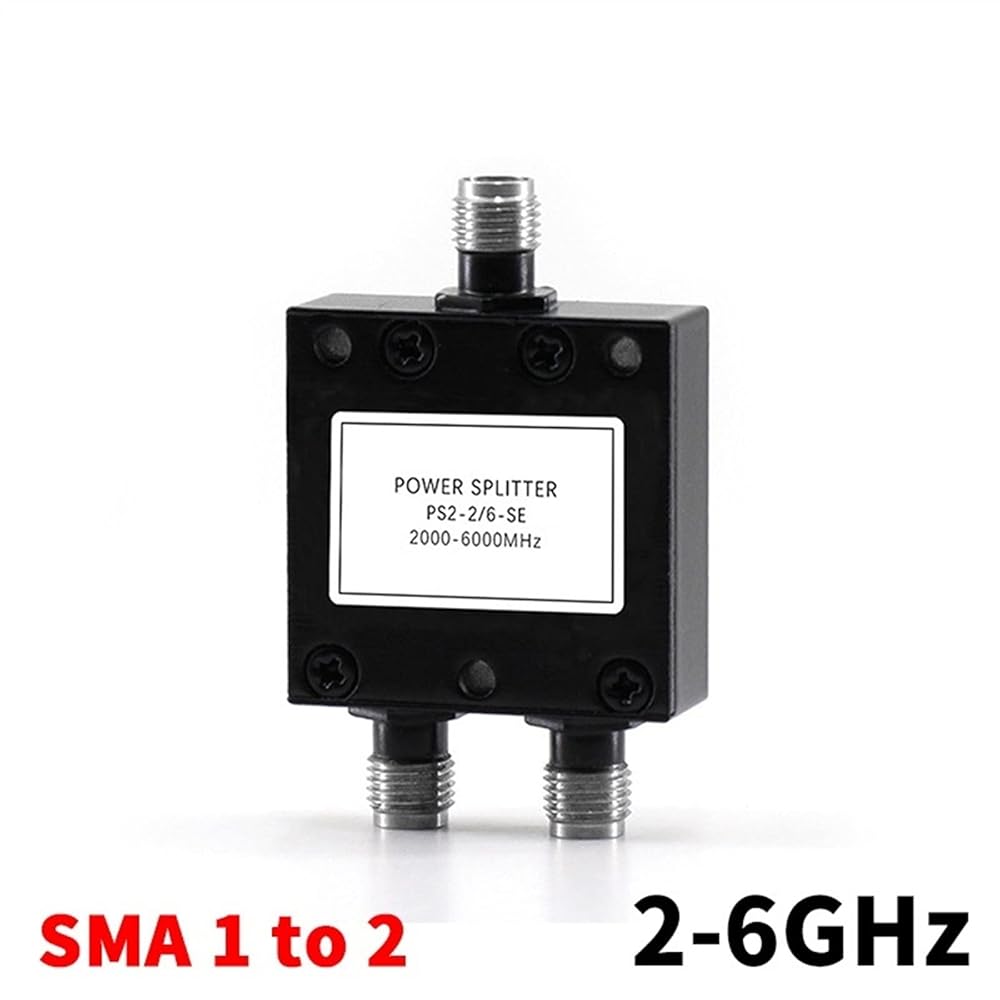

2-6GHz Power Divider SMA One To Two 2.4G 5.8G Power Distribution Combiner 1Pcs
Frequency range: 2000~6000MHz
Insertion loss: 0.6dB (excluding theoretical loss 3.0dB)
Input standing wave: Typ.1.15 / Max.1.25
Output standing wave: Typ.1.13 / Max.1.20
Isolation: Type.28db / Min.20db
Amplitude balance: ±0.2dB
Phase balance: ±3°
Impedance: 50 Ohms
Port Connector: Sma-female
Withstand power: 30W for splitter; 2W for combiner
Working temperature: -45 ~ +85

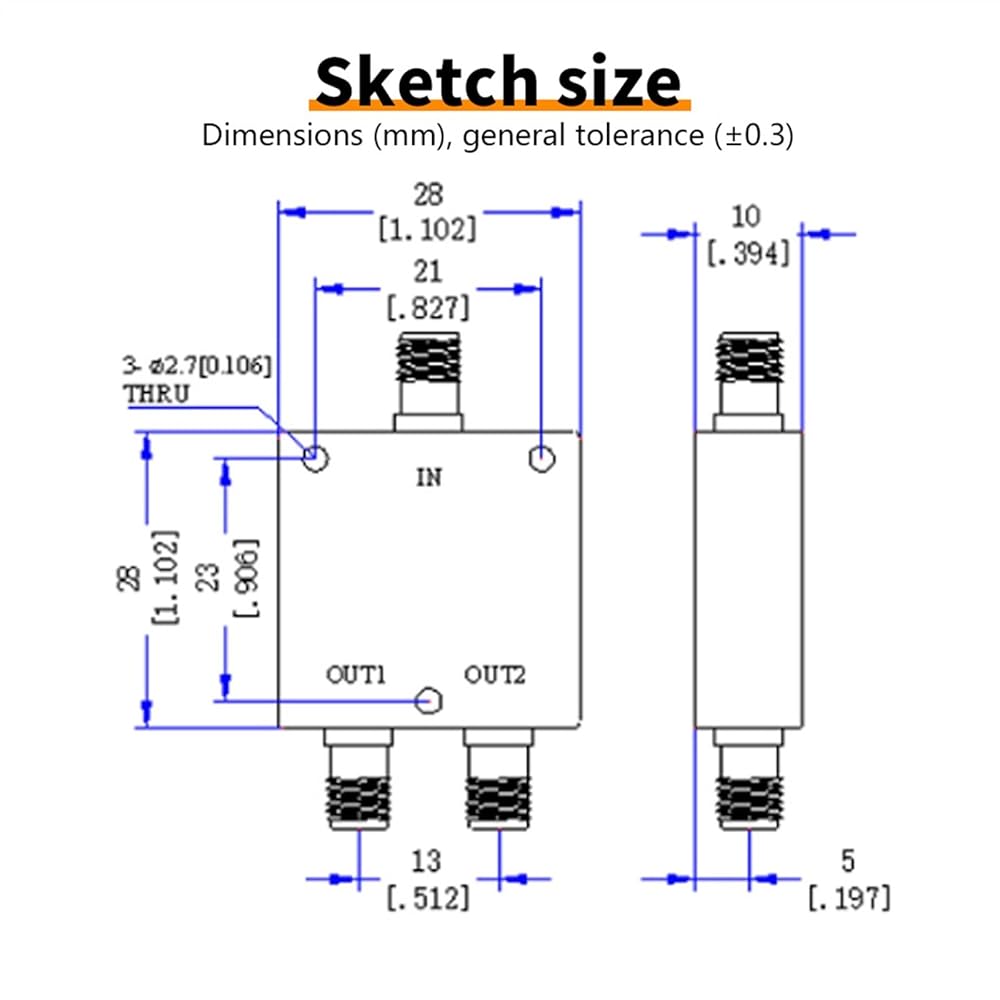

Dimensions: 28*28*10(mm)
Weight: 21g
