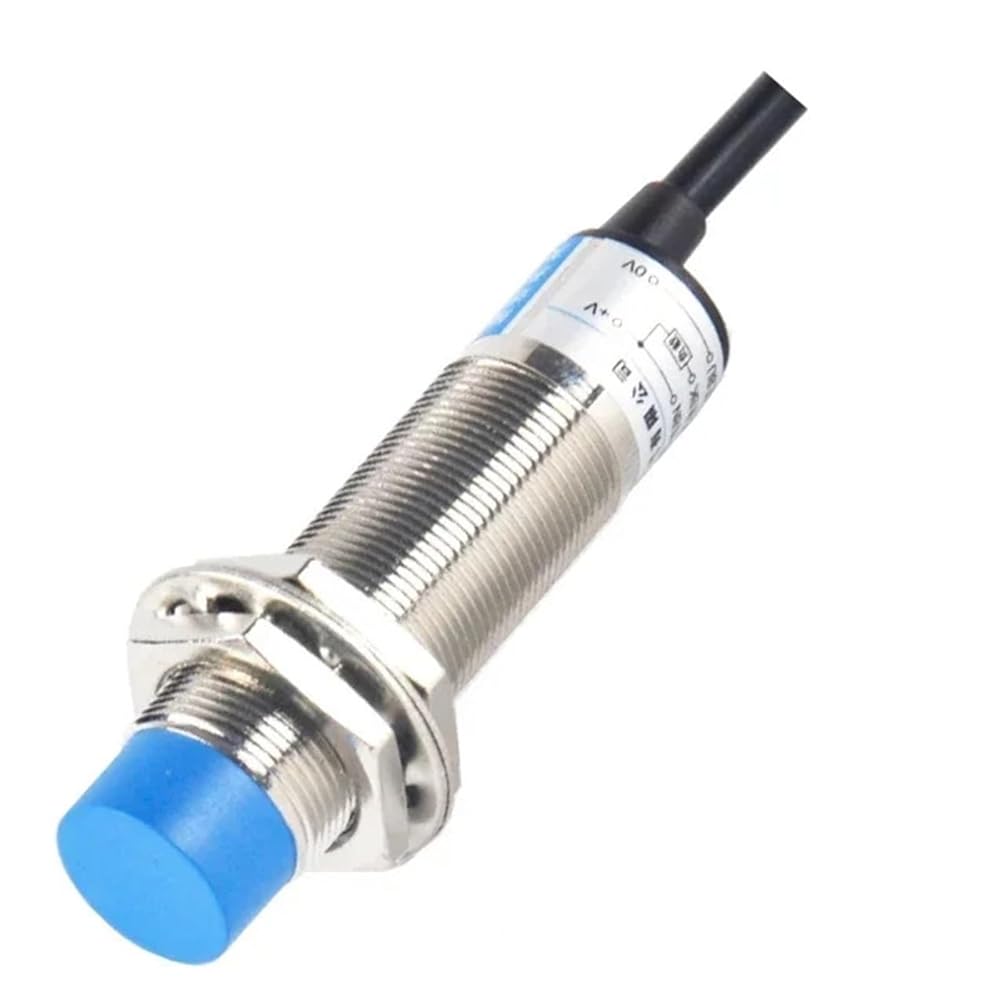

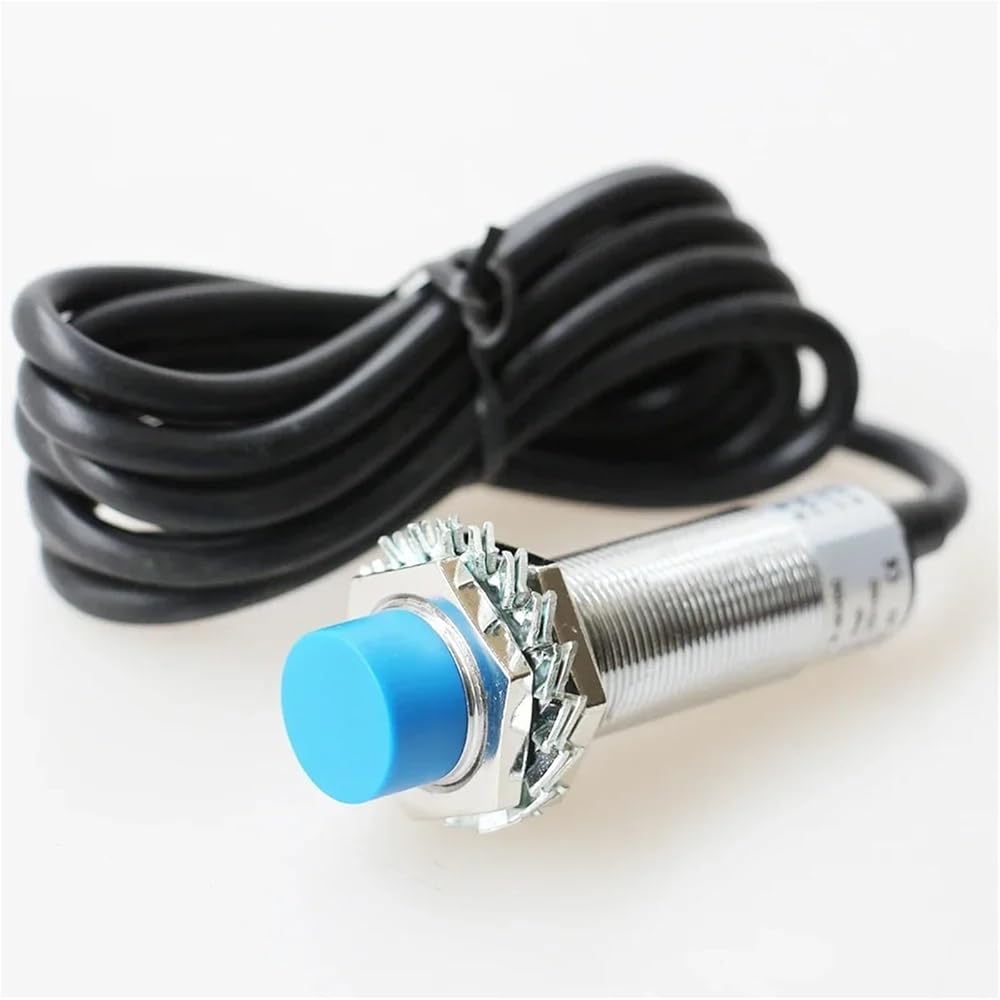

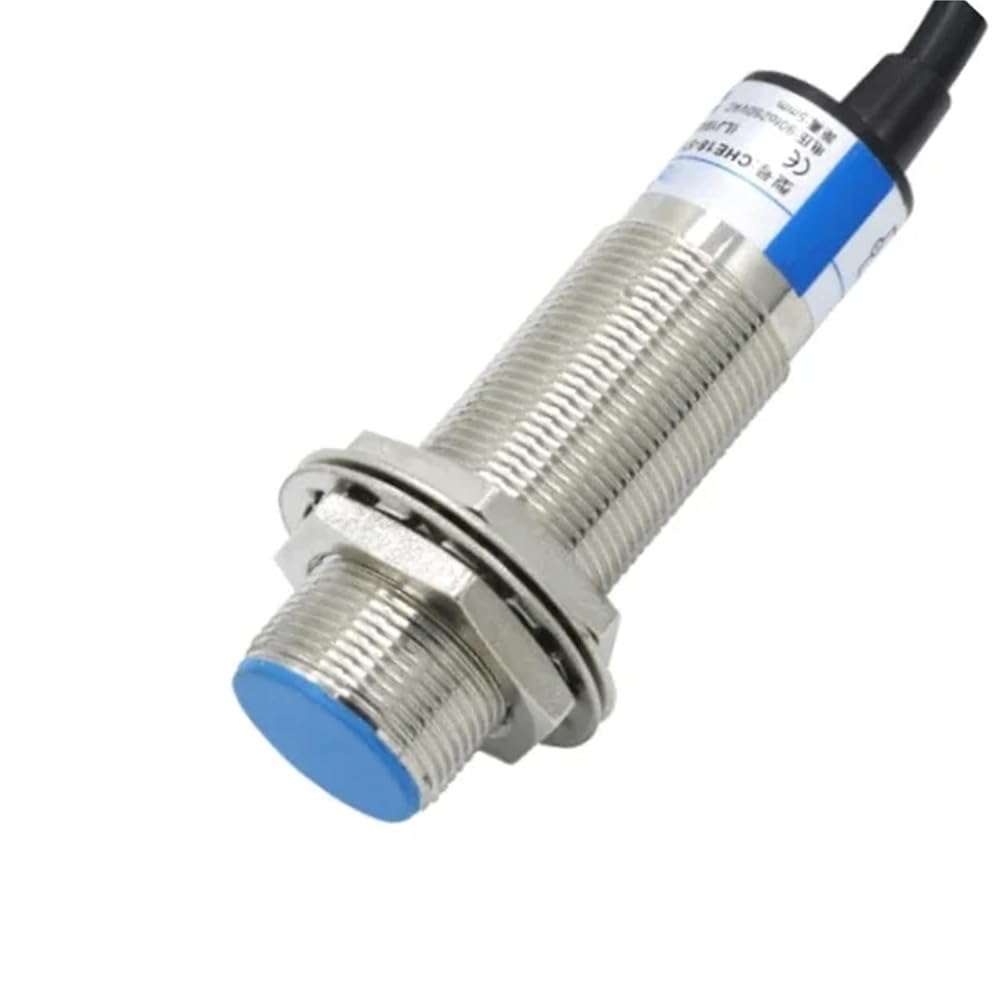

LM18 Inductive Proximity Sensor, 5mm / 8mm DC AC NPN PNP NO NC Distance Measuring Approach Switch, 1pc(Distance 8mm,DC 2-Wire,NO NC) in Saudi Arabia

Distance 8mm DC 2-wire NC

SAR 137
Brand
LOXNVUY
Weight
202 g
ColorDistance 8mm
SizeDC 2-wire
StyleNC
– 1 +

Special Features

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

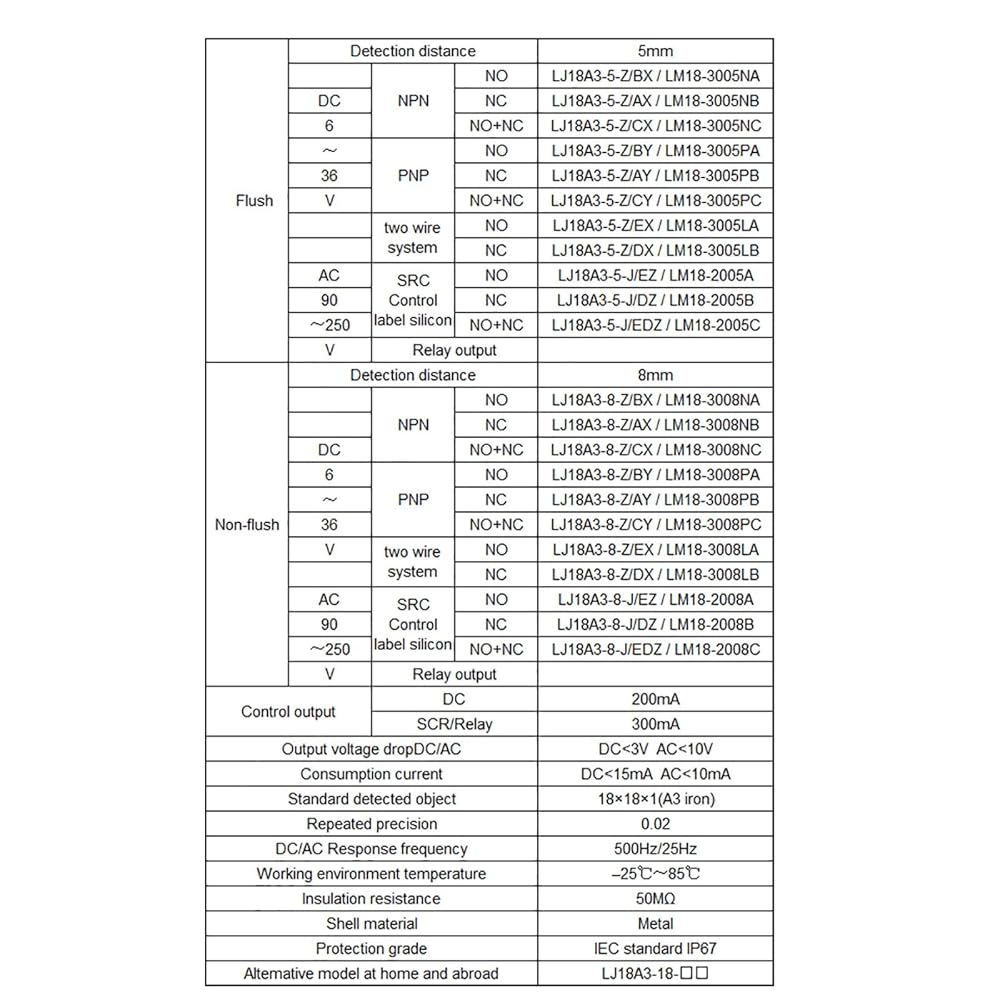

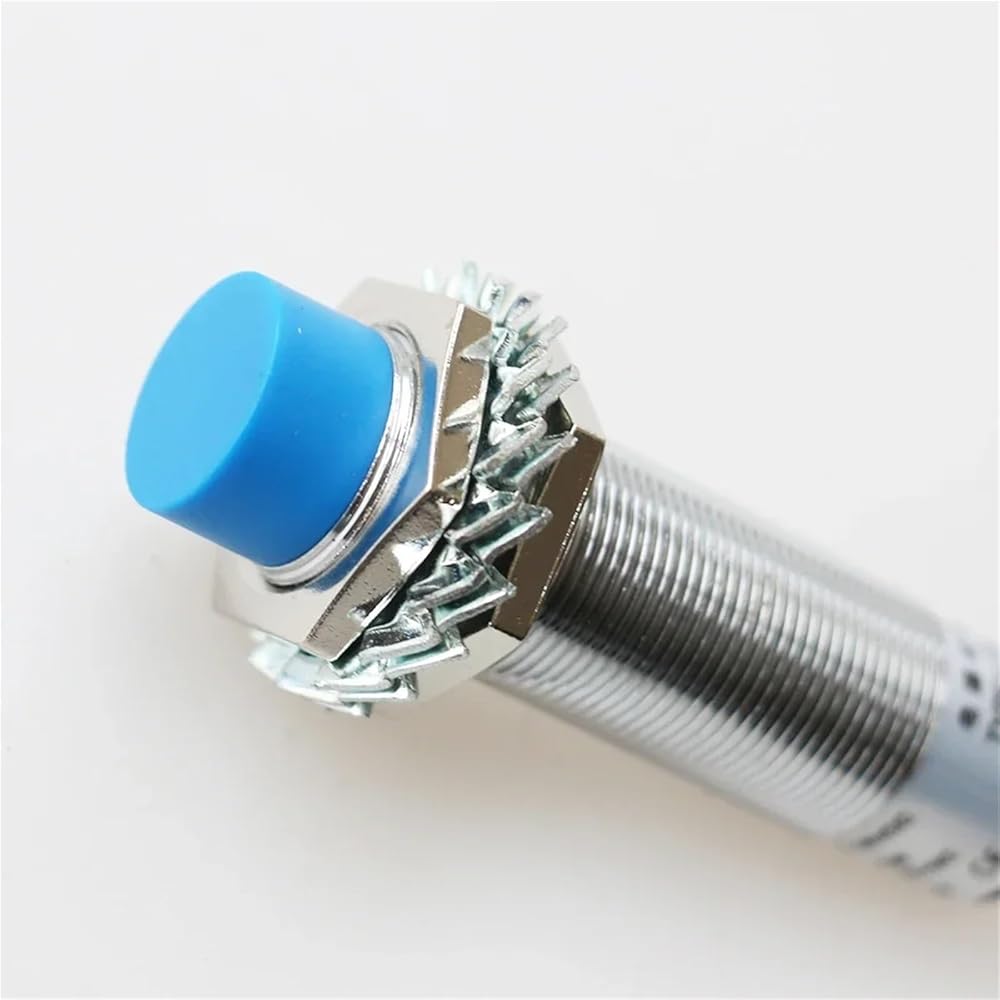

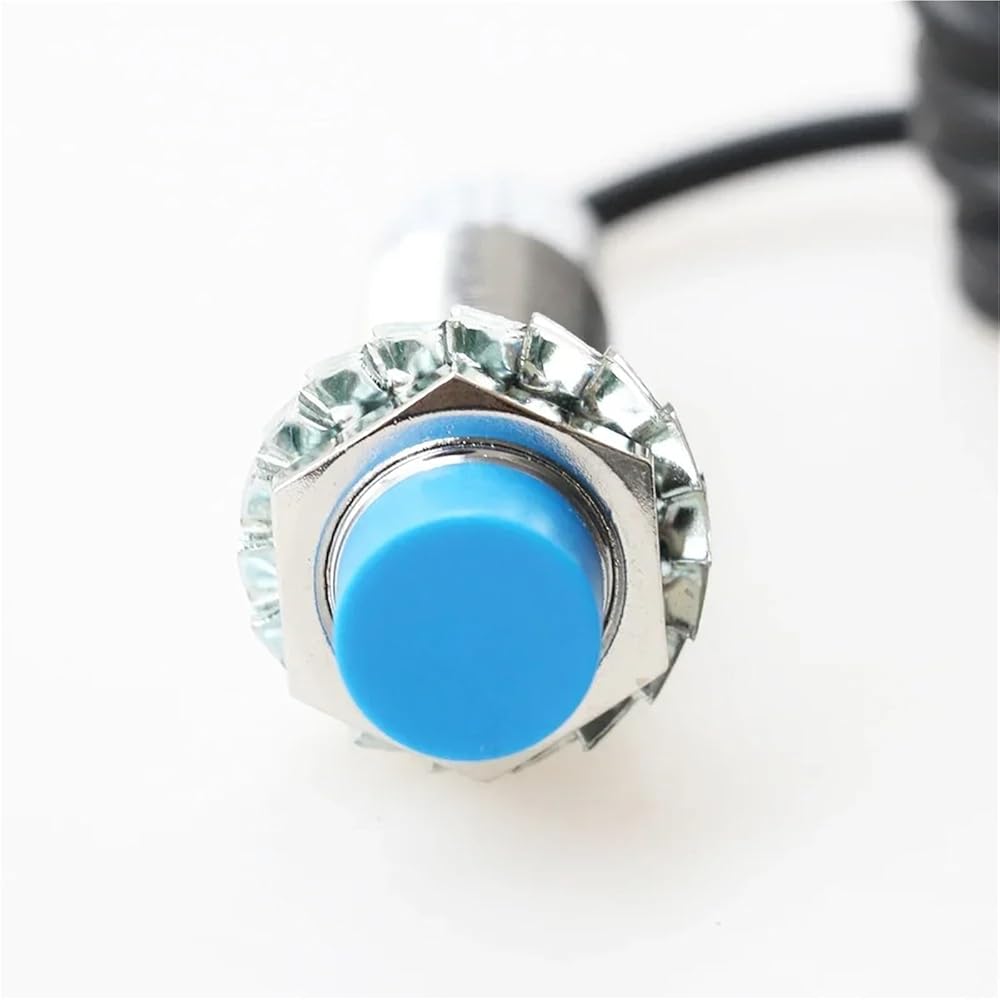

LM18 Inductive Proximity Sensor, 5mm / 8mm DC AC NPN PNP NO NC Distance Measuring Sensor Approach Switch, 1pc
Current : 300 mA
Material : Stainless steel
Switch Type : Proximity Switch

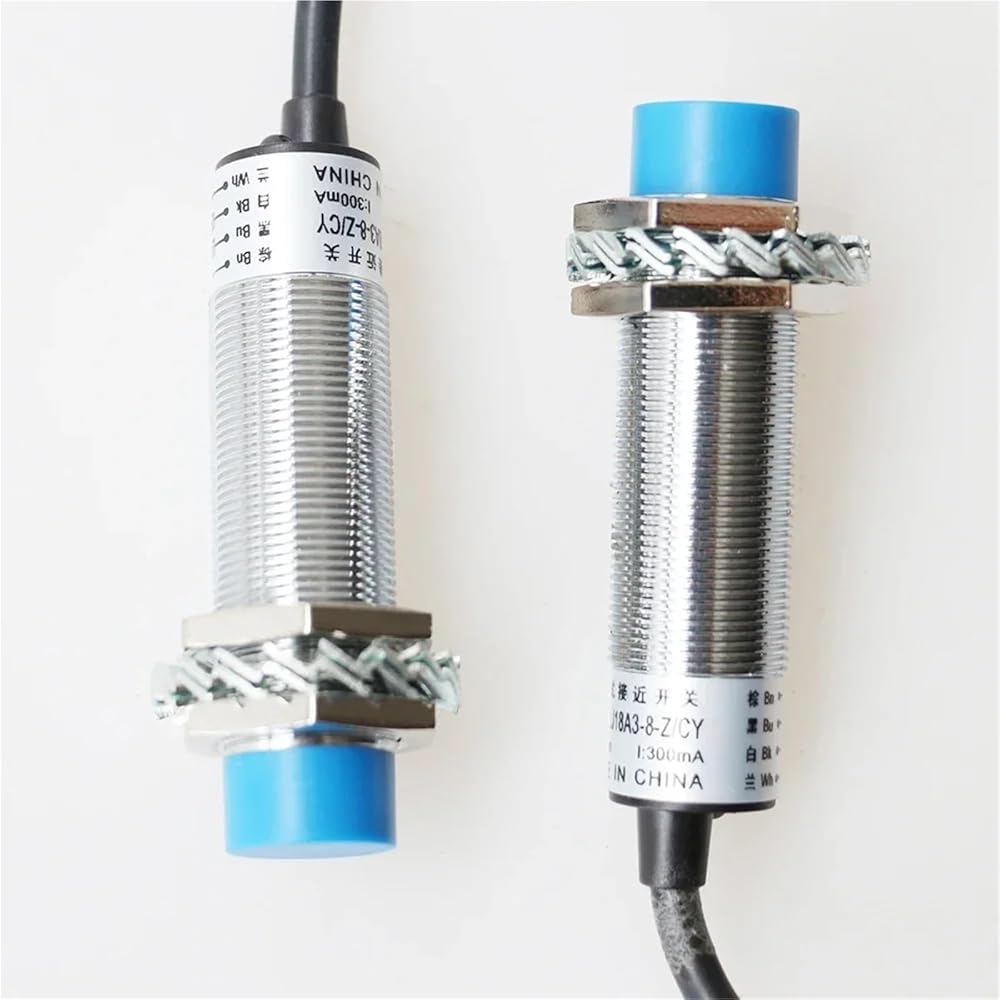

Model Number : LM18 / LJ18
Features : Inductive type proximity sensor
Item Type : SWITCHES
Output voltage dropDC/AC : DC less than 2V DC(Two wire system) less than 3.9V AC less than 10V
Consumption current : DC less than 15mA , AC less than 10mA
Standard detected object : 18*18*1(A3 iron)
Repeated precision : 0.01
DC/AC Response frequency : 500Hz / 25Hz
Working environment temperature : -25C to 75C
Insulation resistance : more than 50Mohm
Shell material : Metal
Protection grade : IEC standard IP67
