40 servo Bracket high Precision Ball Screw Slide KK60 60mm-510mm Stroke repeatability 0.01mm(5mmPitch-410 Stroke) in Saudi Arabia 40 servo Bracket high Precision Ball Screw Slide KK60 60mm-510mm Stroke repeatability 0.01mm(5mmPitch-410 Stroke) in Saudi Arabia 40 servo Bracket high Precision Ball Screw Slide KK60 60mm-510mm Stroke repeatability 0.01mm(5mmPitch-410 Stroke) in Saudi Arabia 40 servo Bracket high Precision Ball Screw Slide KK60 60mm-510mm Stroke repeatability 0.01mm(5mmPitch-410 Stroke) in Saudi Arabia

40 servo Bracket high Precision Ball Screw Slide KK60 60mm-510mm Stroke repeatability 0.01mm(10mmPitch-110 Stroke)

SAR 0
Color
– 1 +

Special Features

  • Linear Motion Guide Actuators

Description

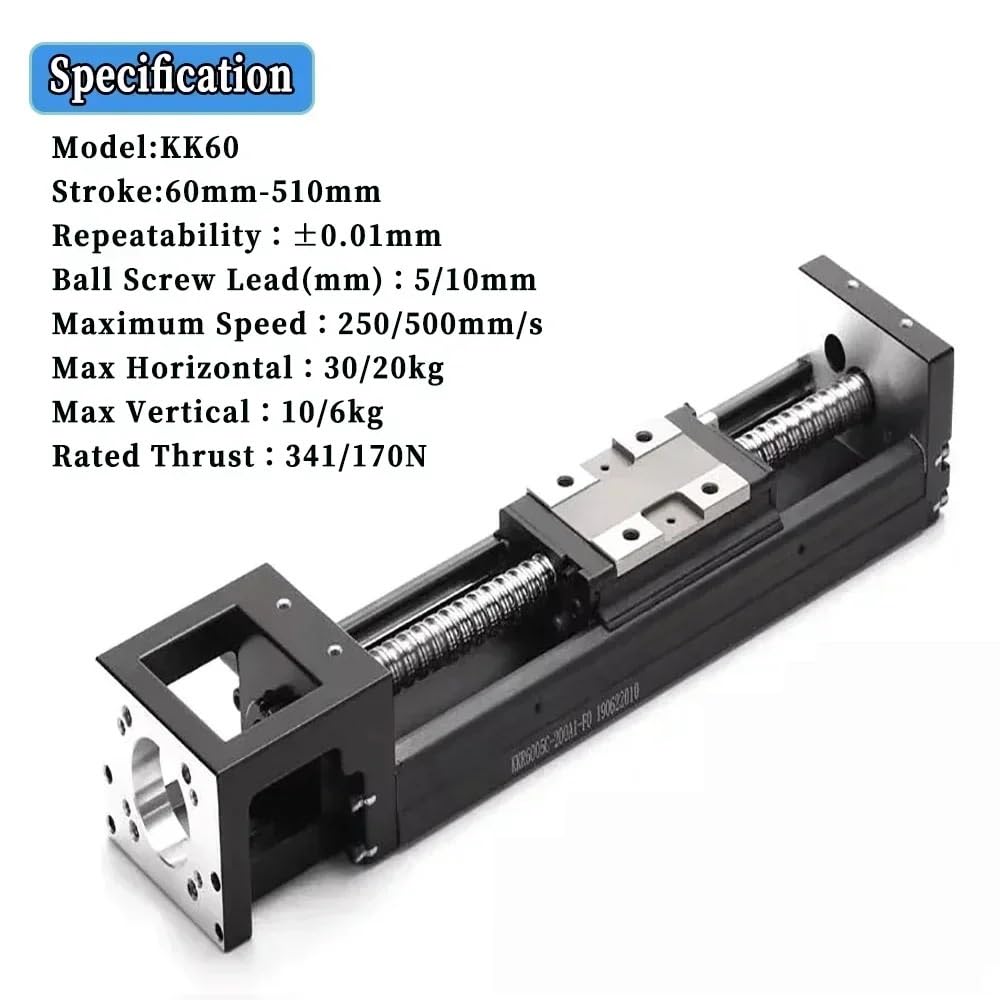

Linear Motion Guide Actuators

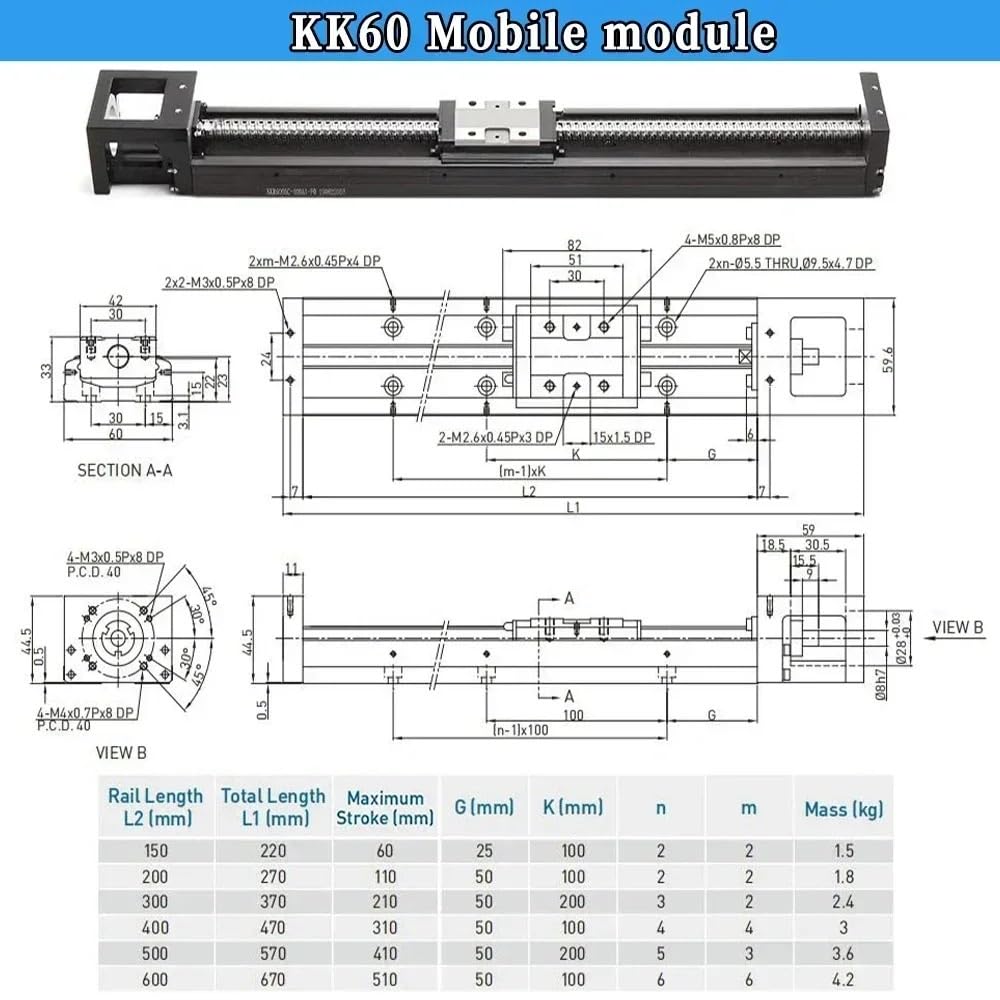

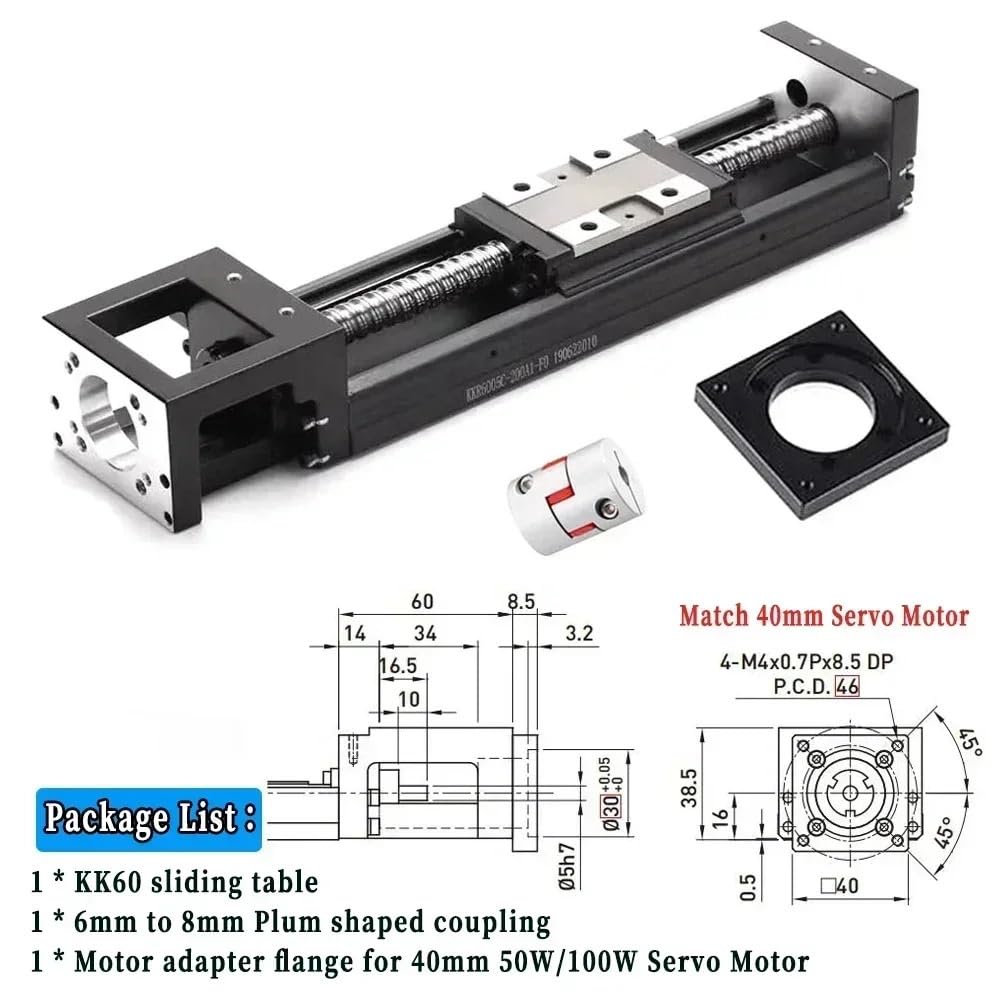

Model: KK60
Guide rail width or diameter: ball screw lead 5/10mm
Origin: Mainland China
Repeatability: 0.01 mm
Ball screw lead 1: 5mm
Ball screw lead 2: 10mm
Maximum speed 1: 250mm/s
Maximum speed 2: 500mm/s
Horizontal load (maximum): 30kg
Vertical load (maximum): 10kg
Rated thrust: 341N
