Connectors

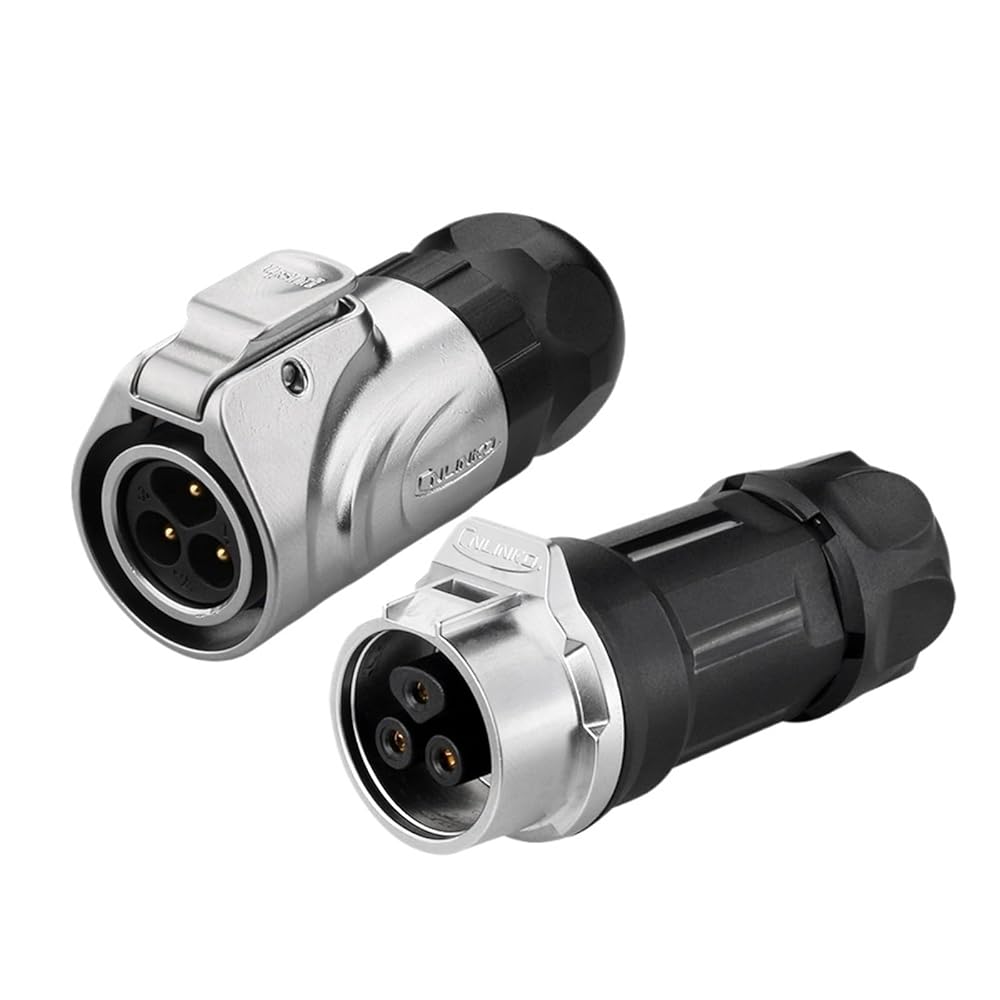

M16 Industrial Waterproof IP68 Power Connector LP16 2 3 4 5 7 8 9 Pin Electrical Wire Adapter Quick Locking Connector Drop Shipping/Wholesale
Features:
High Voltage Tolerance
Designed to withstand up to 400V, this connector is suitable for high-voltage applications, providing reliable power transmission.
Quick Locking Mechanism
Featuring a quick locking connector design, this device ensures rapid and secure connections, enhancing efficiency.
Versatile Pin Options
Available in various pin configurations (2 to 9 pins), this connector caters to diverse electrical wiring needs.
==========
Hign-concerned Chemical : None
Model Number : LP-16
Voltage :
Origin : Mainland
Certification : ,UL,weee
Pin : 2 3 4 5 7 8 9 Pin
Color : Silver
Material : Metal
Rated current : 5A~10A
Operating voltage : AC 250V~400V
Cable specification(2~4pin) : 1.0~1.5mm²/18 ~16AWG
Assembly style : Soldering
Diameter range : 7.0-9.0mm
withstanding voltage : 1500V~2000V
Cable specification(5~8pin) : 0.34~0.5mm²/22~20AWG
Connector type : Panel connector/inline connector
