Sliding Block

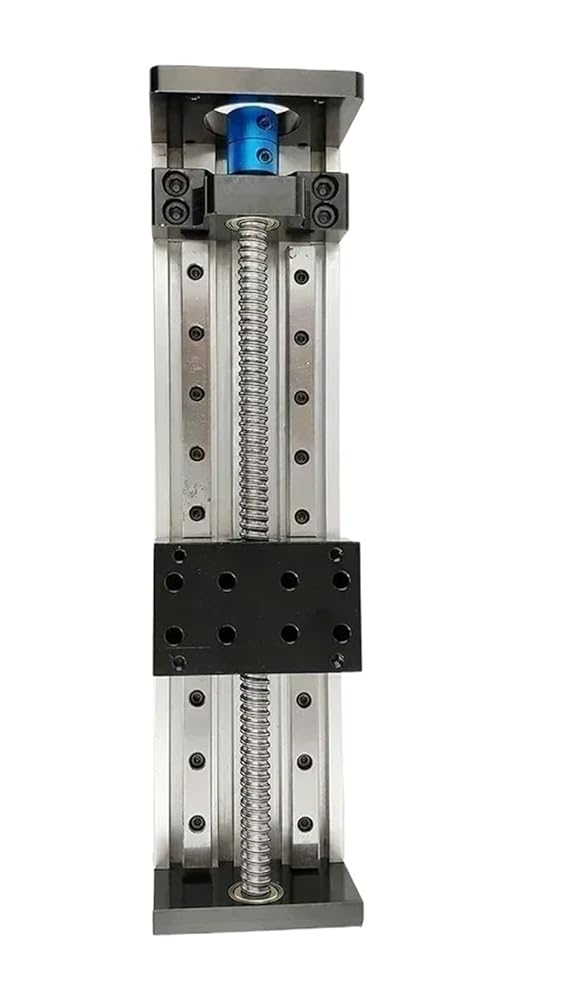

1* SFU1605 Double Rail Slide Table
1* 8mm to 8mm Coupling for 8mm shaft Nema 23 Stepper Motor
1.2/2/3Nm Motor kit:
1* SFU1605 Double Rail Slide Table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* 8mm to 8mm Coupling
1.5/2.2/3Nm Encoder motor:
1* SFU1605 Double Rail Slide Table
1* Nema 23 57mm Closed Loop Stepper Motor
1* HB808C Drive
1* 8mm to 8mm Coupling
1.5/2/3.2Nm All in one kit:
1* SFU1605 Double Rail Slide Table
1* Integrated Nema 23 57mm Closed Loop Stepper Motor Drive
1* 8mm to 8mm Coupling
Model: SXG5080
Ballscrew type: SFU1605
Ballscrew accuracy: C7 level
Effective stroke: 100mm-1200mm Optional
Total length: Effective stroke+110mm
Mobile panel size: 50*80mm
Guide diameter: 12mm
Guide Type:2*MGN12R
Slider Type: 2*MGN12H
Horizontal load:Max 60KG
Vertical load:Max 30KG
Maximum speed: 500mm/s
Ballscrew Repeat positioning accuracy:0.02-0.03mm
Model Number : SXG5080
Guide Width or Diameter : 12mm
Total length : Effective Stroke+110mm
Ballscrew type : SFU1605
Horizontal load : 60KG (Max)
Vertical load : 30KG (Max)
Module material : Industrial Aluminum Profile
Module width : 80mm
Repeat positioning accuracy : 0.02mm-0.03mm
Ballscrew accuracy : C7
