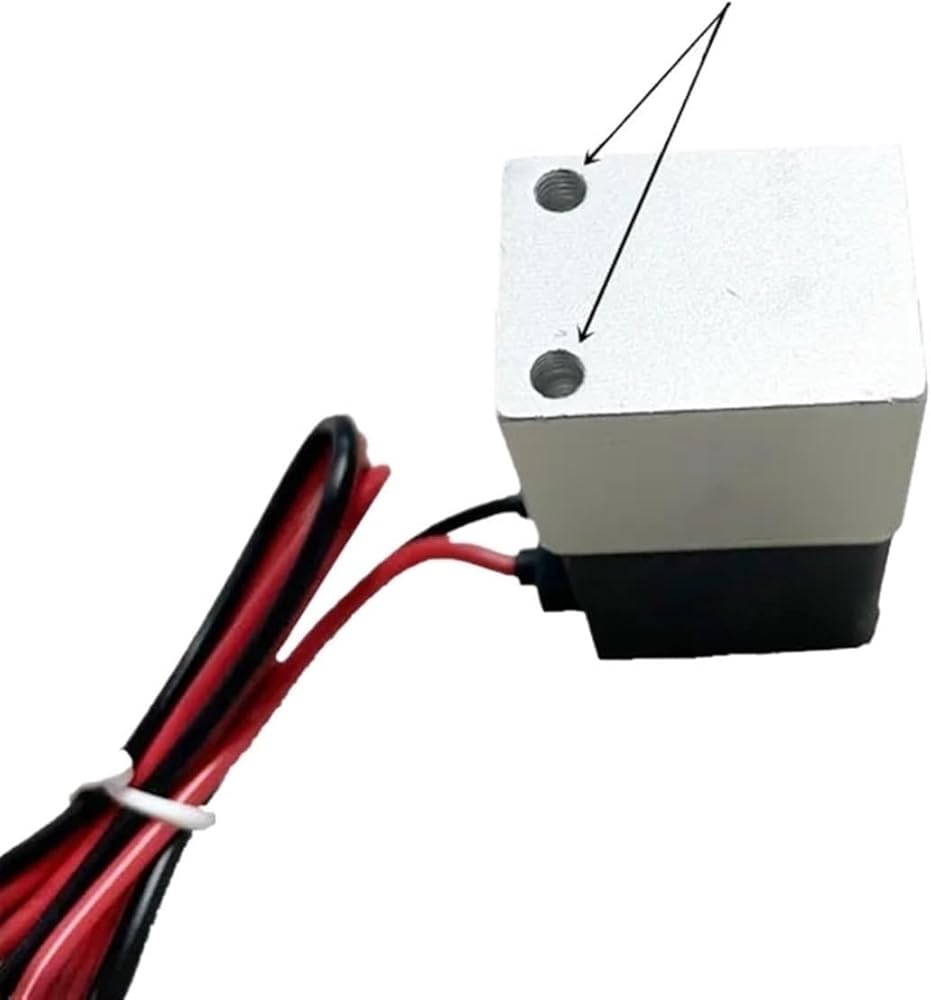

Valves
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Port Size: 1/4" NPT Female Port 1/8" NPT Female Port
Coil Voltage: DC12V
Service Media: Air Gas Liquid Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C
Coil Power: 6.5W
