Linear Bearing LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU Long Linear Bearing ABEC-5 Square Flange Type Bearings Linear Ball Bearings(LMK35LUU) in Saudi Arabia Linear Bearing LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU Long Linear Bearing ABEC-5 Square Flange Type Bearings Linear Ball Bearings(LMK35LUU) in Saudi Arabia Linear Bearing LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU Long Linear Bearing ABEC-5 Square Flange Type Bearings Linear Ball Bearings(LMK35LUU) in Saudi Arabia Linear Bearing LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU Long Linear Bearing ABEC-5 Square Flange Type Bearings Linear Ball Bearings(LMK35LUU) in Saudi Arabia

Linear Bearing LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU Long Linear Bearing ABEC-5 Square Flange Type Bearings Linear Ball Bearings(LMK20LUU)

SAR 0
Size
– 1 +

Special Features

  • Pillow Blocks
  • Structure and Features

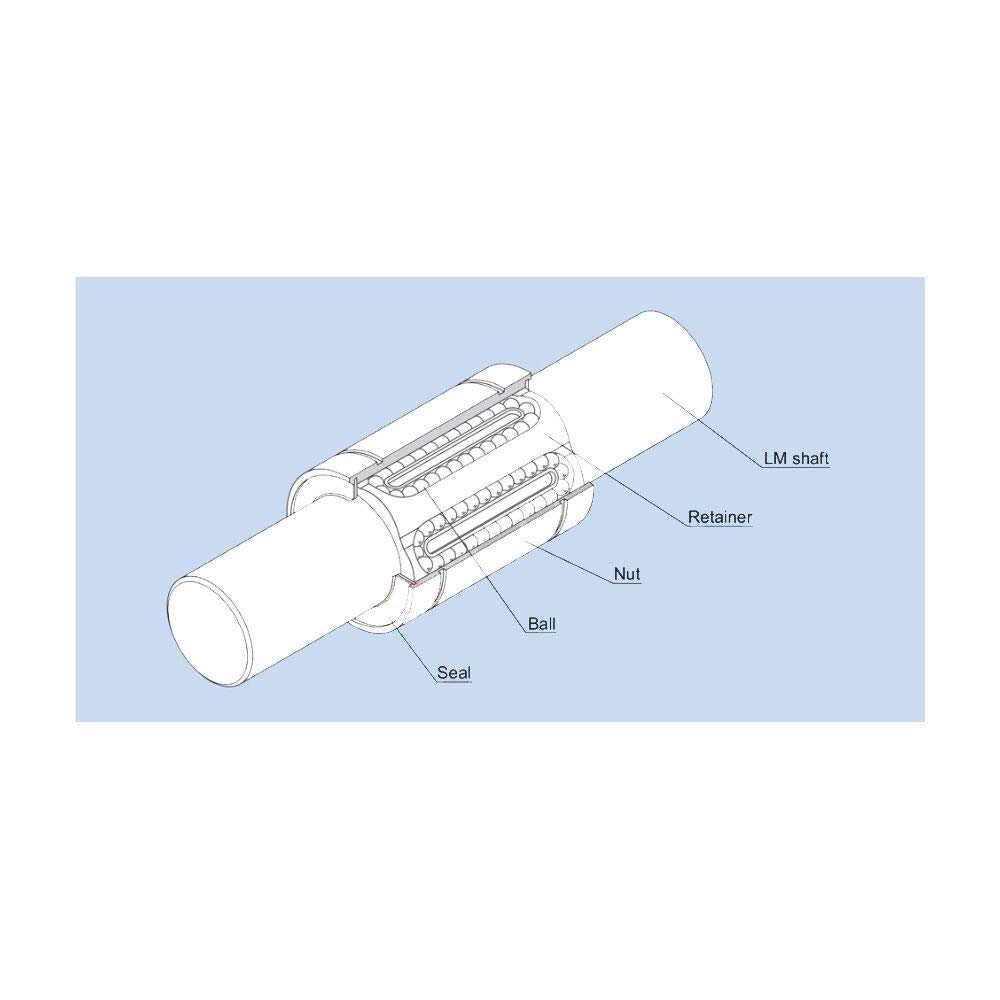

  • Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion.
  • The balls in the loaded area of the nut are in point contact with the LM shaft.
  • This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.

Description

Pillow Blocks
Details

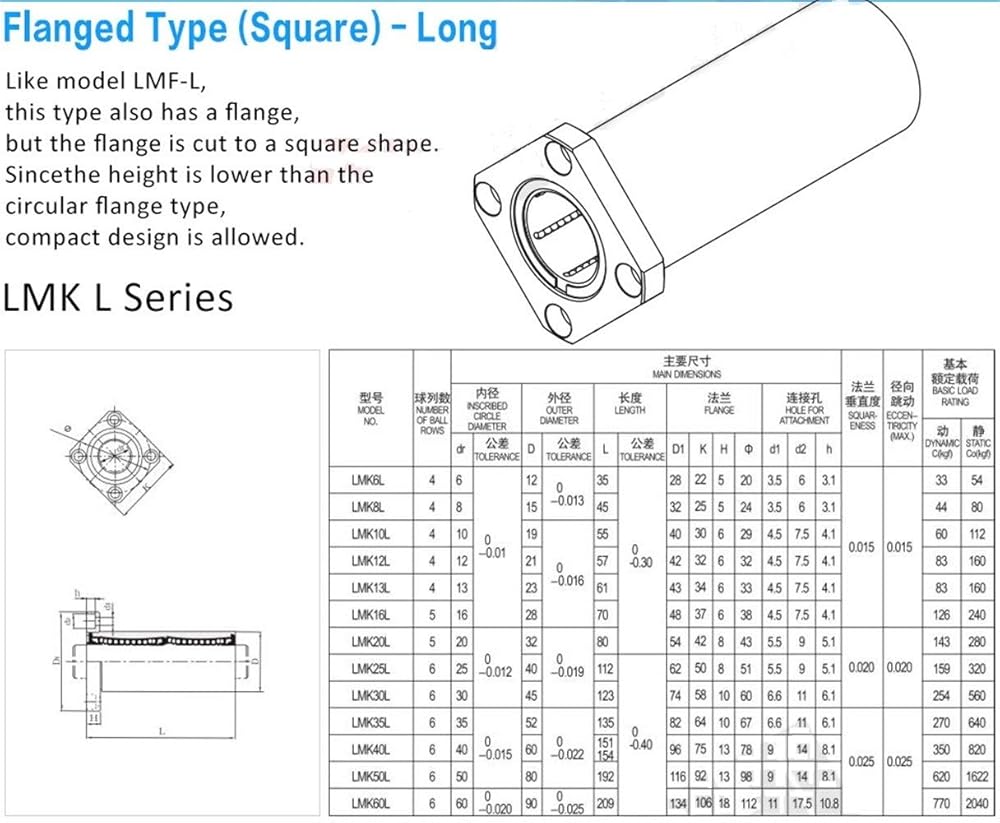

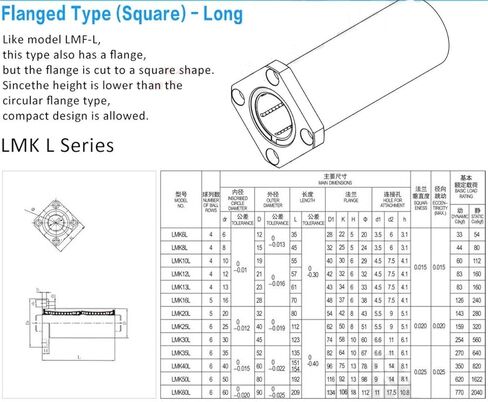

Model:LMK20LUU
Number of Ball Rows: 5
Inner diameter: 20 mm
Outside diameter: 32 mm
Length: 80 mm
Dynamic Cr: 143 kgf
Static Cor: 280 kgf
Grade:ABEC-5
Quantity: 1 PC
Model:LMK25LUU
Number of Ball Rows: 6
Inner diameter: 25 mm
Outside diameter: 40 mm
Length: 112 mm
Dynamic Cr: 159 kgf
Static Cor: 320 kgf
Grade:ABEC-5
Quantity: 1 PC
Model:LMK30LUU
Number of Ball Rows: 6
Inner diameter: 30 mm
Outside diameter: 45 mm
Length: 123 mm
Dynamic Cr: 254 kgf
Static Cor:560 kgf
Grade:ABEC-5
Quantity: 1 PC
