Sliding Table specification:
Screw Precision:C7
Rail width:8mm
Horizontal load: 5kg(Max)
Vertical load: 1kg(Max)
Repeat positioning accuracy: 0.02mm-0.03mm
Maximum speed: 80mm/s
Screw Model:T6*1/T6*2/T6*4/T6*6/T6*12(Diameter *pitch)
Stepper Motor Specification :
Motor Size: NEMA11(28MM)
Shaft diameter: 5mm
Current :0.6A
Package included:

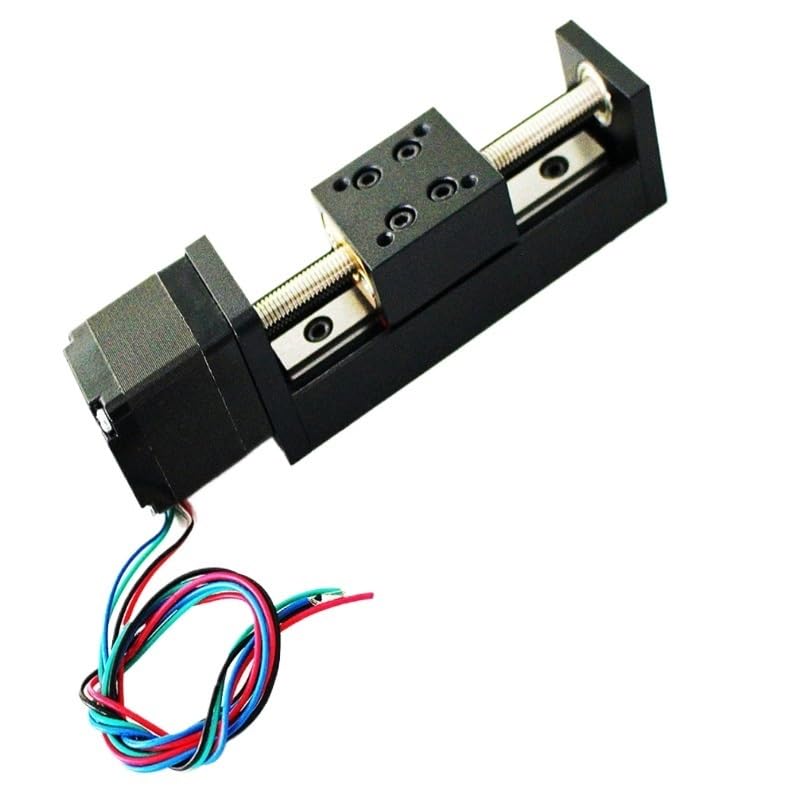

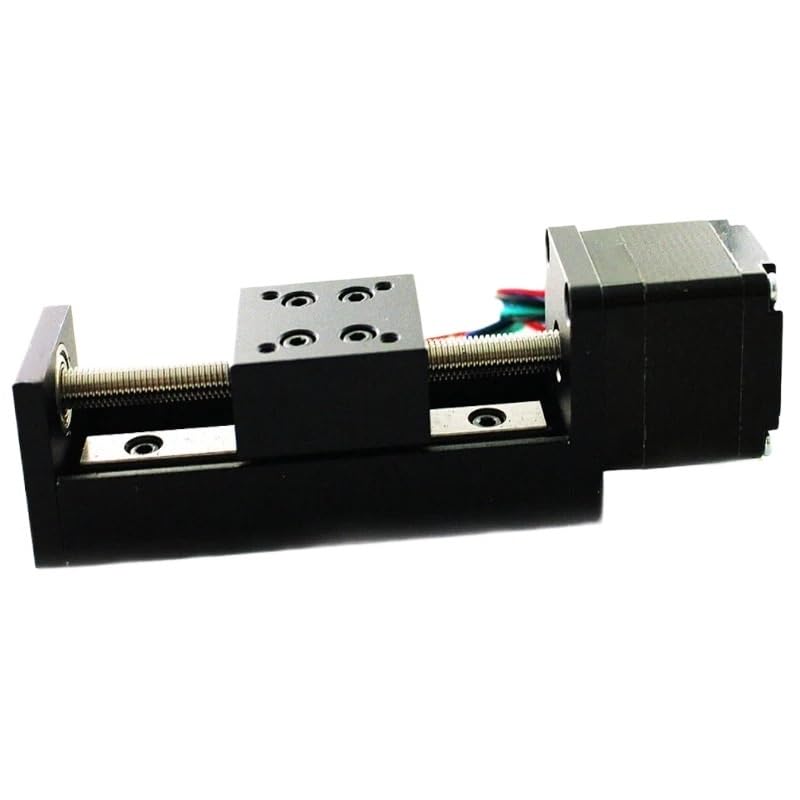

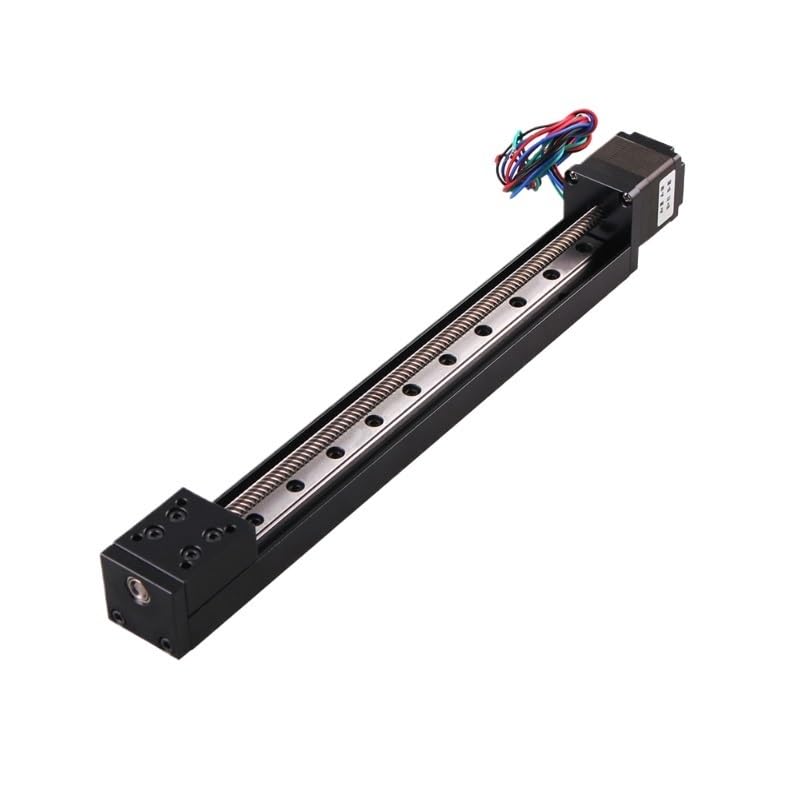

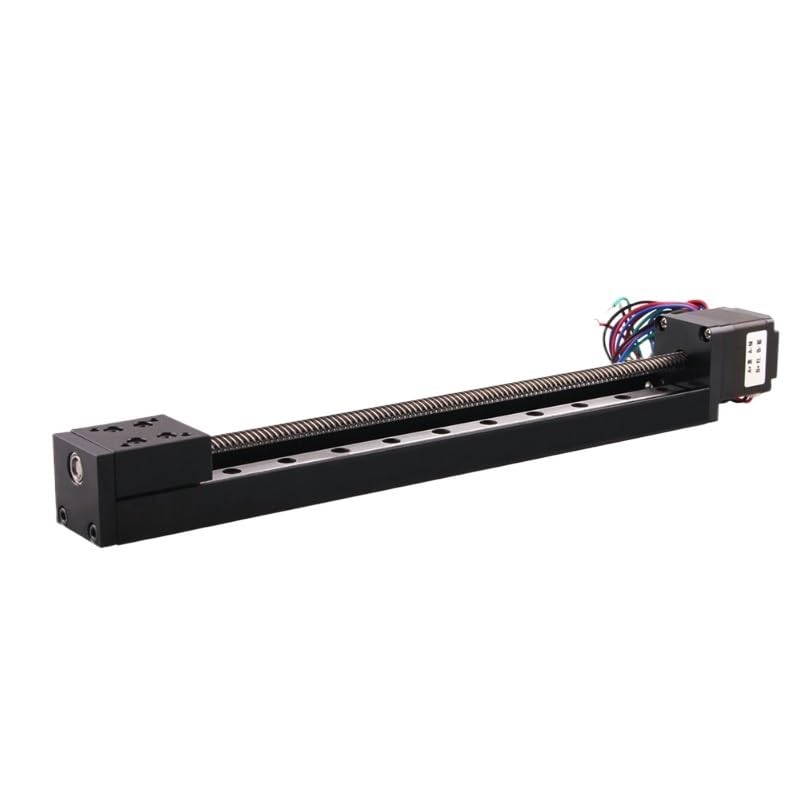

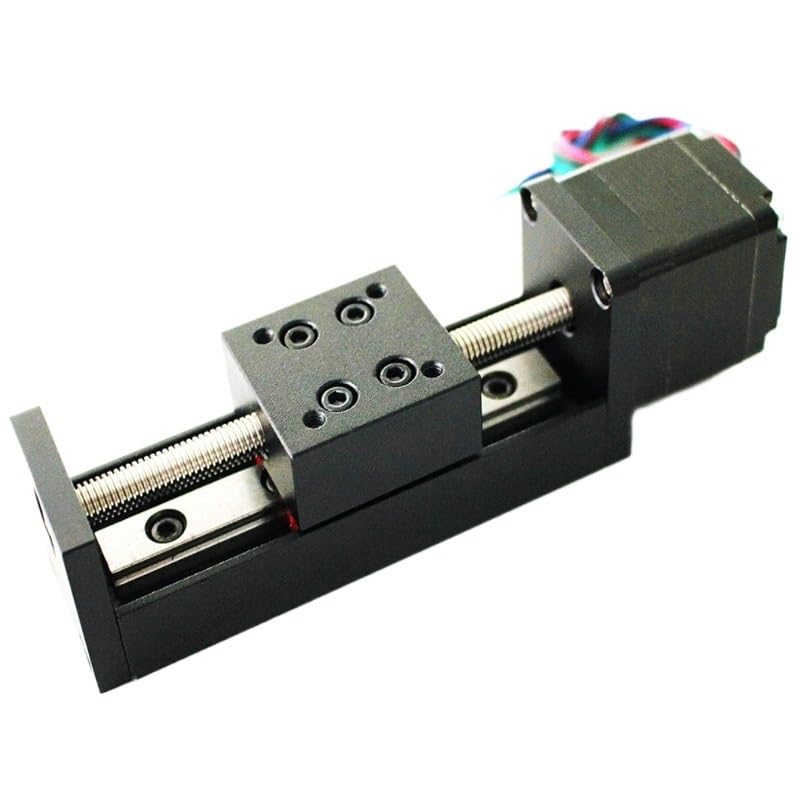

1 X Linear Guides Sliding Table (50mm/100mm/150mm/200mm)
1X Nema11 Stepper Motor(28mm)
Model Number : T6*1/T6*2/T6*4/T6*6/T6*12
Guide Width or Diameter : 6mm
Origin : Mainland China
Certification : CE
