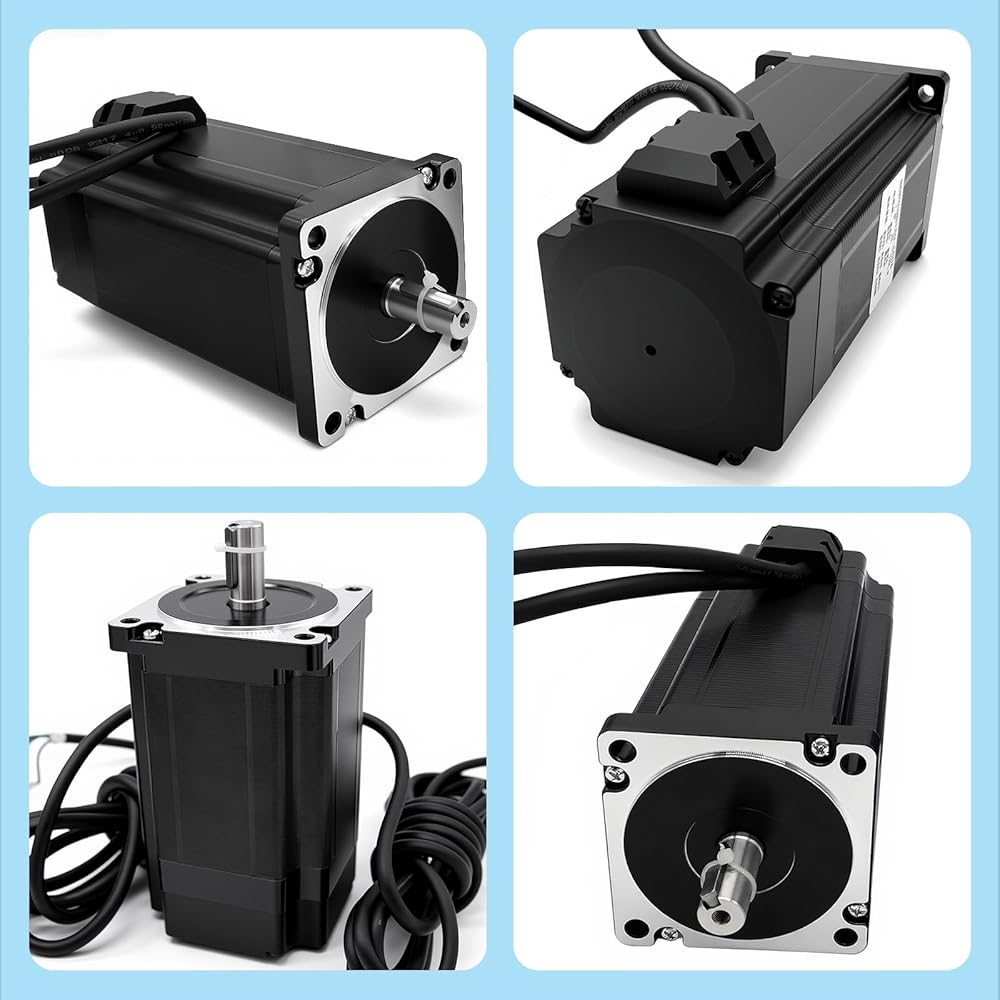

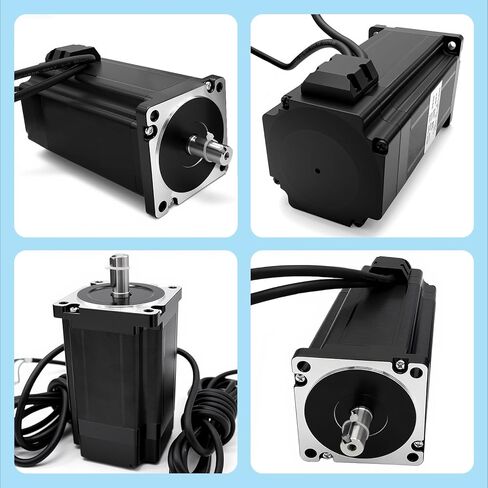

Nema34 86mm Closed Loop Stepper Motor XY 1 Axis Nema 34 12 Nm 1200 Ncm 1714 oz.in Step Motors, 18-110VDC Closed Loop Steping Driver CNC Servo Motor kit in Saudi Arabia

Nema 34 86mm Closed Loop Stepper Motor 1 Axis CNC Kit 4.5 Nm / 640 oz.in 1000 RPM Line Encoder 14mm Shaft 4A DSP Easy Servo & 18-110V DC Closed Loop Step Motor Driver

SAR 497
ColorNema34 86mm Motor
Size4.5Nm
Number of Items1
– 1 +

Special Features

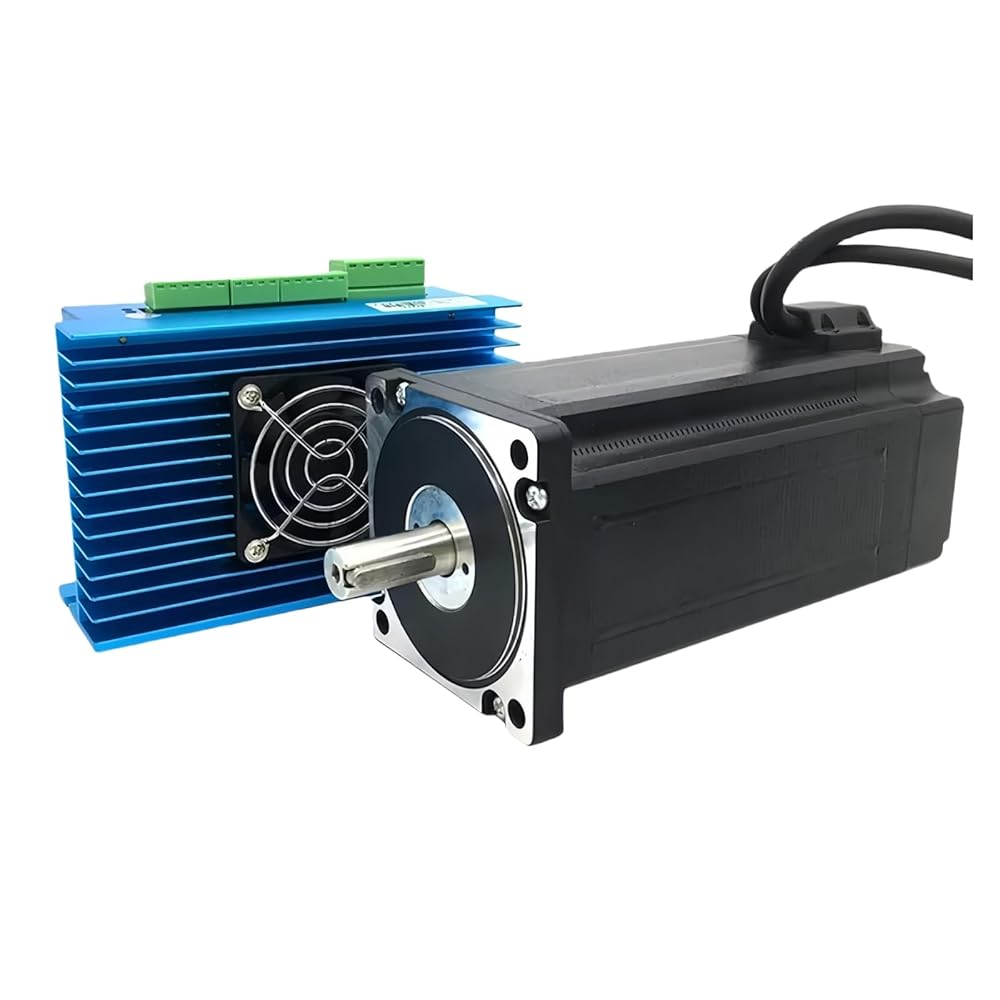

  • Items in Kit: 1 x 86HB250-156B: 12Nm Closed loop stepper motor, 1 x HBS86H: Nema 34 Closed loop stepper motor driver, 1 x Debugging Cable, 1 x 3m motor and encoder extenstion cables.

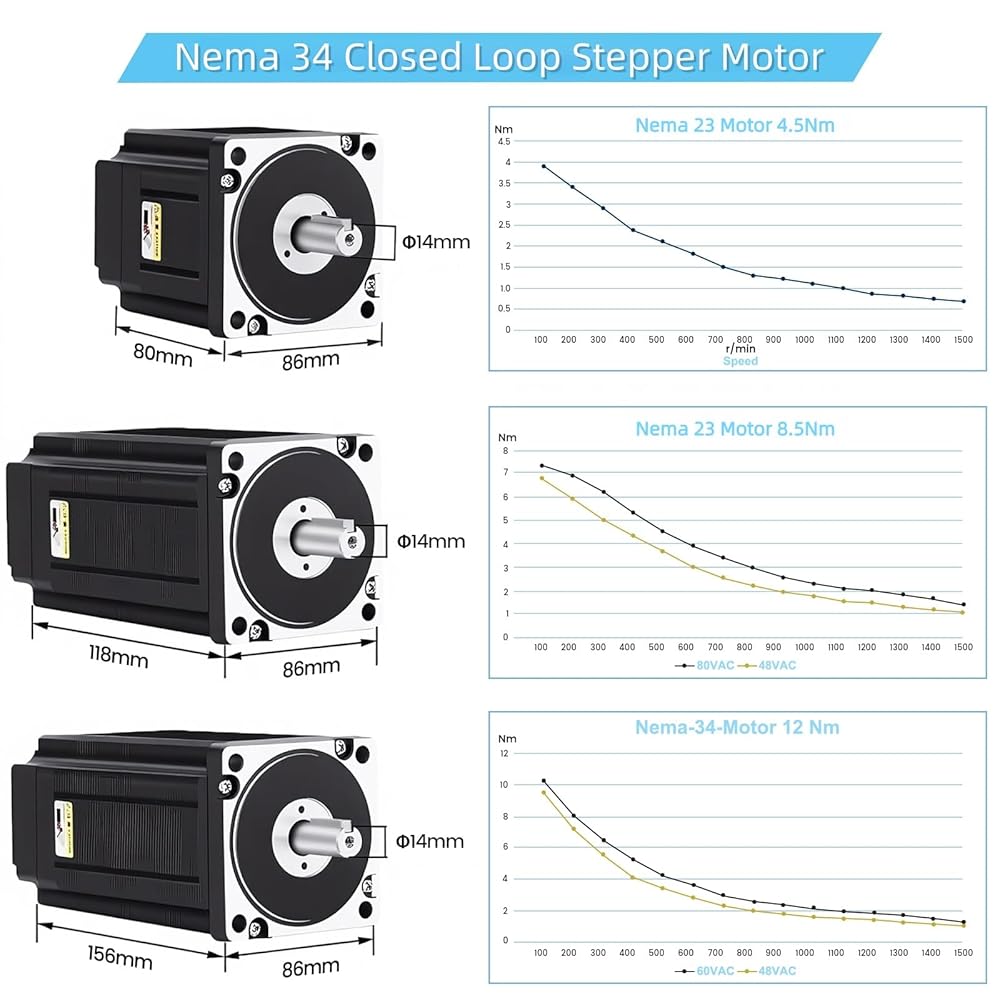

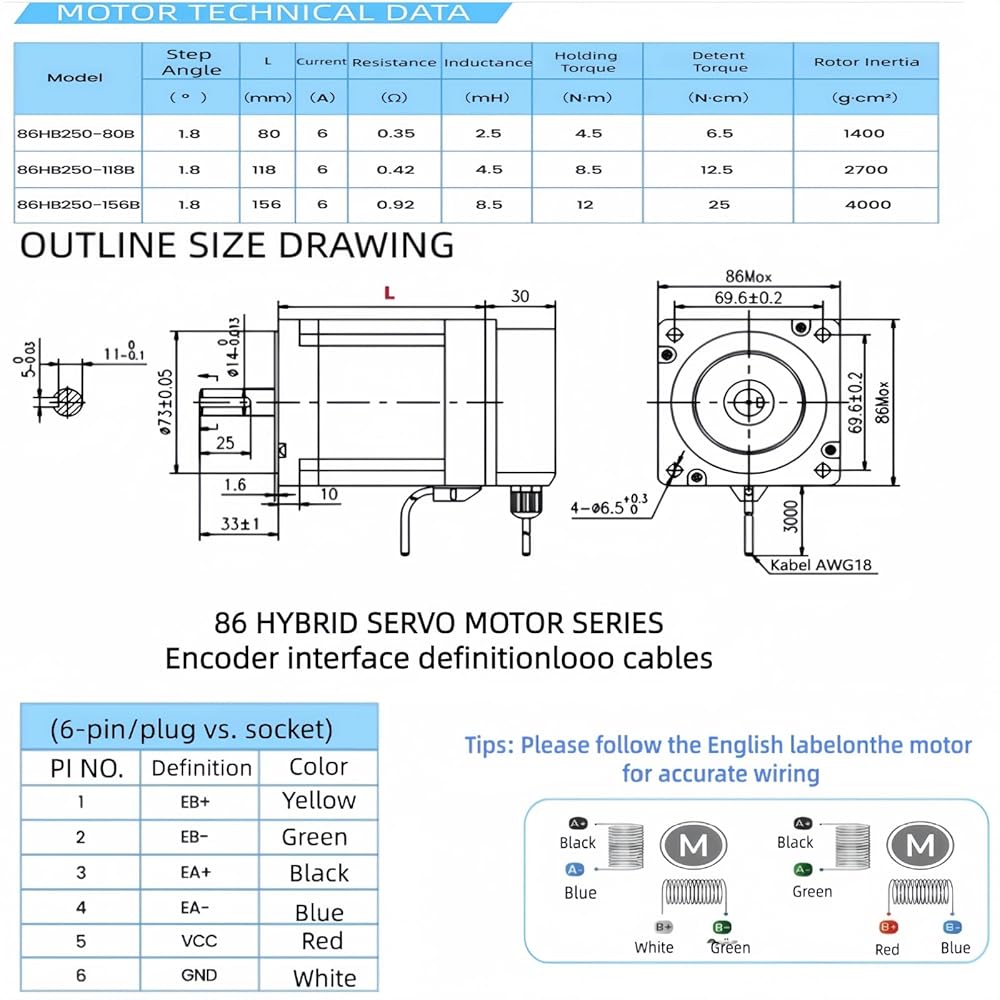

  • Size: Holding Torque: 12Nm / 1200Ncm; 86x86x156mm/3.38*3.38*6.14 inch; Step Angle:1.8 degree; Encoder lines:1000; Current: 4A; Phase: 2; Step Angle: 1.8 degree; Motor Lead Wire: 4-wire; Inductance: 6 mH; Resistance: 0.92 (ohm).

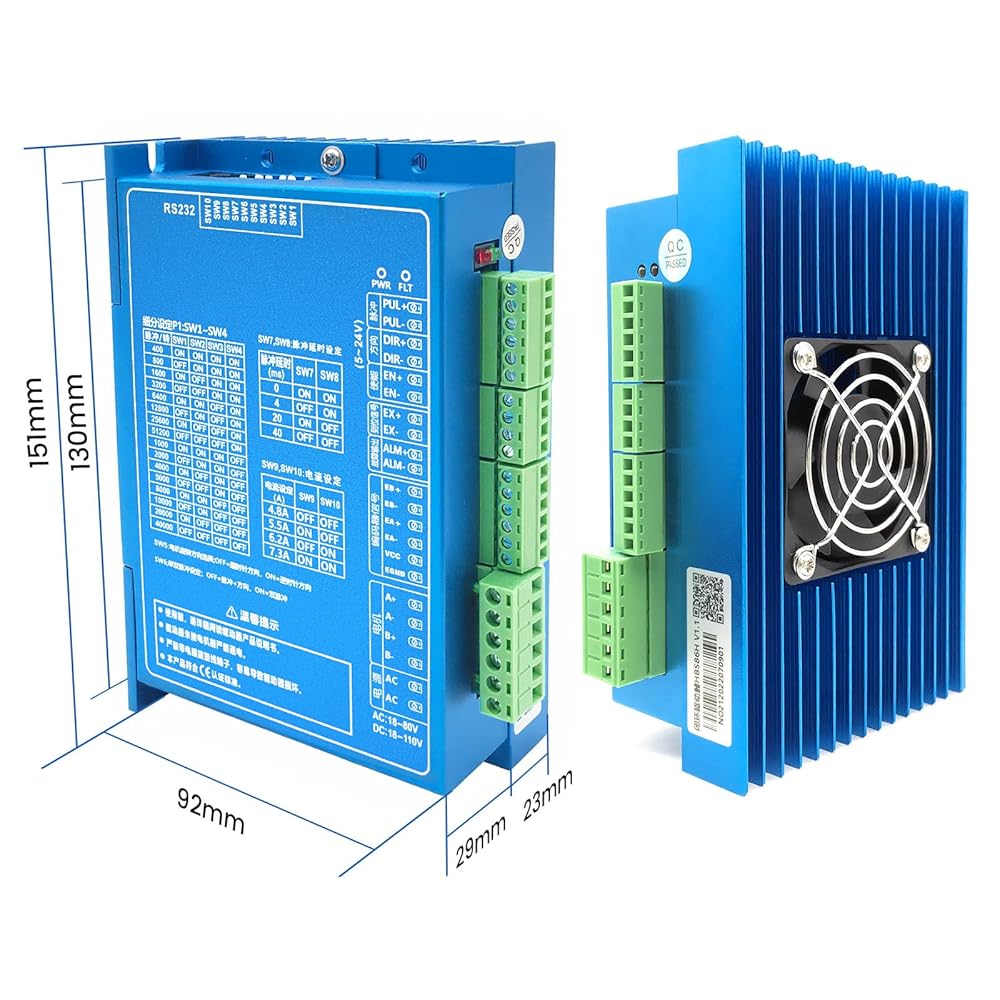

  • Parameter of Closed Loop Stepper Motor Driver: Type: DSP Closed loop stepper drive; Maximum peak current: 8A; Impulse response frequency: 200KHz; Input Voltage: 20~80 V AC/30-110 V DC; Micro-stepping driver: 200~25200ppr; Compatible : 5~24V signal (Don't need a resistor). Type of cooling: Forced air cooling; Logic Signal Current: 7-16 Ma.
  • Advantages: Stepper motor closed loop system,never lose step. The encoder technology can increase the accuracy of the motor; Improve motor output torque and working speed. It supports over-current protection, over-voltage protection, position outside the tolerance protection.

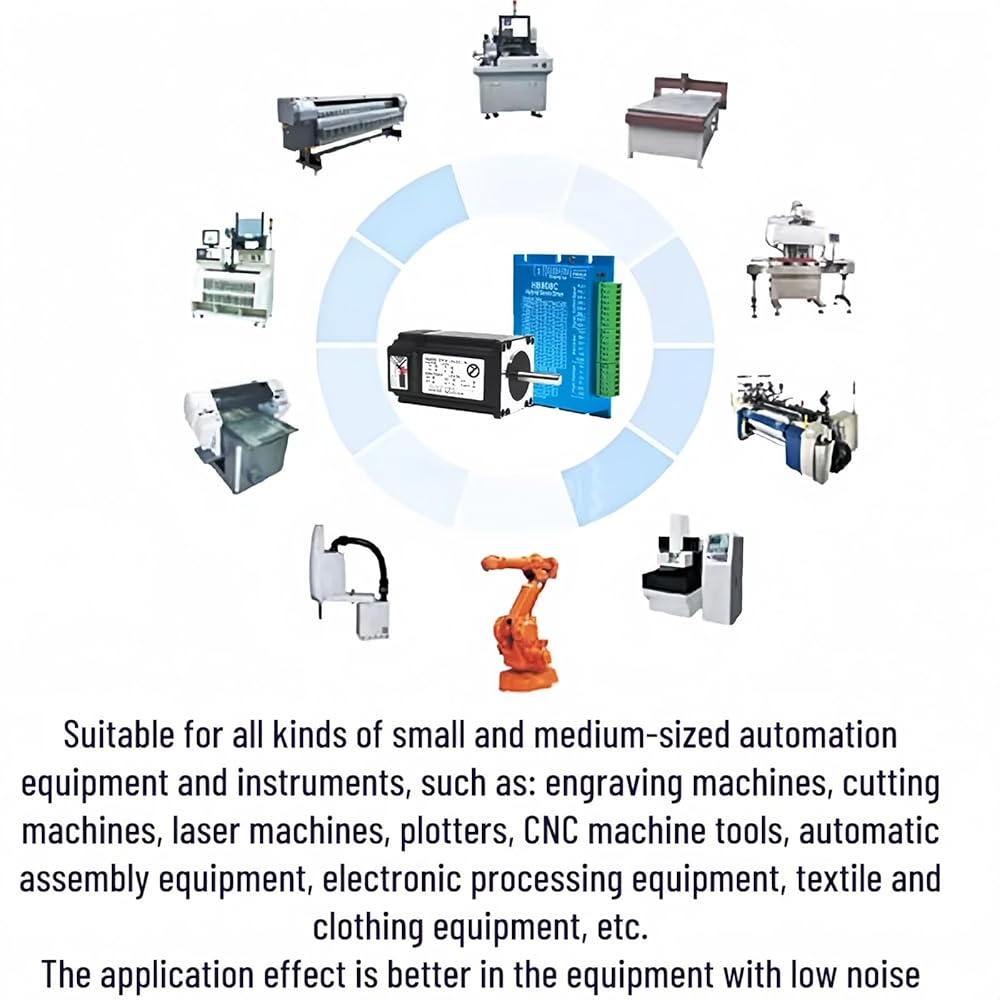

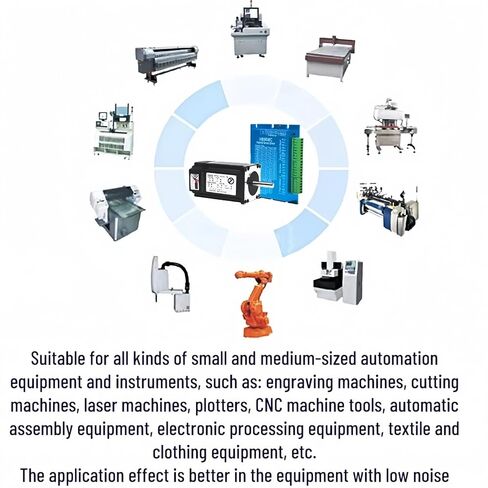

  • Widely used: Nema 23 closed loop stepper motor kit can be applied to all kinds small and medium-sized automation equipment and instrument,such as 3D printer, CNC machine, milling machine, carving machine, special industrial sewing machine, stripping machine, marking machine, graph plotter, cnc machine, automatic assembly equipment,automation application and so on.
