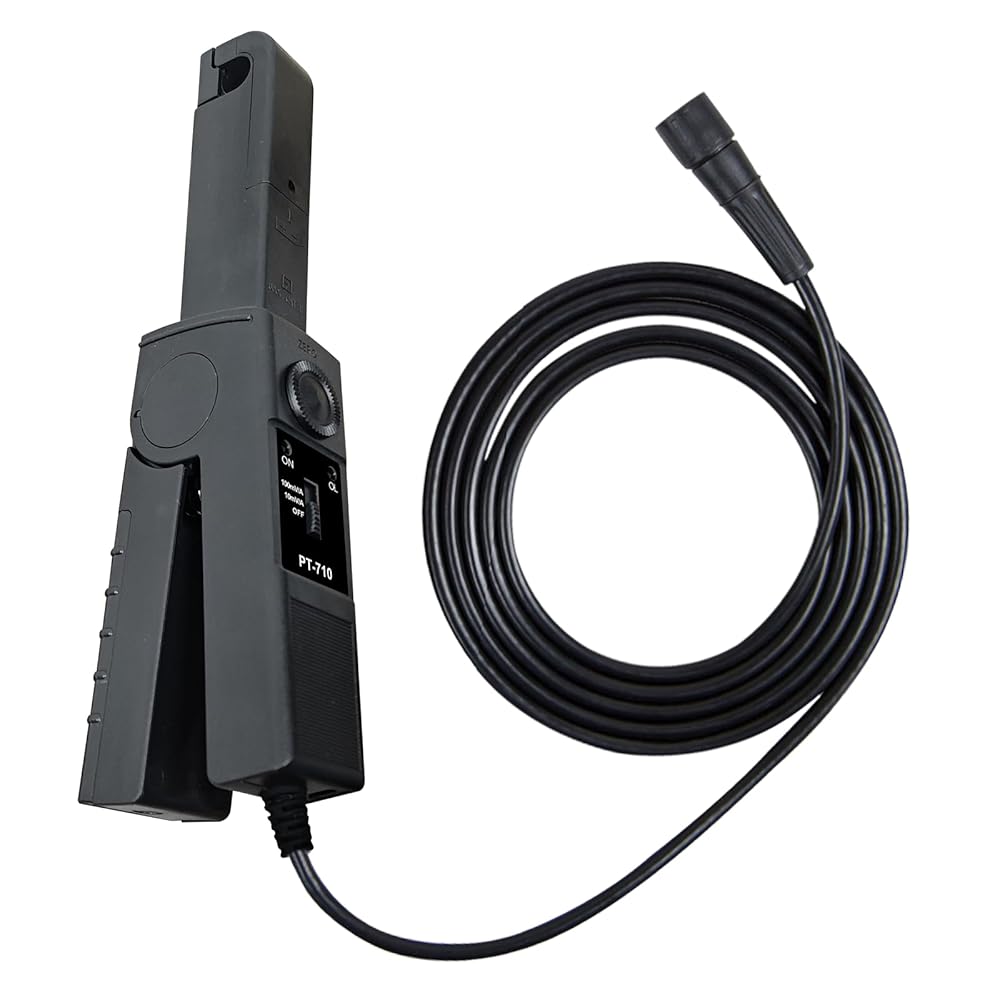

Test Range: PINTECH PT-710 current clamp measure currents between 0.05A and 100A. RMS value can be measured with AC/DC signals.
The current probe is designed according to Faraday's principle, measuring magnetic ring of a wire's interfering current signal.
PINTECH AC/DC current probe's bandwidth up to 200KHz, ±2%+5mV accuracy, featuring with low battery indication, low noise level, and high detection accuracy.
Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. With a MT-246N adapter, the probe can also be used for multimeter(NOT INCLUDED. Need purchased separately).
The DC/AC current probe meter is small and delicate, easy to carry, can be widely used in motor drive, power frequency, inverter, power supply and avionics. PINTECH offers a three-year warranty
