Special Features

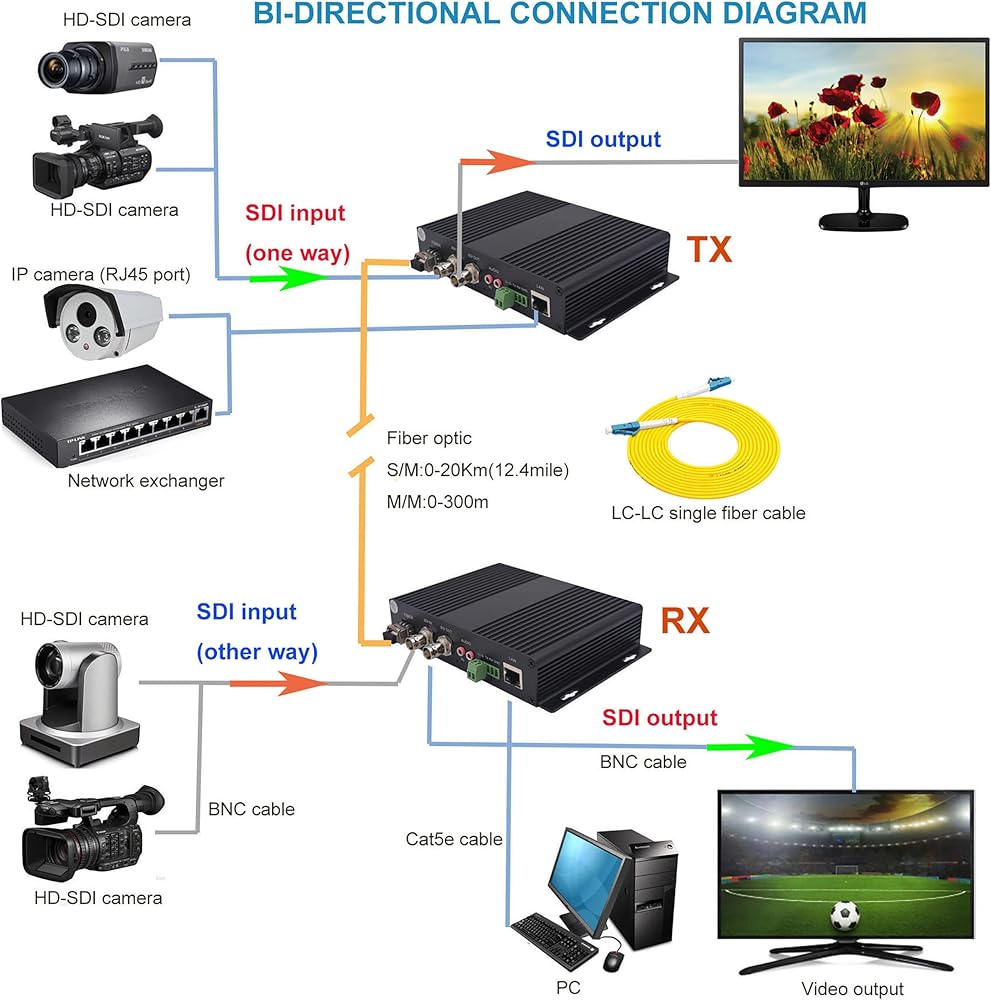

This HD-SDI fiber converters can extend a channel of Bi-directional HD-SDI Video/Audio signal over a fiber optic to far end, One direction from TX to RX, other direction is from RX to TX. Single-mode fiber can up to 12.4 Miles (20Km). with two SFP optical module, LC simplex port. HD-SDI signal is with embedded audio signal
Support SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@30/25, 1080i@60/50, 59.94 and more (Please Note that the model not support 3G-SDI,Not support 1080P@60Hz)
With clock recovery, clock shaping, this function can make sure the video image no flicker, high quality design
Support Video loop out function and one bidirectional RS485 data, Supports embedded digital audio stream. the 10/100Mps ethernet (RJ45 port) can extend your networking signal through a fiber optic to far end up to 12.4miles, it also can use for IP camera with RJ45 port and More
Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution
Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, and it will work immediately.

Description

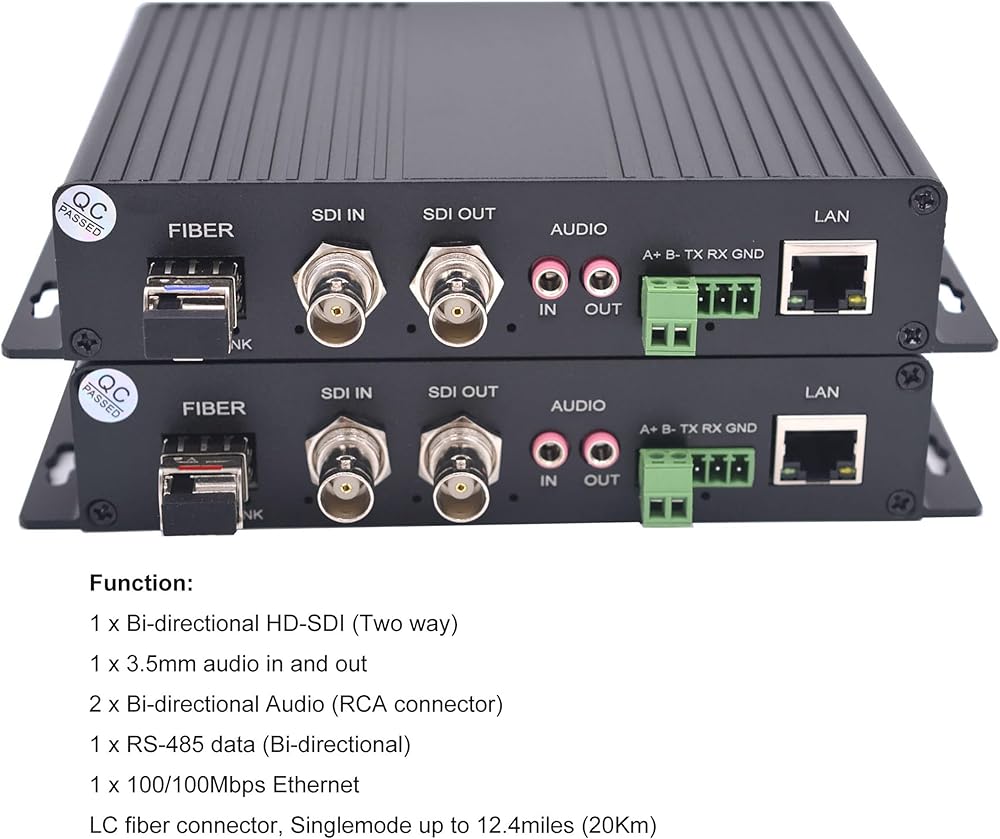

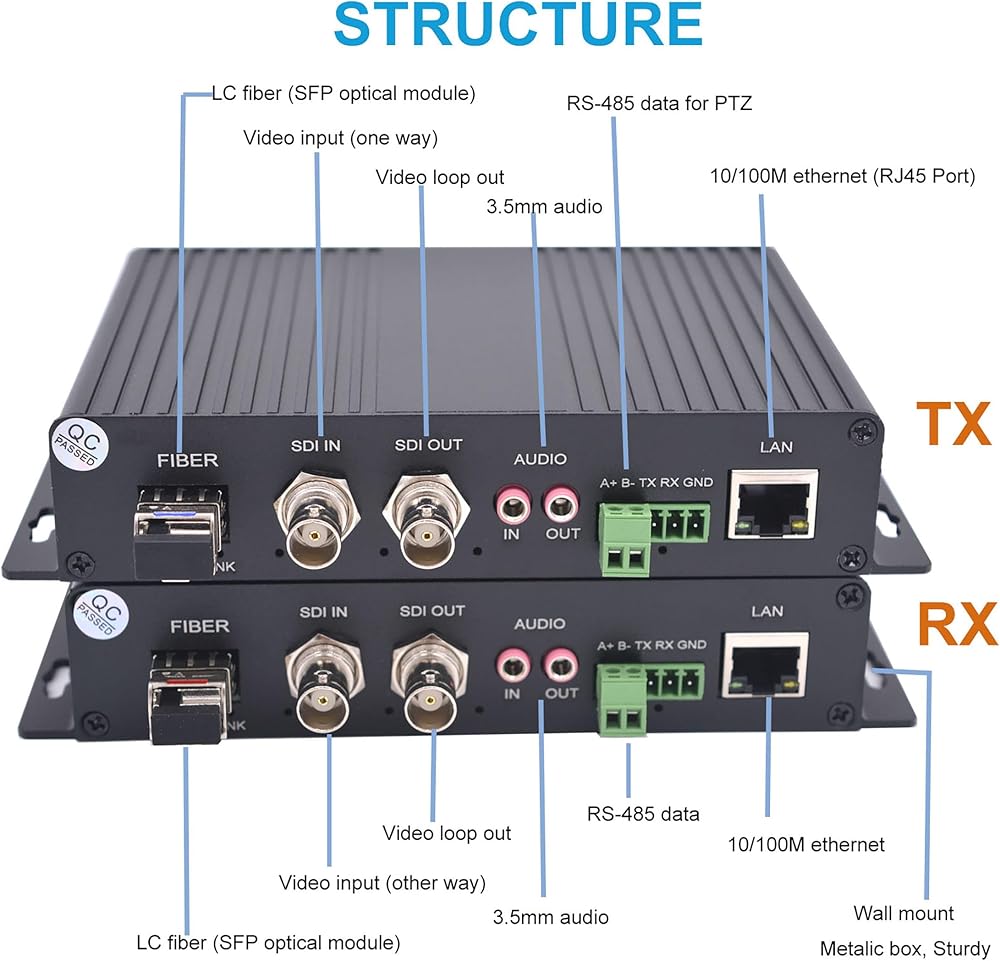

Function:
1 x Bi-directional HD-SDI (Please Note that the model not support 3G-SDI,Not support 1080P@60Hz)
1 x 10/100Mbps Ethernet.
1 x 3.5mm Audio (Bi-direction).
2 x RCA Audio (Bi-direction).
1 x RS-485 data (Bi-direction).
LC fiber connector, Singlemode single fiber 0-20Km.

Specification:
Working voltage:AC100V~240V,DC5V/2A

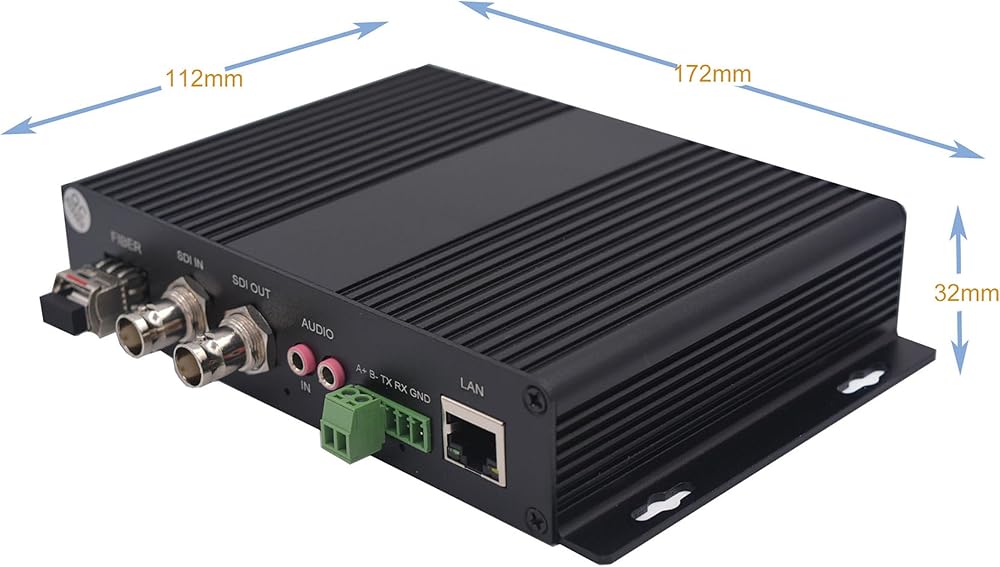

Outer box size: 172x112x32mm (LxWxH)
Weight :1.2Kg per set.
Package: carton box

Package Include:
1 x HD-SDI Fiber Transmitter
1 x HD-SDI Fiber Receiver
1 x 3M LC-LC SM fiber patch cord
2 x External Power supply adapters (US standard)
1x User Manual
