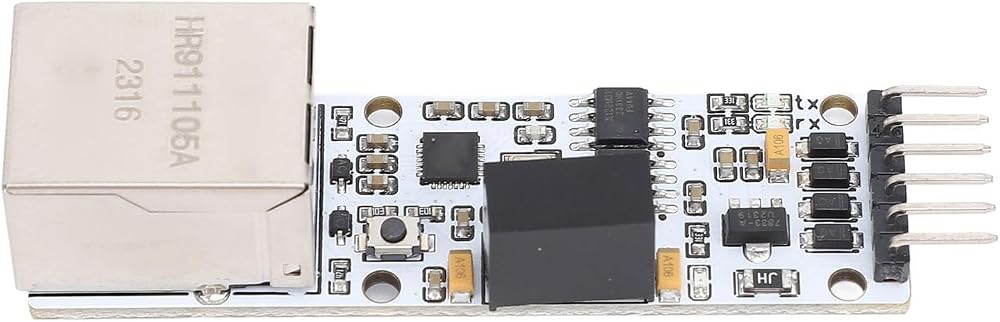

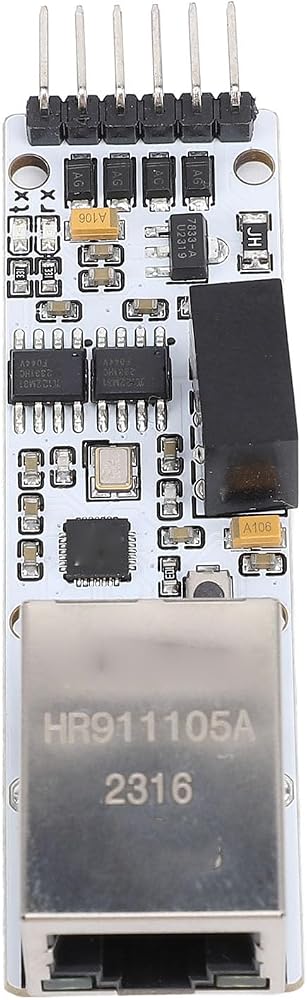

Ethernet Network Module with Client, Server, UDP Client, UDP Server, for Bidirectional Data Transparent with Voltage Surge Suppression

SAR 94
Brand
Yunir
Category
Print Servers
Weight
31 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Original Chip Technology] - Utilizes ch9120 chip with ethernet media transport layer and phy for reliable data
  • [Versatile Networking] - Supports tcp client, tcp server, udp client, and udp server 4 modes for flexible network configurations

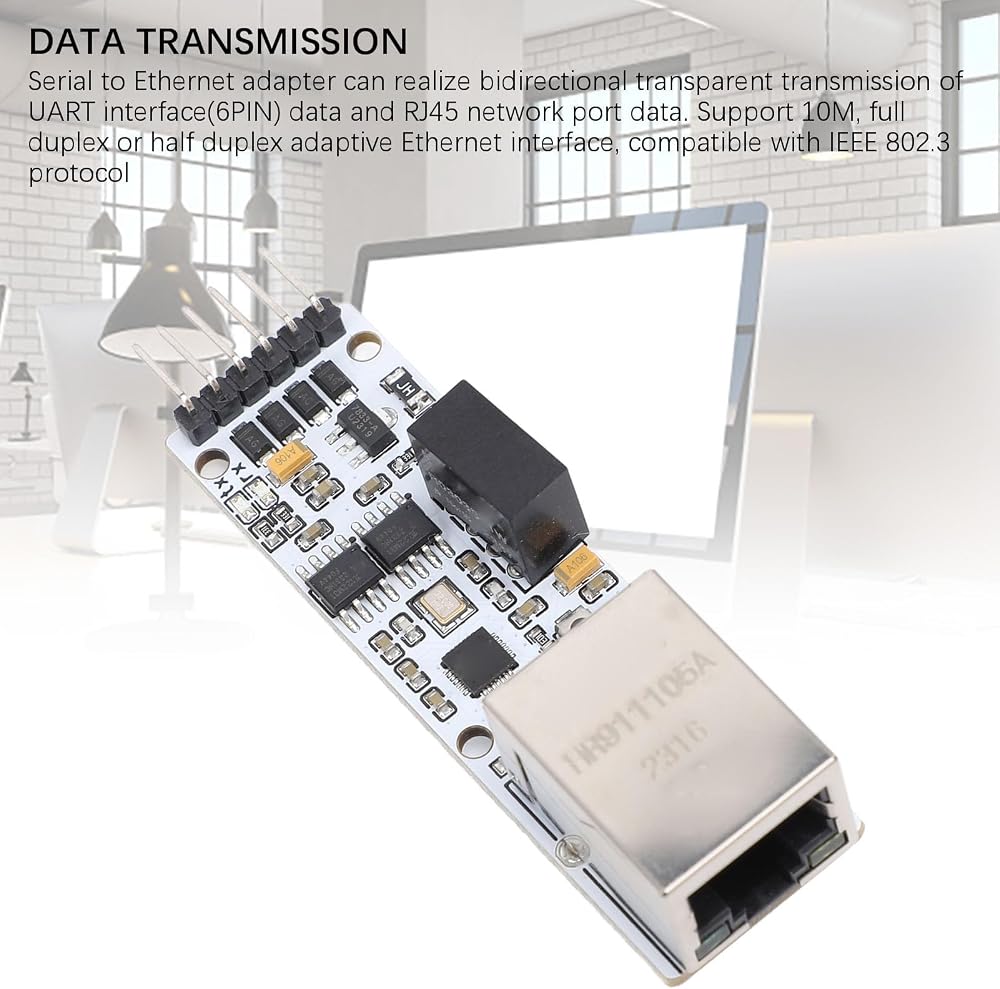

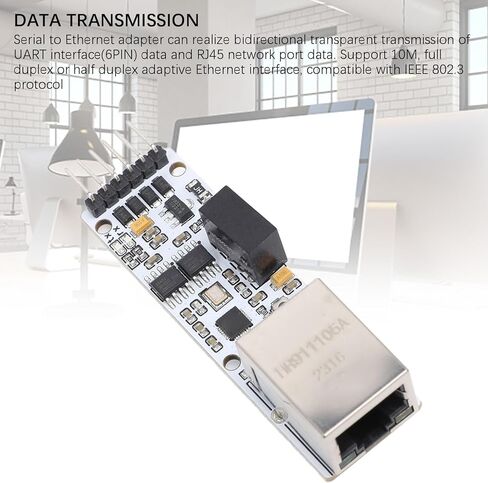

  • [Bidirectional - Enables transparent of uart interface data and rj45 network port data for seamless connectivity

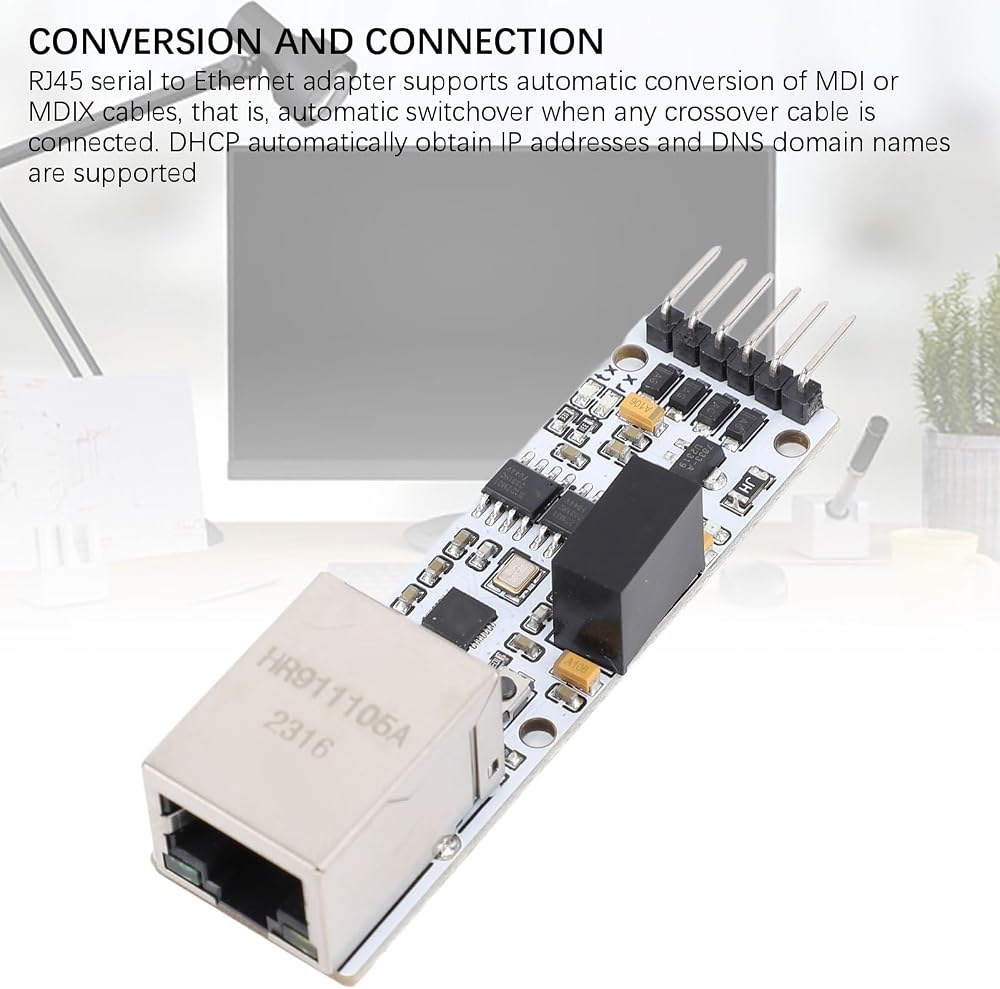

  • [Automatic Cable Conversion] - Automatically switches between mdi and mdix cables for easy setup and dhcp ip address acquisition

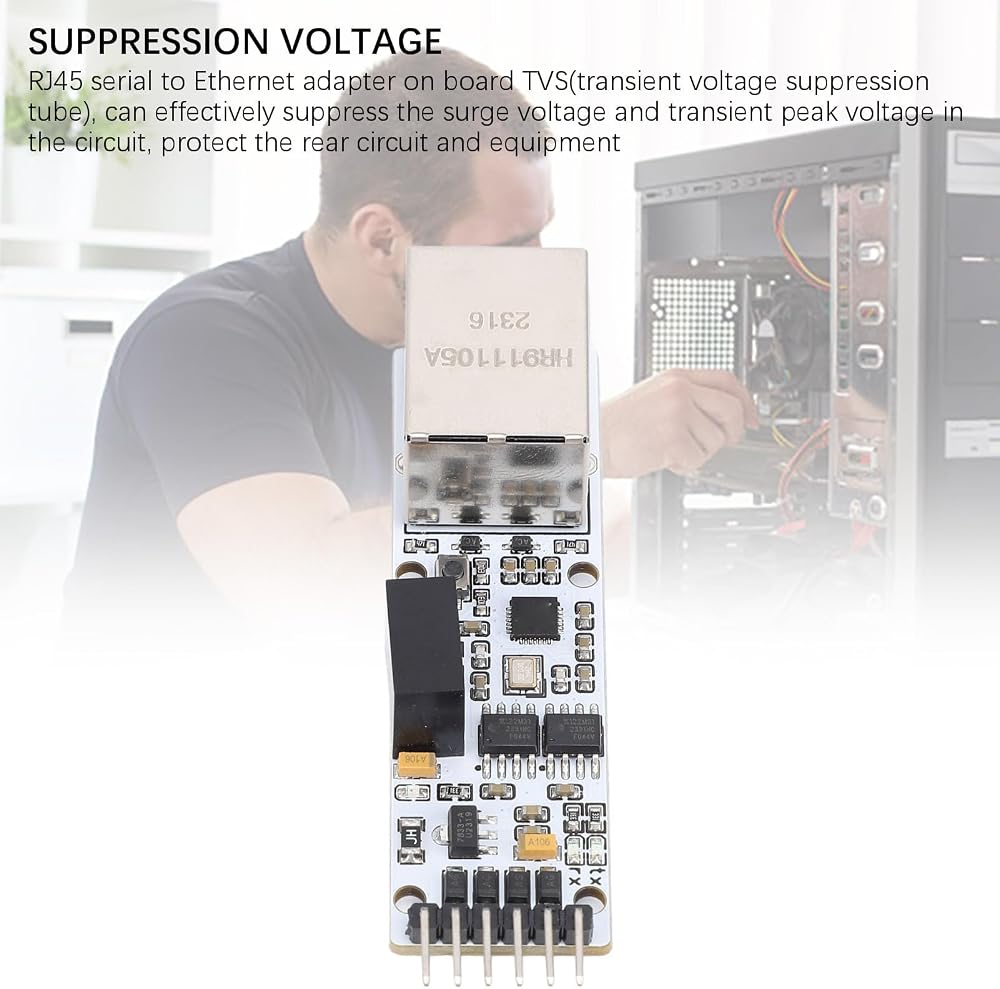

  • [Enhanced ] - Features tvs for surge voltage suppression, self-restoring fuse for stable output, and digital isolator for signal stability

Description

Specification:

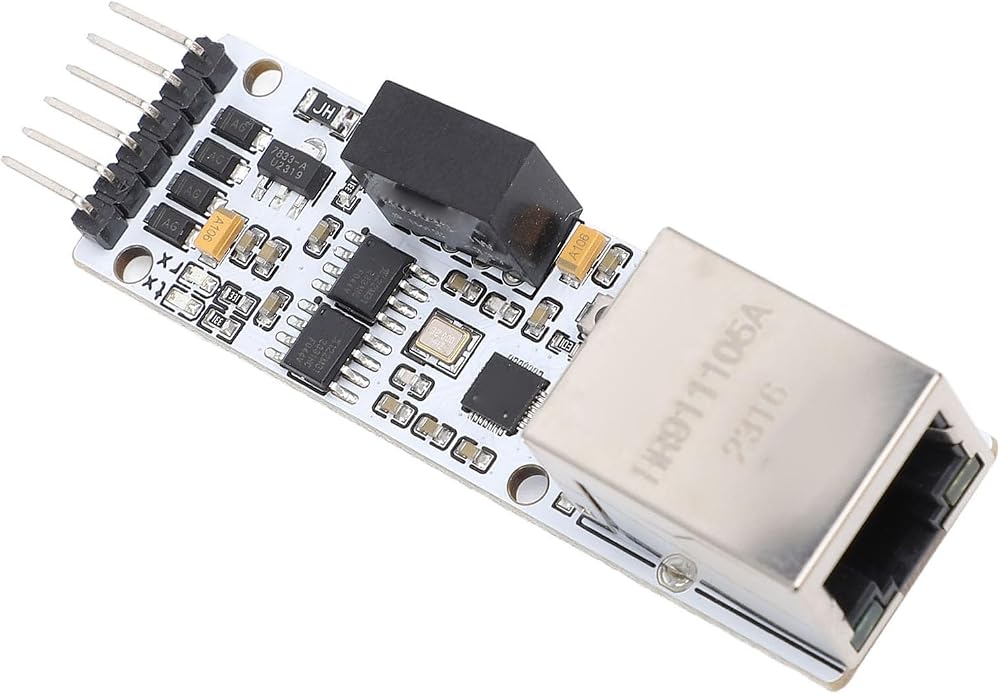

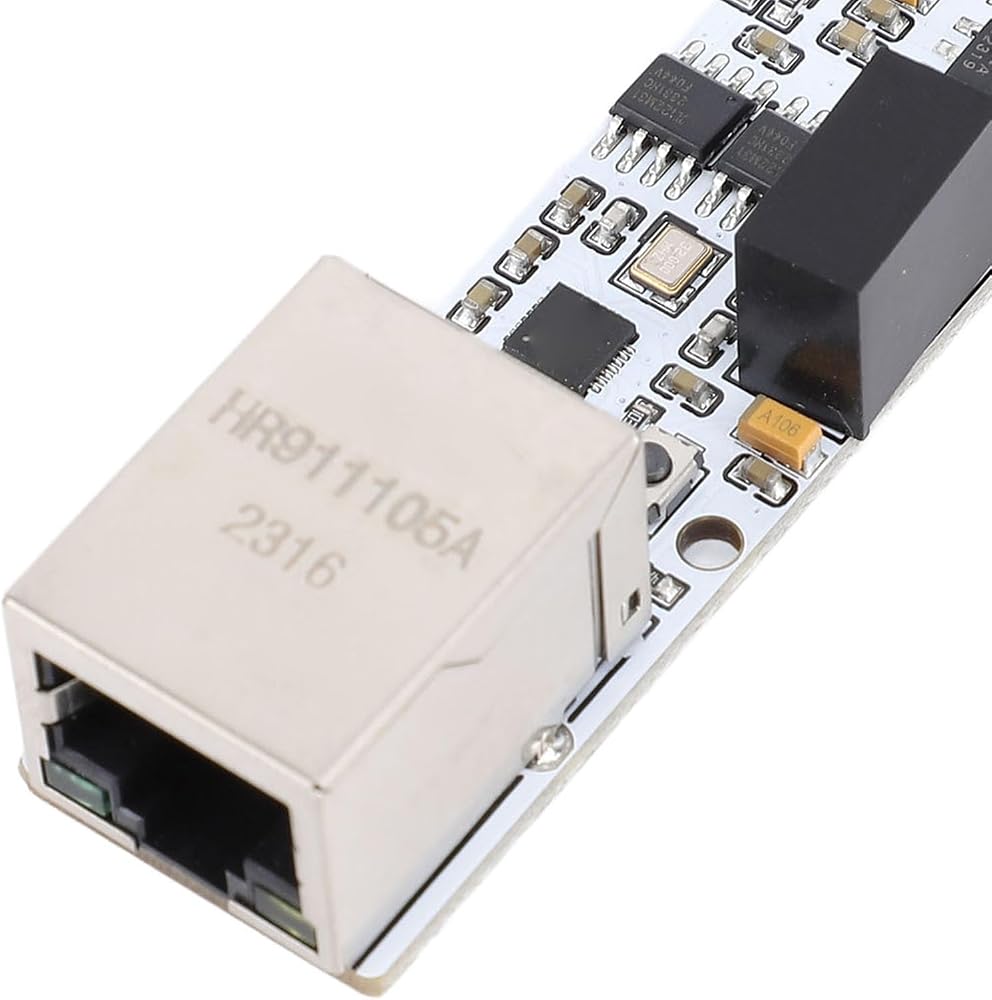

Item Type: Serial to Ethernet Network Module
Material: PCB
Communicating Interface: UART interface(6PIN)
Power Supply: Pin header power supply
Voltage: 5V
Baud Rate Range: 300bps - 150000bps
Simple Transparent Mode: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
User Configuration: Configuration software provided
IP Acquisition Method: Static IP, DHCP automatic IP acquisition

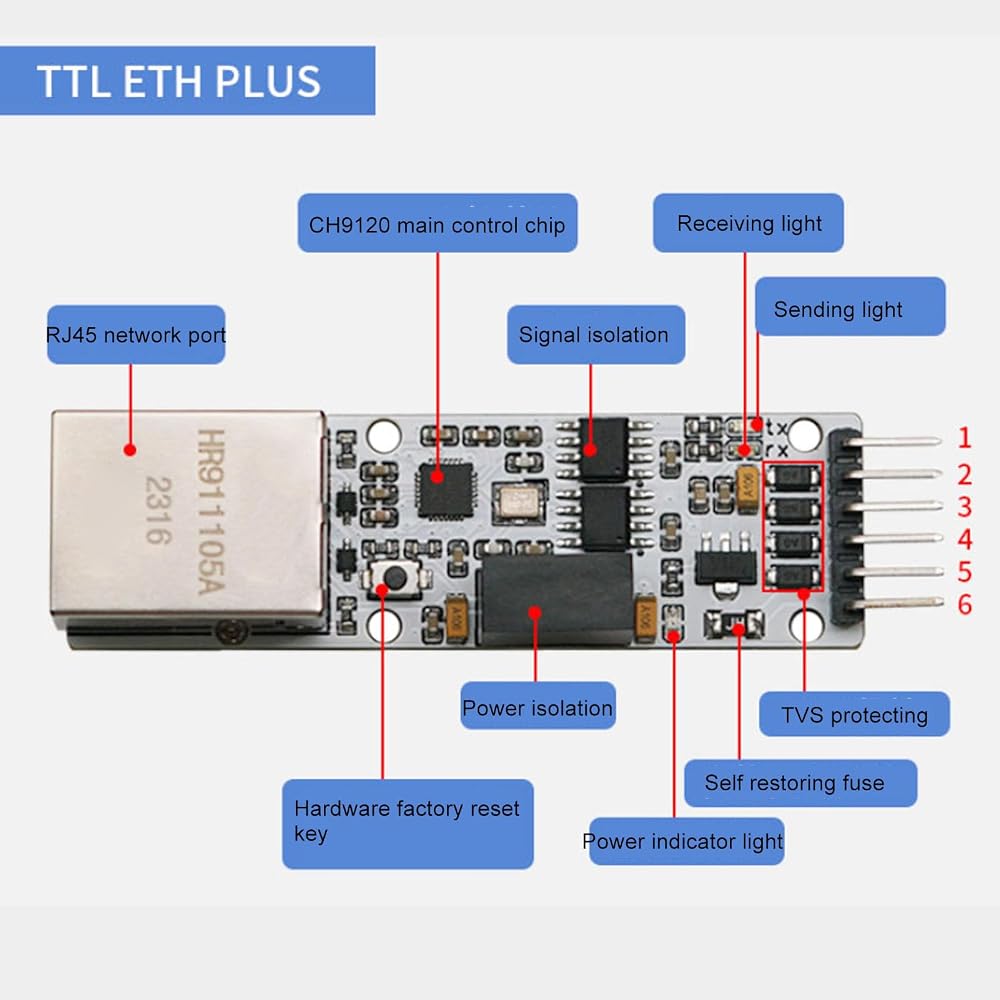

How to Use:
1. GND: Power negative terminal
2. TCPS: In TCP client mode, the connection status indicator, low level indicates successful connection
3. CFGO: Serial configuration mode setting pin, built in pull up resistor, entering serial configuration mode when low level detected, high level exits configuration mode
4. RXD: Serial data receive end, connected to TTL device TX pin
5. TXD: Serial data transmit end, connected to TTL device pin
6. 5V: Power positive terminal, connect to 5V
7. Hardware Reset Key: Hold down this key and power on, release the key after 3s, module will reset to factory settings

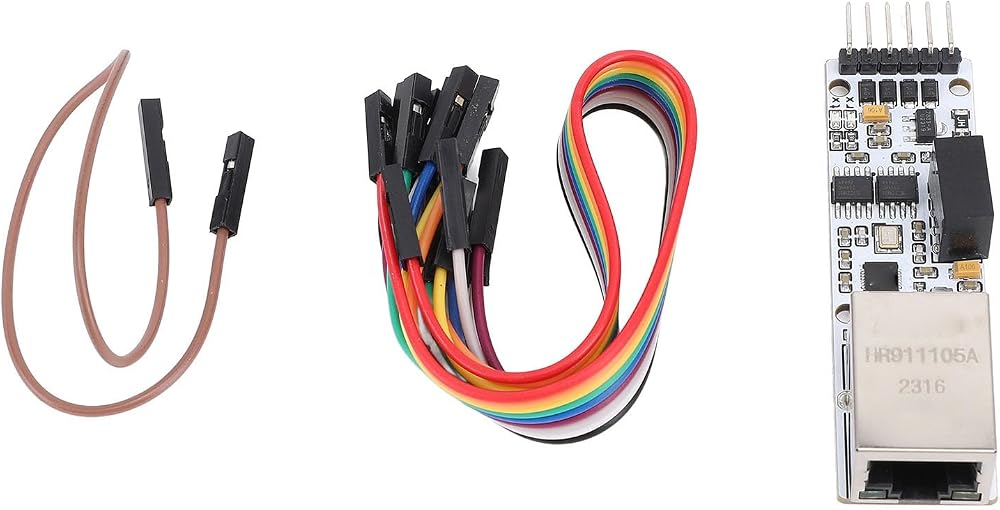

packing list:
1 x Ethernet Module
1 x Connecting Cable
