Motor Drives

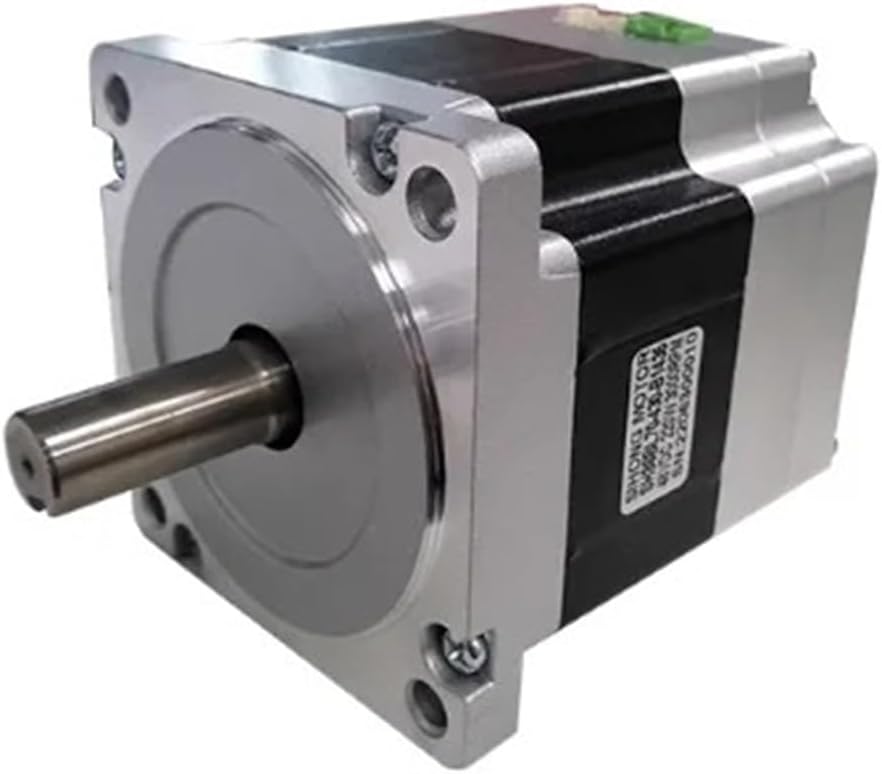

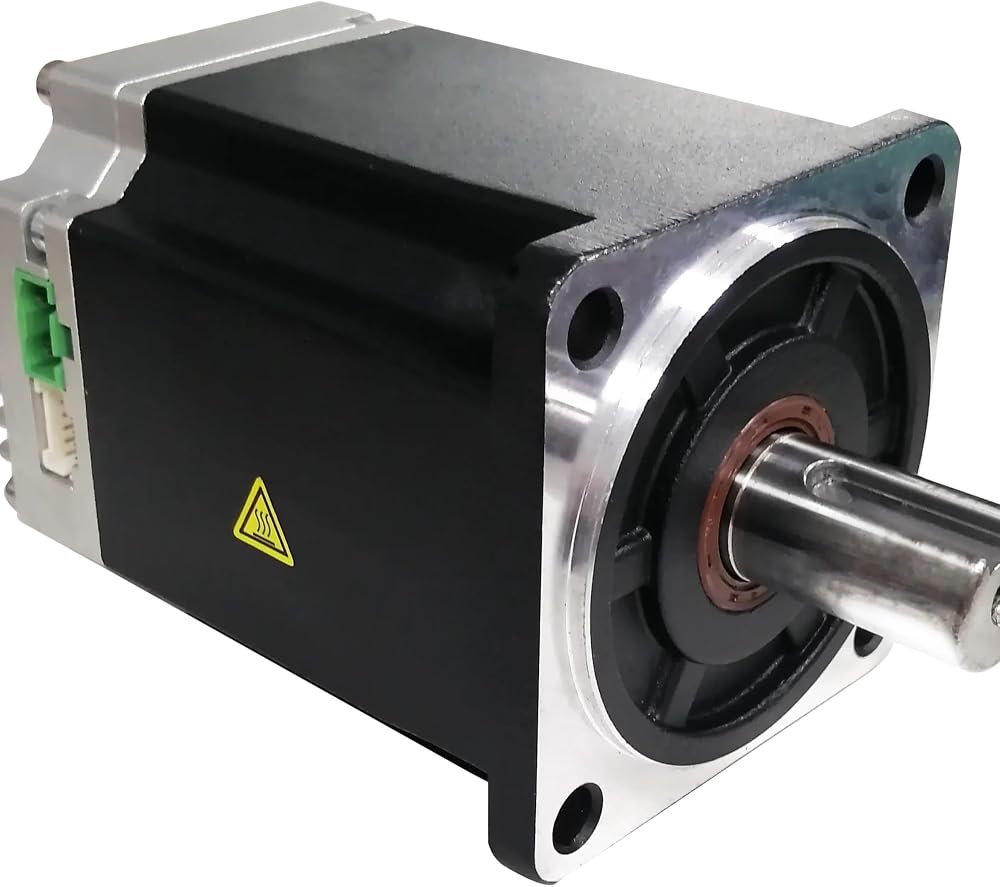

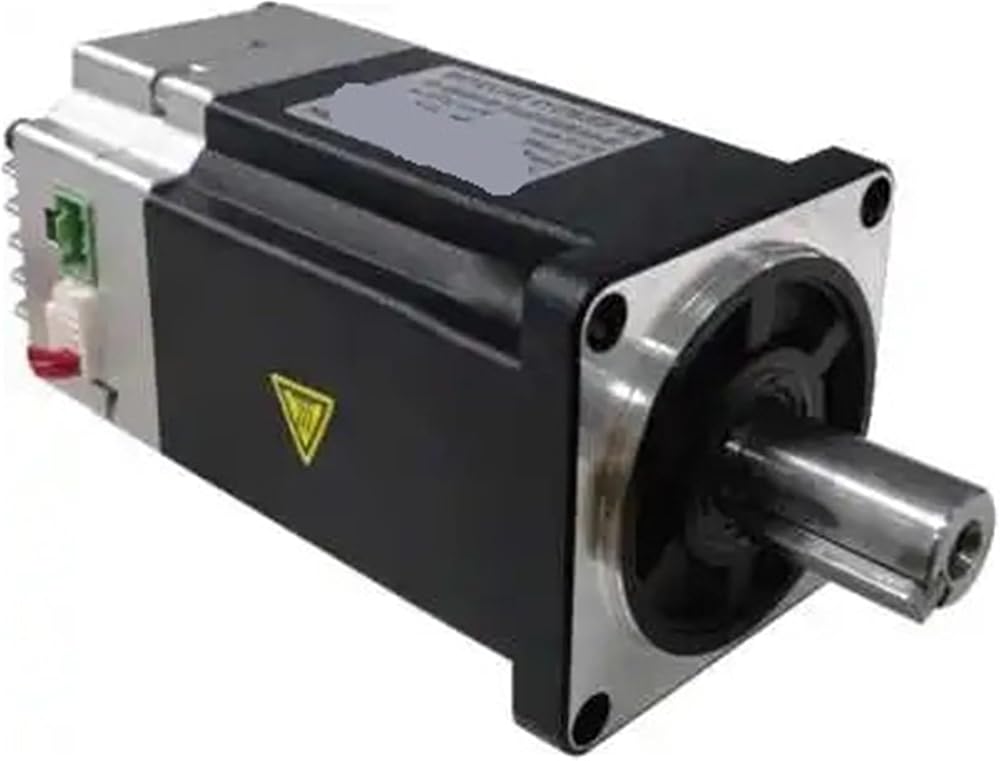

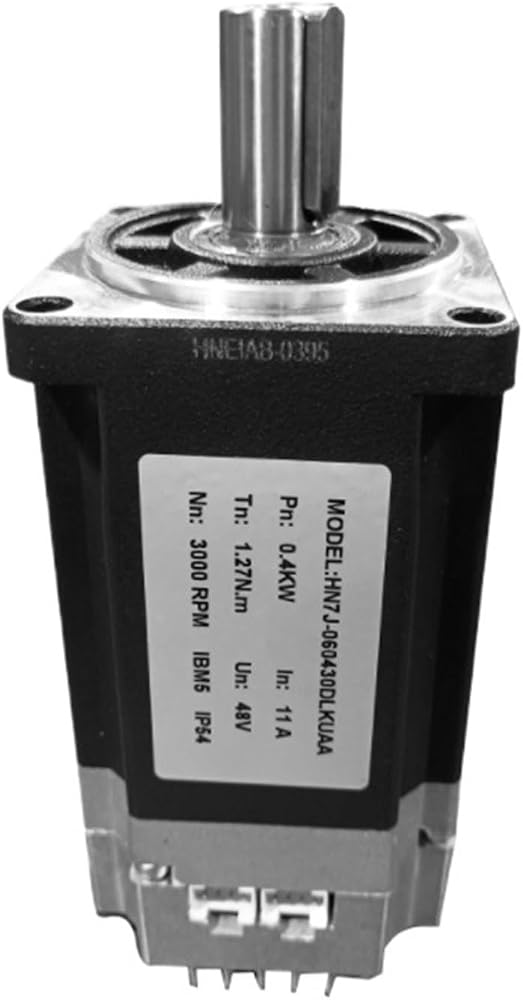

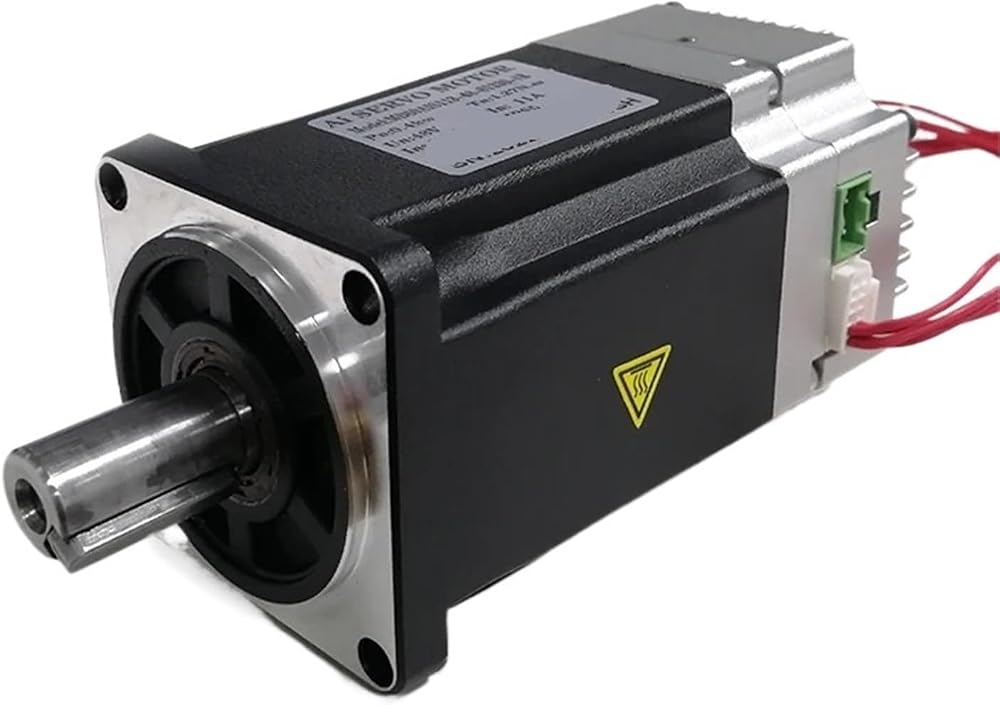

Integrated BLDC Motor And Driver Products 60mm 400W 3000rpm 1.27nm 48VDC For AGV Car Hybrid 24 Stepper Motor
==========
Motor Type : Stepper Motor
Model Number : MD60BLFOC113-48-01330-1R001
Use : AGV
Type : Brushless Motor
Tq : 1.27NM
Construction : Permanent Magnet
Commutation : Brushless
Protect Feature : Totally Enclosed
Speed(RPM) : 3000RPM
Continuous Current(A) : 11A
Efficiency : Ie 3
Frame size : 60mm*113mm
Power : 400W
Voltage : 48V
Rated Tq(N.M) : 1.27
Reak Tq(N.M) : 3.82
Current : 11A
Resistance : 0.27
Key words : stepper motor,gear motor,bldc, motor driver,brake motor
Diameter : 14mm
