Current Sensors
Description:
Hole size: 8mm1,12mm,15mm
Introduction:

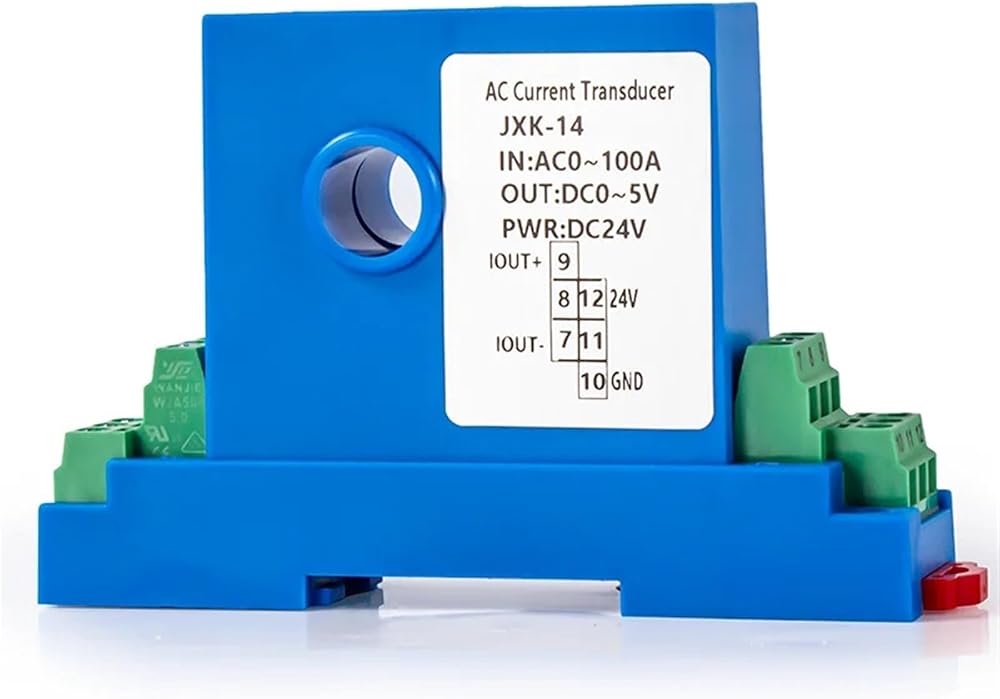

JXK-D14 Current Transducer
. Working Principle: Open loop direct measurement.
.Product Usage: Used for measuring , AC, pulse current and other arbitrary waveform current.
.Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
.Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
Full channel configuration,Parameter customizable.
Features:
High Integration
Small Volume, easy installation
High accuracy, good linearity

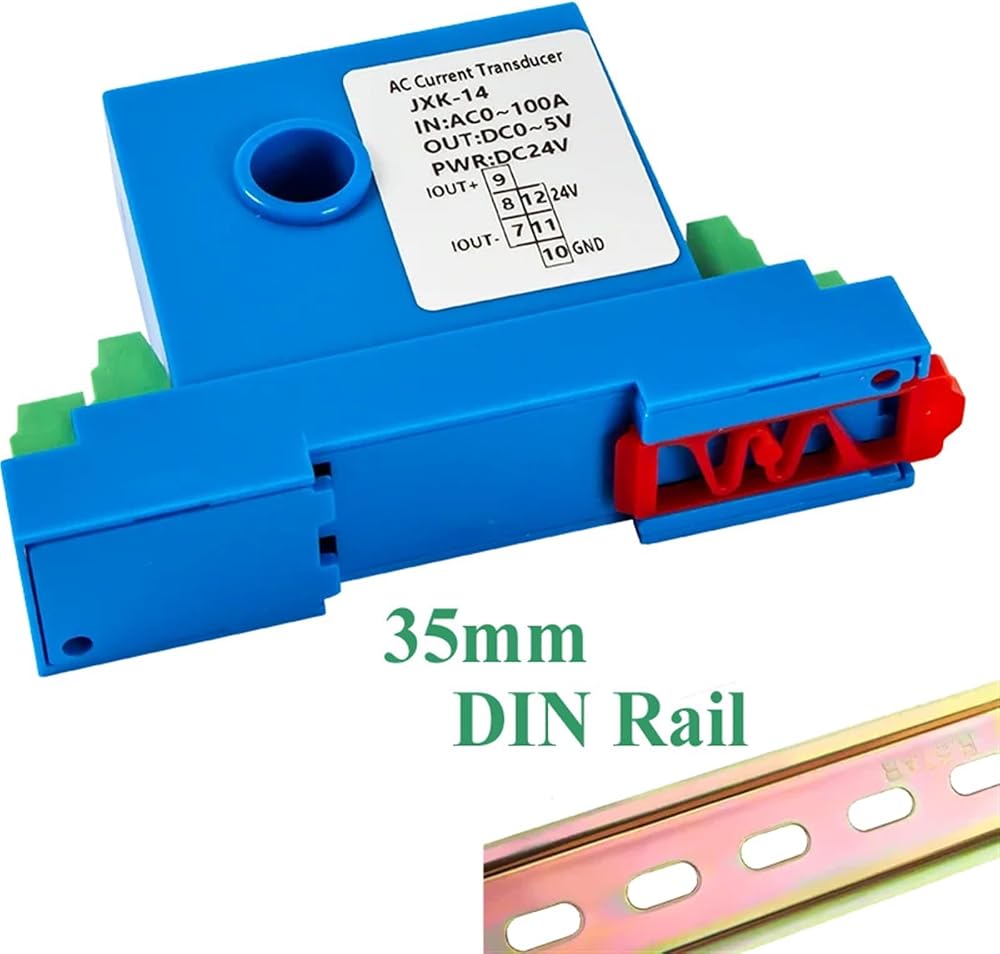

Standard 35mm DIN Rail Installtion or screw
Strong anti-interference

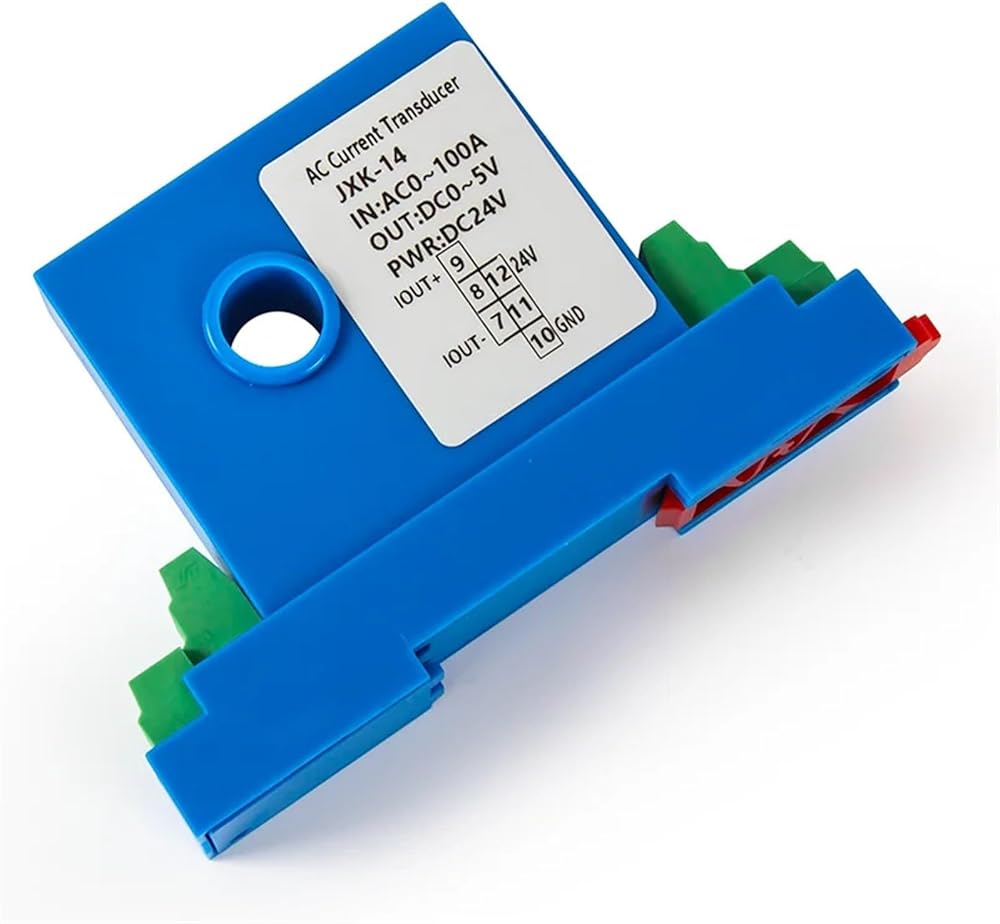

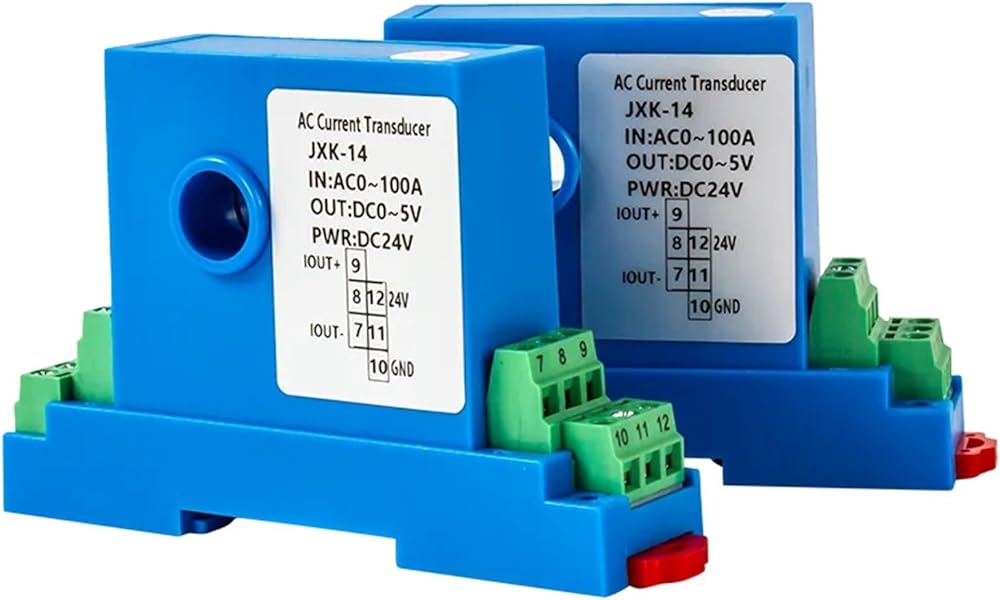

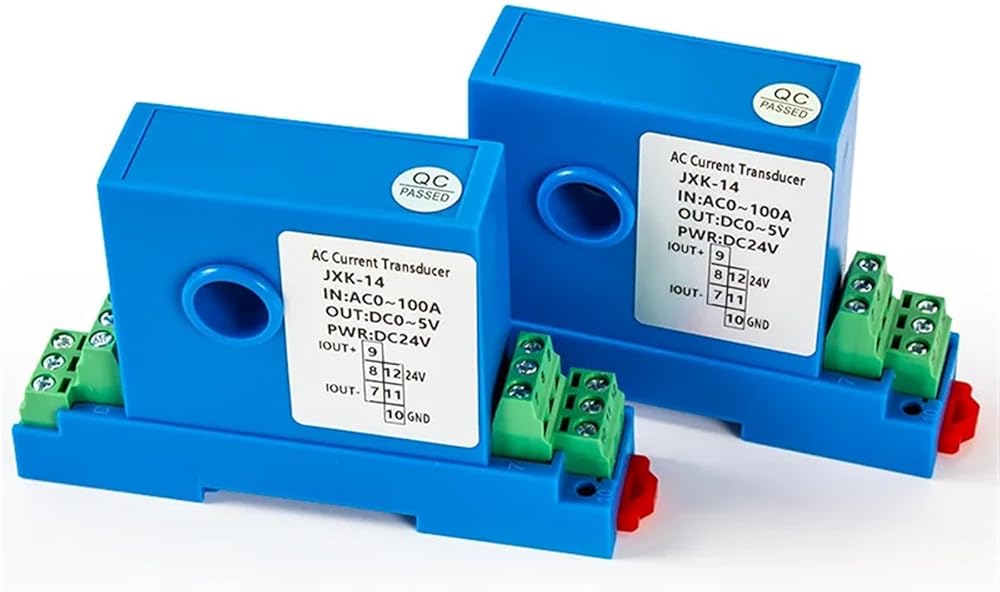

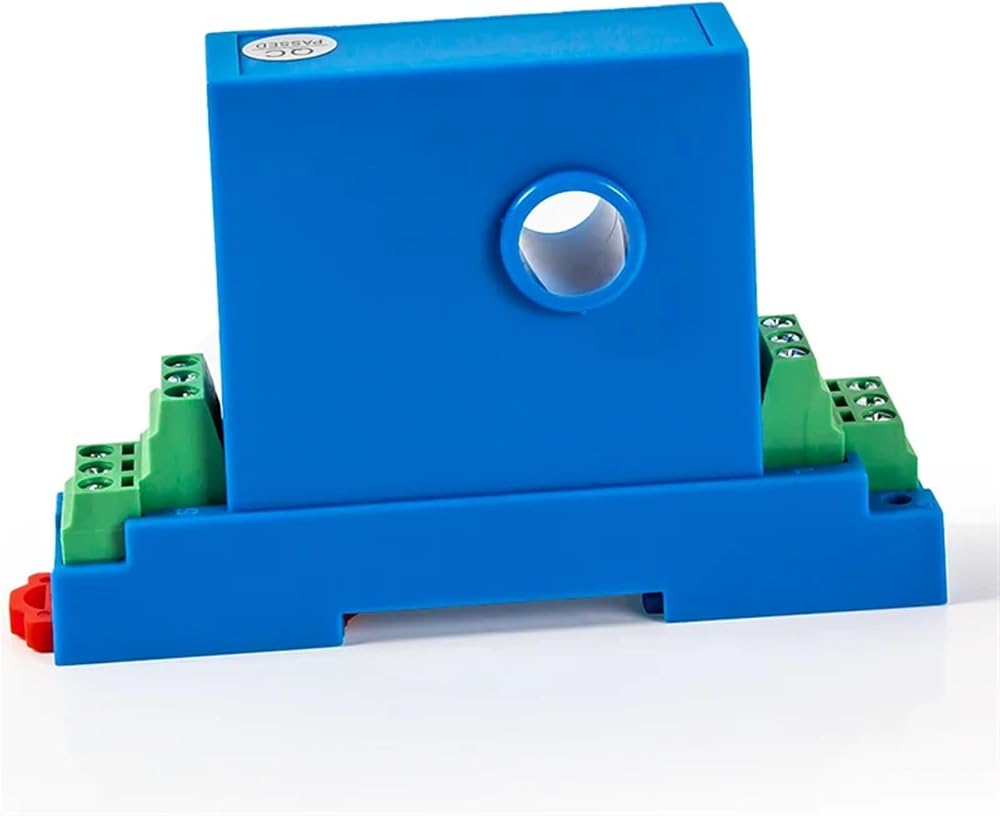

Product Display
==========
Dimensions : 99*65*24(mm)
Operating Temperature : -20~+60
Supply Voltage : DC24V,DC12V
Accuracy Class : 0.5%FS
Model Number : JXK-D14
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Channel : 1 In 1 Out
Input Signal : DC0.5A-150A
Output Signal : 4-20mA,0-20mA,0-10V ,0-5V,1-5V
Feature1 : Hall Current Transmitter Transducer
Feature2 : Hall Perforated Current Transmitter
Feature3 : 4-20mA Hall Current Transmitter
Feature4 : Hall Current Transmitter 0-10V
Feature5 : Hall Current Transmitter 5A 10A
Feature6 : Hall Perforated Current Transmitter
