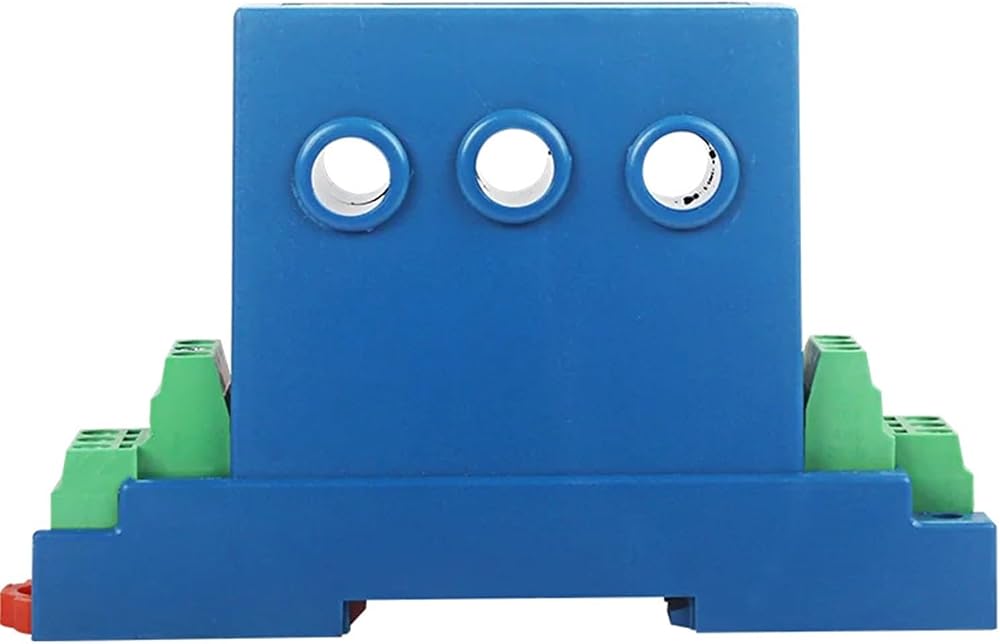

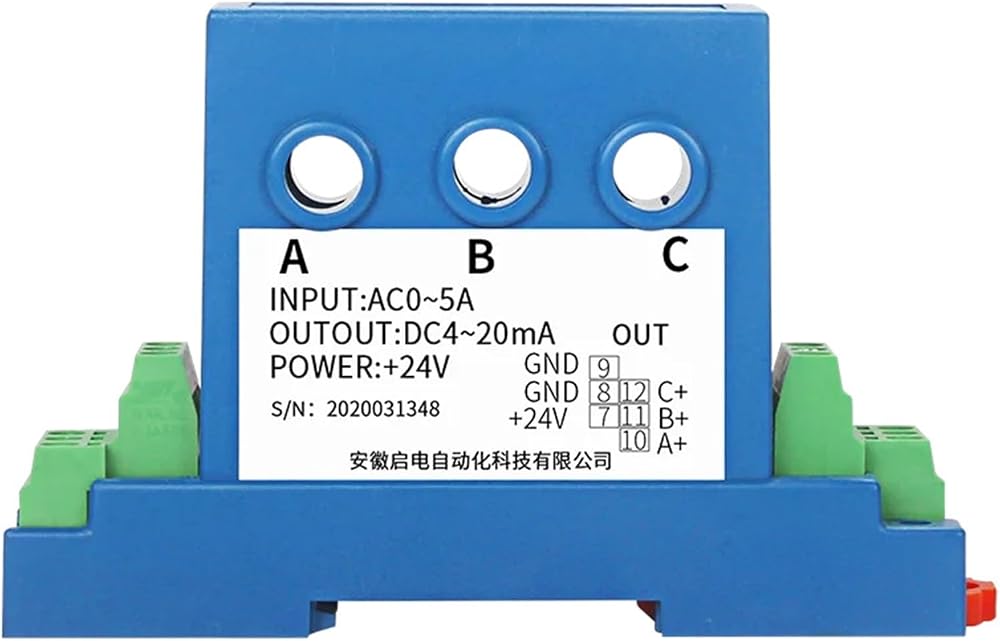

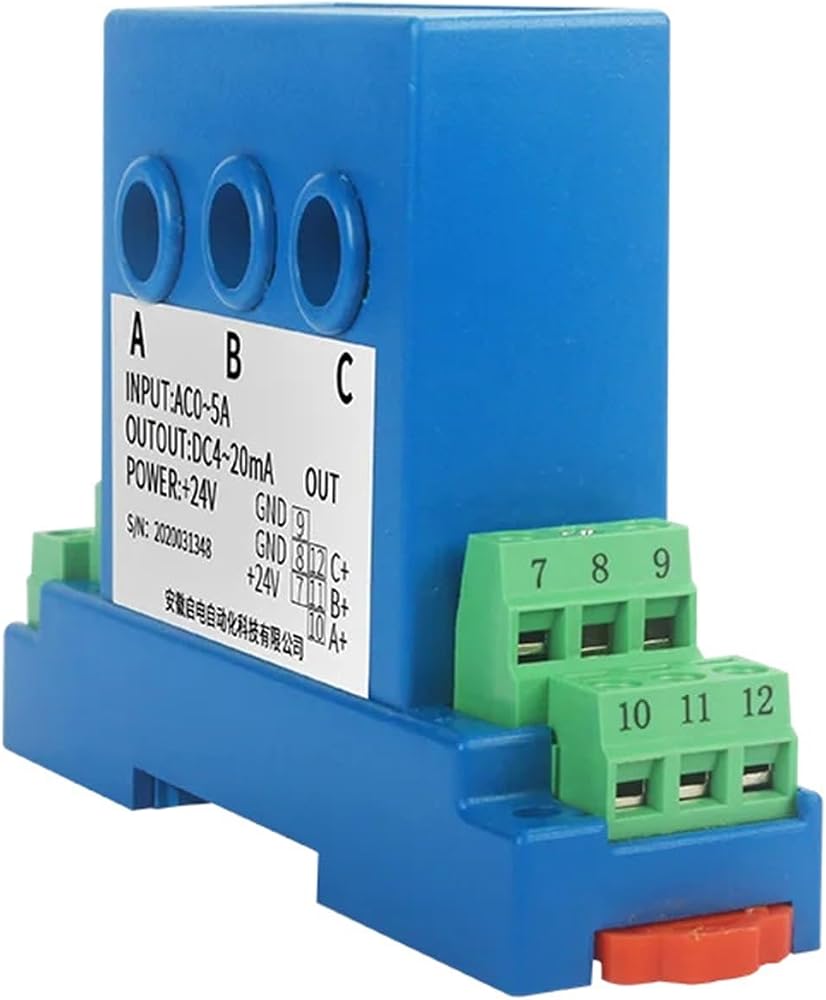

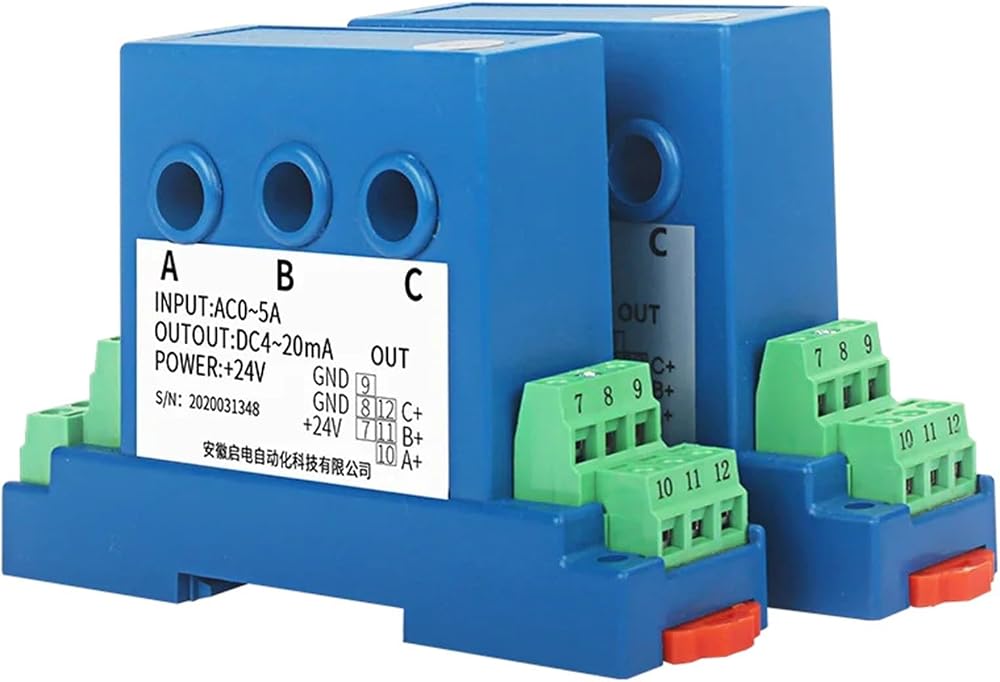

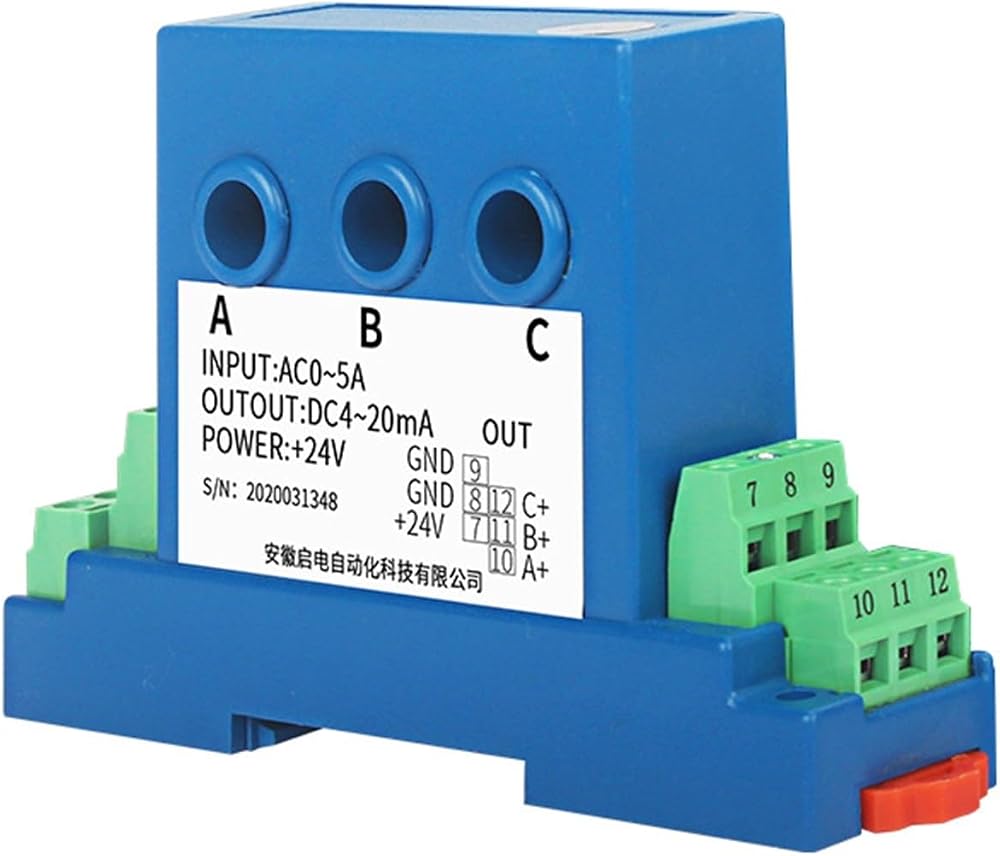

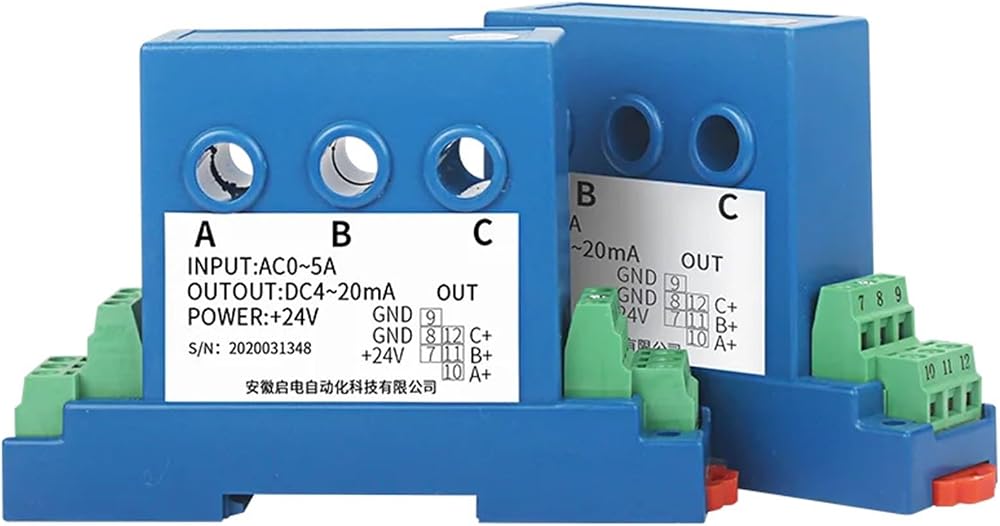

3 Phase Current Transmitter 4-20ma 0-5v 0-10v Analog output Perforated Three Phase Ampere Signal Transducer
NOTES:
The 3 phase current transducer can make any range within AC0~50A.
If you need other current range, please contact me.
We can make special customization for you.
Product Description
1>>. Working principle: Open loop direct measurement.
2>>.Usage: Used for measuring 3 phase AC current.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.
5>>.The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>.Full channel configuration,parameters .
Product Paraments
* Installation mode: standard guide rail + plane screw fixed
* Rated current 0.5A; 1A; 2A; 5A; 10A; 20A; 30A;
* side measurement range 1A; 2A; 4A; 8A; 15A; 36A;
* Rated output 1V; 2V; 5V; 10V; DCO~20mA; DC4~20mA; User-specified auxiliary
* power supply DC12V, DC24V, user-specified
* load capacity voltage output: 5mA; Current output: 6V
* linearity :0.1%
* accuracy 0.5%
* overload capacity 10 times nominal input
* isolation voltage withstand 3kV/50Hz, 1Min
* imbalance voltage: 10mV
* band width 20~5KHz
* The operating temperature of 250Ms is -10~+70.
* The storage temperature is -25~+85
==========
Dimensions : 99*65*24mm
Operating Temperature : -30~+85
Accuracy Class : 0.5%FS
Model Number : JXK-3PI
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Product name : 3 phase current transducer
Input current range : AC 0
