sensor
Inductors

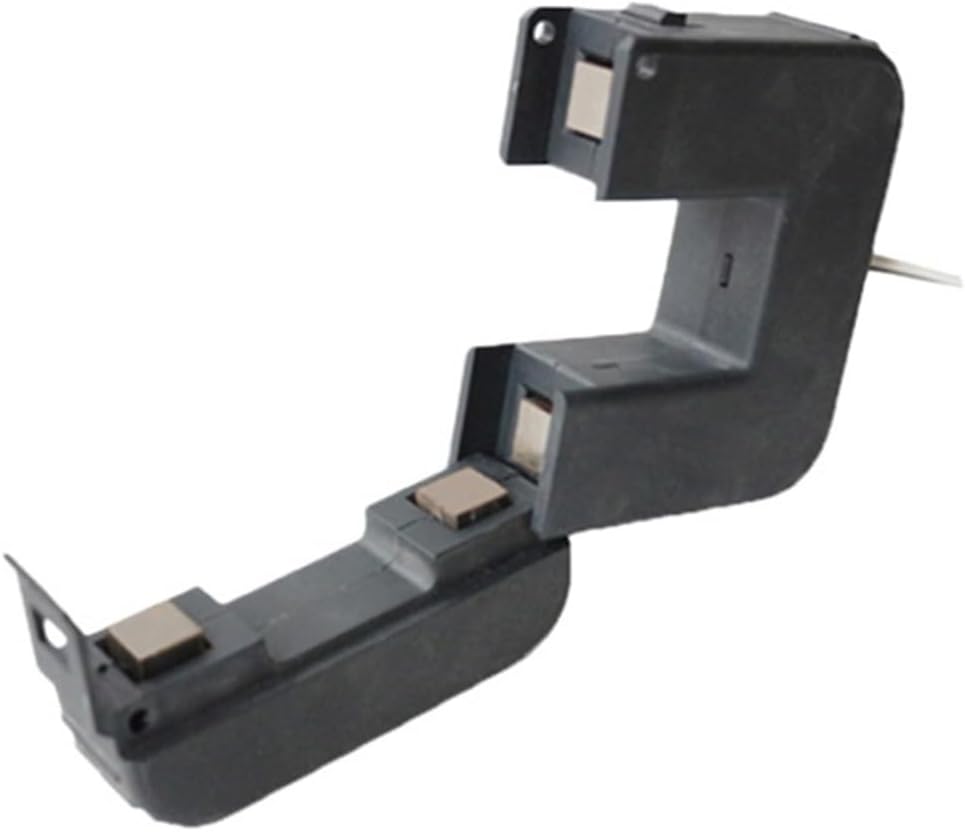

1: Split core design safe easy to install and portable
2: Wide inner window can hold large cables or busbars
3: Wide range of sizes to accommodate all existing installations
4: Five types of plugs including wire plug audio plug power plug etc.
Technical indicators:
Electrical parameters
Mechanical parameters
frequency
50-2KHz
case
PA/UL94-V0
Rated input
5A-200A
Spool
Polybutylene terephthalate
Measuring range
10%In-120%In
nuclear
Silicon Steel
Rated output
0.333V (AC) or 0-500mA
Internal structure
Epoxy resin
ratio
±1.0%
put up
tie
Phase Angle
±60 minutes
Operating temperature
-25℃~+75℃
Dielectric strength
2.5KV/1mA/1min
Working humidity
85%
Insulation resistance
DC500V/100M or above
Output Connections
UL1015 20AWG wire 2.5m
Model
HACT
Current ratio
300A/100mA
400A/40mA
500A/50mA
600A/60mA
300~600/0.333V
Primary current (A)
300A
400A
400A
600A
300A~600A
Max. Current(A)
360
Chapter 480
600
720
720
Secondary current (mA)
100 mA
40 mA
50 mA
60 mA
0.333V
Load Resistance()
50
50
50
50
/class
0.5/1.0
0.5/1.0
0.5/1.0
0.5/1.0
0.5/1.0
Turns ratio
3000:1
10000:1
10000:1
10000:1
/Protection level
7.5V0-P
7.5V0-P
7.5V0-P
7.5V0-P
Insulation type
cat
Operating conditions
-20-+50 85%RH non-condensing indoor & any direction installation
Storage conditions
3050 85RH no condensation
