1. COMPACT AND LIGHTWEIGHT: The elastomer adopt structure, has a compact shape, and the screw thread design at both ends is easy to install
2. ACCURATE MEASUREMENT: The weighing cell sensor has Precision Machined to measure force in most situations
3. APPLICATION FIELDS: Load cell sensor is mainly used in hand car press assembly, automatic assembly, 3C product testing, robot hand grip, keyboard feel test, etc.
4. WIDE APPLICATION: load cell sensor is widely used in the measurement of force in industrial systems, mainly used in the measurement of tensile pressure and other weighing, force measurement of industrial automation measurement control system
5. DURABLE MATERIAL: The load cell weighing sensor is made of excellent stainless steel, which is proof and for more durability

Spec:

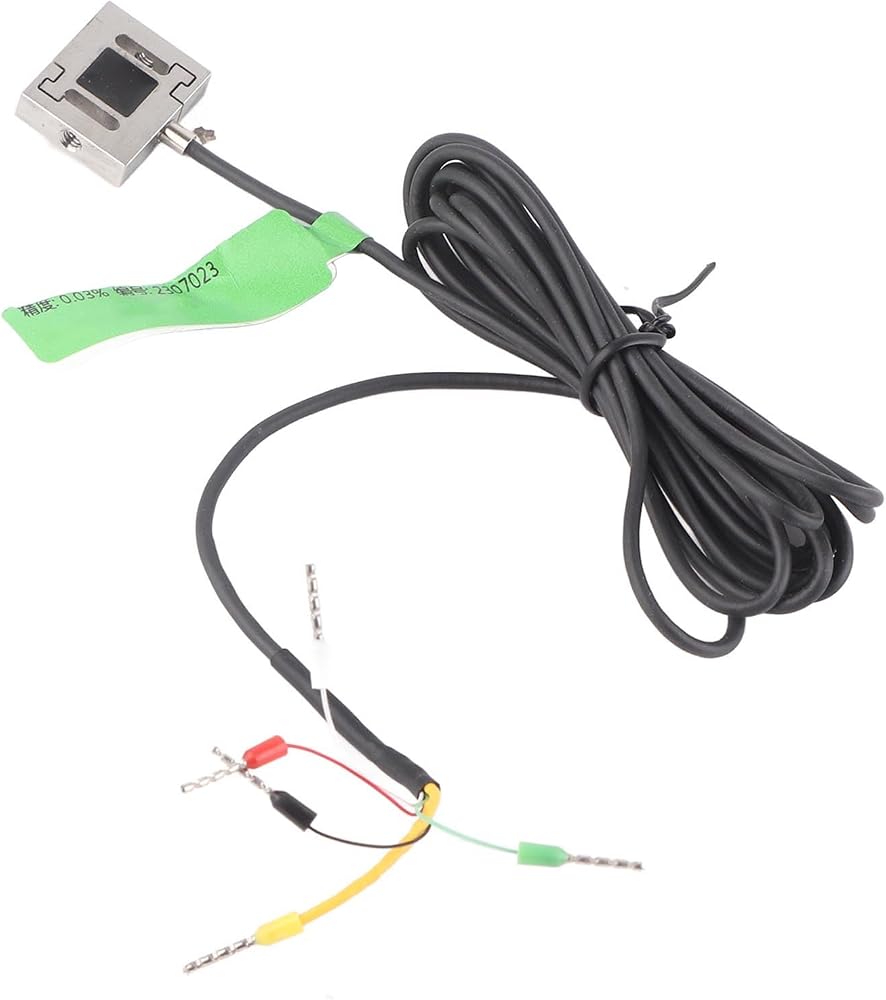

Item Type: Load Cell Sensor
Output Sensitivity: 1.0-2.0mV/V
Zero Output: ±2%F.S
Nonlinearity: 0.1%F.S
Lag: 0.05%F.S
Repeatability: 0.05%F.S
Creep(30 minutes): 0.05%F.S
Temperature Sensitivity Drift: 0.05%F.S/10℃
Zero Temperature Drift: 0.05%F.S/10℃
Response Frequency: 10kHz
Material: Stainless steel
Impedance: 350Ω
Insulation : ≥5000MΩ/100VDC
Operating Voltage: 5-15V
Operating Temperature Range: -20-80℃
Overload: 150%
Limit Overload: 200%
Cable Specification: 100kg: Dia3x2meter
Cable Tension Limit: 10kg

How to Use:
Install and use directly.

PackageList:
1 x Load Cell Sensor
