Item Type: Weight Sensor Module

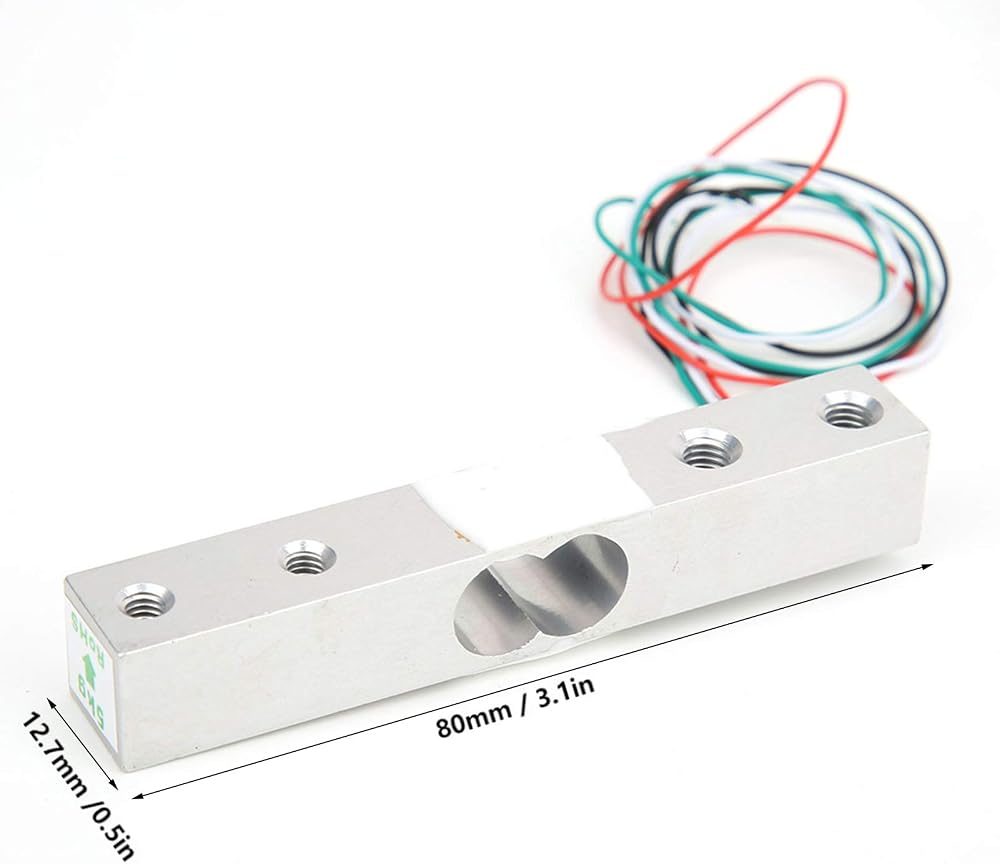

Sensor Size: Approx. 80 x 12.7 x 12.7mm / 3.1 x 0.5 x 0.5in
Circuit Board Size: Approx. 25 x 15mm / 0.98 x 0.6in
Range: 5kg
Output Sensitivity: 1.0 ± 0.1mv/V
0 Output: ±0.1mv / V
Nonlinear: 0.05% FS
Hysteresis: 0.05% FS
Repeatability: 0.05% FS
Creep: 0.05% FS / 3min
Output Impedance: 1000±5% Ohms
0 Temperature Drift: 0.05% FS / 10℃
Temperature Sensitivity Drift: 0.05% FS / 10℃
Wiring:
Red line connected to the hx711 module E+
Black line connected to the hx711 module E-
White line connected to the hx711 module A-
Green line connected to the hx711 module A+

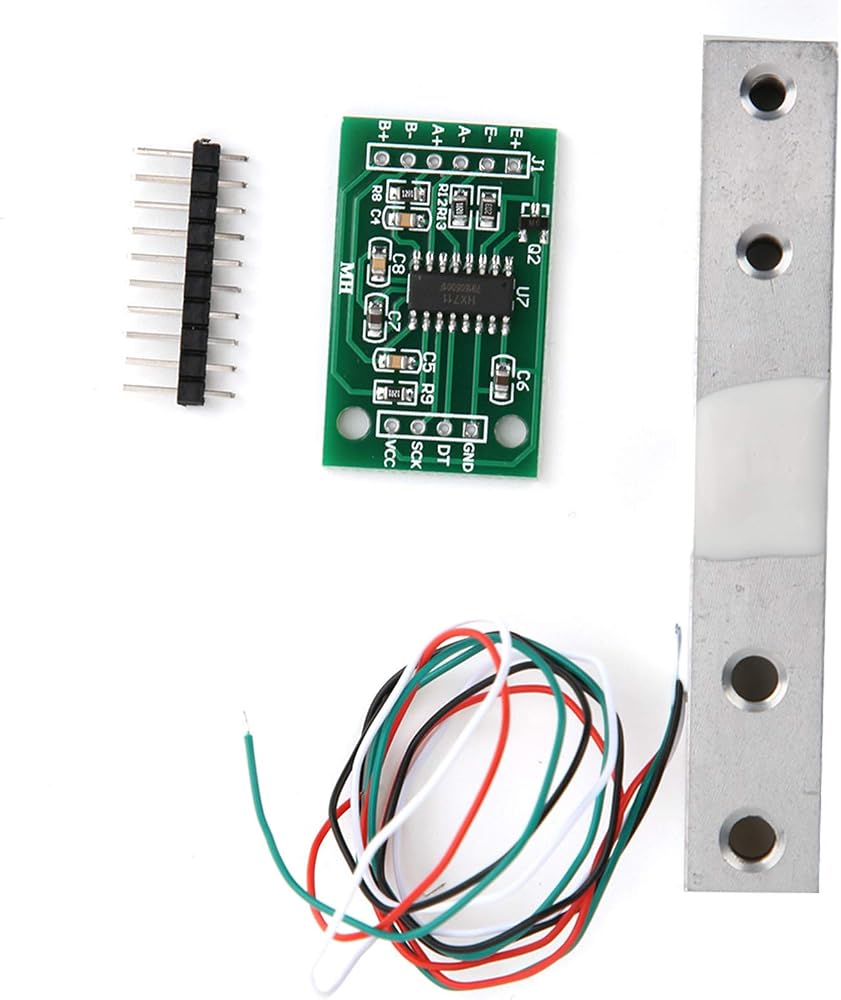

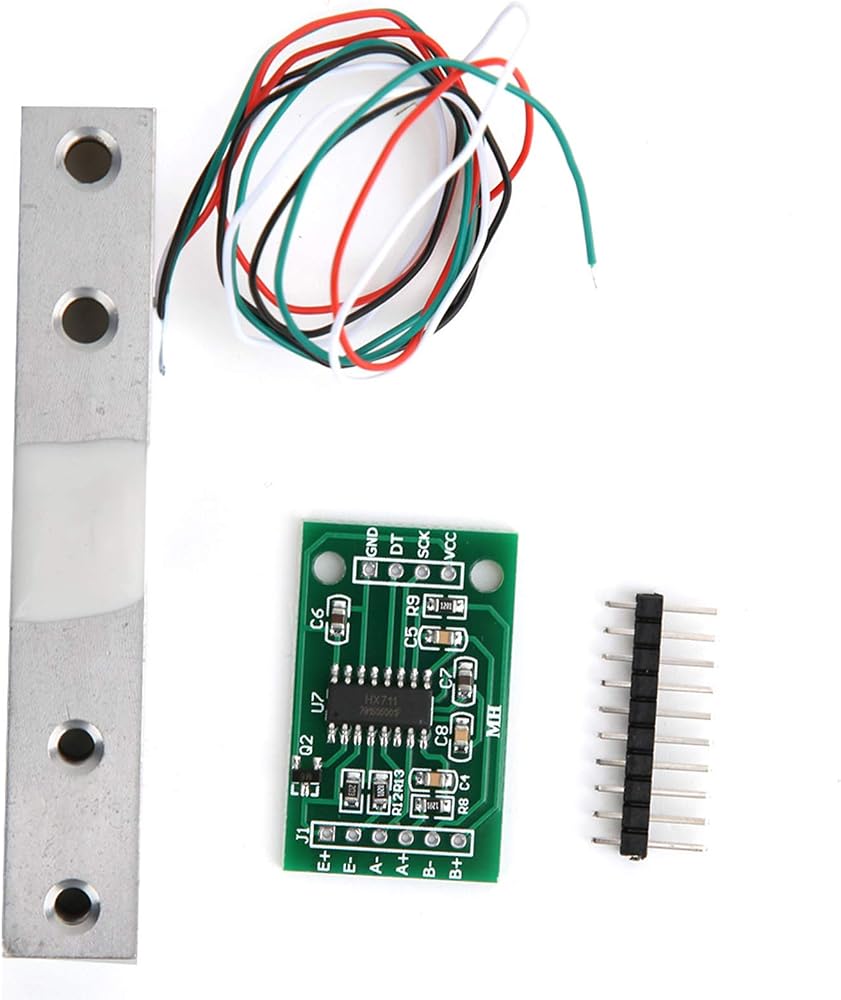

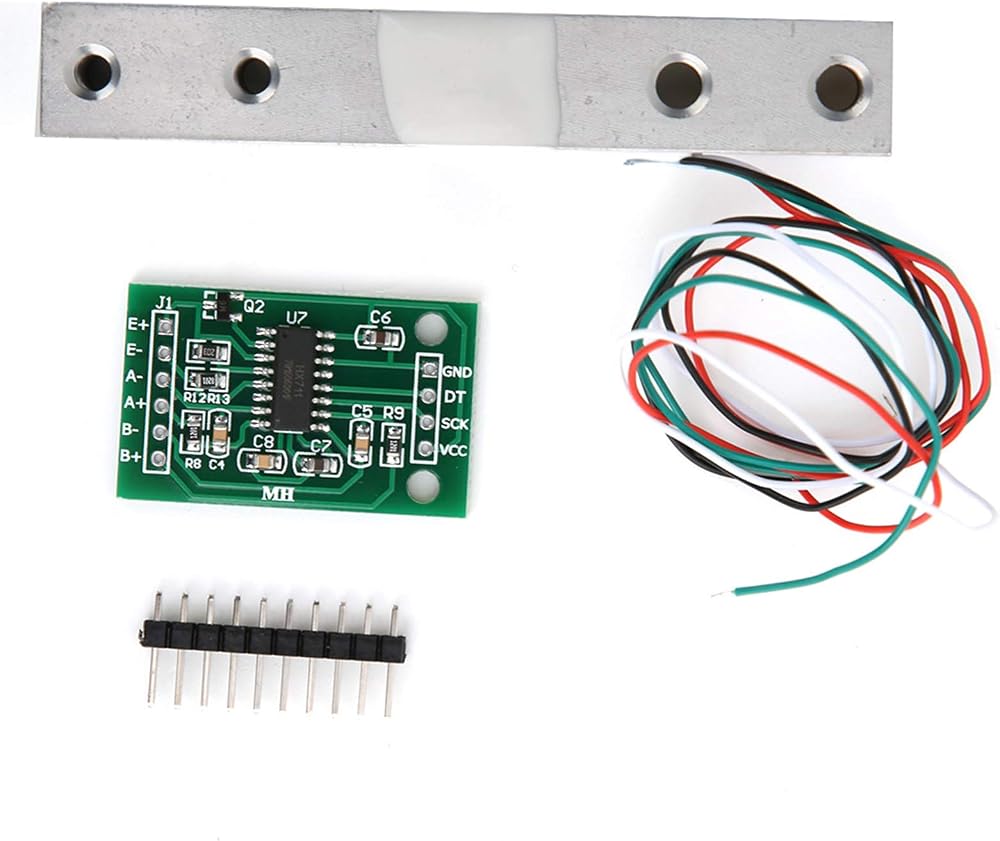

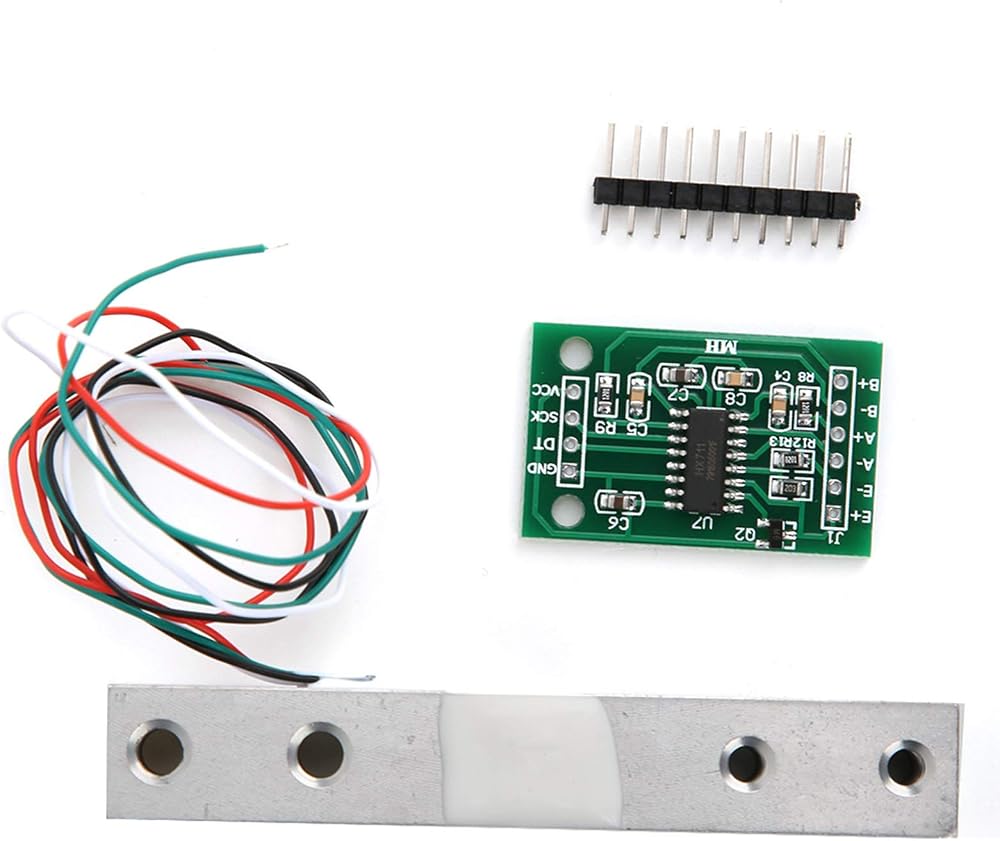

Package List:
1 x Sensor

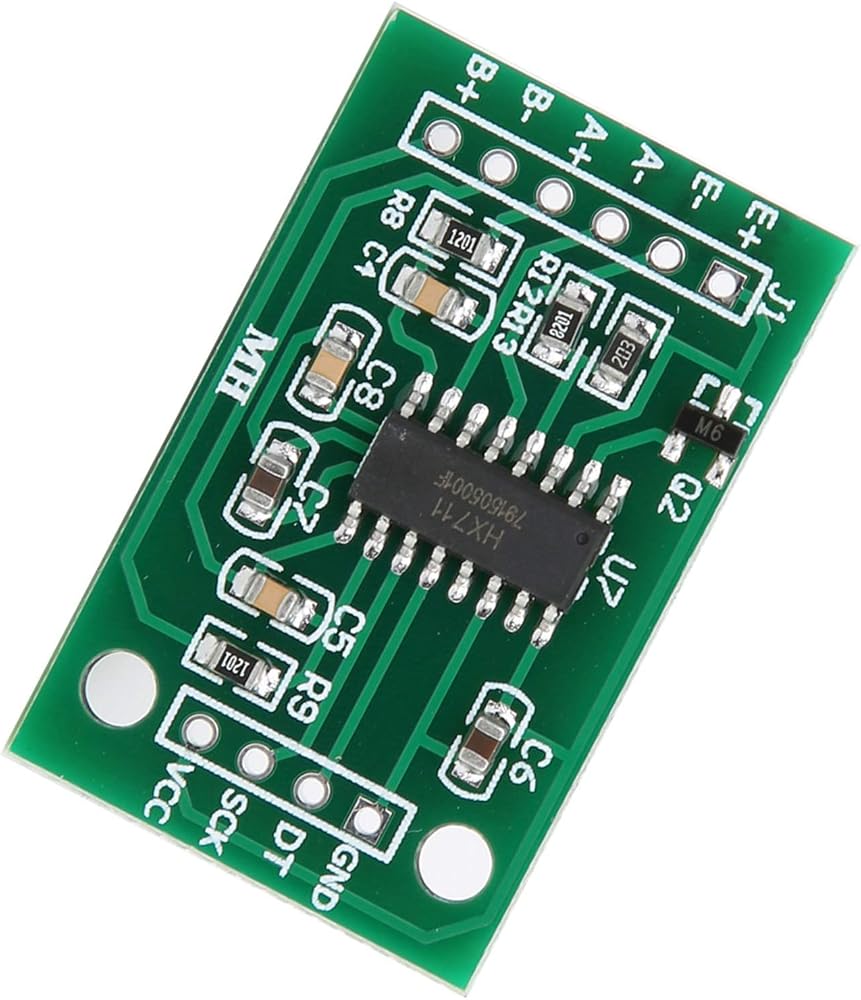

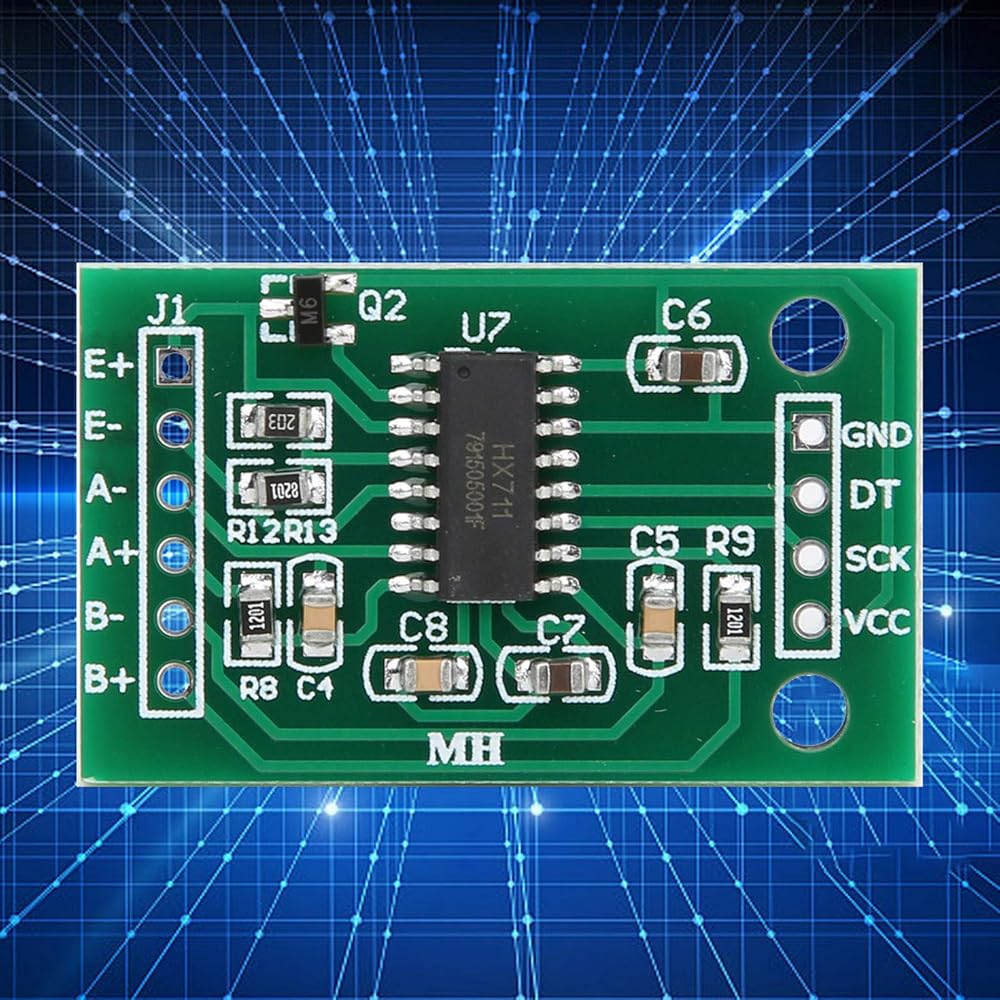

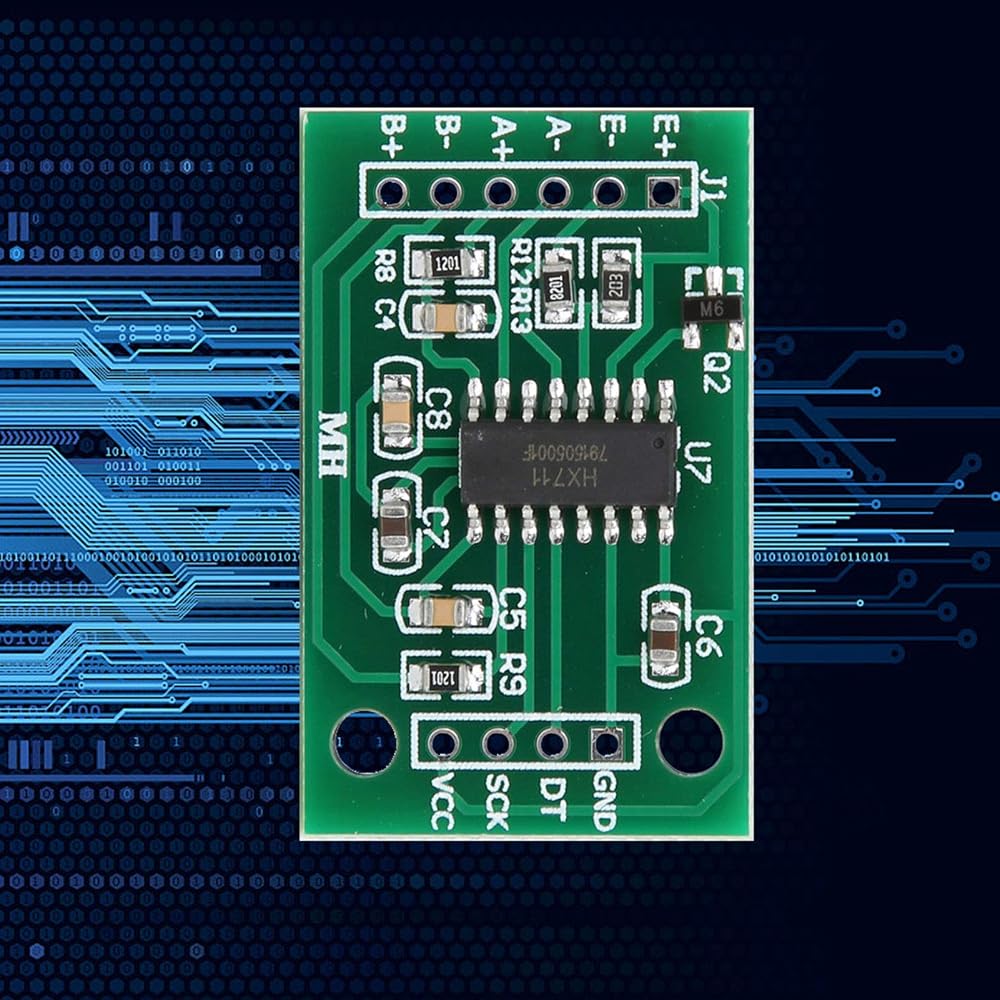

1 x HX711 Module
1 x Pin Header
Note:
This product is not welded and needs to be welded by yourself
