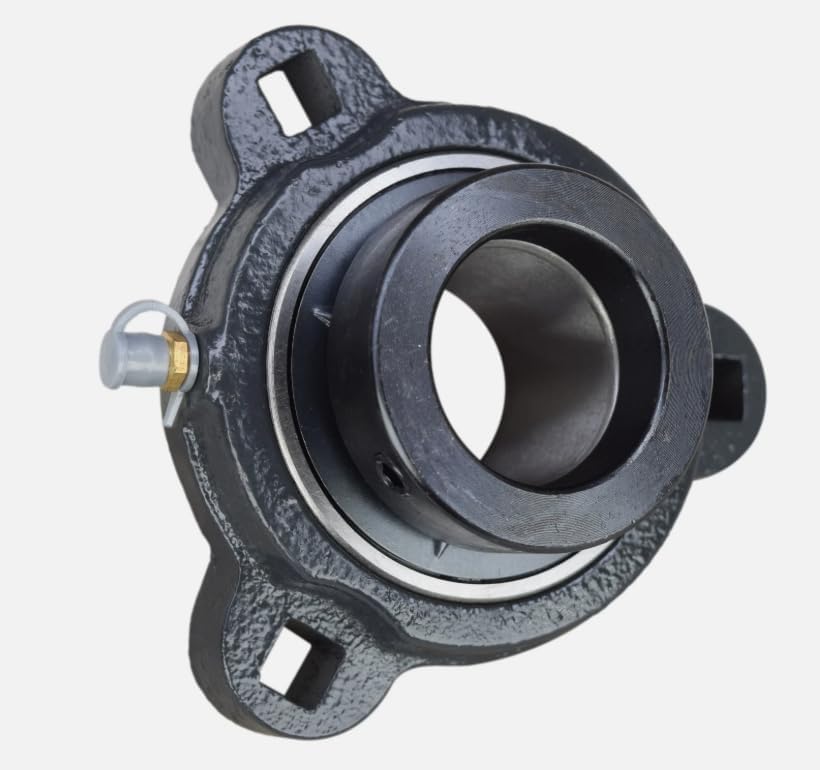

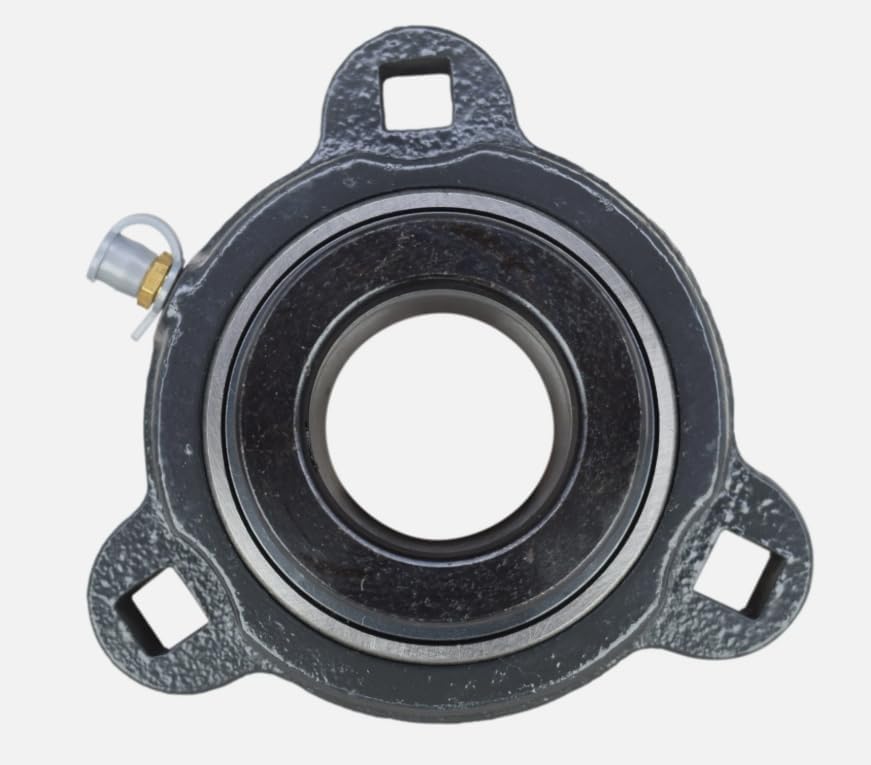

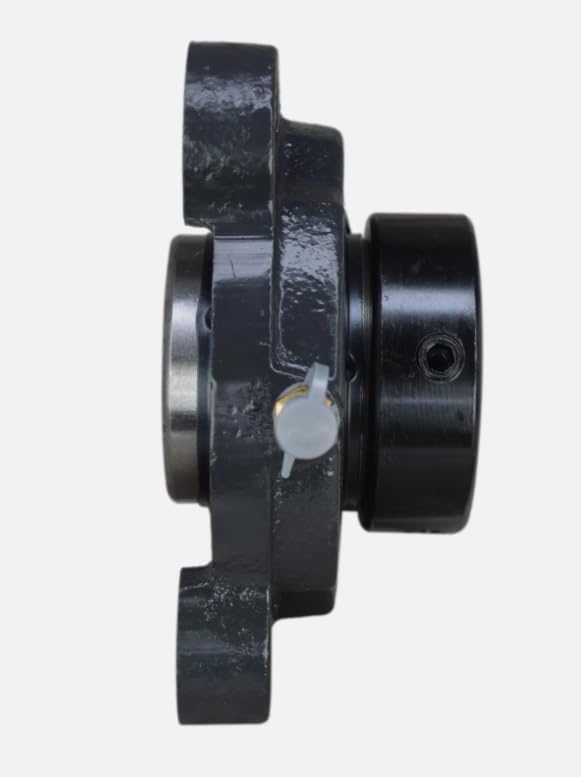

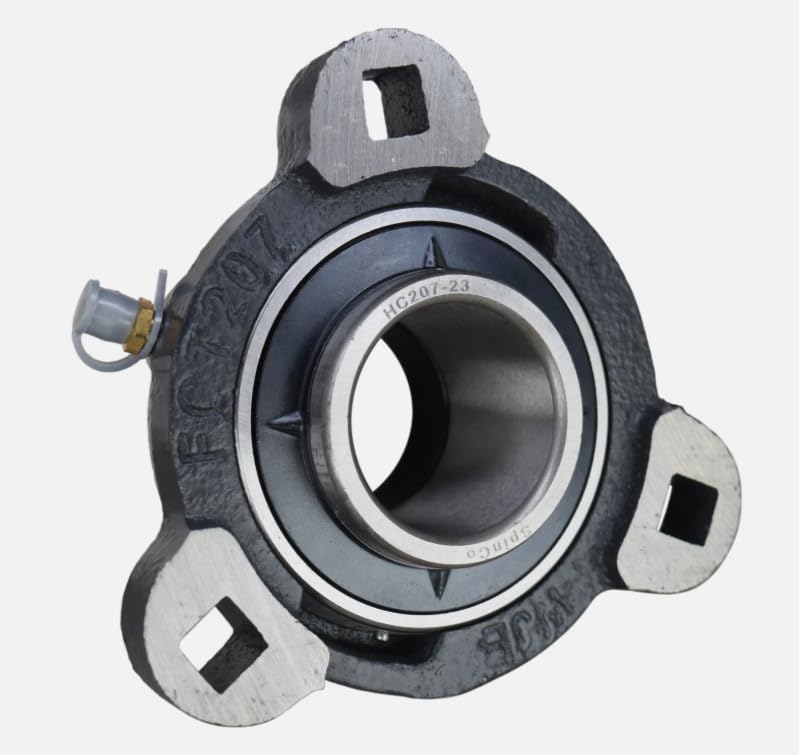

High quality 1" three bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Dimensions: Bore: 1" - Bolt hole to bolt hole: 2.59 in. (65.99mm) - Overall length: 3 in. (76.2mm) - Overall thickness: 1.17 in. (29.76mm) - Bolt hole: 5/16 in.
INTERCHANGES: Industry Number: UCTRD205H-16LP ; SCAG: 483034
وصف
High quality 1" three bolt flange bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
