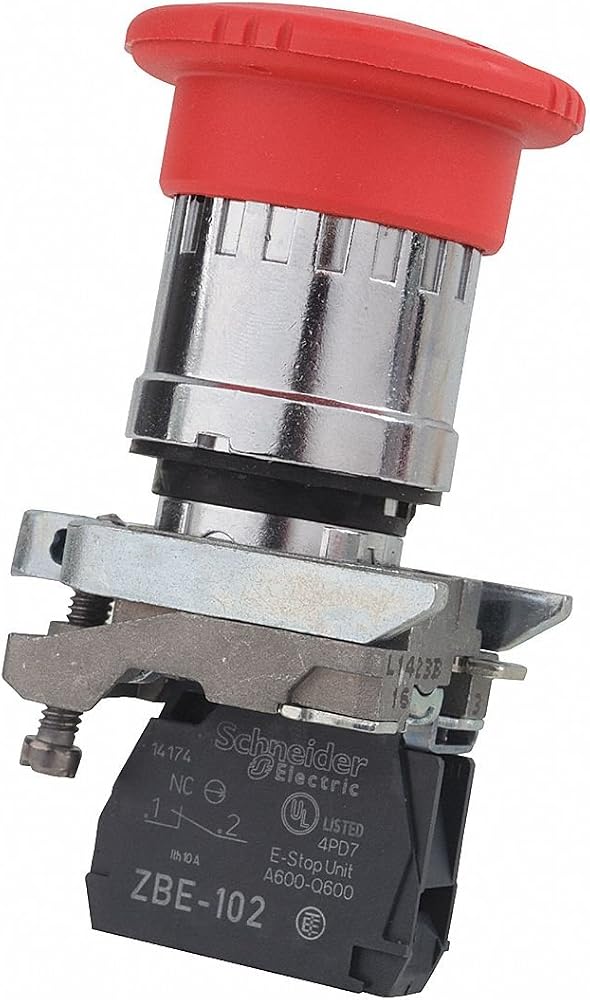

Item: Emergency Stop Push Button
Size: 22mm
Action: Maintained Push / Turn To Release
Type of Operator: 40mm Mushroom Head
Head Material: Plastic
Contact Form: 1NC
Bezel: Chrome Plated Zinc Die Cast
Color: Red
Contact Rating: 10A @ 600VAC
NEMA Contact Rating Designation: A600/Q600
Number of Operators: 1
NEMA Rating: 4, 4X, 12, 13
IP Rating: 66
Legend: No Legend
Standards: EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60364-5-53, EN/ISO 13850, JIS C 4520, UL508, CSA C22.2 N.14
Terminal Connection: Screw Clamp
Features: Panel Mounting
Material: Metal
Basic Material: Metal
