Model Number : 57HS5417

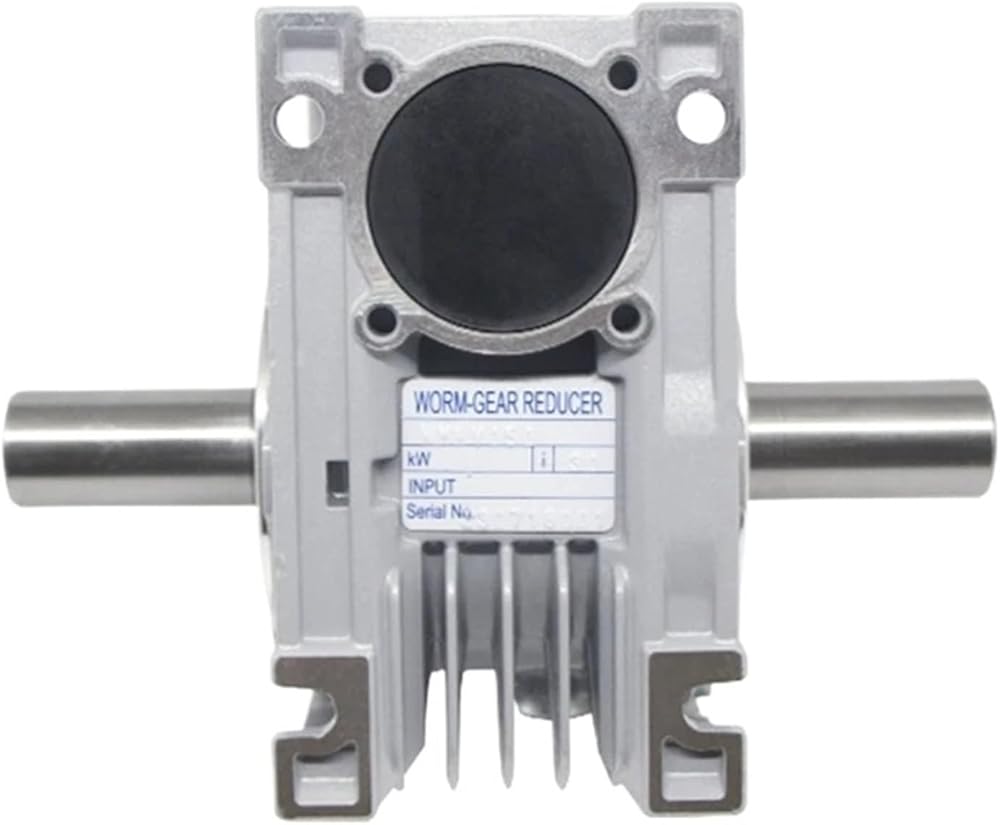

Gearing Arrangement : Worm
Product name : 57mm Nema23 High accuracy Worm Gearbox
Backlash : 15 arcmin
Reduction Ratio : 1:5/1:7.5/1:10/1:15/1:20/1:30/1:40/1:50/1:60/1:80
Max radial load : 1830N
Max axial load : 366N
Output Torque : 4.1-23N.m
Input Speed : 900rpm
Output Speed : 15rpm-180rpm
Gearbox Length : 95mm

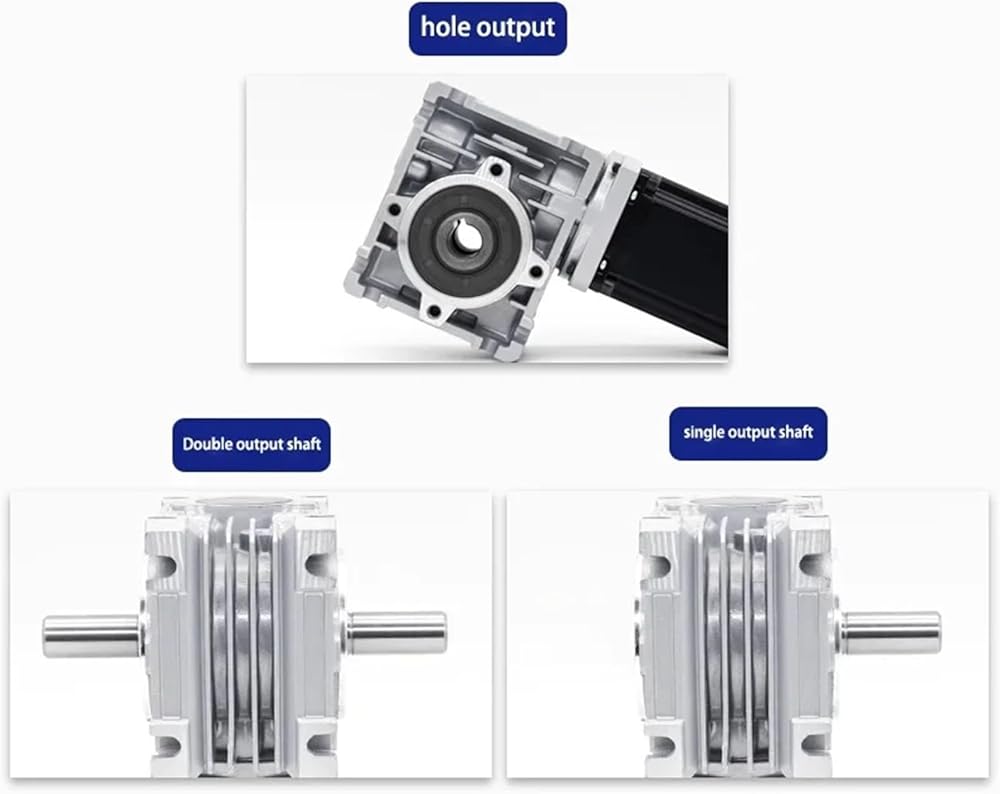

Optional shaft : Hollow/Double Shaft
Accessories : Encoder/Controller/Brake
