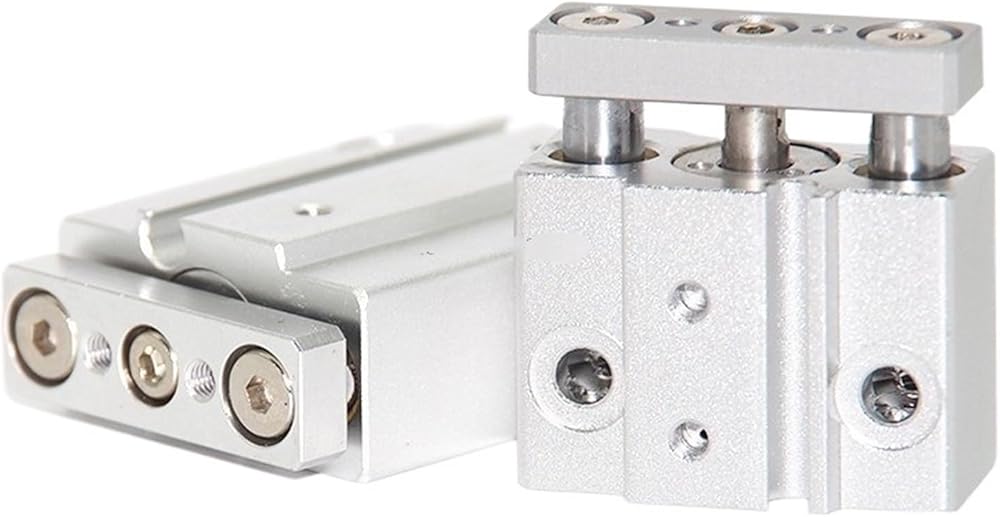

1pcs MGPM25 MGPL25 25mm Stroke 20-50 Compact Pneumatic Air Cylinder with Guide Rod MGPM20-20 MGPM20-25 MGPM20-30 MGPM20-40 MGPM20-50
Bore size (mm) 12 16 20 25 32 40 50 63 80 100
Fluid Air
Action Double acting, single rod
Minimum operating pressure 0.12 Mpa 0.1 Mpa
Maximum operating pressure 1.0 Mpa
Proof pressure 1.5 MPa
Ambient and fluid temperature -20 to 80°C (No freezing)
Cushion Rubber bumper
Lubrication Non-lube
Port size M5x0.8 1/8 1/4 3/8
