Linear Motion Ball Screw Precision Part Ball Screw Kit 2pcs SBR16 Linear Guides with 4pcs SBR16UU Slider Blocks+1 Kit SFU1610 550-1000mm(45mm)

SAR 1,612
Brand
UGBHKXZDAXFD
Weight
3 kg
Size45mm
– 1 +

Special Features

  • 1. Low friction, low operating noise, long service life, no stick-slip effect, and low heat generation.
  • 2. Easy to install, maintenance-free, low starting torque, and accurate positioning.
  • 3. Widely used in automated machinery such as lathes, machine tools, large transmission equipment, etc.
  • 1. Do not remove the slider in advance during installation to prevent beads from falling.
  • 2. High-carbon steel chrome-plated high-strength aluminum material has good processing accuracy
  • 3. Screw fixation, strong stability, the optical axis and aluminum support screw fixation is stable and tight

Description

1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning
Specifications
Model: SFU1610 SBR16
Guide rail width or diameter: 16mm
Ball screw accuracy: C7
Guide rail material: Carbon steel/aluminum
Ball screw material: S55C

Description

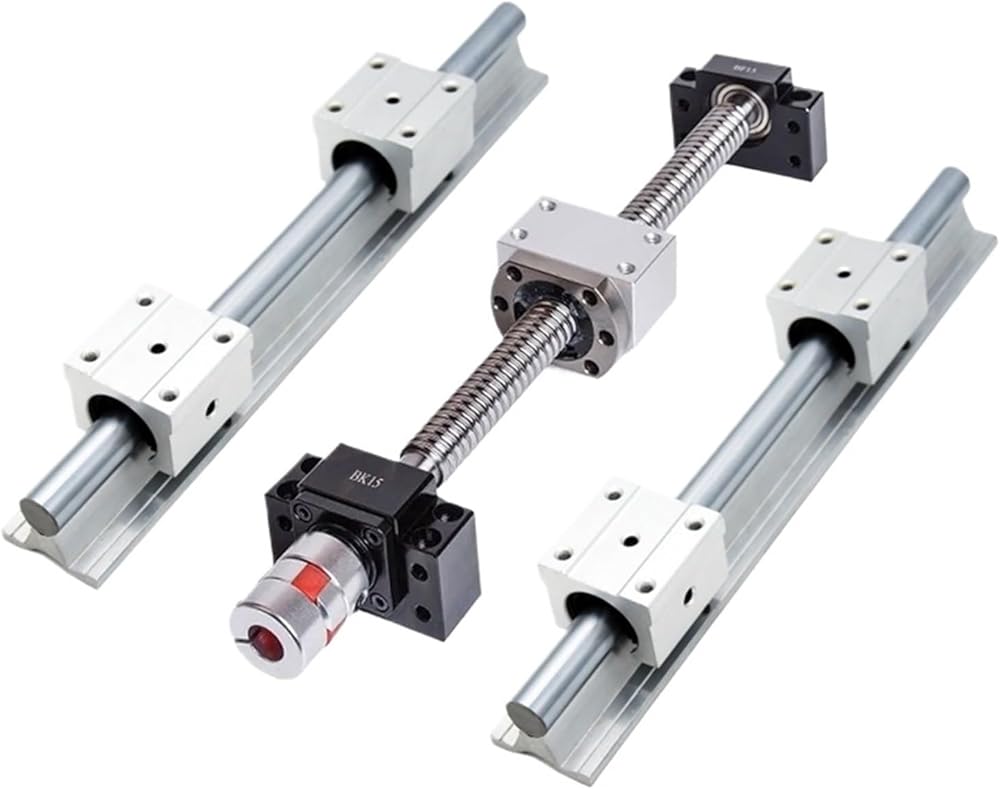

Complete Linear Guide Kit: This linear guide kit includes everything needed for X, Y, or Z axis support, simplifying setup.

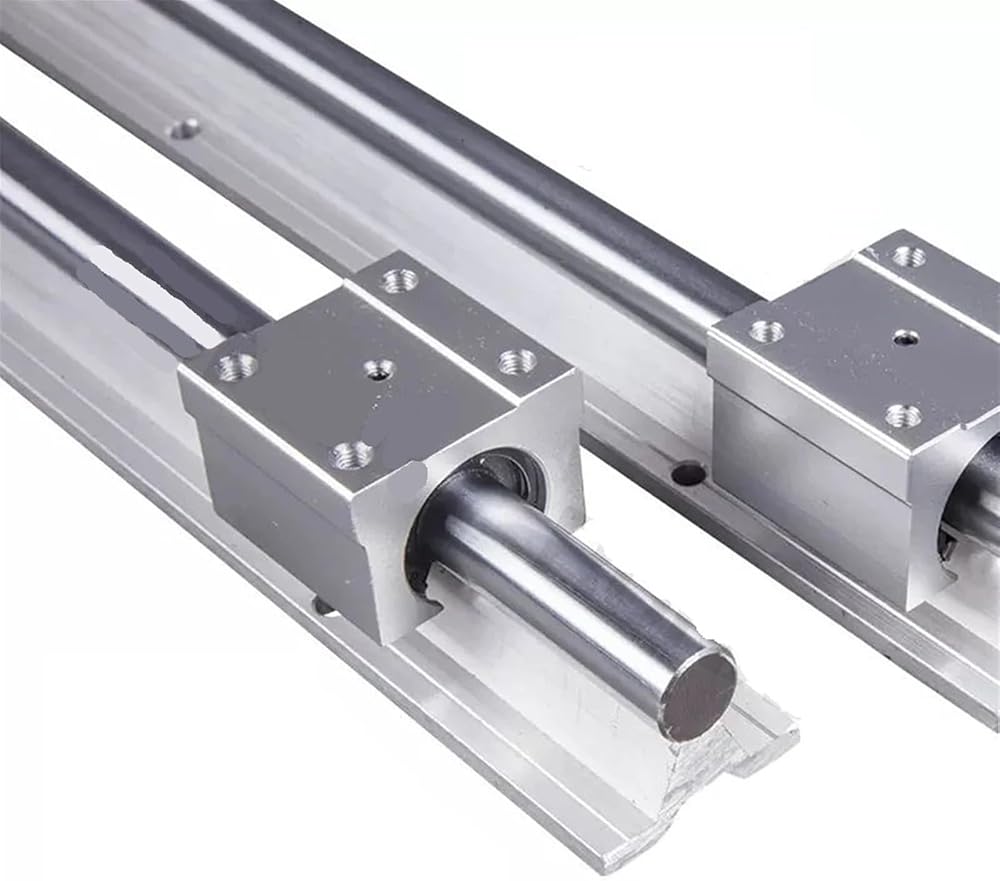

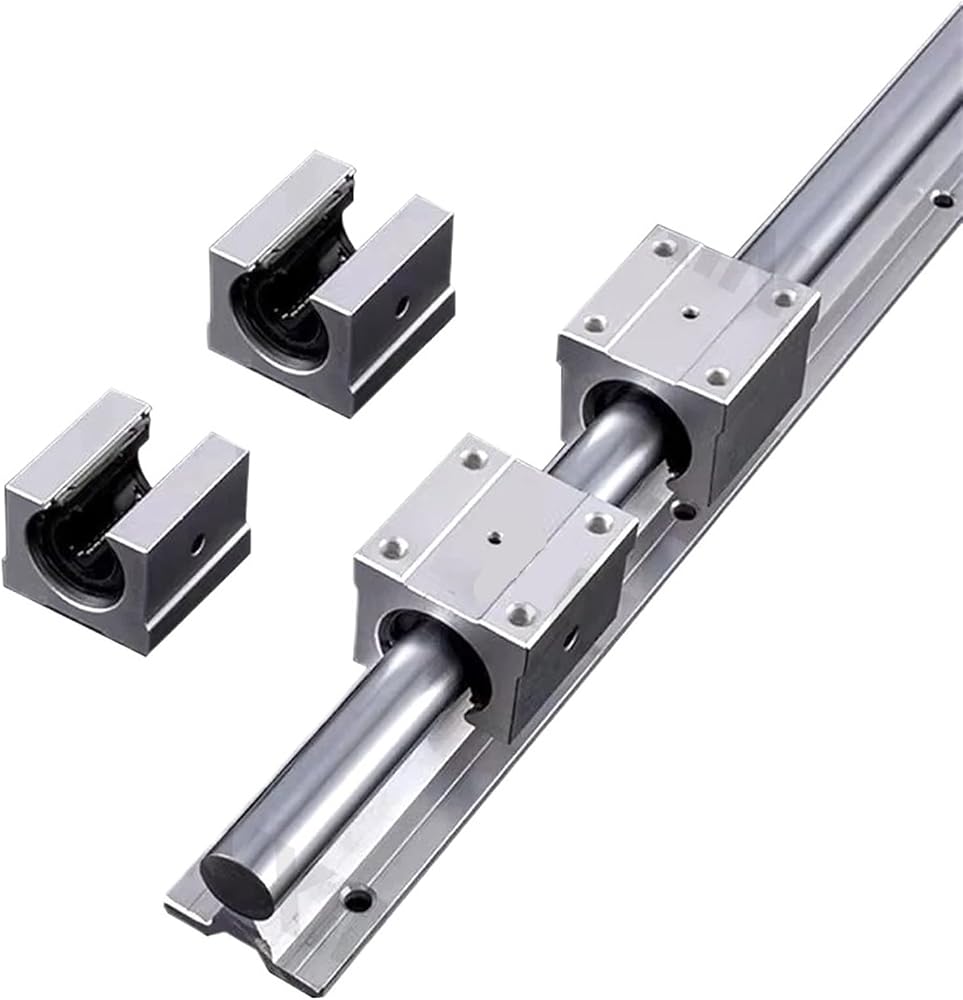

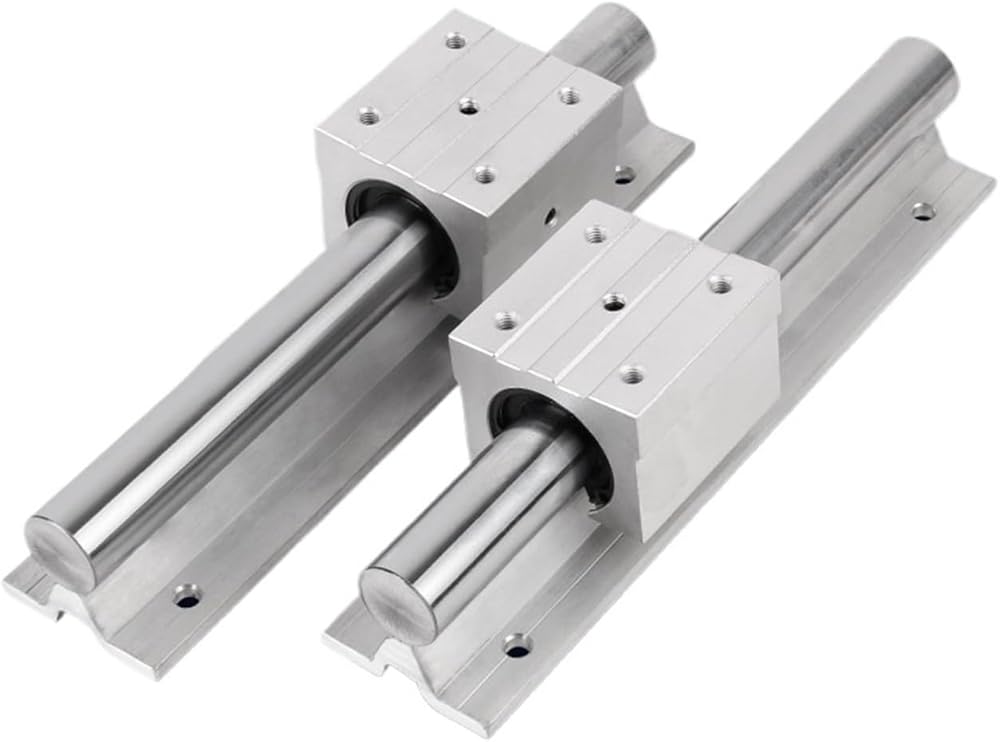

SBR16 Linear Guide with SBR16UU Block: The durable SBR16 linear guide is paired with the SBR16UU block to ensure smooth linear motion for your application.
C7 Roller-Type Ball Screw Precision: The C7 precision of the SFU1610 ball screw allows for unmatched accuracy for precise machining.

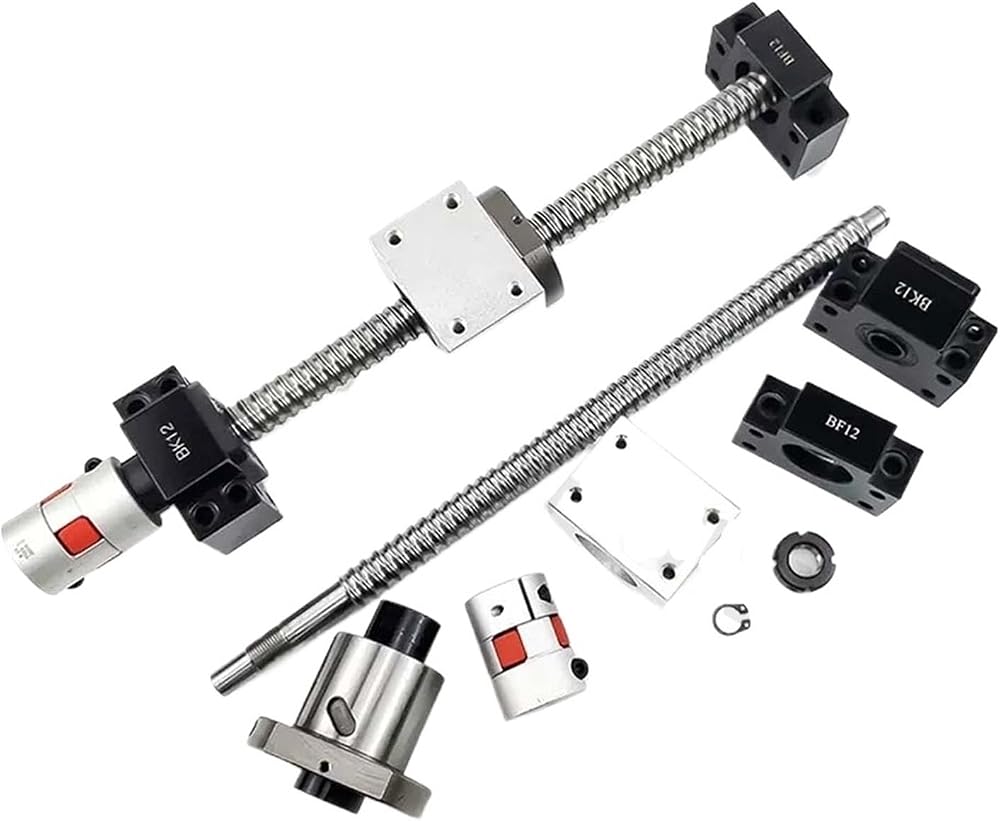

Package includes:
1pcs SFU610 ball screw with end machining, suitable for BK/BF12

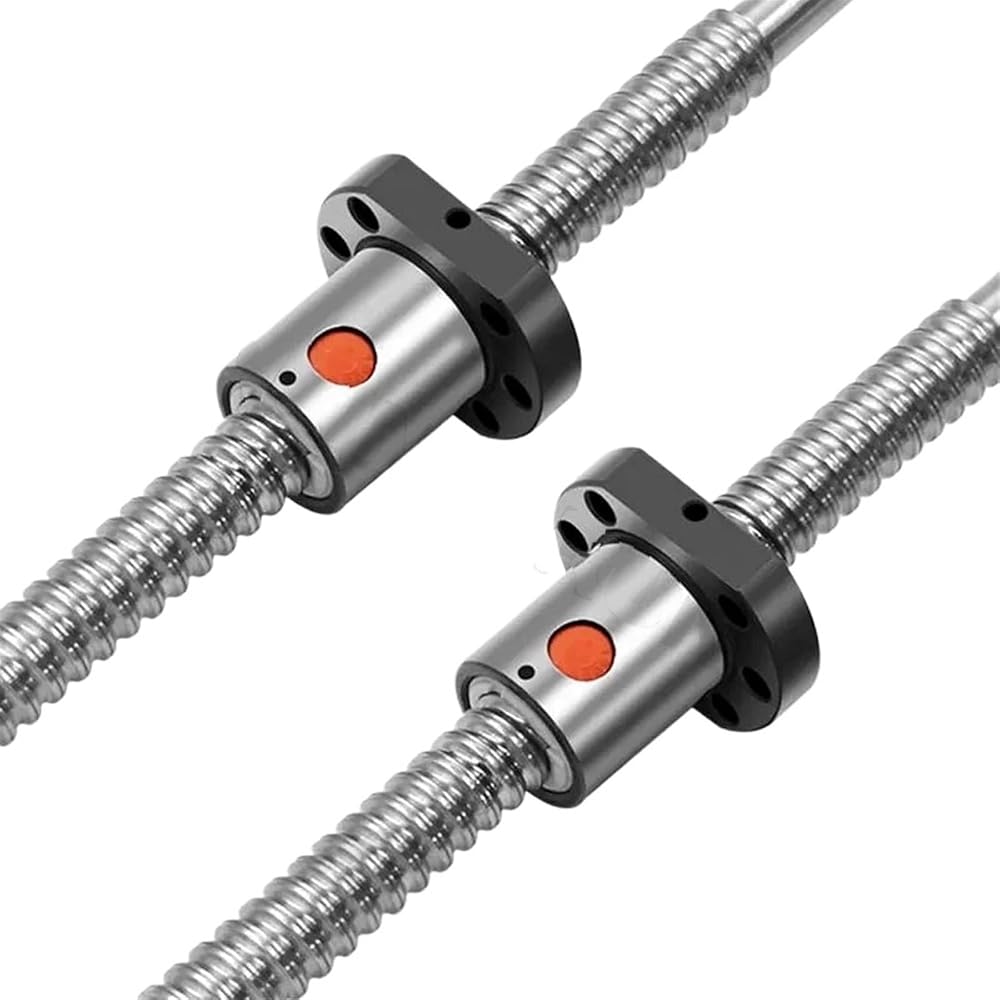

1pcs SFU1610 ball nut
1pcs BK12+BF12
1pcs coupling D25L30 8x10mm
1pcs DSG16H nut housing
2pcs SBR16 linear guide
4pcs SBR16UU block

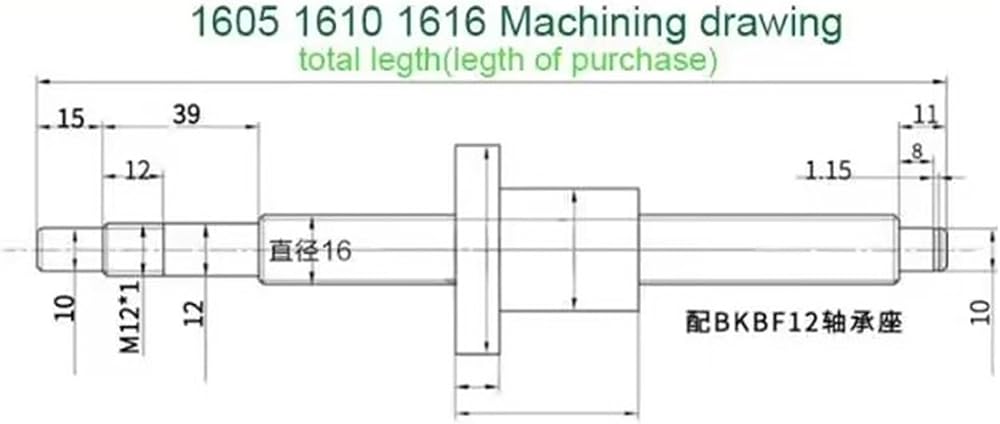

Note: The above ball screw is the total length, including the machining part.
