Water Pumps

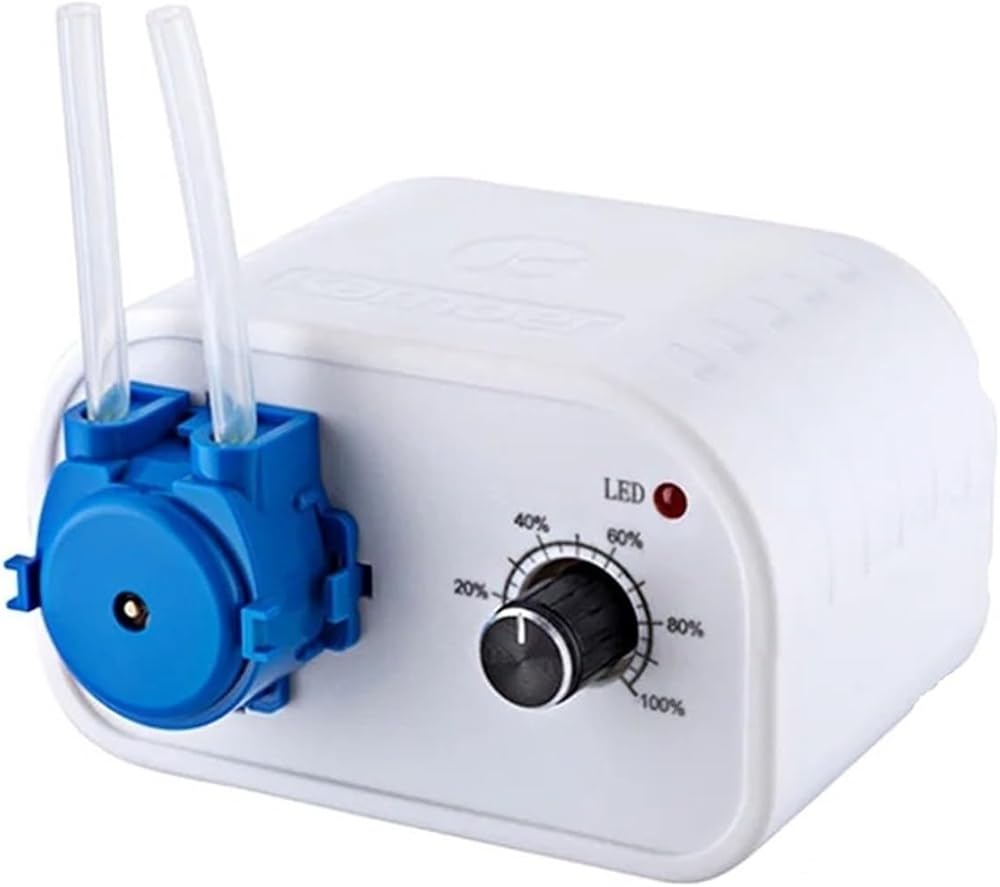

NKCP12V Small Intelligent Peristaltic Pump
1. Low cost, adjustable flowrate
2. Easy to operate and replace the pump head
3. 24V power adapter
4. The direction of liquild transport is changable.
5. Power : American-standard, European-standard, British-standard, Australian-standard
Basic Parameters
motor: 12V
Flow rate range: 2.6-65ml/min
Working condition: 0-40
Tube choice: Silicon, Pharmed BPT tube
Pulse: three roller, low pulse
Pump head: Engineering Plastics
Weight: About 185g(without power), 300g(with power)
Various Applications
# Printing: transferring printing ink
# Transportation: pumping the oil and other liquid
# Aquarium: drawing water from tank, calcium response reaction
# Scientific facility: laboratory experiment
# Animal disease experiment: blood transfer
Selection Guide
Material
Silicone
Silicone
Silicone
Silicone
Silicone
BPT
BPT
Code
S02
S04
S06
S08
S10
B06
B08
ID*OD
0.6×3.0
1.0×3.0
2.0×4.0
2.5×4.5
3.0×5.0
2.0×4.0
2.5×4.5
Flow
Rate
NKCP 12V
2.6 ~ 4
4 ~ 14

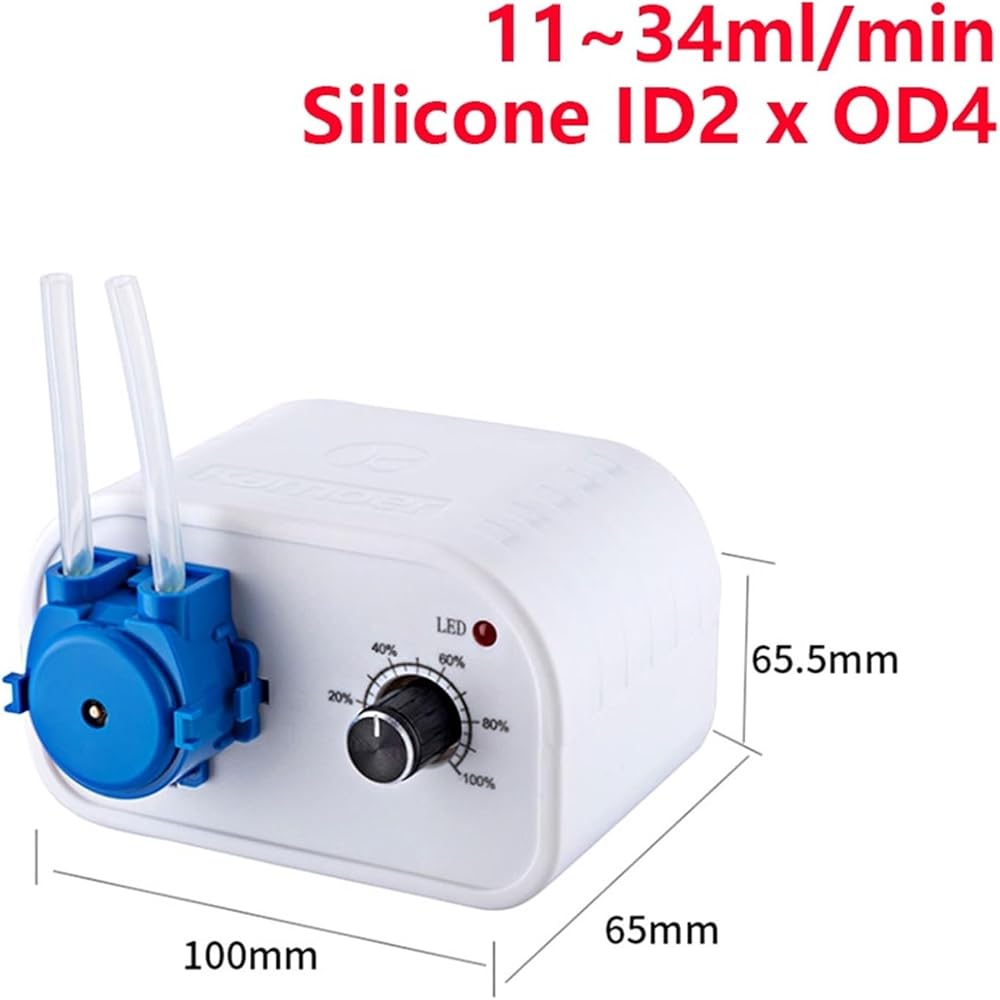

11 ~ 34
17 ~ 50
19 ~ 65
9.3 ~ 32
14.6 ~ 41.5
Tubes
Materials
Features
Tubing Life
Size
S Silicone
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(30%) Liquid.
Working temperature:-60~200
200H
175mm
(49.5mm exposed)
B PharMed
BPT
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and to ultraviolet radiation, so it helps protect sensitive liquids.
Working temperature:-51~132
1000H
135mm
(29.5mm exposed)
Tube Joint
Connector
S
