Cross Roller Guides
1
*
Sliding table
1* Coupling
Model: QMF150

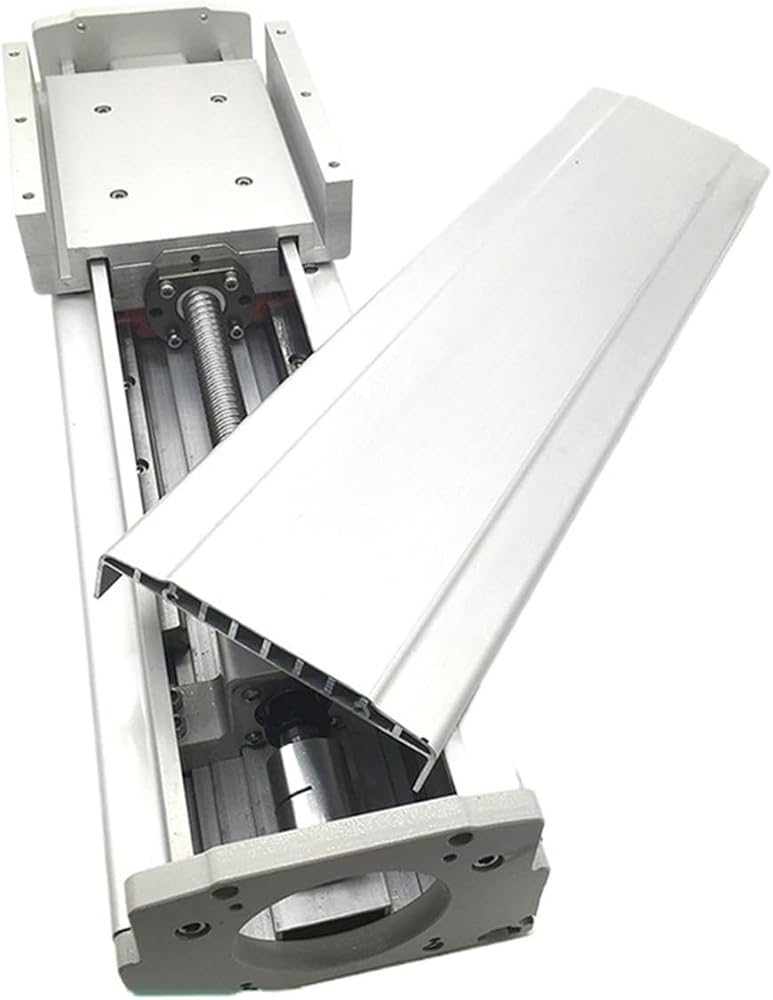

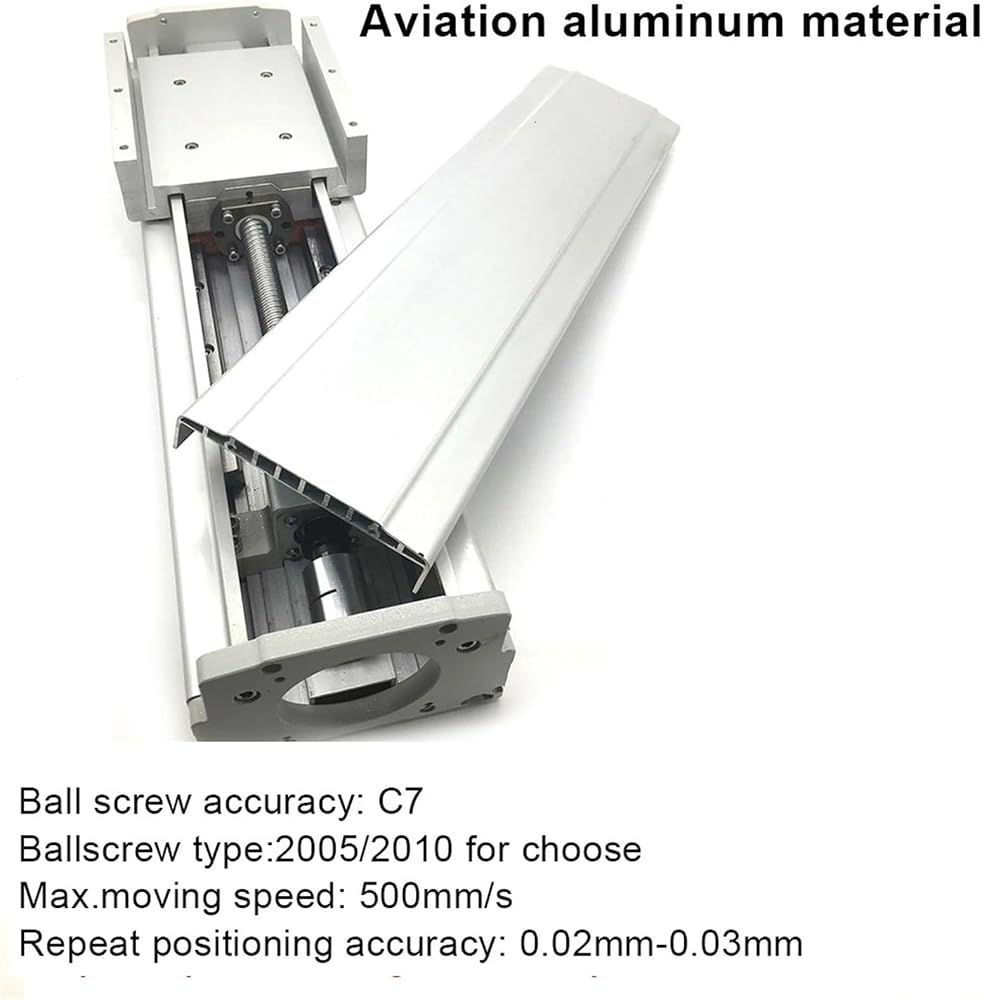

Module material:
Aviation aluminum 6061
Effectivestroke:100~1000MM for choose

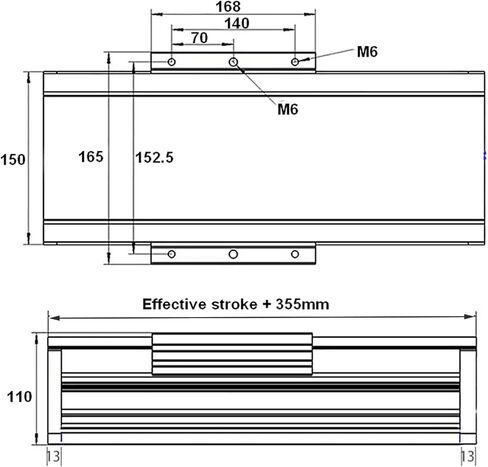

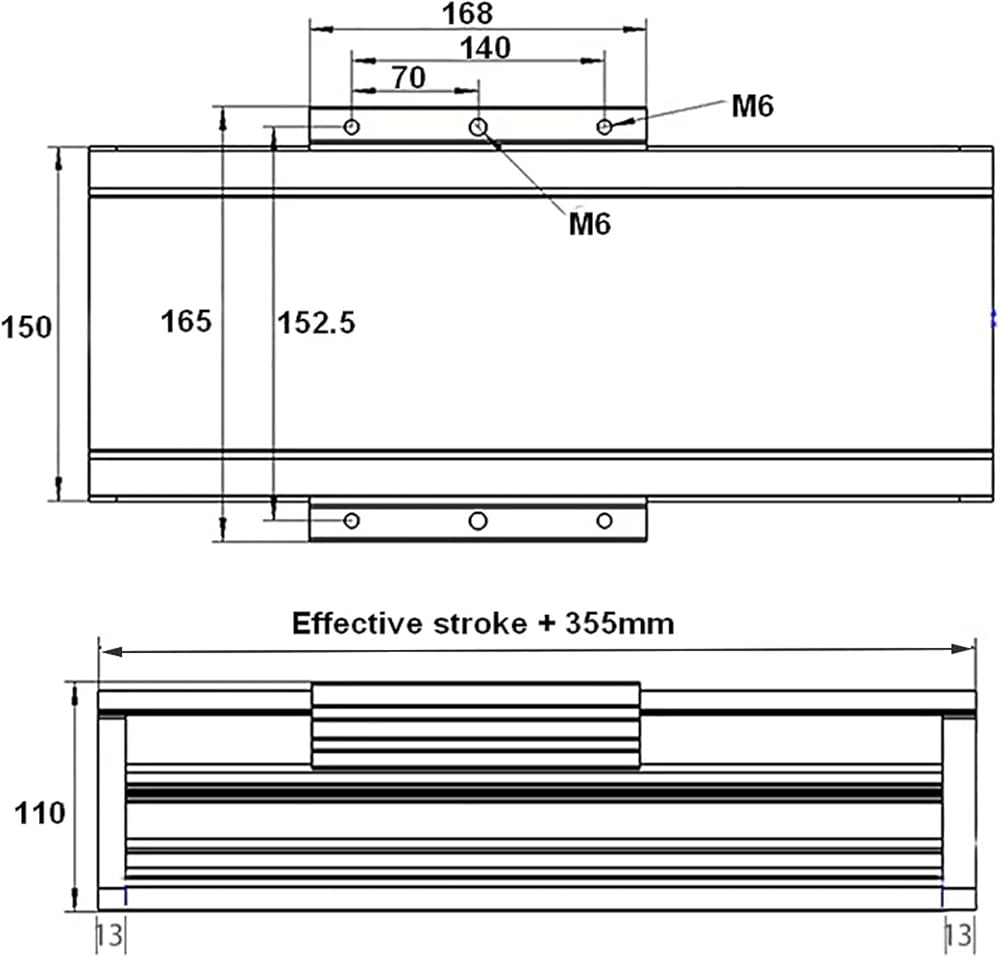

Total slide table length: Effective stroke +377mm
Mobile panel size: 160mm*246mm
Slide table height: 107mm
Module width: 150mm
Horizontal load: 200KG (Max)
Vertical load:100KG(Max)
Motor bracket: 80mm,86mm,90mm Stepper/ Servo motor brackets for choose
Repeat positioning accuracy: 0.02mm-0.03mm

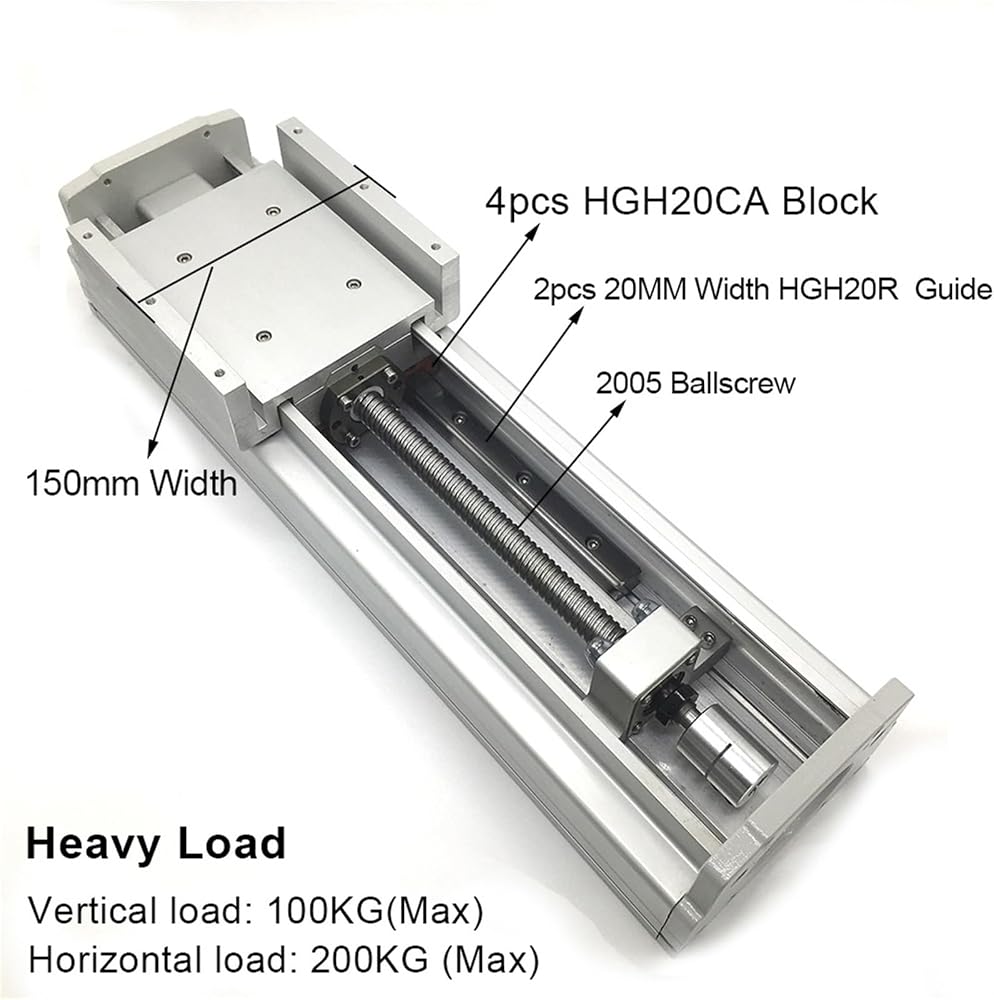

Guide: 2*HGH20R (20MM Width )
Block: 4*HGH20CA
Ballscrew type: 2005 (Diameter 20mm, lead 5mm ) /2010 (Diameter 20mm, lead 10mm )
Ball screw accuracy: C7
Max.moving speed: 500mm/s

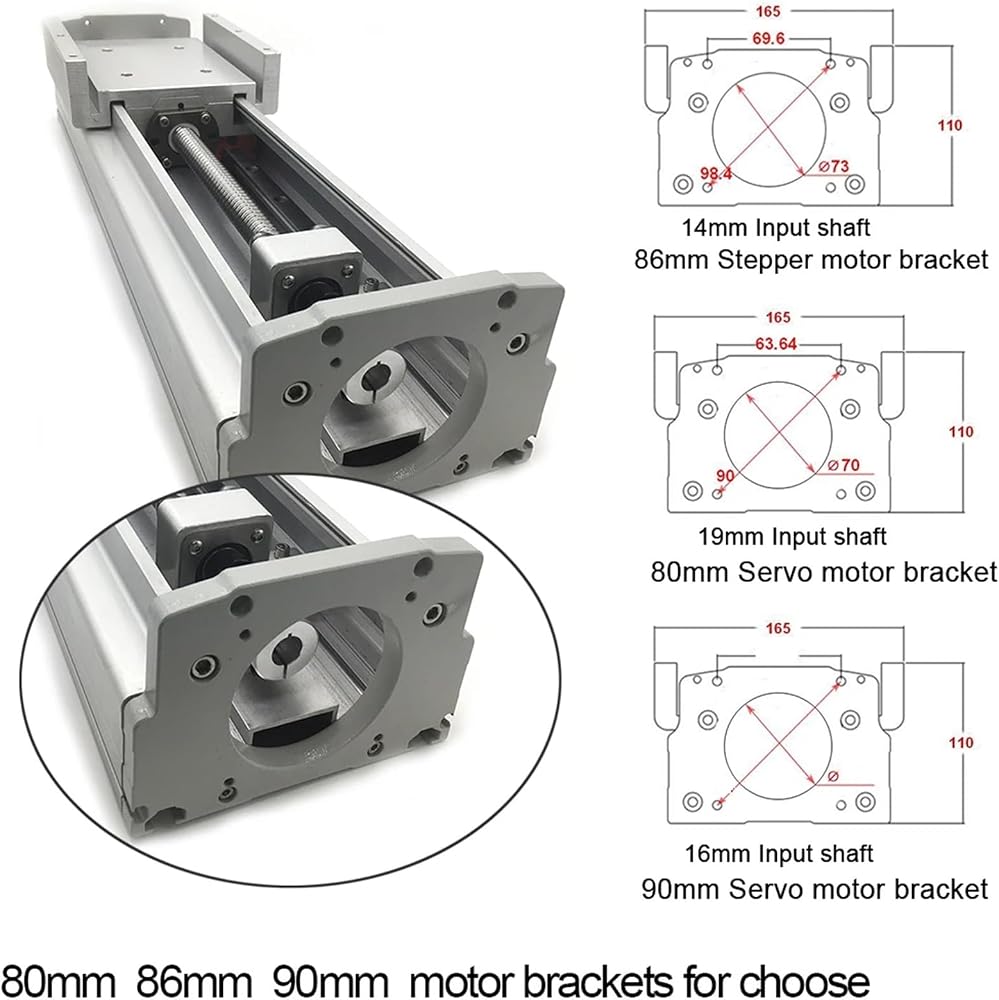

Coupling hole size:
14mm hole for 86mm Stepper motor bracket
19mm hole for 80mm Servo motor bracket
16mm hole for 90mm Servo motor bracket
Model Number : HS150-2005
Guide Width or Diameter : 20mm
Ballscrew : 2005/2010
Ball screw accuracy : C7
Repeat positioning accuracy : 0.02-0.03mm
Guide : 2XHGH20R (20MM Width )
Block/Sliders : 4pcs HGH20CA
Horizontal Load : 200KG (Max)
Vertical Load : 100KG(Max)

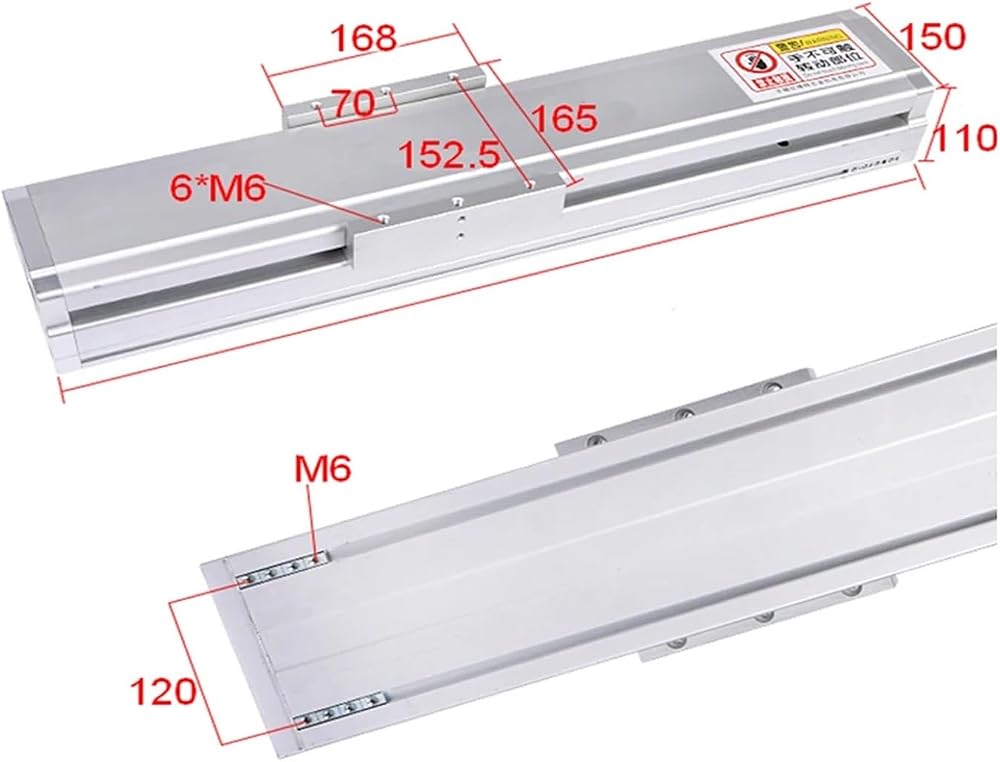

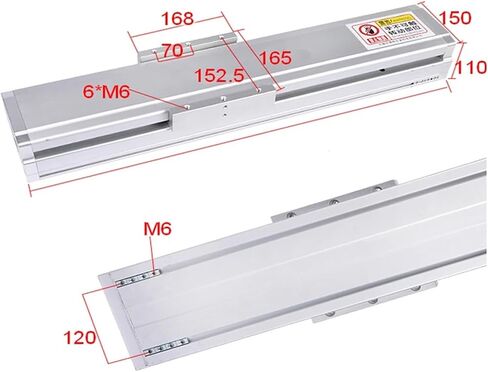

Mobile panel size : 165mm X 168mm
Slide height : 110mm
Module width : 150mm
Max.moving speed : 500mm/s
