Current Probes
DC 0-300V 500A voltmeter ammeter ampere voltmeter voltage ammeter voltmeter ampere tester Hall sensor 500A

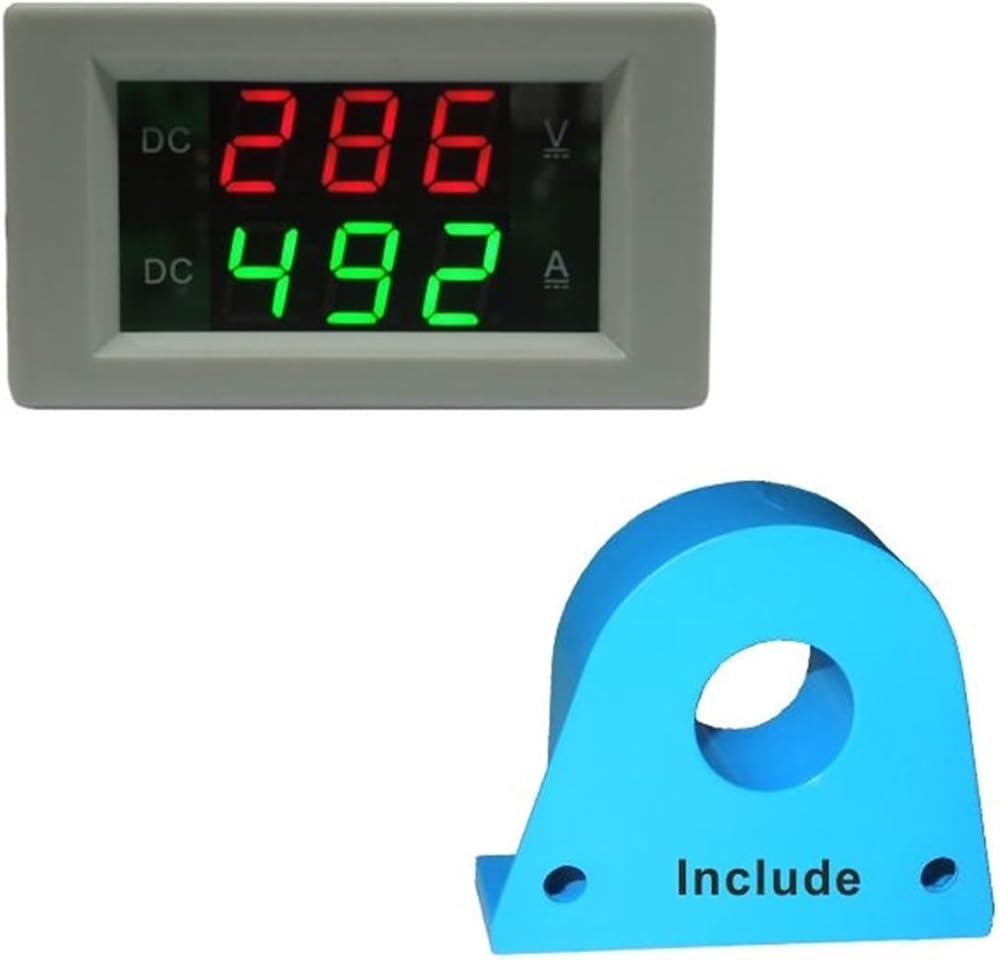

1. Current transformer is included and no need to purchase separately.

4. Since the float charge voltage of a 24V battery may exceed 30V after being fully charged, it is not recommended to use it directly.
5. When choosing a range, the larger the better. The larger the range, the greater the error. It is recommended
It is 1.5 times or 2 times the actual test value.

Power supply voltage: DC4-30V (Note: The input voltage cannot exceed 30V, otherwise it will burn out.)
Test voltage: DC0-300V
Test current: DC0-500A
Display Type: 0.39'' LED with red and green fonts
Measurement rate: 500mS/time
Measurement accuracy: 1% (±2 digits)

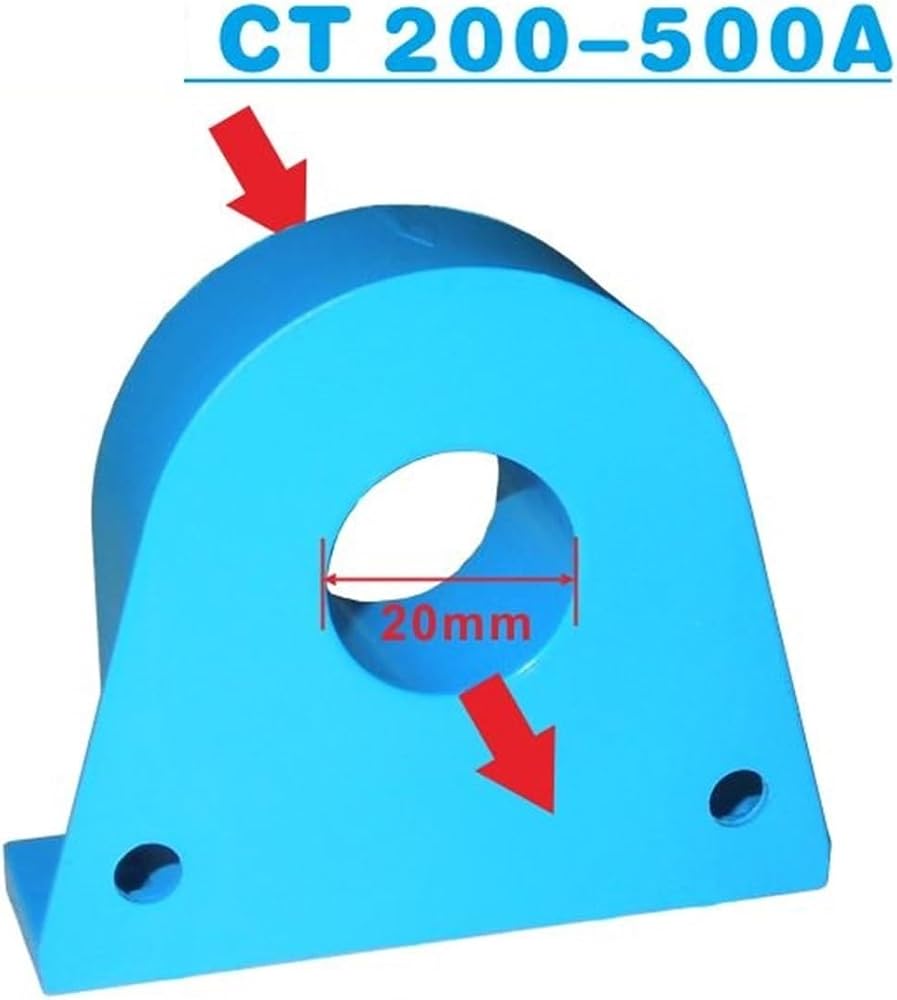

CT line length: 150mm
Terminal wire length: 150mm
Size: 70*40*30mm
Mounting hole: 68*38mm

Size: 70*40*30mm
Operating temperature: -10 to +50 degrees
Power supply voltage: DC4-30V
Accuracy level: 1% +/- 2 digits
Model: YB4835HVA

Installation size: 68*38mm
Measuring speed: about 2 times/S
Display type: 0.39'' LED, red and green digital
Test current: DC0-500A
Test voltage: DC0-300V
Features: Three lines
