4pcs M6 1-Post Wire Rope Clip Stainless Steel Wire Rope Clips Fixing Simplex Wire Rope Clip Cable Clamp Caliper in Saudi Arabia 4pcs M6 1-Post Wire Rope Clip Stainless Steel Wire Rope Clips Fixing Simplex Wire Rope Clip Cable Clamp Caliper in Saudi Arabia 4pcs M6 1-Post Wire Rope Clip Stainless Steel Wire Rope Clips Fixing Simplex Wire Rope Clip Cable Clamp Caliper in Saudi Arabia 4pcs M6 1-Post Wire Rope Clip Stainless Steel Wire Rope Clips Fixing Simplex Wire Rope Clip Cable Clamp Caliper in Saudi Arabia 4pcs M6 1-Post Wire Rope Clip Stainless Steel Wire Rope Clips Fixing Simplex Wire Rope Clip Cable Clamp Caliper in Saudi Arabia

6pcs M4

SAR 42
Brand
JCBIZ
Weight
113 g
Size6pcs M4
– 1 +

Special Features

  • Package: 4pcs M6 1-Post Wire Rope Clip, are used to fix the loose end of the loop back to the wire rope. Allows for connecting to other cables and assembly with equipment such as thimbles, turnbuckles etc.
  • Dimension: Screw length 19mm, Total Size 30x12x19mm, fit for rope diameter 4-5mm.
  • Material: Stainless steel, durable, strong, reliable, waterproof, anti-rust, anti-high temperature, corrosion resistance.
  • Use: Designed be for use wire ropes, cables. Easy to attach, remove, reuse with hand tools.
  • Application: Used for all kinds of project hoisting machinery, metallurgy mining equipment, the port railway loading and unloading, forestry machinery, land transportation.

Description

Feature:

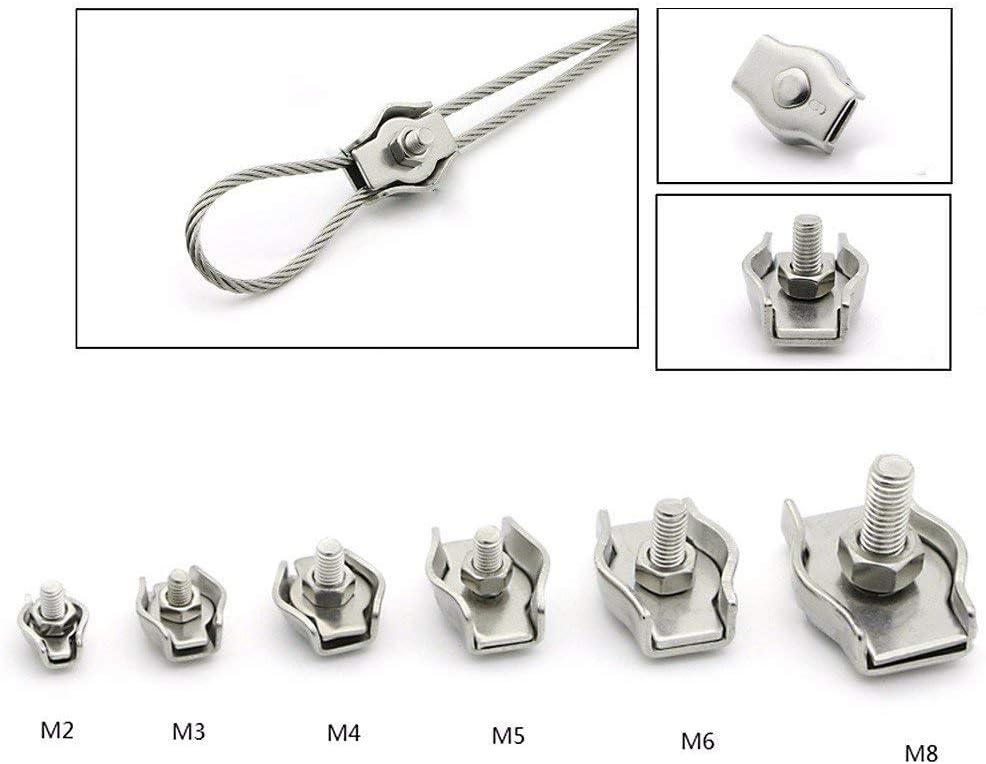

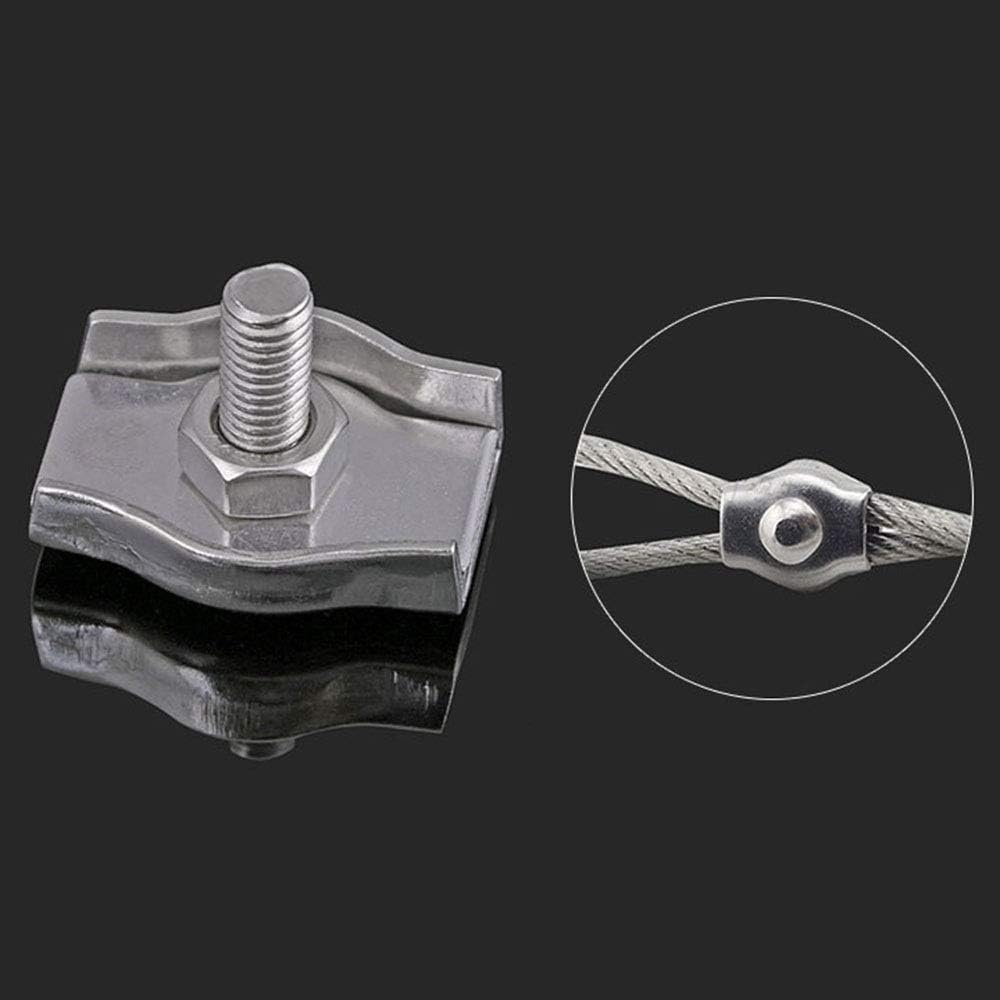

Type: Wire Rope Clip
Size: M6
Color: Silver
Material: Stainless steel, durable, strong, reliable, waterproof, anti-rust, anti-high temperature, corrosion resistance.
Use: Designed be for use wire ropes, cables. Easy to attach, remove, reuse with hand tools.

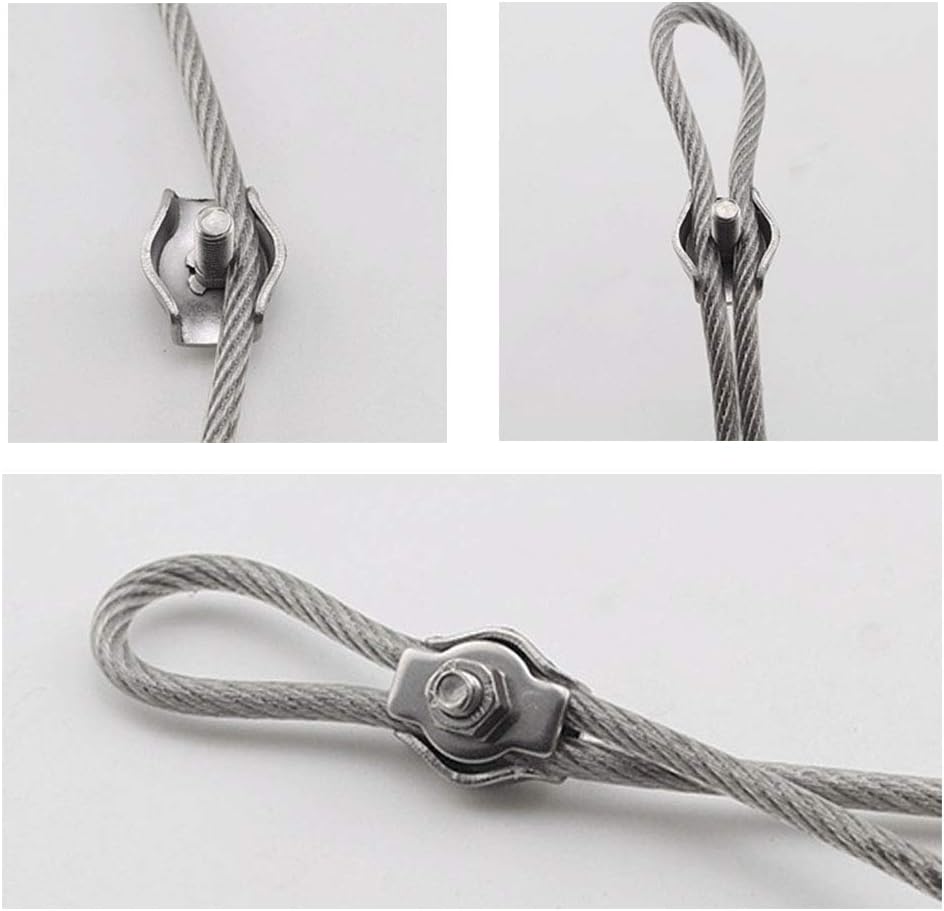

Function: The wire rope clamps are used to fix the loose end of the loop back to the wire rope. Allows for connecting to other cables and assembly with equipment such as thimbles, turnbuckles etc.
Application: Used for all kinds of project hoisting machinery, metallurgy mining equipment, the port railway loading and unloading, forestry machinery, land transportation.

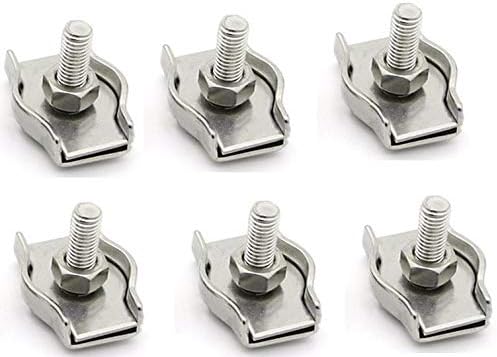

Package: 4pcs

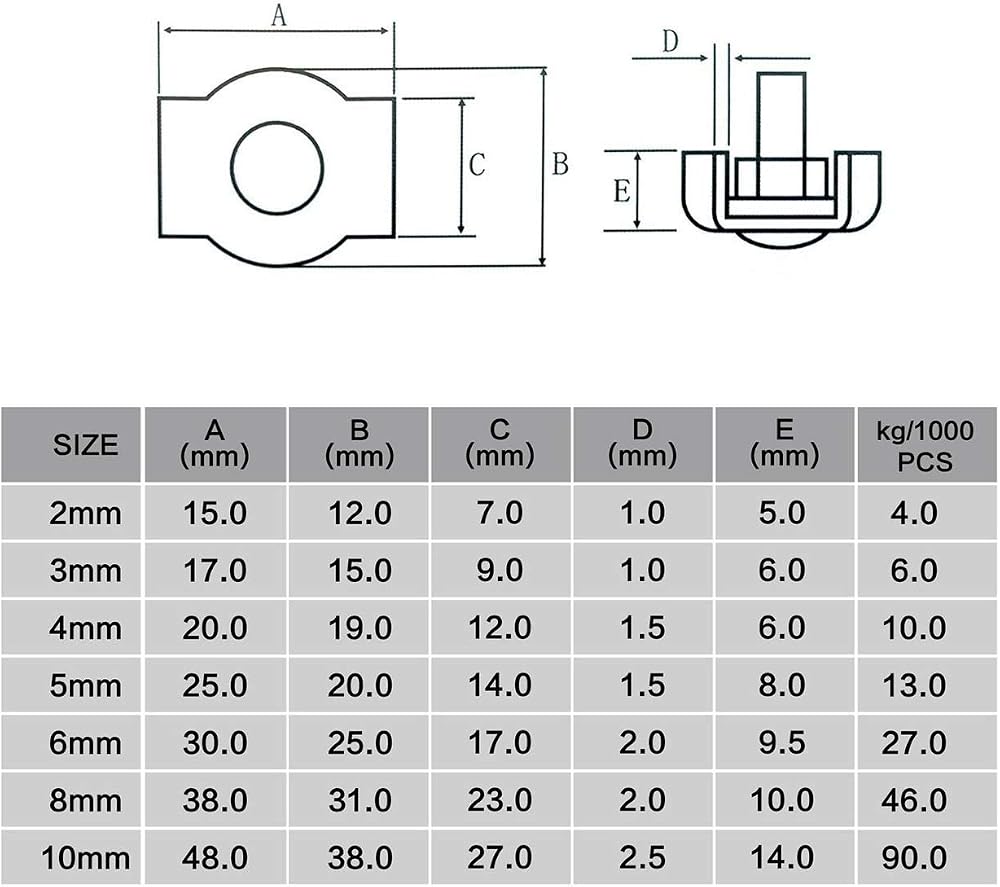

Specification: (mm)
Size Screw Length Overall Length Narrowest Width Maximum Width Applicable Wire Diameter
M4 15.5 20 8 13 2-3

M5 16 25 10 15 3-4

M6 19 30 12 19 4-5

M8 27 37 17 25 5-6

M10 27 48.5 21 31 6-8
