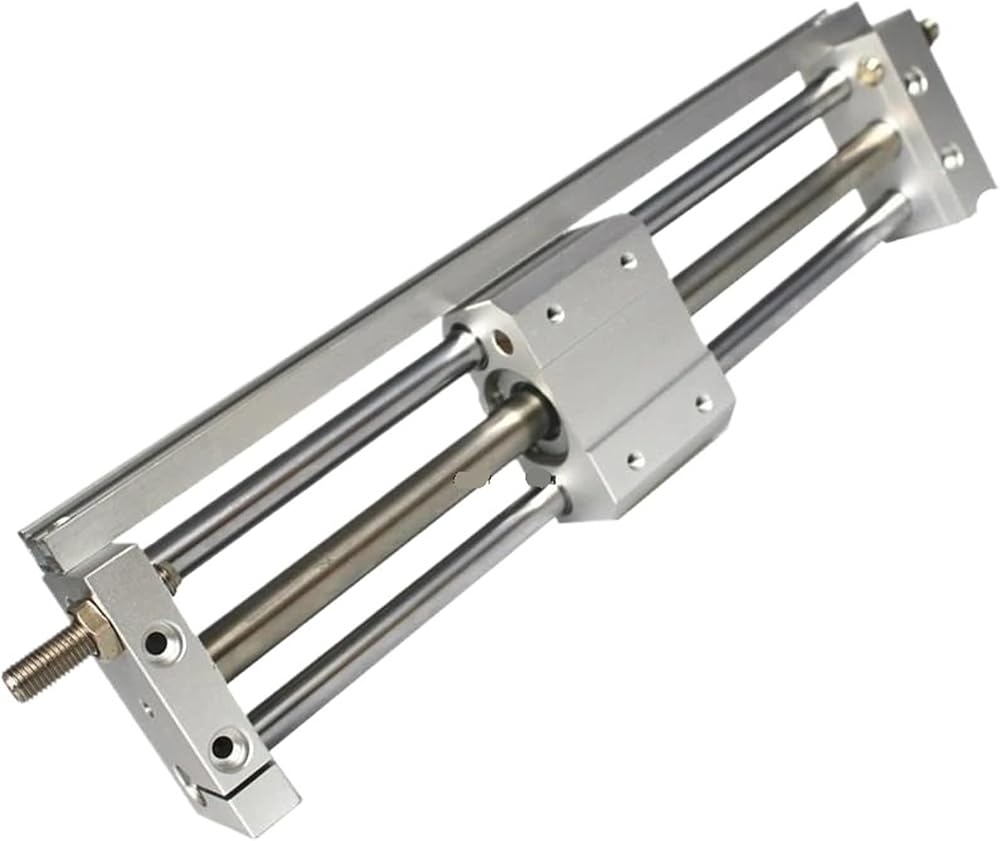

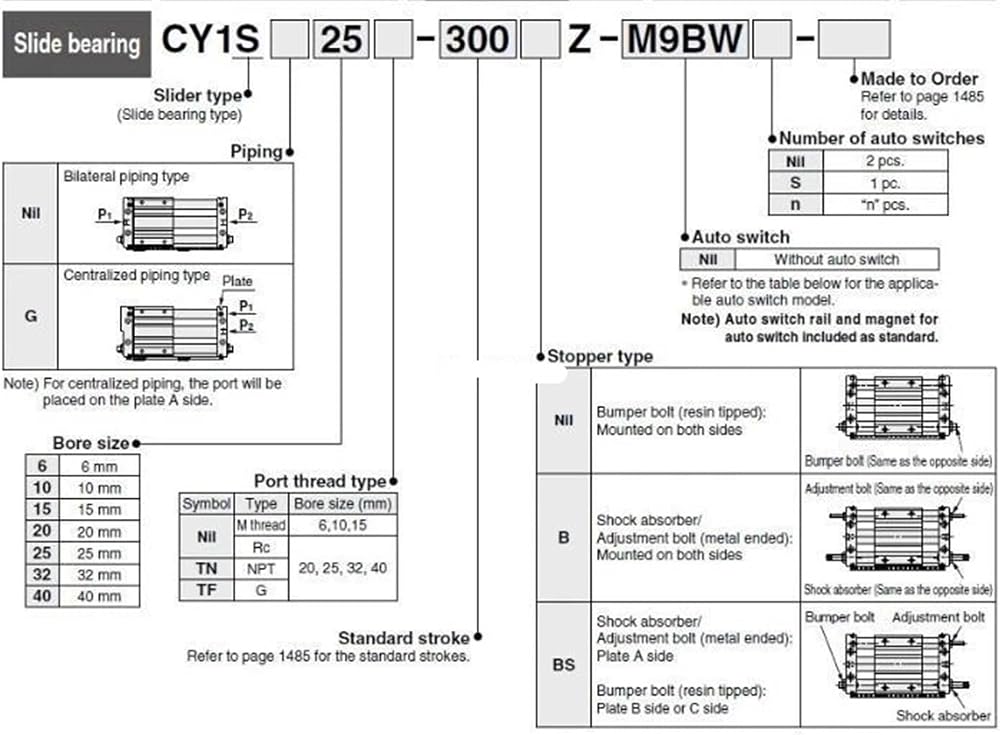

CY1S CY1S10 Storke100-500mm Magnetic Coupling Rodless Cylinder Pneumatic Cylinder CY1S10-100 CY1S10-200 CY1S10-300 CY1S10-400
Bore size(mm)
6
10
15
20
25
32
40
Fluid
Air
Proof pressure
1.05MPa
Max.operating pressure
0.7MPa
Min.operating pressure
0.18 MPa
Amblent and fluid temperature
10 to 60°C (No freezing)
Piston speed*
50 to 400 mm/s

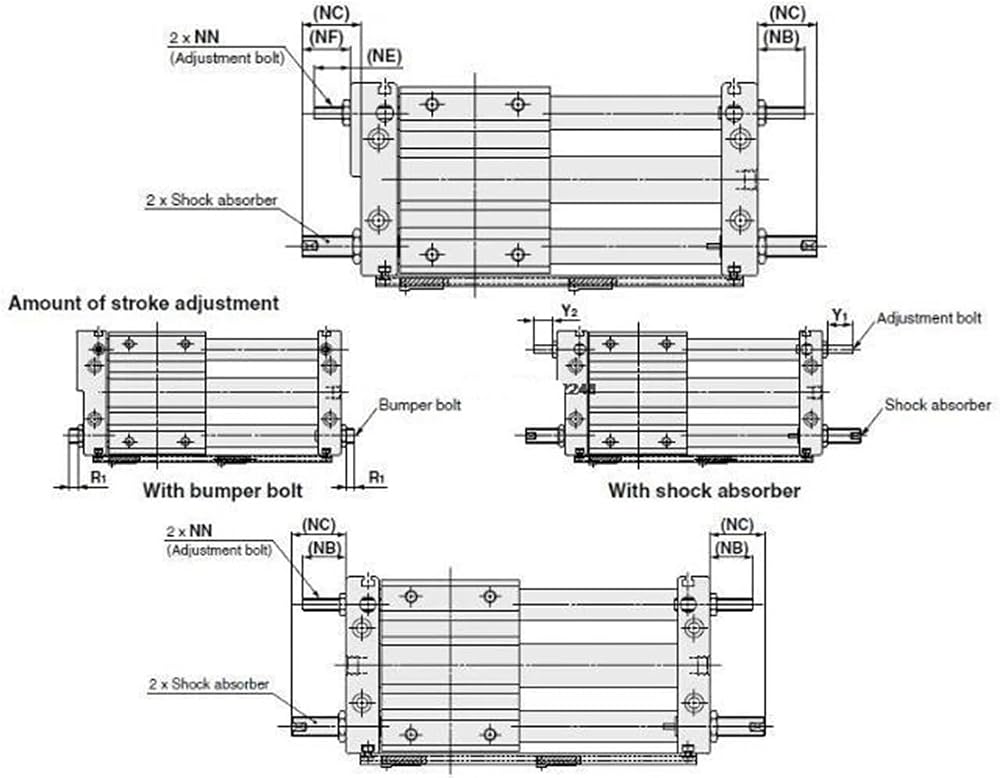

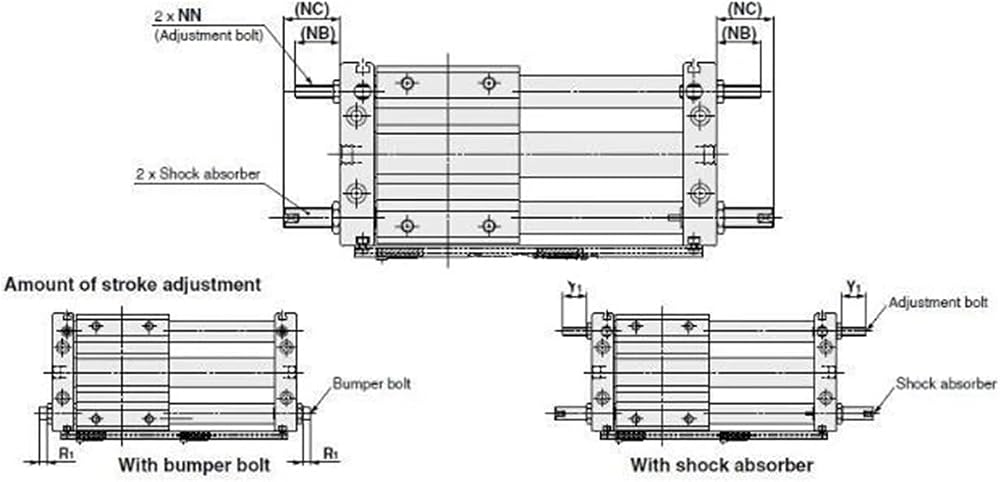

Cushion
Rubber bumper/Shock absorber
Lubrication
Non-lube
Stroke length tolerance(mm)
0 to 250 st:+1.0/0 , 251 to 1000 st:+1.4/0 , 1001st or longer:+1.8/0
Magnetic holding force(N)
19.6
53.9
137
231
363
588
922
Standard Stroke
Bore size(mm)
Standard stroke(mm)
Maximum manufacturable stroke (mm)
6
50,100,150,200
300
10
50,100,150,200,250,300
500
15
50,100,150,200,250,300,350,400,450,500
750
20
100,150,200,250,300,350,400,450,500,600,700, 800
1000
25
1500
32
40
100,150,200,250,300,350,400,450,500,600,700, 800,900,1000
1500
