High-efficiency heat transfer performance: Plate heat exchanger adopts high-efficiency heat transfer plate design with large heat transfer area and small volume, which can realize high-efficiency heat exchange in a shorter period of time. It is suitable for a variety of industrial and commercial applications, such as HVAC, food processing, chemical industry and other fields.
Modularized design: The product adopts modularized design, which is convenient for disassembly and cleaning. Users can flexibly adjust the number of plates according to actual needs, thus realizing different heat transfer capacity and flow rate requirements, which greatly improves the flexibility of use and convenience of maintenance.
Durable materials: the plates are made of high-quality stainless steel or titanium alloy, with excellent corrosion resistance and mechanical strength. The sealing gaskets are made of high-temperature resistant and anti-aging rubber materials to ensure the sealing effect in long-term use.
Energy saving and environmental protection: By optimizing the fluid channel design, low pressure drop and high heat transfer efficiency are achieved, thus reducing energy consumption. The product complies with environmental standards and helps reduce carbon emissions, making it an ideal choice for green energy saving.
Widely used scenarios: Whether it is in cooling systems and heating systems in industrial production, or air conditioning systems and water treatment systems in commercial buildings, this plate heat exchanger can provide stable and reliable performance. Its versatility makes it an excellent choice for all types of heat exchange needs.
وصف

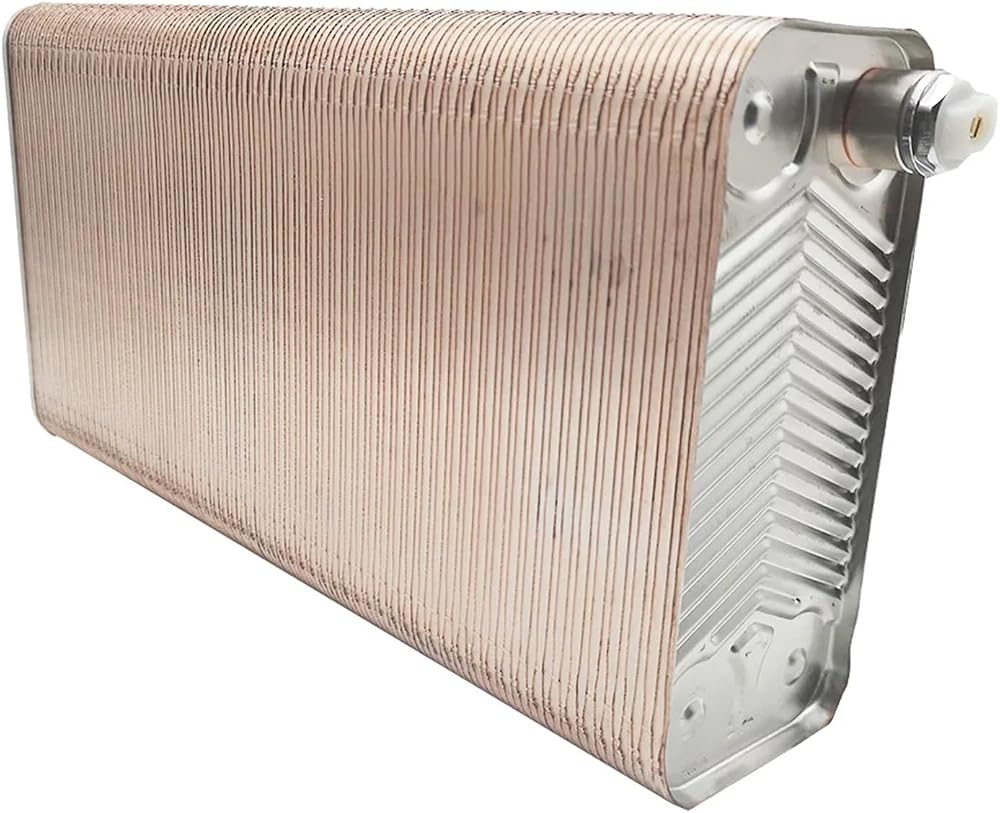

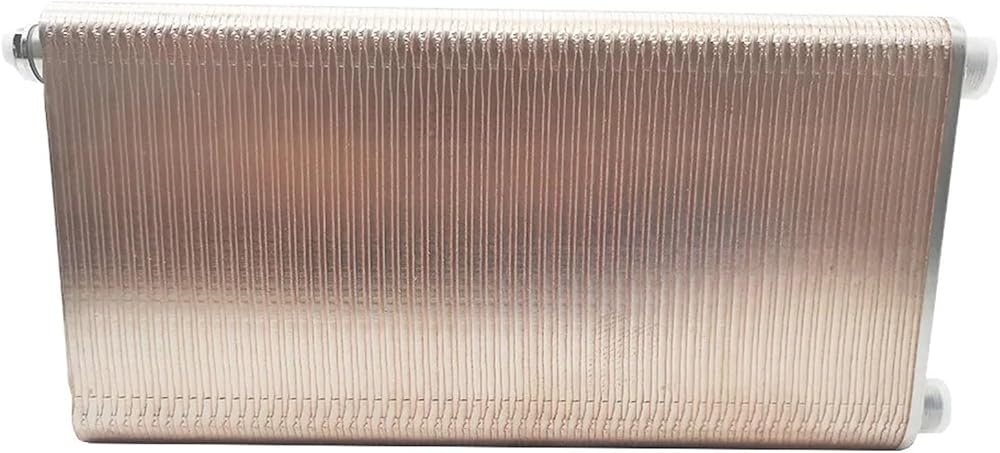

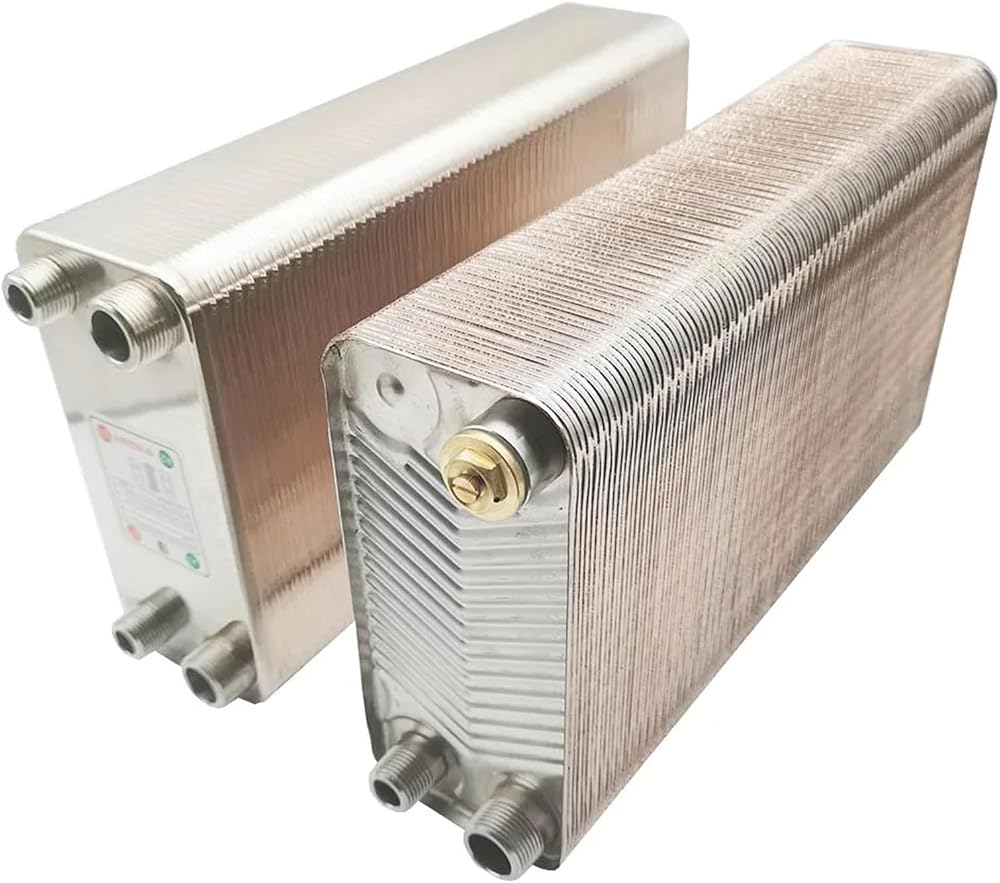

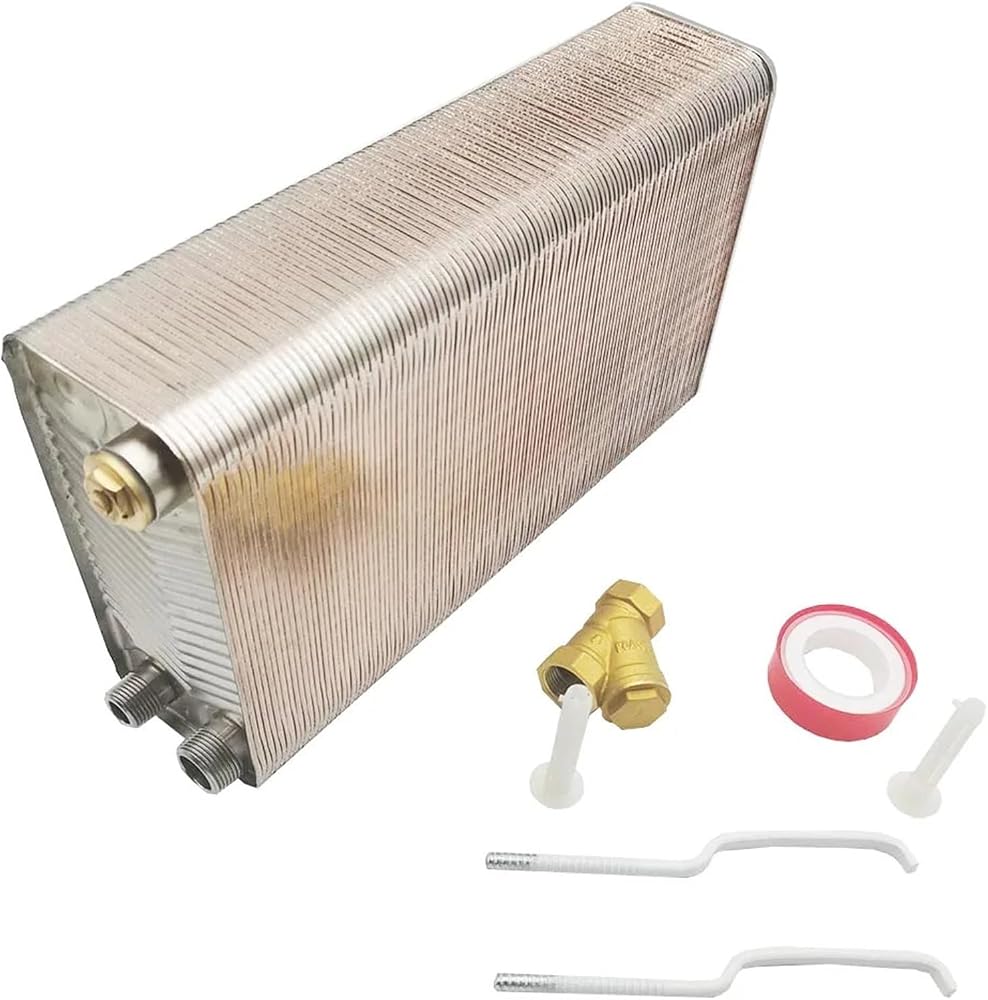

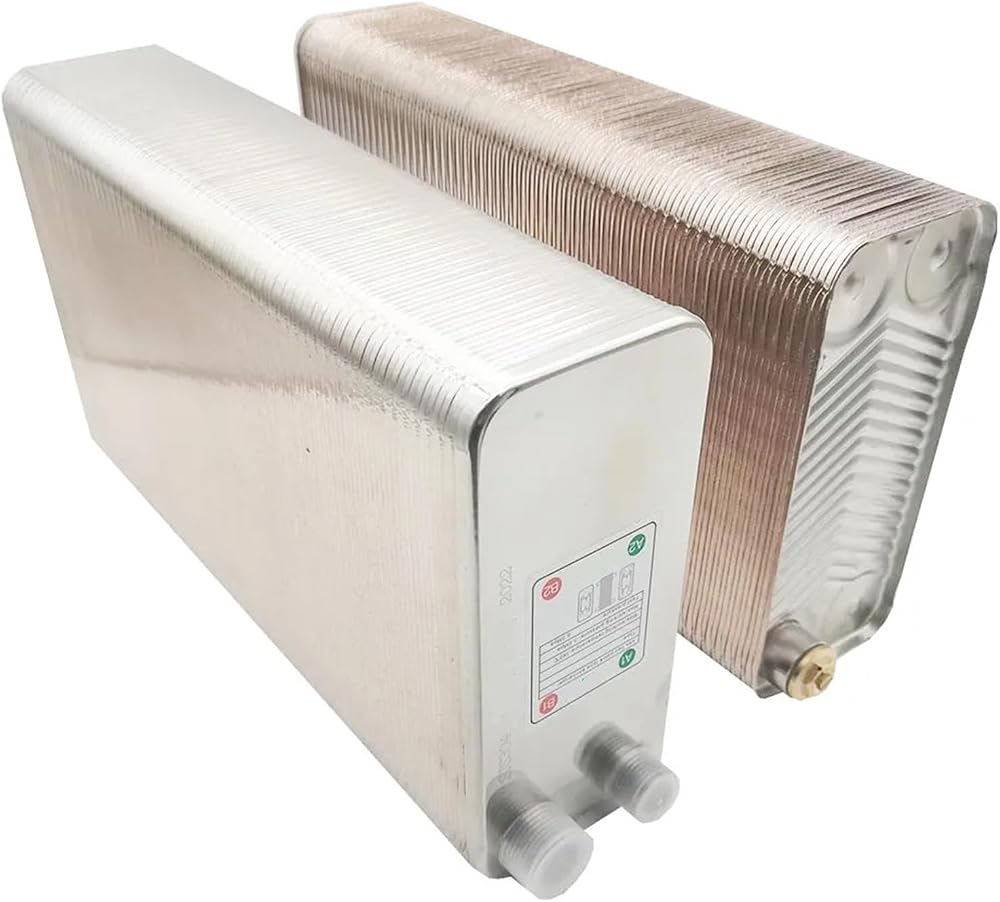

120 Plates Water to Water Brazed Plate Thermal Stainless Steel Heat Exchanger Brazed Plate Heat Exchanger
Product parameters
Name: Brazed plate type heat exchanger
Material:SUS 304 Stainless Steel, food grade
WeldIing Material: 99.9% Copper
Application:Home Brew Wort Chiller, Famliy Hot Water supply
Thread of Port A1,A2:1/2" BSPT Male
Thread of Port B1,B2:1" BSPT Male
Plates Number: 120 plates
Dimension:195x85x380mm
Heat Transfer Area/plate: 0.028 m2(0.30 ft2)
Thickness of One Plate:0.25-0.35mm
Max Flowrate:12 m3/H
The Maximum Pressure: 1.6Mpa(228 PSI)
Refrigeration Capacity: 12 KW(3516 BTU/hour)
Working Temperature:-160 to + 185
Using Way for hot Wort:
Port A1:Hot Wort,Port A1:Cold Wort
Port B1:Cold Water,Port A2:Hot Water
The flowrate of Cold Water higher the Better.
Using Way for Famliy hot water supply:
Port A1:Cold Water,Port A2:Hot Water
Port B1:Central heating In;,Port B1:Central heating Out
