Spec:

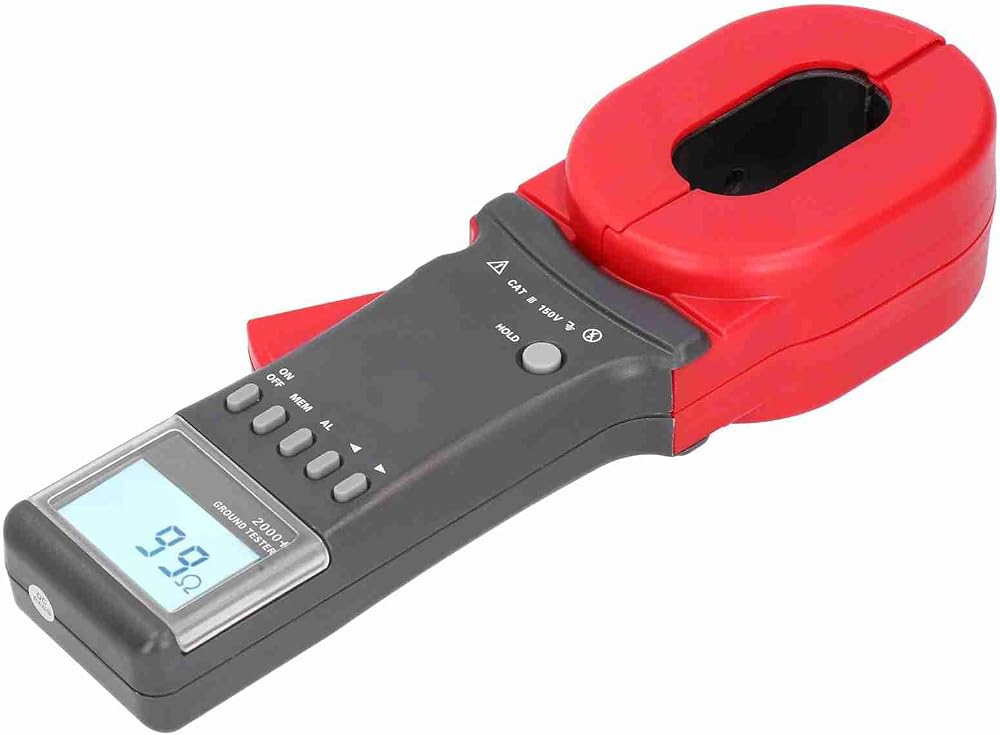

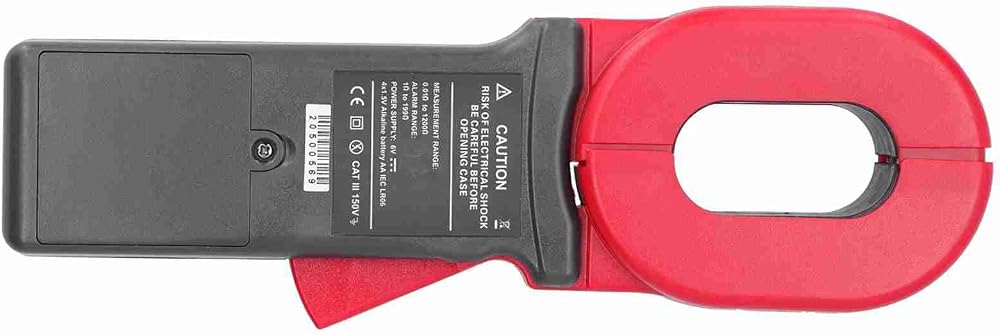

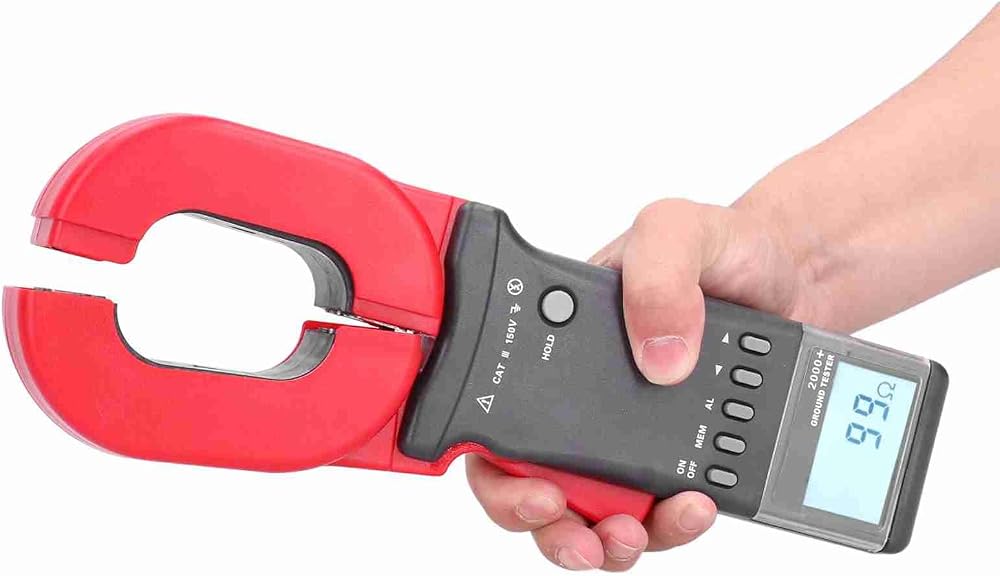

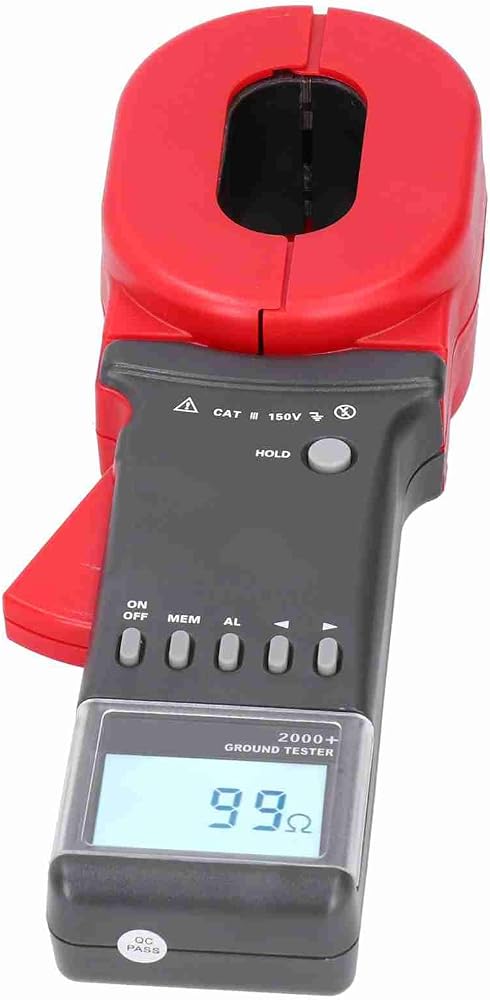

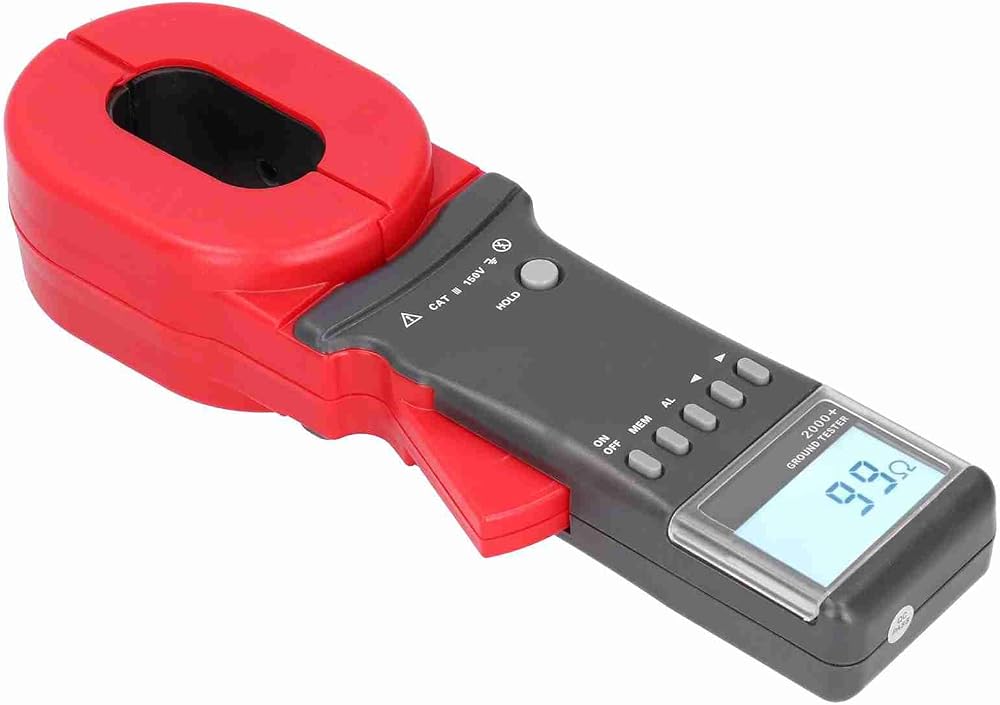

Item Type: Earth Resistance Tester
Material: ABS
Color: As shown in the picture
Function Ground resistance test, loop resistance test
Power Supply 4x1.5V AA dry battery (not included)
Resistance range 0.01-1200Ω
Resistance resolution 0.001Ω
Data storage 99 groups
Alarm threshold setting range Resistance: 1-199Ω
Sound-light alarm "Beep--beep--beep--" alarm sound, the alarm symbols flashes, press the AL button to turn on, off, and set
Interference signal recognition function “Beep--beep--beep--" prompt sound, NOISE symbols flashes
Working temperature and humidity -20℃,-55℃, 10%RH - 90% RH
LCD 4-digit LCD digital display, length and width 47x28.5mm / 1.9x1.1in
Jaw size 65x32mm / 2.6x1.3in
Meter size 286x87x56mm / 11.3x3.4x2.2in(L x W x T)
Guard class Double insulation
Structure Clamp CT
Shift Automatic shift
External magnetic field
External electric field
Single measurement time 0.5s
Resistance measurement frequency >1KHz
Frequency of measured current 50/60Hz automatic
Low battery indicator function When the battery voltage is lower than 5.3V, the battery voltage is low
Storage data full indication 99 sets of stored data are full, and the "MEM" symbols flashes
Over-range indication Over-range indication "OLΩ", "L0.01" or "OL A"
Auto power-off The meter will automatically shut down after about 5 and a half minutes after starting up
Power consumption Startup, working current is less than 50mA, continuous working for about 30 hours

PackageList:
1 x Earth Resistance Tester(Battery Not Included)

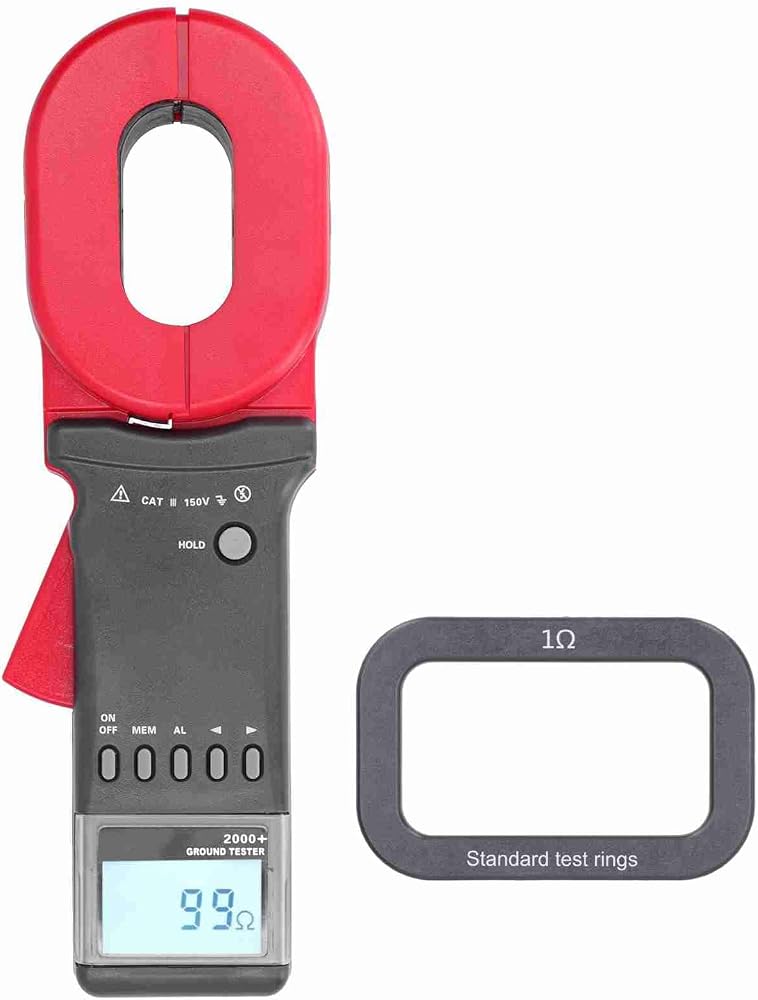

1 x Measuring Ring

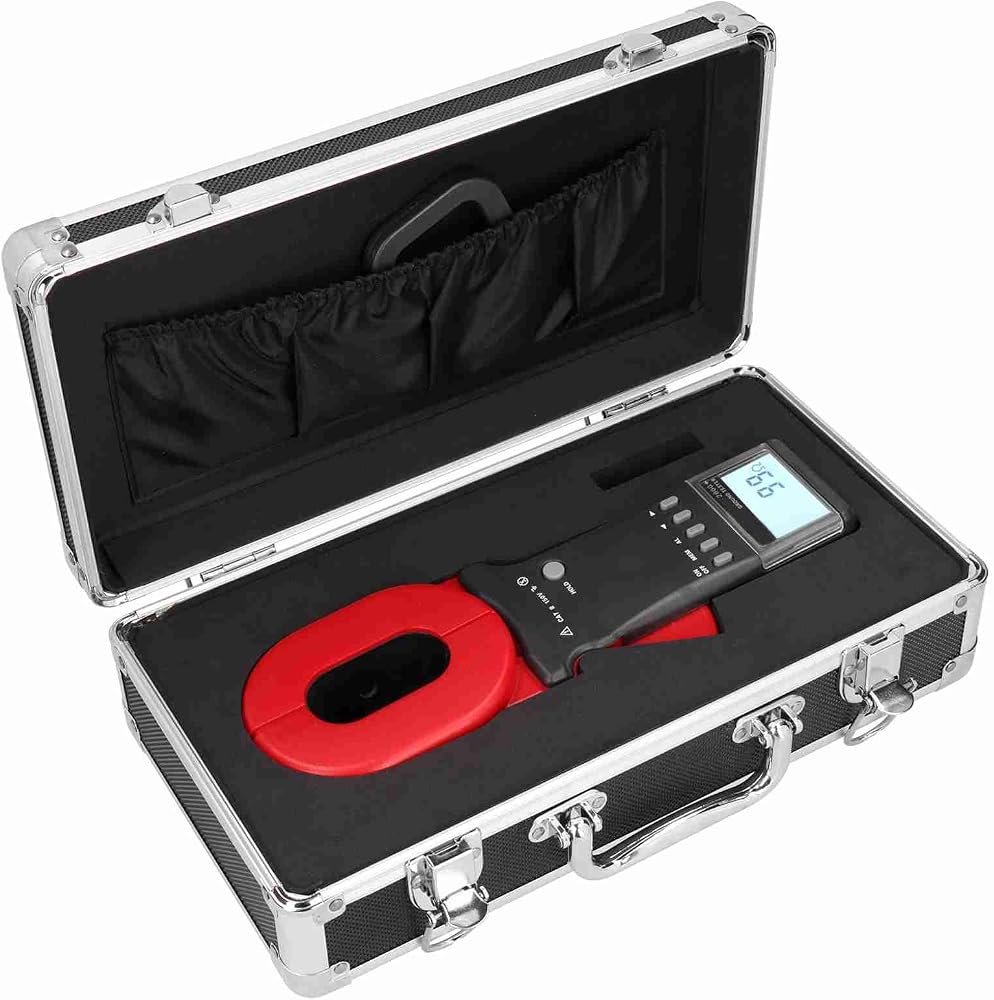

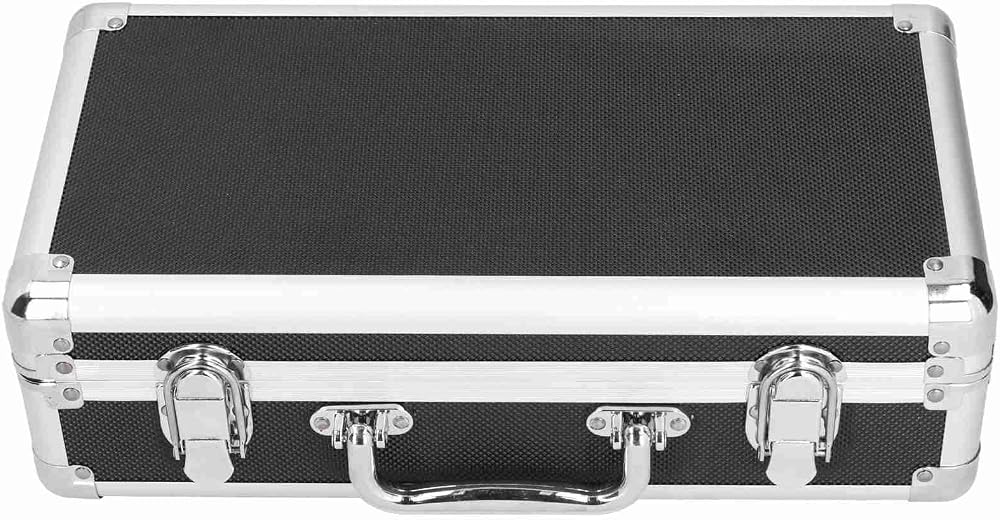

1 x Aluminum Case
1 x Instruction Manual
