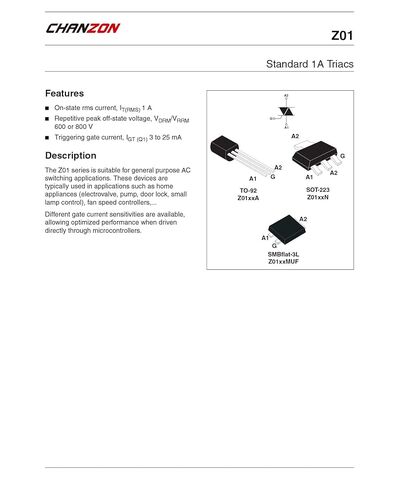

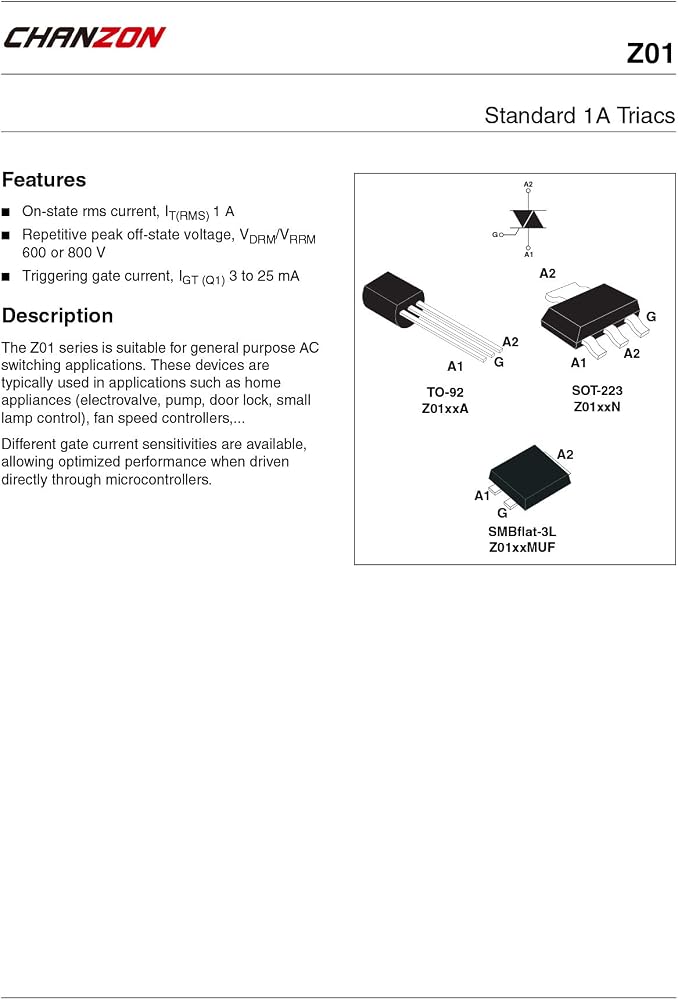

Product Description:
The Z01 Series Triacs are designed for versatile AC switching applications, ideal for home appliances, fan speed controllers, and more. With a robust on-state rms current rating of 1A and a repetitive peak off-state voltage of either 600V or 800V, these devices offer reliable performance in various electrical systems.
Key Features:
- On-state rms current (IT(RMS)): 1 A
- Repetitive peak off-state voltage (VDRM/VRRM): 600V or 800V
- Triggering gate current (IGT): 3 to 25 mA, varying by model
Optimized for Microcontroller Use:
Different gate current sensitivities are available, ensuring compatibility and optimized performance when driven directly through microcontrollers.
Available Packages:
- TO-92

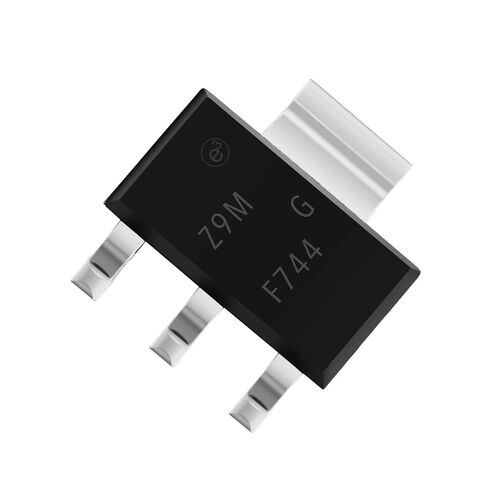

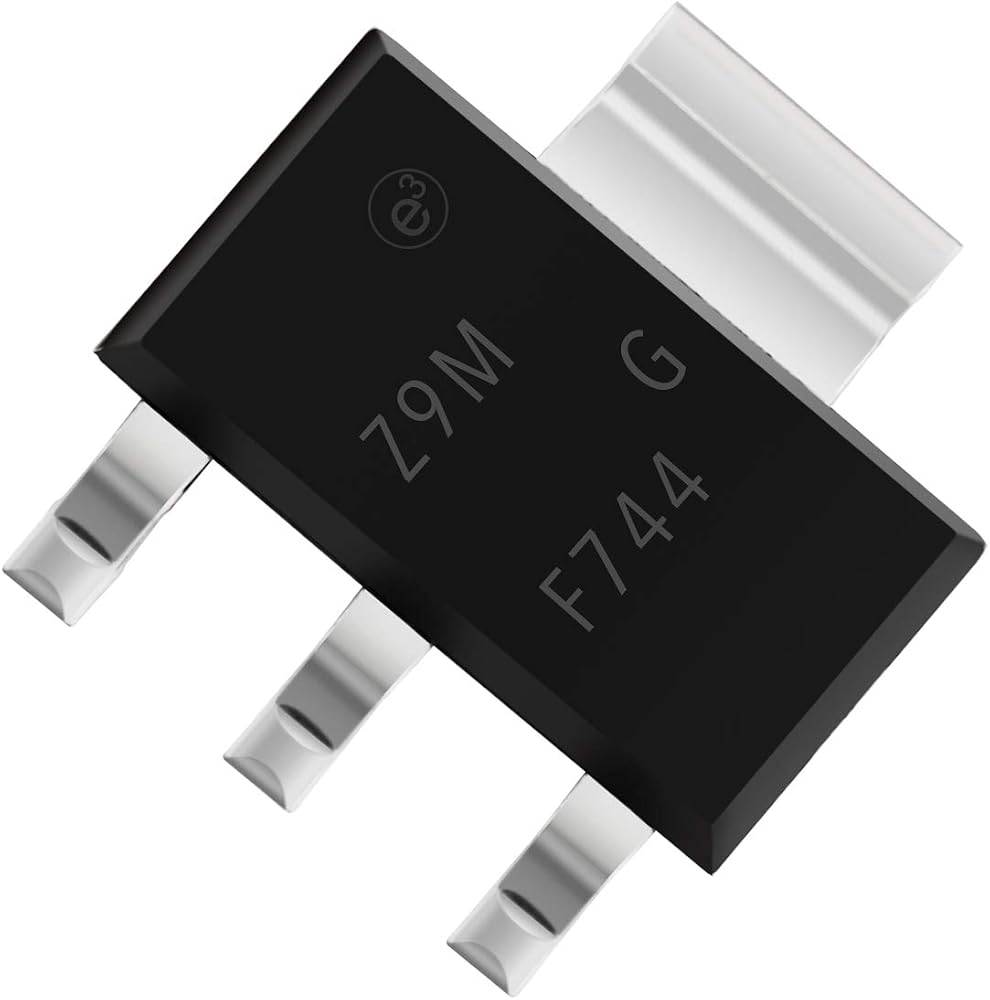

- SOT-223
- SMBflat-3L

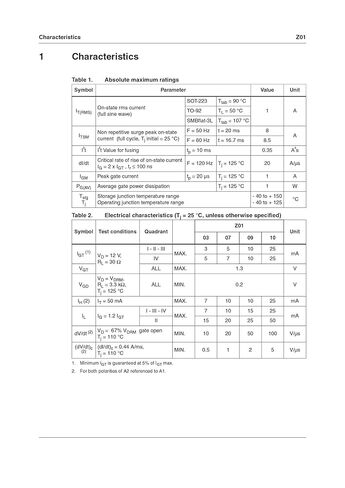

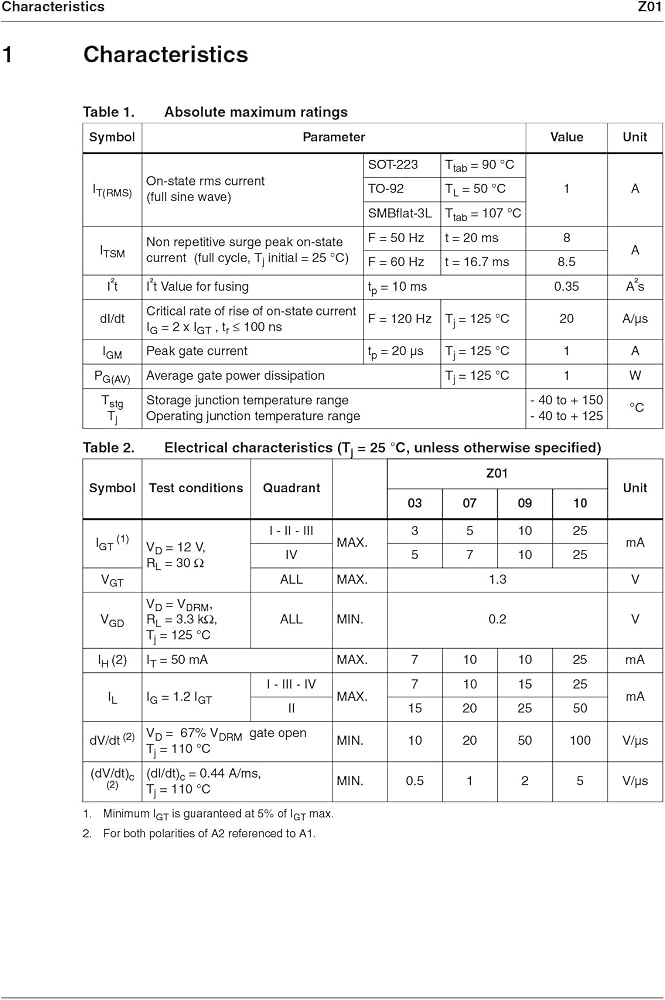

Electrical Characteristics (Tj = 25 °C):
- Gate Trigger Voltage (VGT): MAX. 1.3 V
- Holding Current (IH): MAX. varies by model
- Latching Current (IL): MAX. varies by model
- Critical Rate of Rise of On-state Current (dI/dt): 20 A/µs at F = 120 Hz and T = 125 °C
Therermal Resistances:
- Junction to Tab (Rth(j-t)): varies by package
- Junction to Ambient (Rth(j-a)): varies by package
Storage and Operating Temperature Range:
- Storage: -40 to +150 °C
- Operating: -40 to +125 °C
Packaging Information:

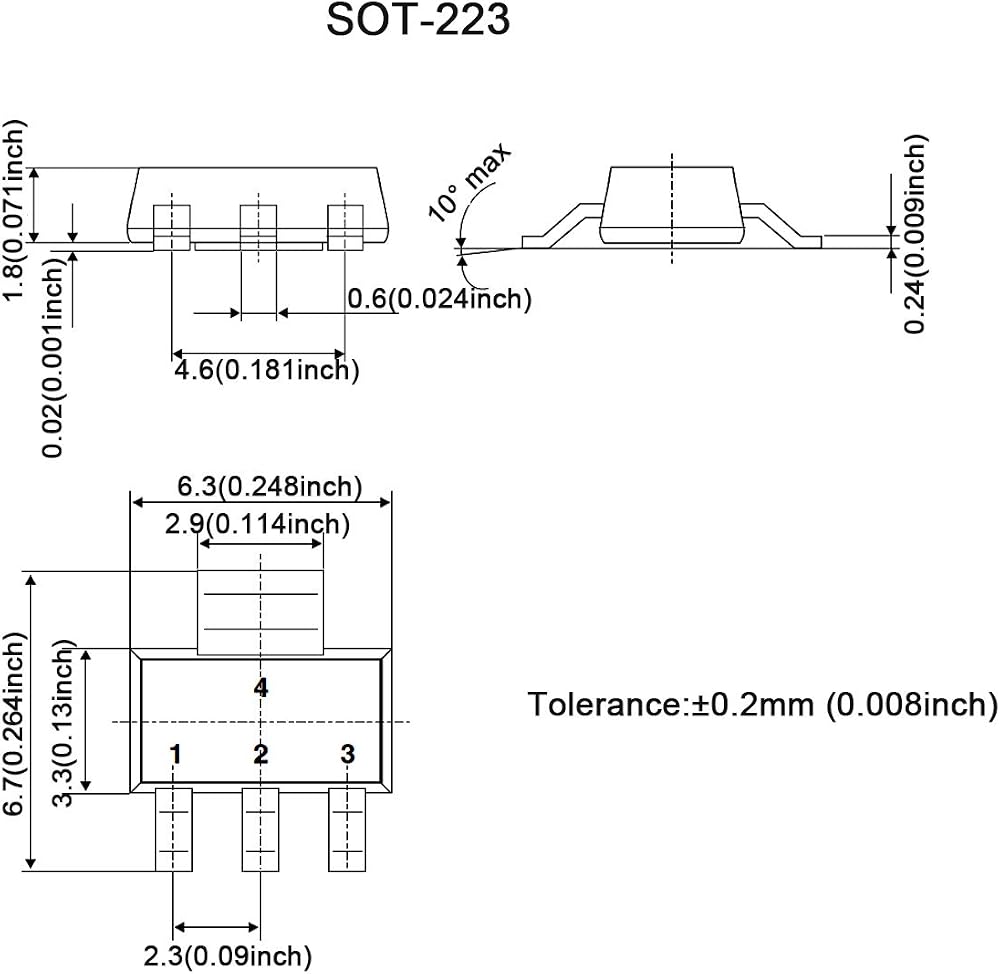

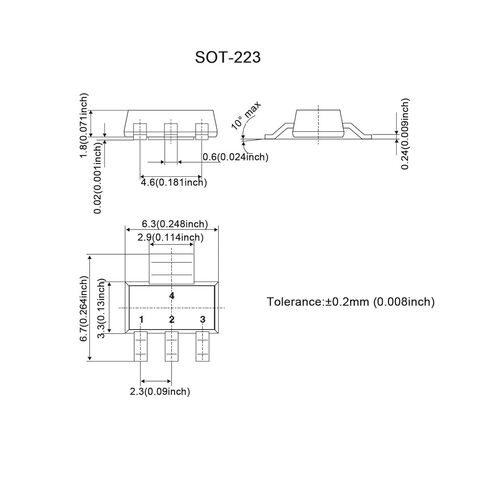

Lead-free packages, epoxy meets UL94, V0. Dimensions provided for SOT-223, TO-92, and SMBflat-3L.
Ordering Information:
Select from a range of order codes based on voltage, sensitivity, type, and package preference.
