1. High precision, low operating noise, stable and durable, easy installation and maintenance.
2. High positioning accuracy and more precise, high rigidity, wear resistance and high load-bearing capacity.
3. Suitable for machining centers, manufacturing equipment, machine tools, mechanical equipment, transmission equipment.
Specifications:
Model: SFU2510 HGR25
Guide rail width or diameter: 25mm
Material: Bearing steel
Ball screw accuracy: C7

Description:

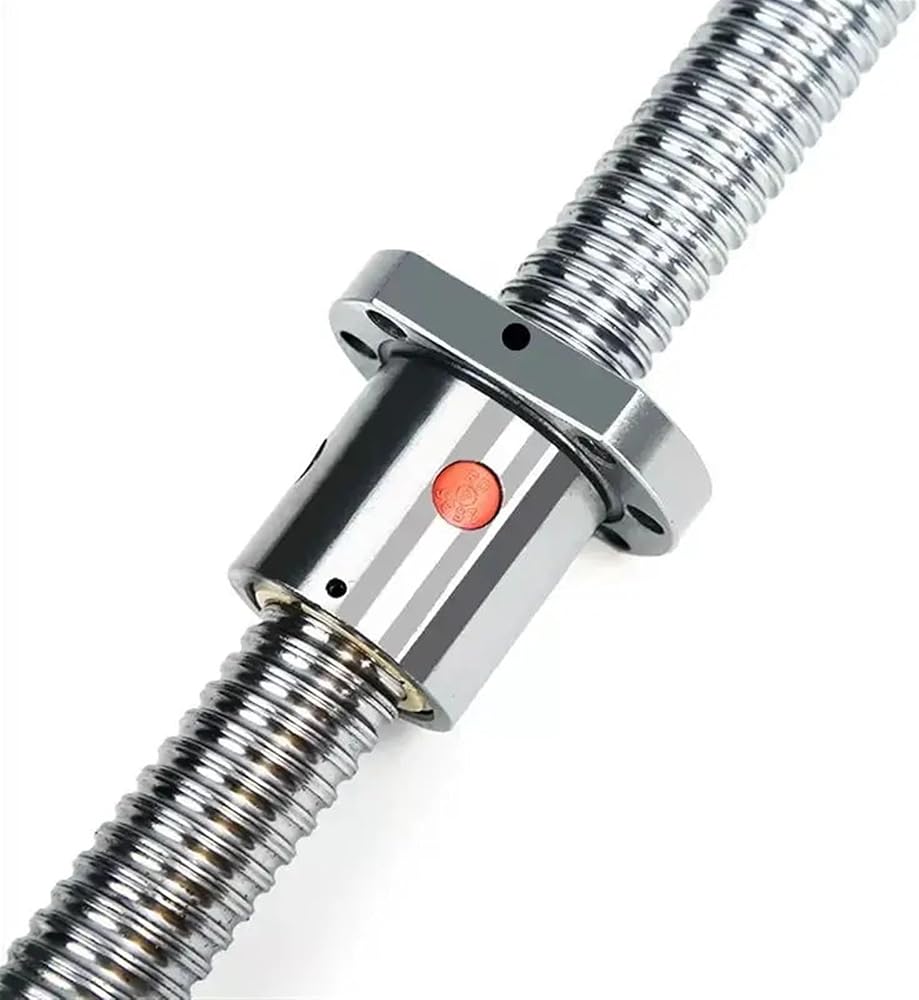

Ball screw accuracy: C7, high-precision C7 ball screw, can achieve precise positioning and smooth operation in the system.

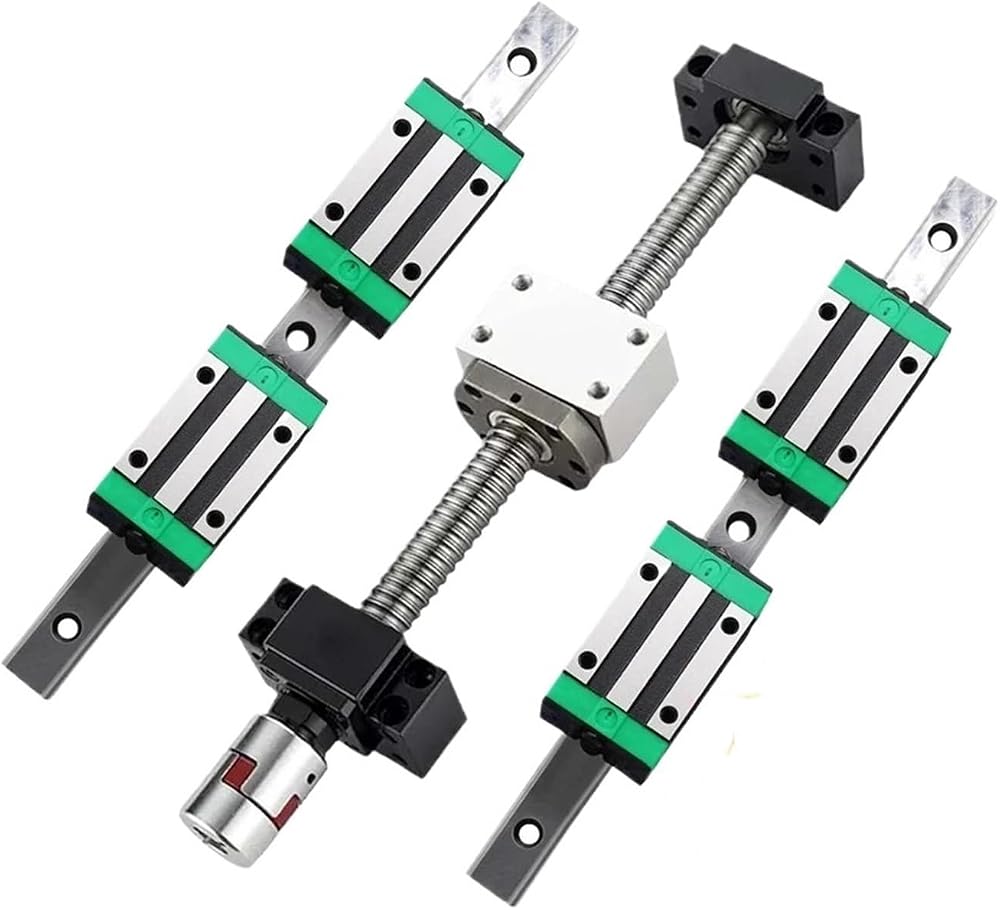

Package includes: including a full set of HGR25 guide rails, HGH25CA blocks and SFU2510 ball screws with end machining.
Material: Bearing steel, made of strong bearing steel, ensuring durability and life in high-load applications.
Guide rail width: 25mm, the guide rail width allows for precise linear motion, ideal for engraving machines.

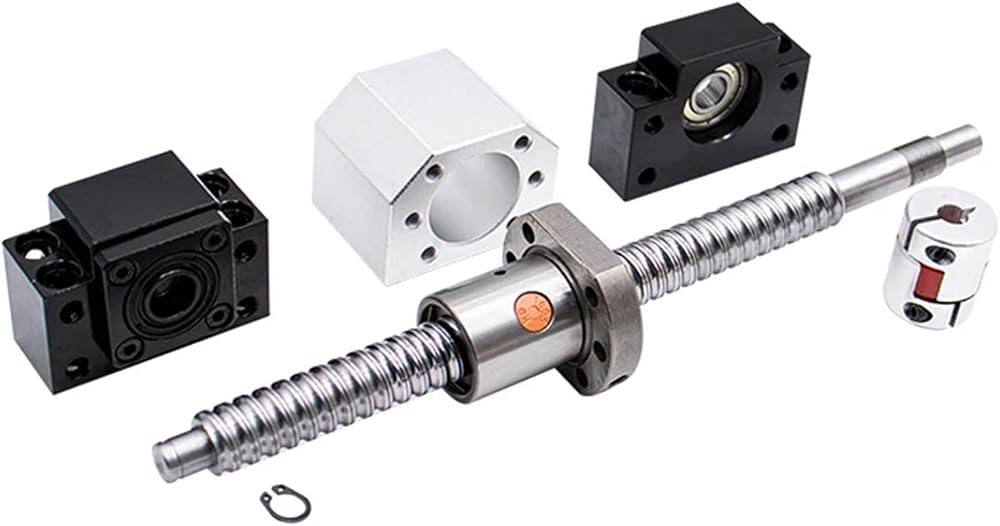

Packing list:

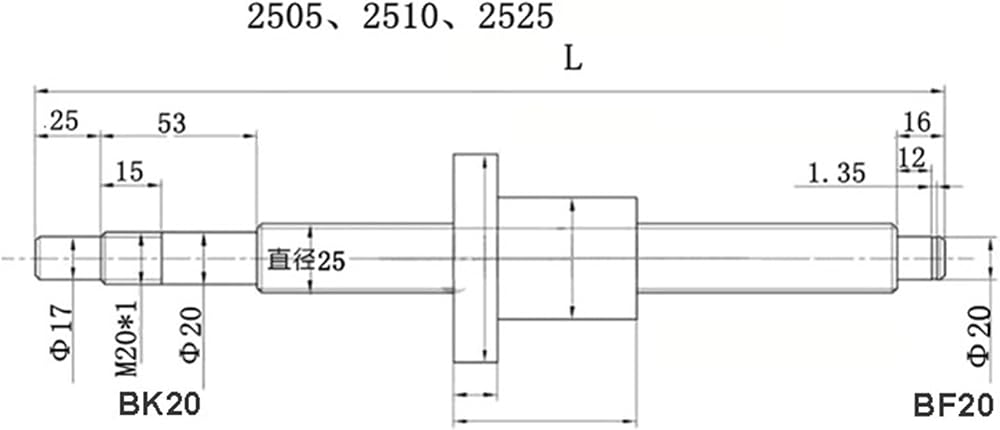

1pc x SFU2510 ball screw with end machining for BK/BF20

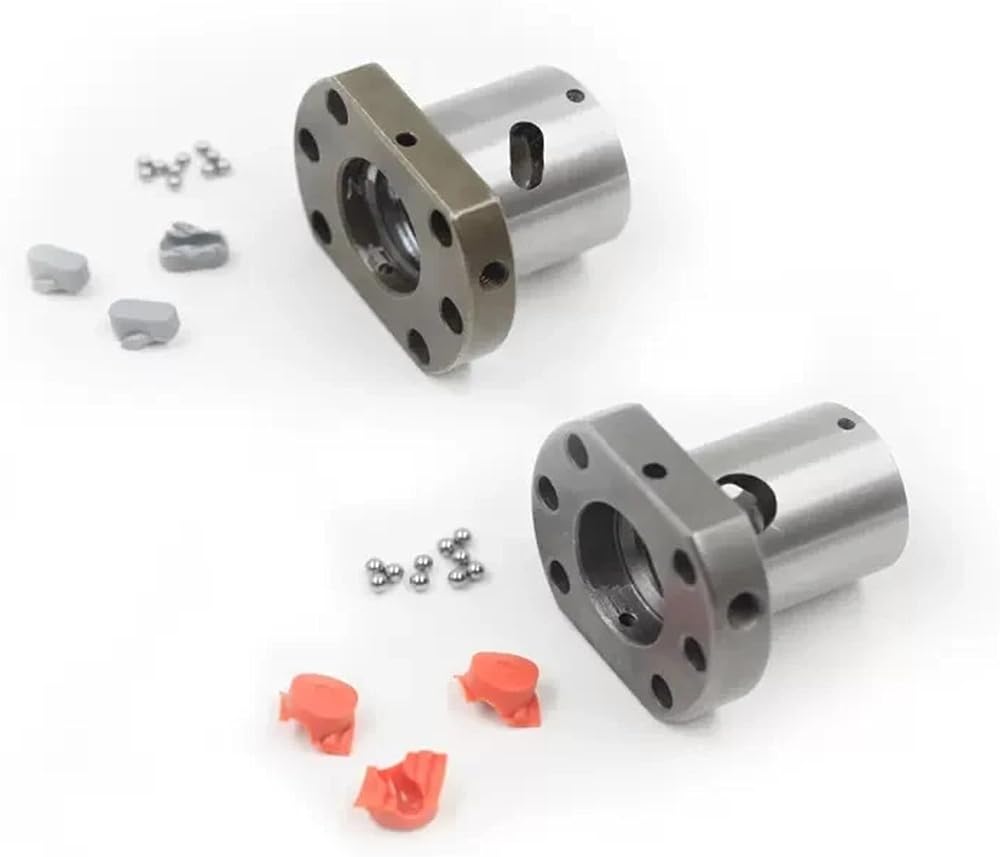

1pc x SFU2510 ball nut

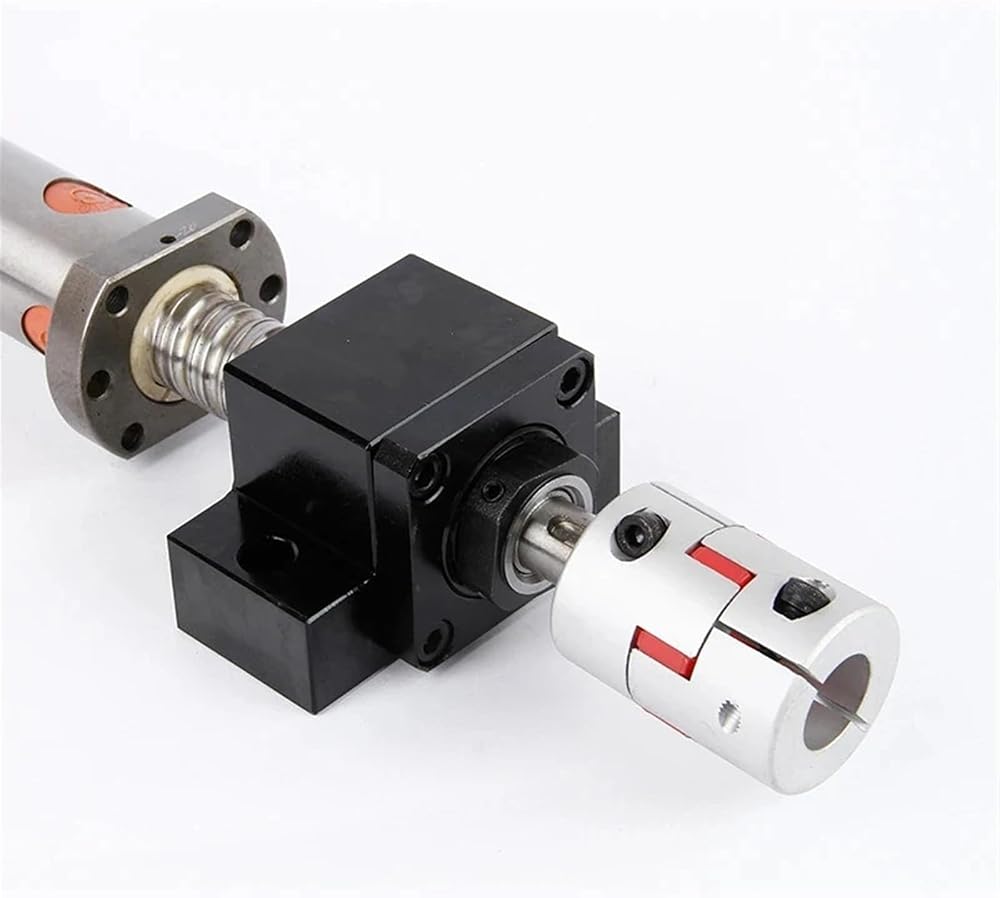

1pc x BK20+BF20
1pc x coupling D40L66 14x17mm
1pc x DSG25H nut housing
2pc x HGR25 linear guide
4pc x HGH25CA block
Note: The above ball screw is the total length, including the machining part.
