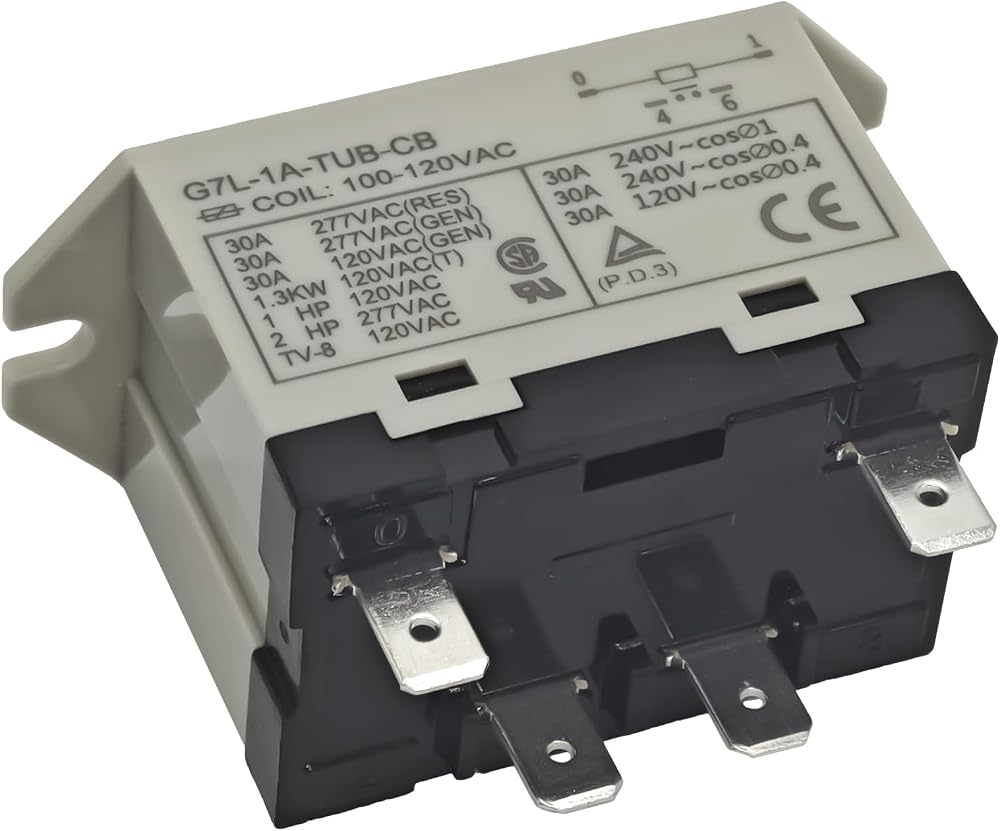

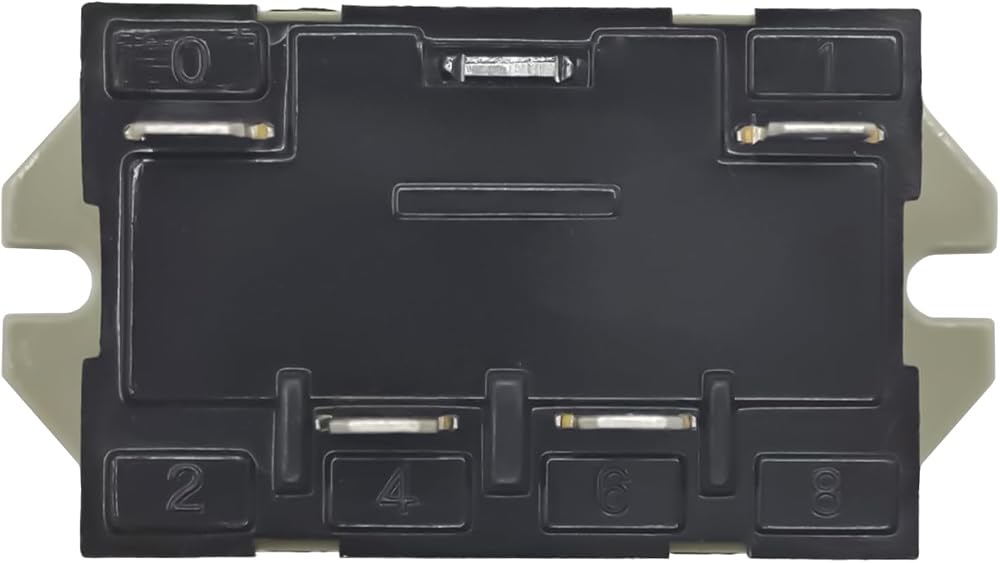

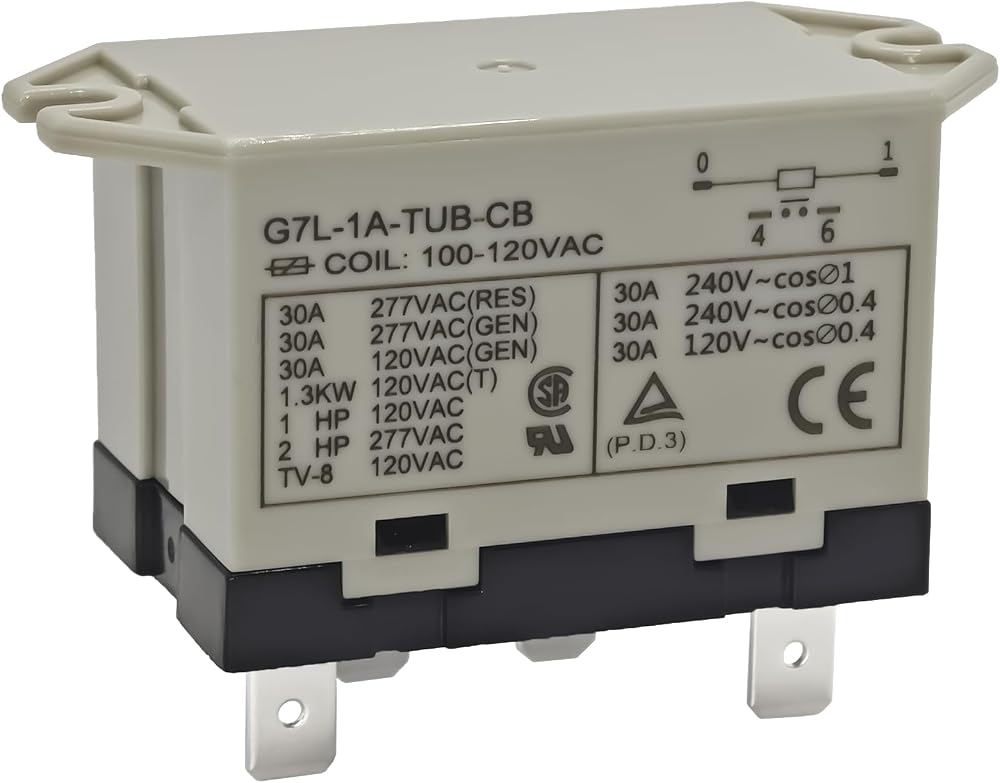

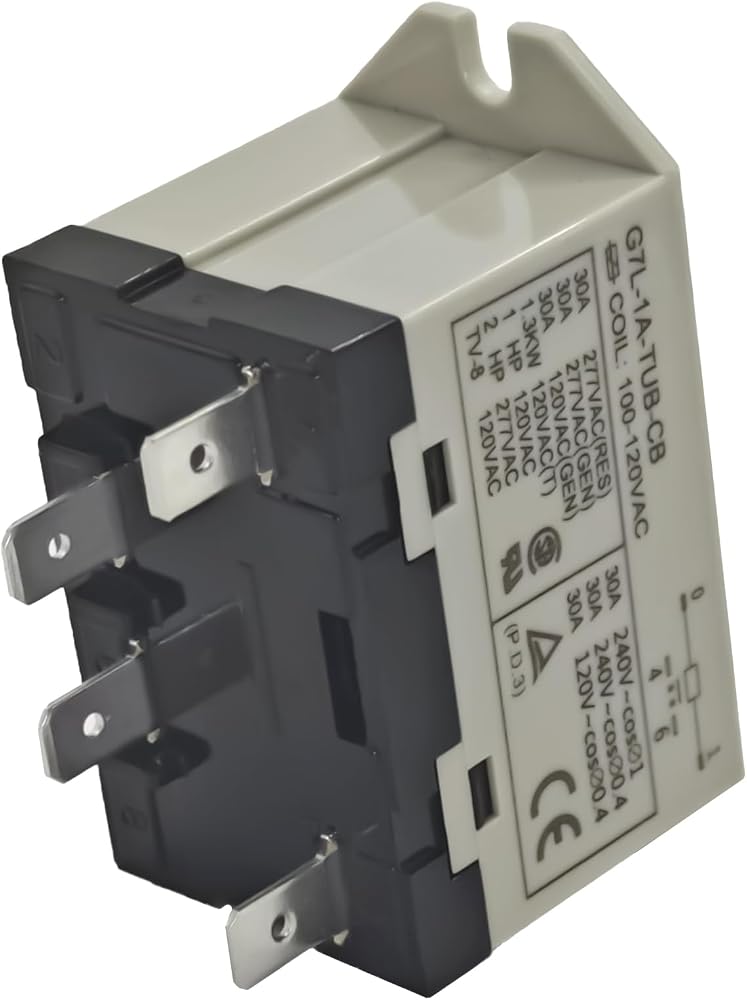

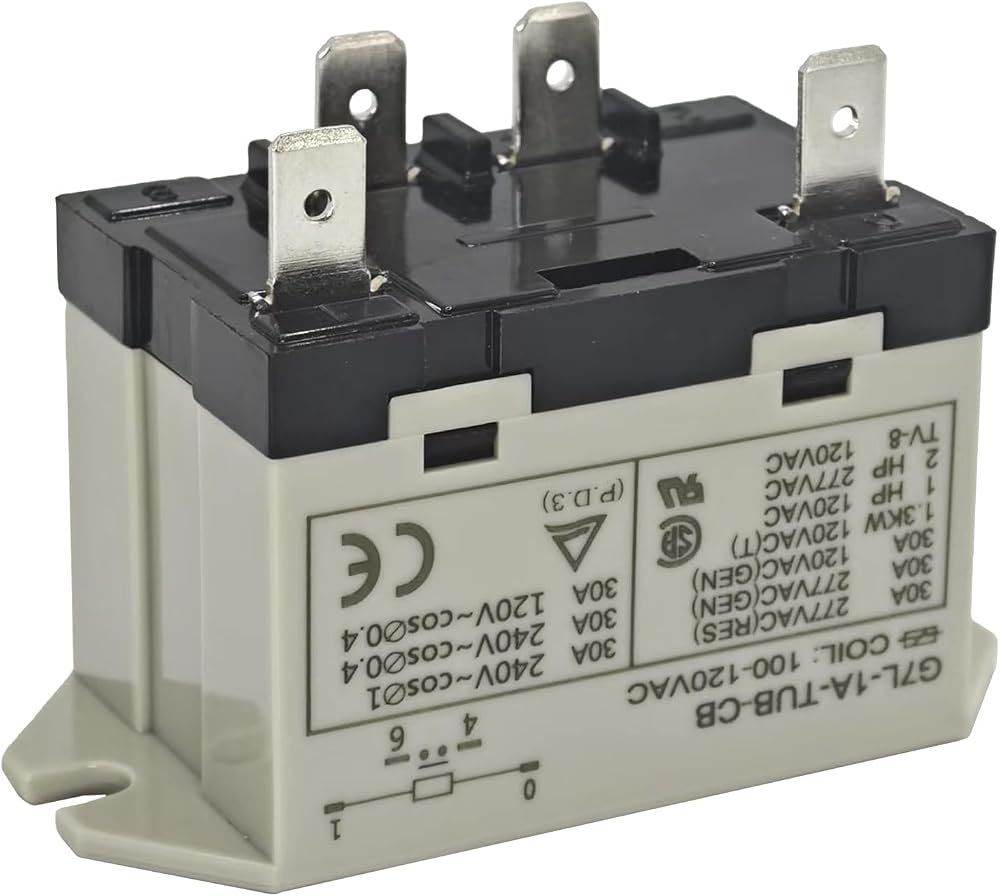

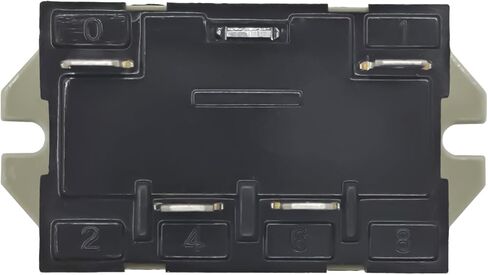

G7L-1A-TUB-CB-AC100/120 General Purpose Relay, 30A 250V SPST-NO, UL Class B Insulation, QuickConnect Terminal

SAR 63
Brand
Formiden
Weight
23 g
– 1 +

Special Features

  • High-Current Switching Capacity​​ - Handles 30A resistive loads at 250V AC with SPST-NO (Single-Pole Single-Throw Normally Open) contacts, ideal for industrial motor controls and HVAC systems requiring reliable on/off operations.
  • ​​Tool-Free QuickConnect Terminals​​ - 6.3mm blade terminals enable direct wiring without screws, reducing installation time by 50% versus traditional screw terminals for maintenance efficiency.
  • UL Class B Flame Resistance​​: Insulation meets UL 94 V-0 standards for flame-retardant materials (self-extinguishing ≤10 seconds), enhancing operational safety in high-temperature environments.
  • ​​Industrial-Grade Vibration Resistance​​ - Upper bracket mounting design with DIN rail compatibility minimizes vibration-induced failures, rated for 100,000 mechanical operations at 1,800 ops/hr.
  • ​​Voltage Drop Resilience​​ - Maintains contact stability during momentary voltage drops up to 50% of rated voltage (100-120V AC), critical for fluid pumps in water treatment/chemical industries

Description

Precision Power Control for Demanding Applications
The G7L-1A-TUB-CB-AC100/120 general-purpose relay delivers robust 30A/250V AC switching through SPST-NO contacts, engineered for stability in high-inrush scenarios like pool pumps, emergency systems, and industrial automation panels. QuickConnect terminals eliminate screw tightening, enabling rapid deployment and reduced downtime.

 Technical Specifications
- Contact Rating: 30A @ 250V AC resistive (cosφ=1), 25A @ 240V AC inductive (cosφ=0.4)
- Coil Voltage: AC 100/120V ±10% at 50/60 Hz
- Operate/Release Time: ≤30 ms
- Electrical Endurance: 100,000 cycles under rated load
- Mounting: Upper bracket with DIN rail adapter (68.5×33.5×47mm)

 Reliable Performance in Extreme Conditions
Withstands operating temperatures from -25°C to +60°C and shock/vibration per IEC 60068-2 standards. Miniature hinge design maximizes switching capacity for inductive loads, validated through 1,000 m/s² destruction tests.

 Applications
High-inrush fluid control systems: Spa/pool pumps, chemical processing
Power distribution panels and emergency backup circuits
HVAC compressors and industrial motor starters
