Transformers
Push-pull EI96150W 6V6 6P6P 6N6C 6P3P 6L6 power transformer single-ended transistor rectifier
Screw hole spacing: 64mm X 80mm, diameter 5mm
Cutting hole for horizontal installation: 54mm X 76nm (red line)
Model: PW150AB-265
Output power: 150W
Dielectric strength:
Input voltage: 220V@50Hz

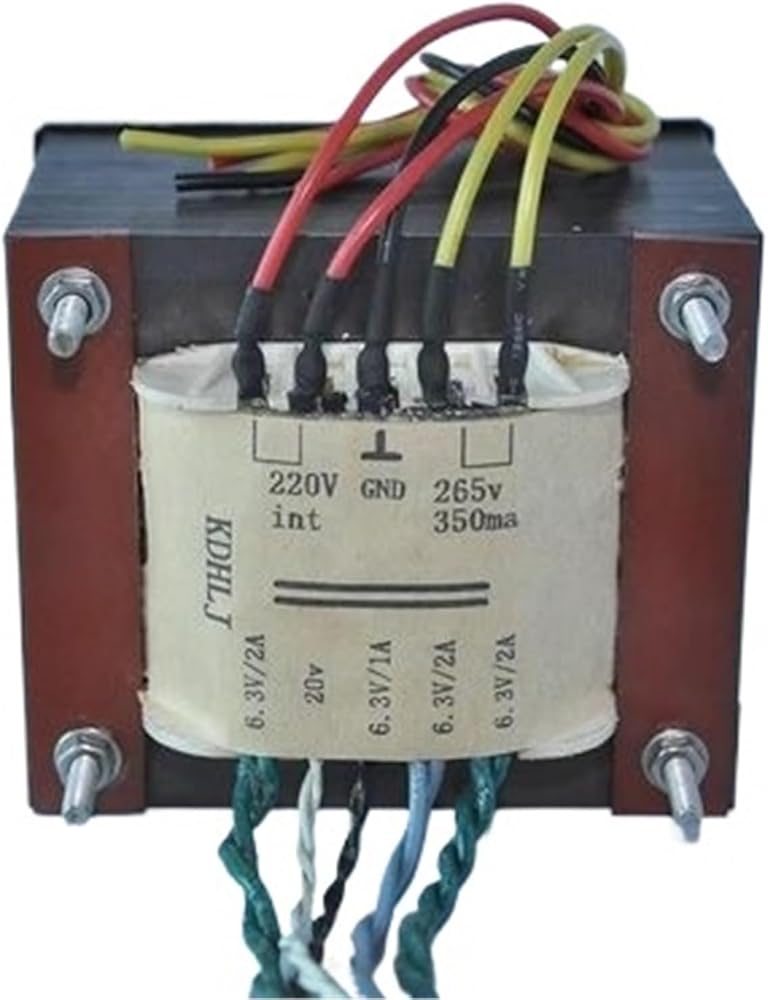

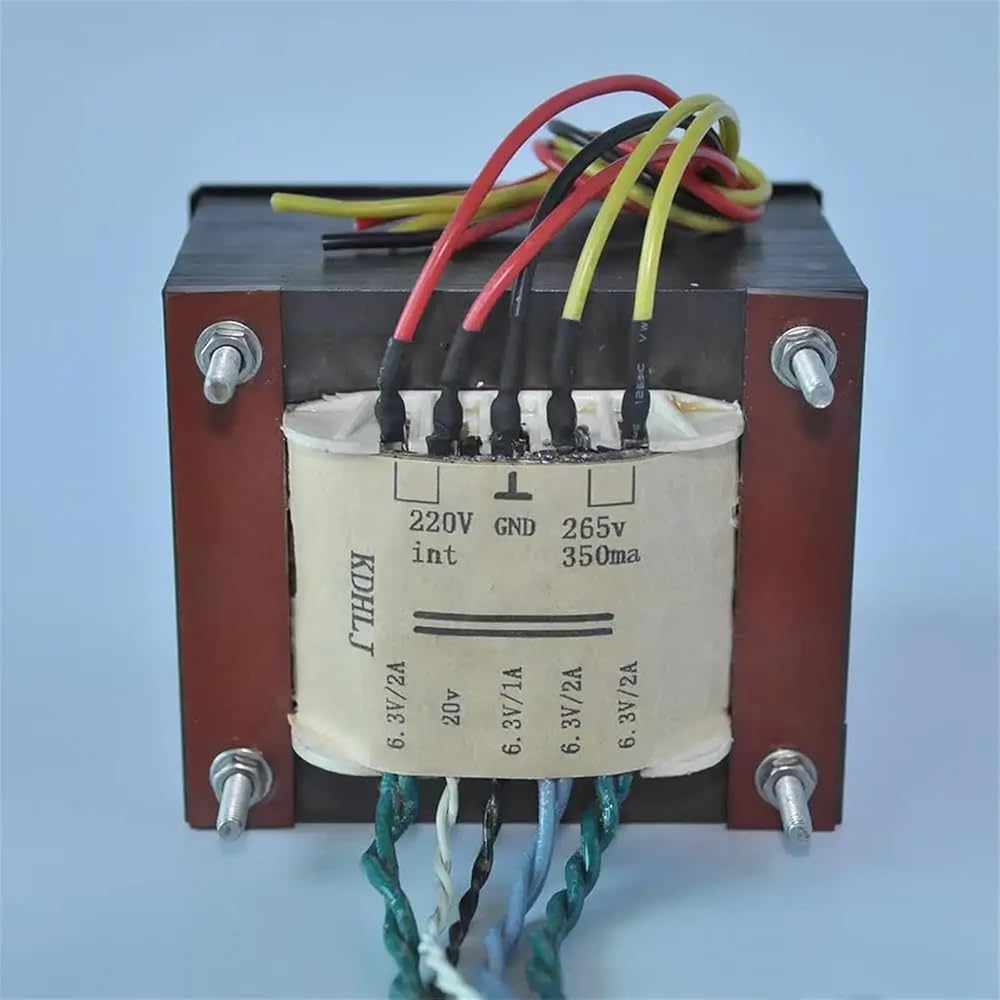

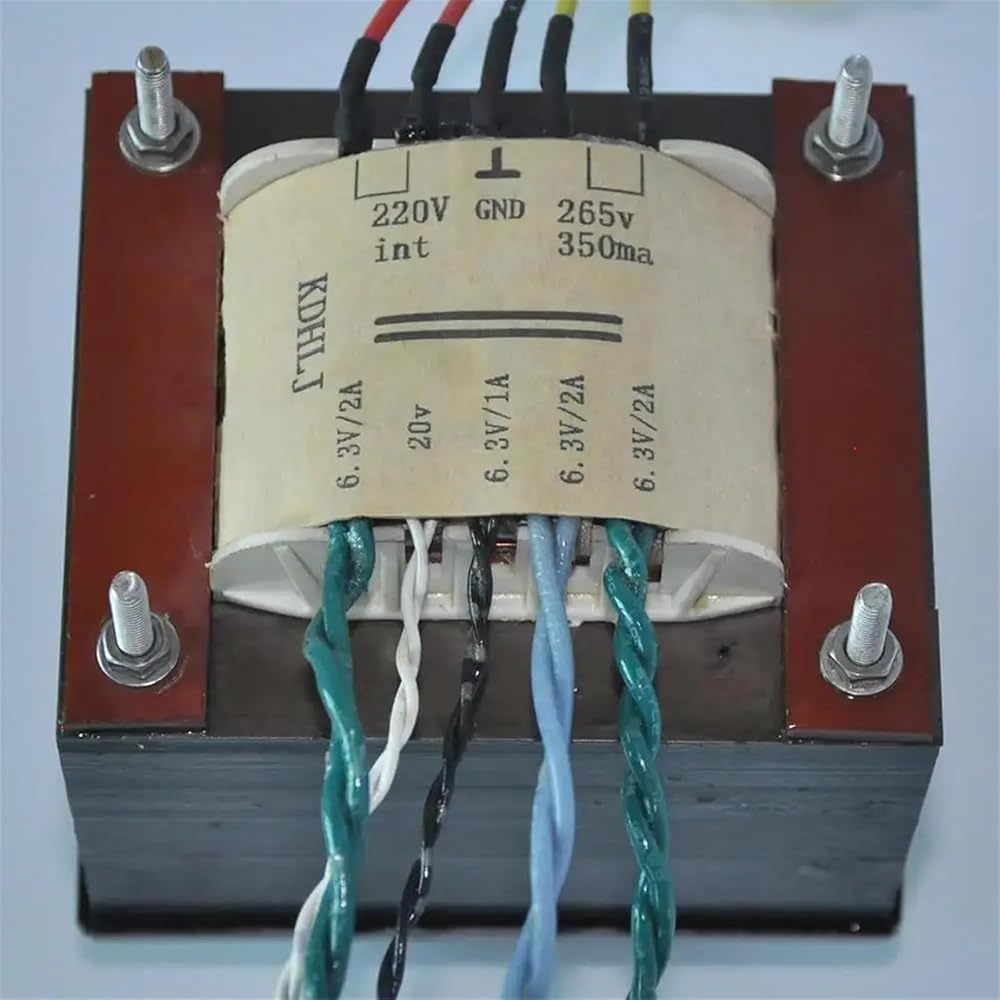

Output voltage: 265V/350ma
6.3V/2A (3 groups)
6.3V/1A (1 group)
20V/ 70ma (1 group)
Core size: 32mm (tongue width) X 65mm (stack thickness)
Weight: 3. 7kg
Item No.: B-PW150
