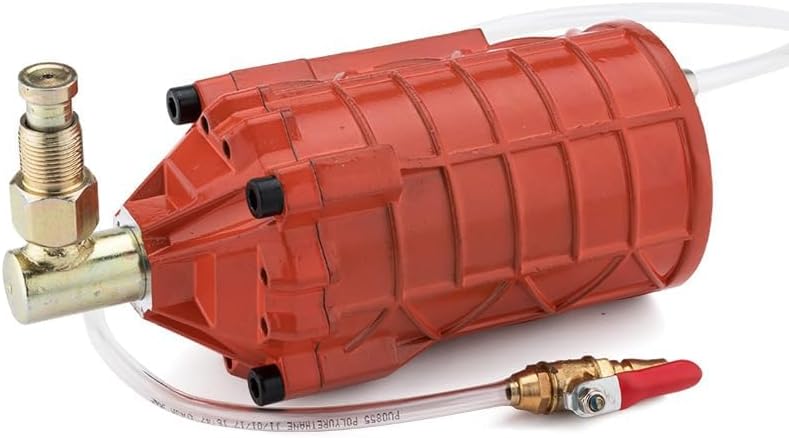

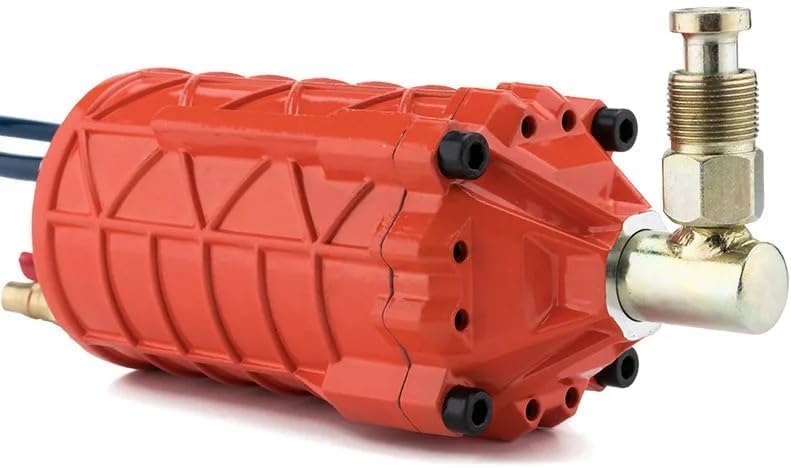

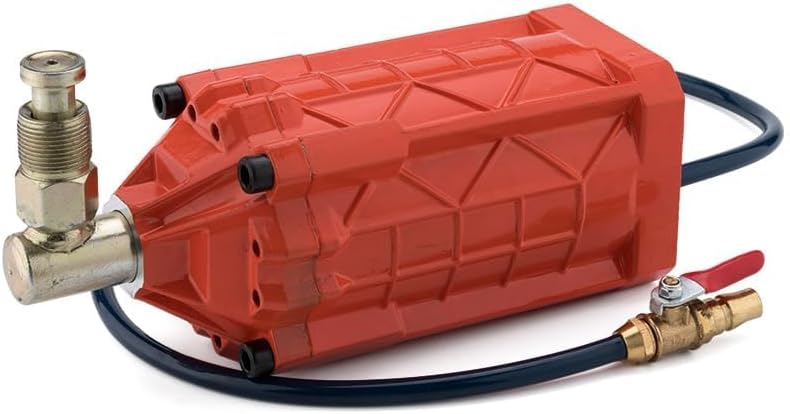

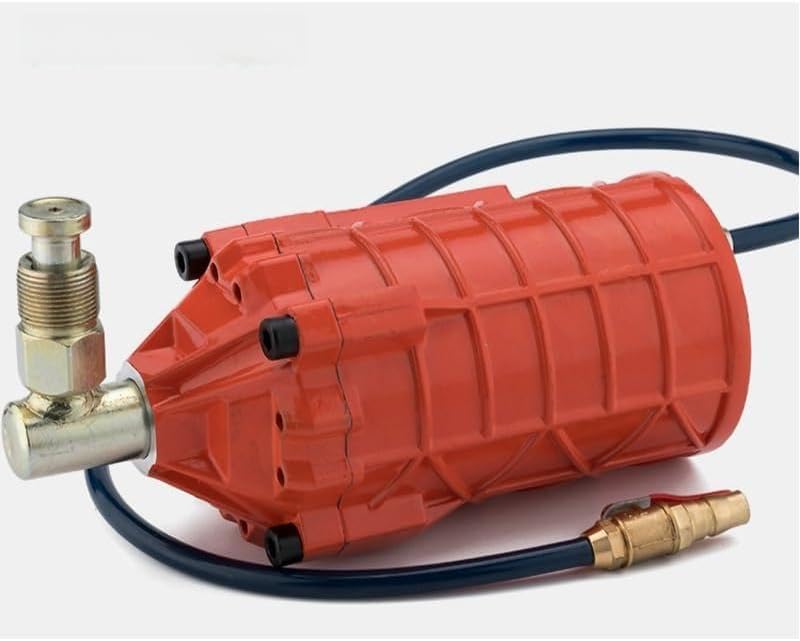

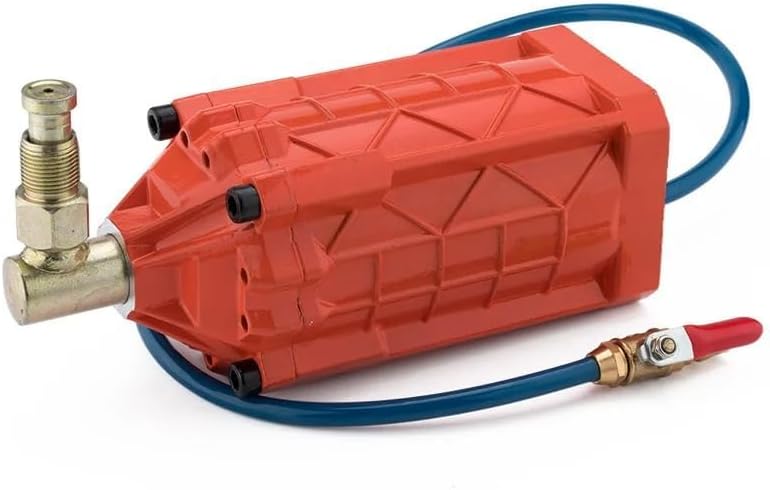

1. Connect the threaded head of the connecting pipe with the material belt to the intake port of the booster, and connect the quick chan connector to the intake pipe.
2. Remove the small cylinder operated by the handle on the original vertical jack (in order to prevent the leaka of the hydraulic oil of the jack, please raise the jack to the highest point first). Put a copper gasket into the screw hole, install the connecting bolts on the booster on the removed small oil cylinder, and tighten the connecting bolts
3. Open the air pump and intake switch, hear the beep... The sound indicates that the booster has entered the working state, the jack oil return valve is tightened in the counterclockwise direct, the jack piston rises, the jacking work is completed, the intake switch is closed, the oil return valve is slowly loosened in the low counterclockwise direct, the jack piston falls, and it can work normally after use.
4. The jacking speed can be realized by adjusting the intake volume of the intake switch.
وصف
Precauts for use:
1. When using, you must first connect the booster connecting pipe, and then connect the air source
2. When the booster stops working, it is necessary to close the air source first, prevent the pressure of the booster, and then unplug the connecting pipe
3. In order to ensure the Ruihua in the cylinder, add a small amount of pneumatic tools from the air intake regularly according to the number of uses
4. The air source should be installed with an oil-water separator to prevent water and sand from entering the cylinder
