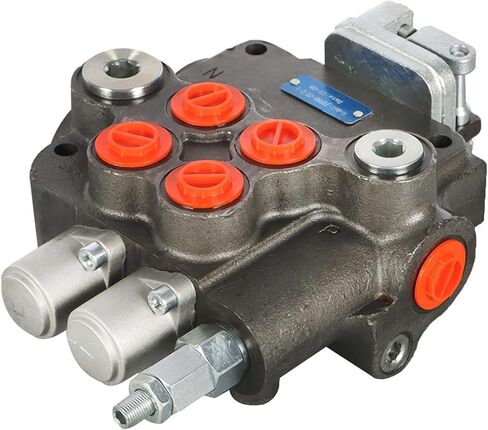

صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia صمام هيدروليكي 21 جيجلى في الدقيقة 2 in Saudi Arabia

صمام هيدروليكي 21 جيجلى في الدقيقة 2

SAR 627
ماركة
Thomletha
وزن
7.9 kg
– 1 +

مميزات خاصة

  • Flow Rating: The maximum flow rate of the relief valve can reach 21gpm and the flow range can reach 3625psi
  • 2 Spools: Equipped with SAE type annular inlet and outlet and 2 spools, the valve is connected to the tubing to control

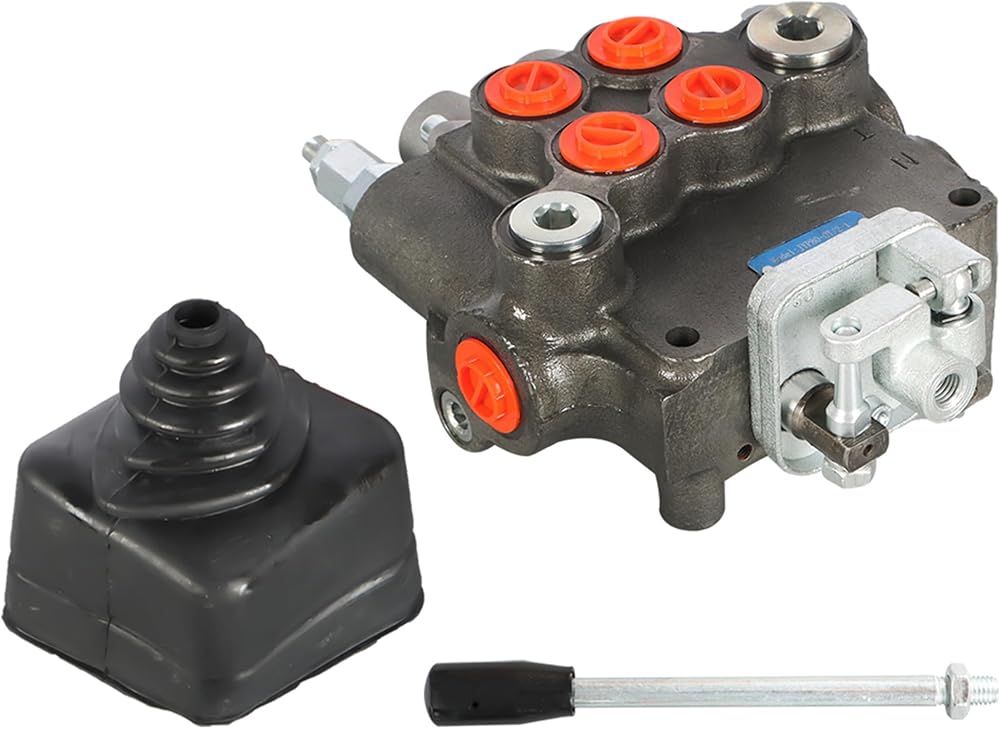

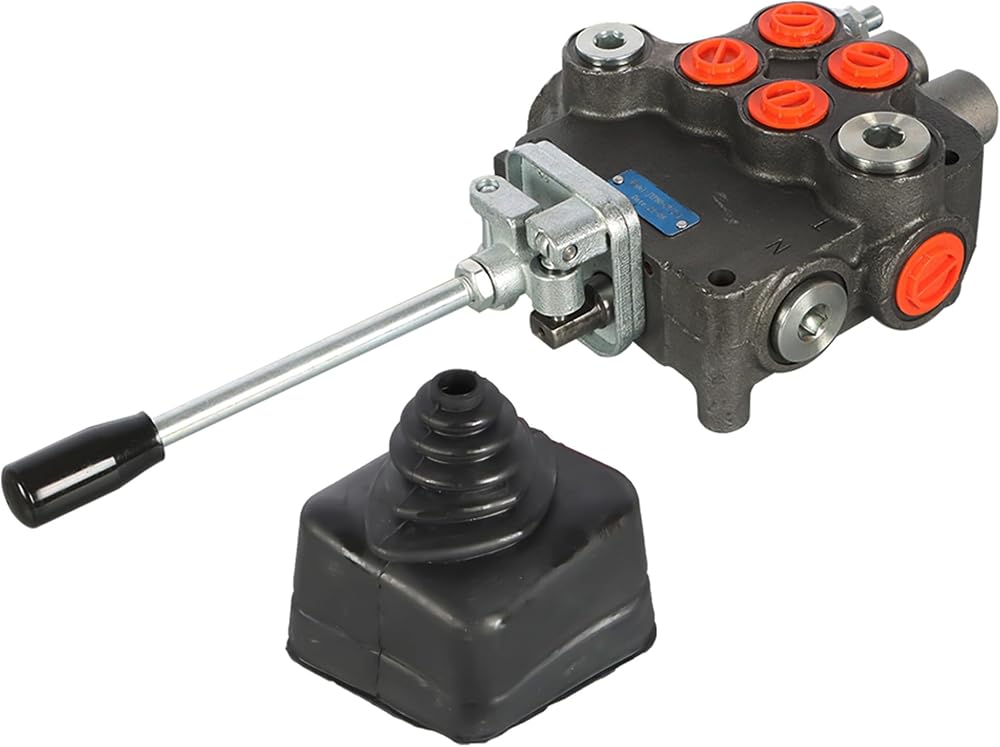

  • Double Acting Cylinders: For the operation of double acting cylinders, the bottom of the handle has a spring, easy to control the joystick
  • Advantage: The relief valve in the valve body can adjust the pressure of the hydraulic system when working, and the one-way valve can ensure that the hydraulic oil does not flow back
  • Application: Hydraulic reversing valve is widely used, fit for tractor loaders, log spliters and small tractors

وصف

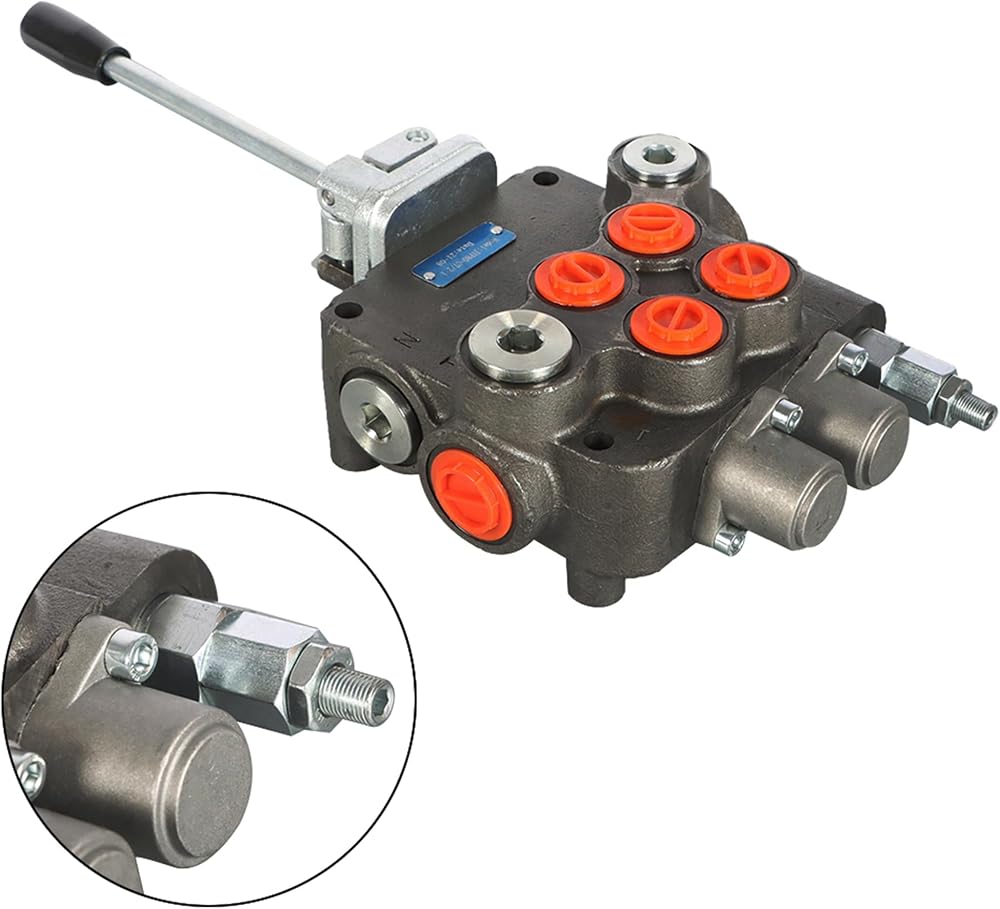

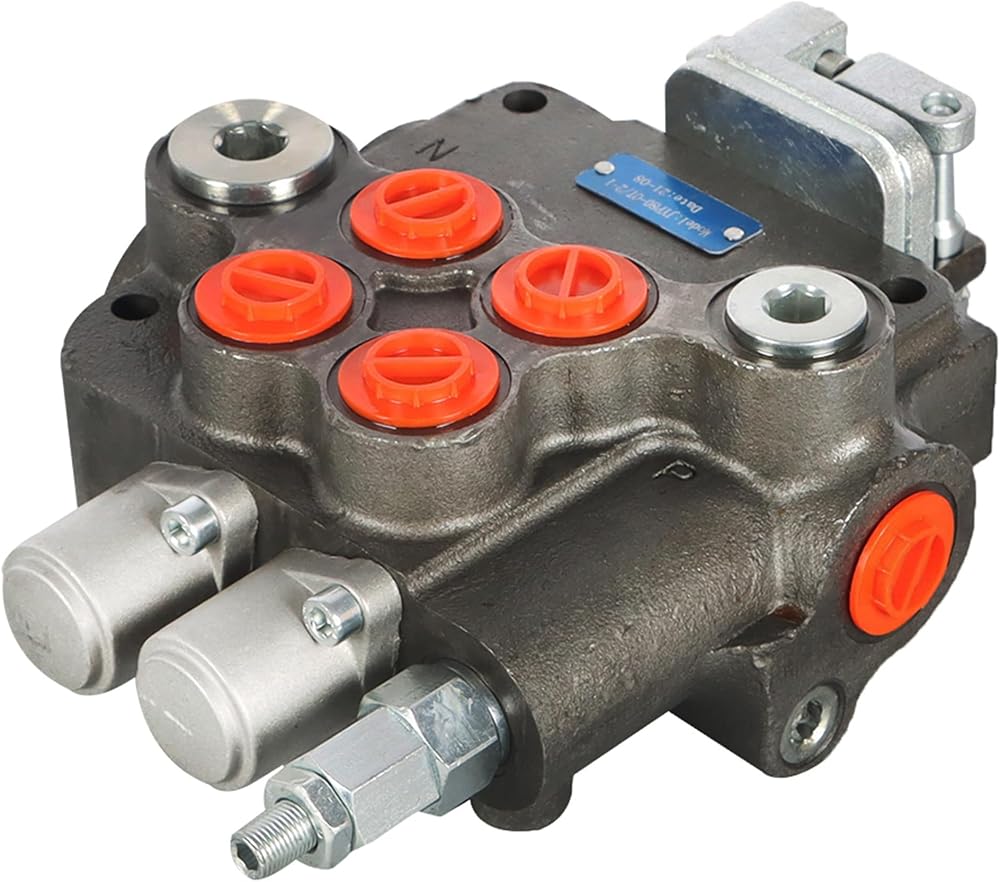

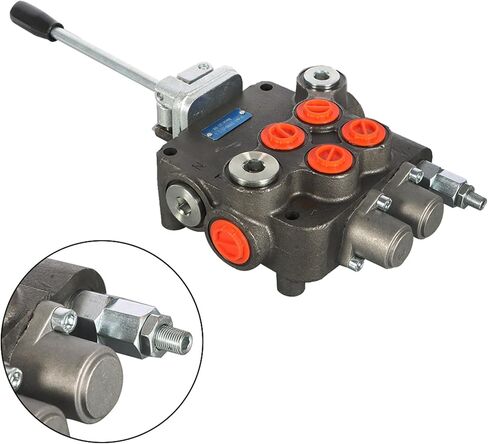

21GPM Hydraulic Valve 2 Spool Hydraulic Valve Hydraulic Directional Control Valve Fit for Tractors Loaders

Specification:
Flow Rating: 21Gpm
A and B Work Ports: 10 SAE o-ring (7/8 inch -14) thread
Inlet Port: 10 SAE o-ring (7/8 inch -14) thread
Outlet Port: 12 SAE o-ring (1-1/16 inch -12) thread
Max Operating Pressure: P = 3625psi, T = 725psi, A and B = 4350psi
3-5/16 inch Mounting holes

Features:
1. The maximum flow rating is 21gpm
2. The presence of the check valve makes the hydraulic oil not backflow
3. The presence of a relief valve can regulate the working system pressure

Package Includes:
1Pcs 2 spool hydraulic joystick control valve
