مميزات خاصة

AUTOMATIC STORAGE: The digital photo tachometer automatically captures and stores key measurement values, including the highest, lowest, and most recent readings. With memory for 96 data entries (The tachometer starts to store data after refreshing the measuring data)
VERSATILE MEASUREMENT MODES: This digital rotation tester easily switches between touch and touchless measurement methods. The straightforward selection feature allows flexible application in various industrial testing situations, eliminating the need for separate devices
CLEAR VISUAL DISPLAY: The handheld tachometer features an easy-to-read LCD screen with white illumination, ensuring visibility in all lighting conditions. The display includes helpful indicators like quantity of electricity warnings for continuous use
PRECISION MEASUREMENT TECHNOLOGY: The handheld tachometer utilizes advanced optical detection with a 50-500mm working range. It maintains exceptional measurement accuracy for both rotational speed and linear movement, delivering dependable results every time
WIDE-RANGING UTILITY: This photoelectric tachometer adapts to various industrial applications, including cable measurement and machinery maintenance. The included groove sensor and interchangeable accessories enable flexible use across different production scenarios

وصف

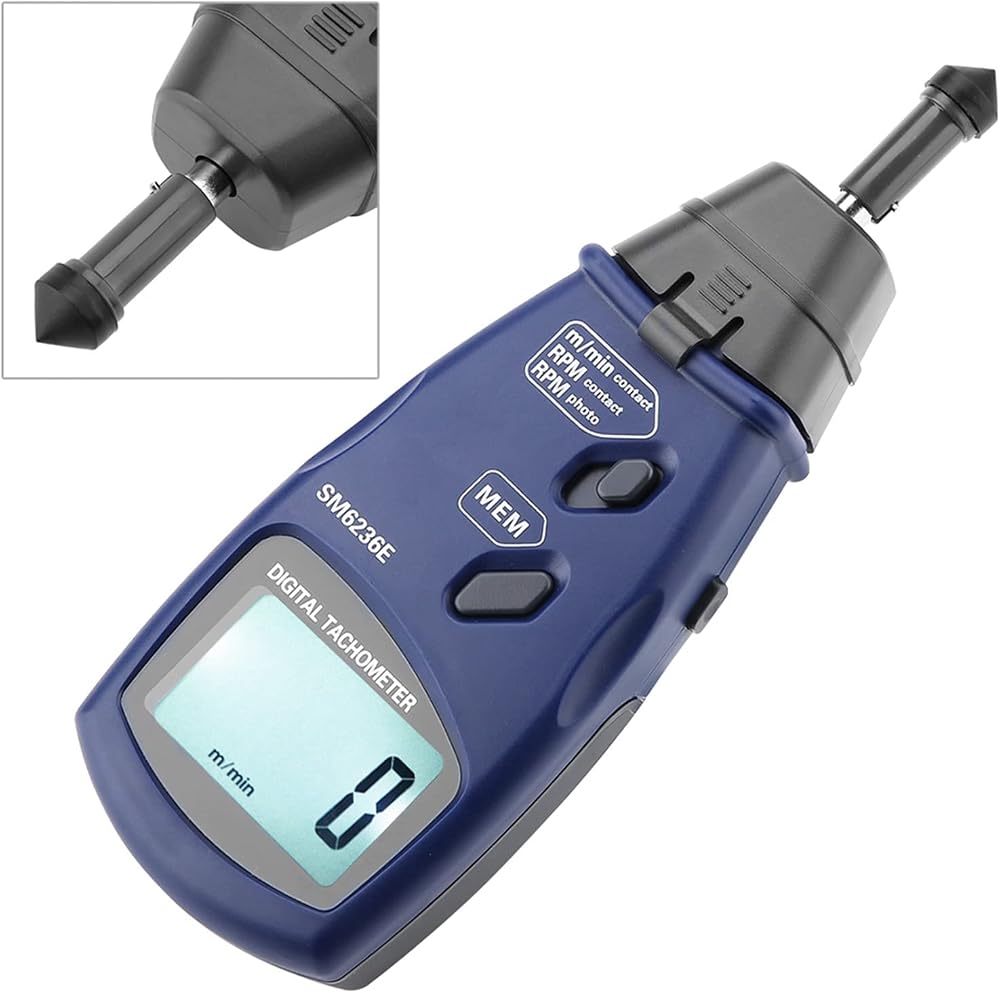

This item adopts the microcomputer (CPU) technique and junctiondigital technique for one instrument which combines Photo Tach (RPM) and touchTach (RPM, m/min).

Features:
1. Adopting advanced technologies to achieve touch or non-touchmeasurement of rotation speed and line speed.
2. Speed sensor with groove measuresspeed and length of wire, cable and ropeconveniently.

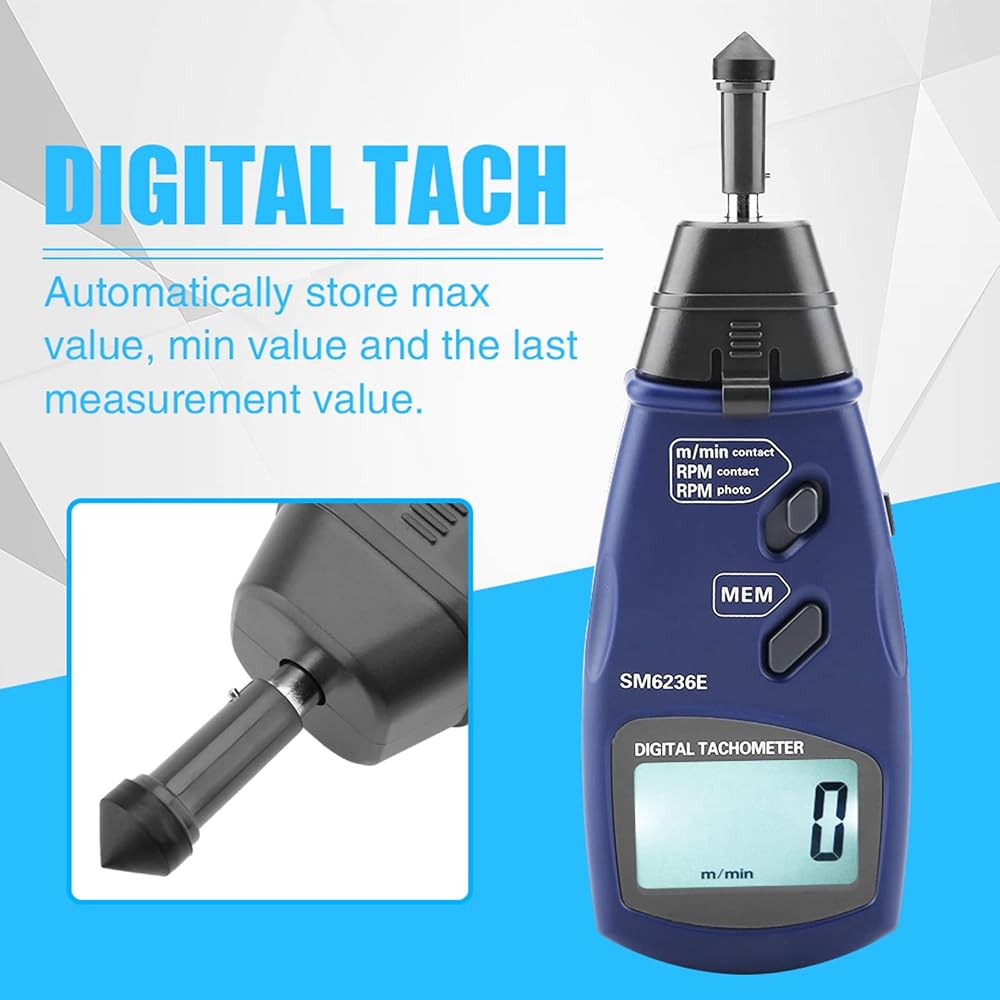

3. Automatically store max value, min value and the last measurement value.

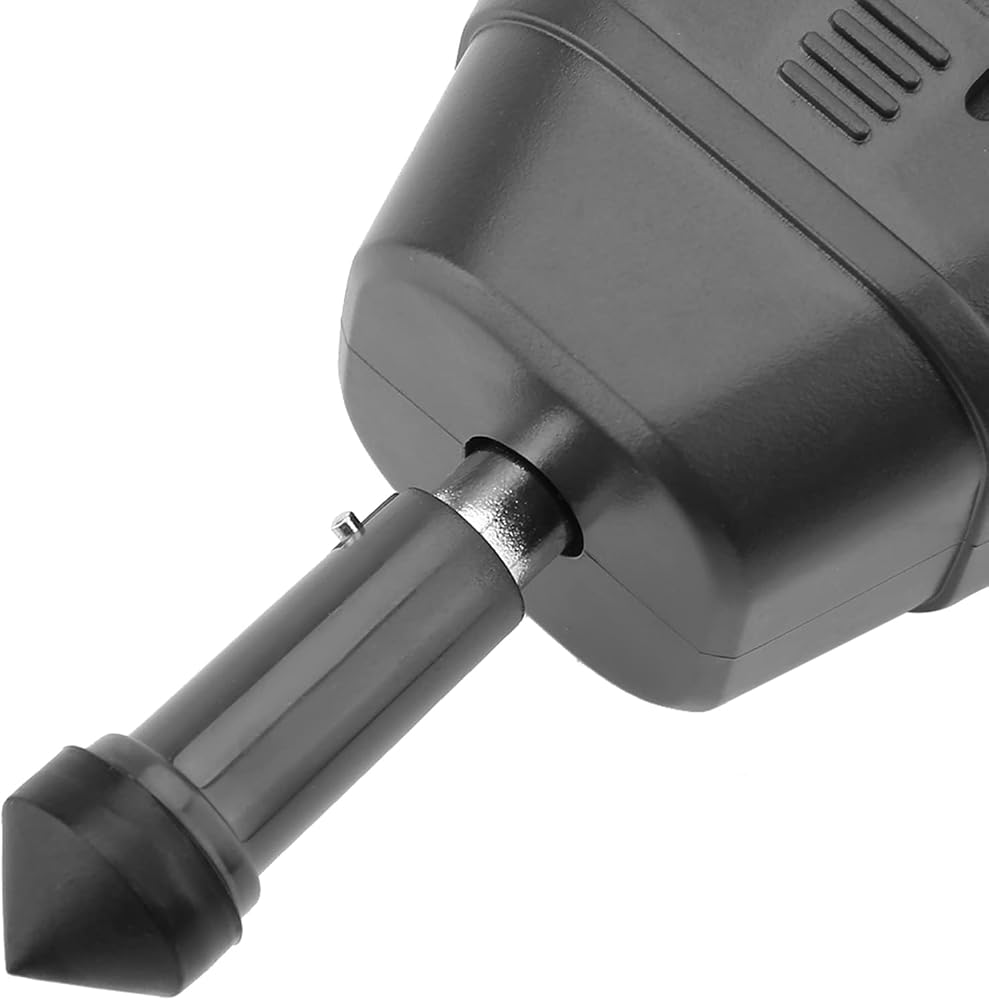

4. touch accessory and photoelectric accessory can be converted mutually at any time to achieve multi-purpose use.
5. Automatically prompt when the voltage of power supply is lower than the specified value.
6. Large LCD screen for clear reading.

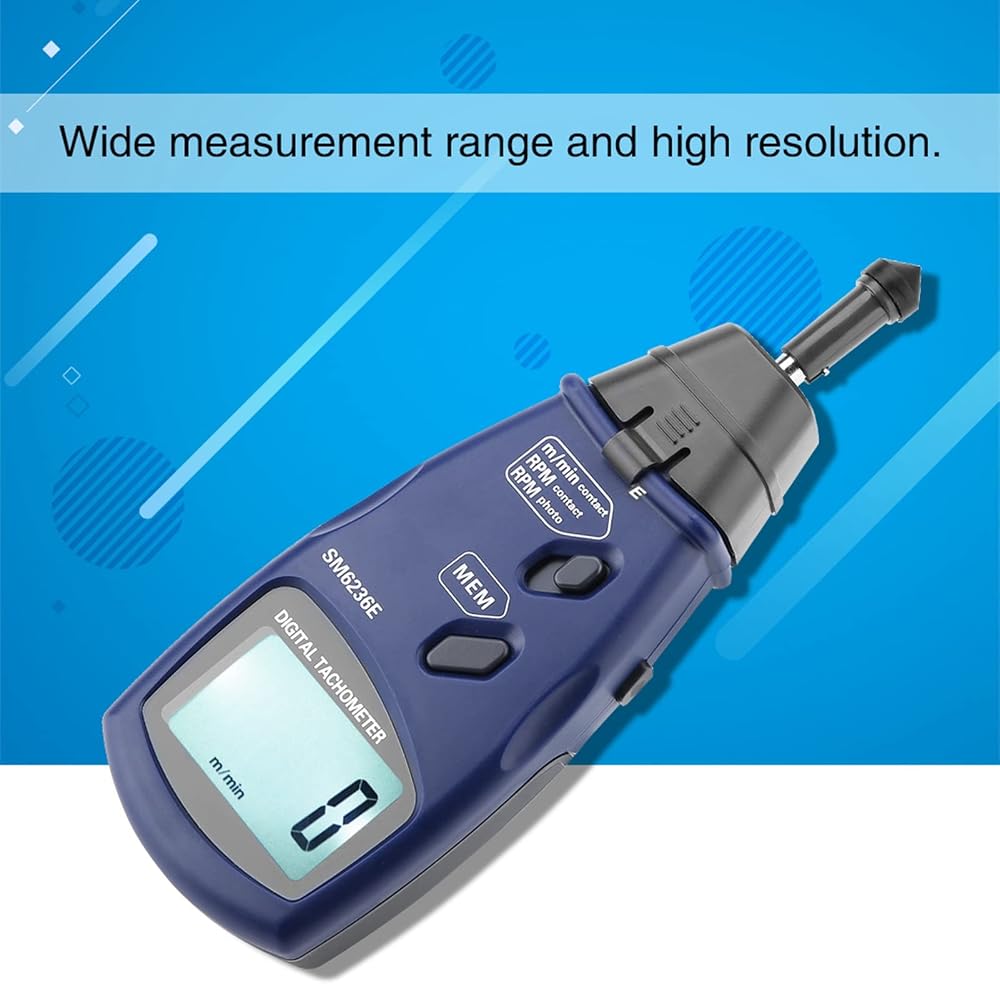

7. Wide measurement range and high resolution.

Specification:
Model: SM6236E
Measuring Range:
Photoelectric Tach: 2.5 ~ 99999RPM
touch Tach: 0.5 ~ 19999RPM
touch Line Speed: 0.05 ~ 1999.9m/min
Resolution:
Photoelectric Tach: 0.1RPM (2.5 ~ 999.9RPM), 1RPM(over 1000RPM)
touch Tach: 0.1RPM(0.5 ~ 999.9RPM), 1RPM(over 1,000RPM)
touch Line Speed: 0.01m/min(0.05 ~ 99.99m/min), 0.1m/min(over100m/min)
Display: 5 digits 18mm backlight LCD
Accuracy: ±(0.05%+1digit)
Sampling Time: 0.5 sec(over 60RPM)
Range Selection: Auto-Ranging
Memory: Max. value, Min. value, Last value. 96 data storage
Time Base: 6MHz Quartz Crystal
Detecting Distance: 50 to 500mm (digital)

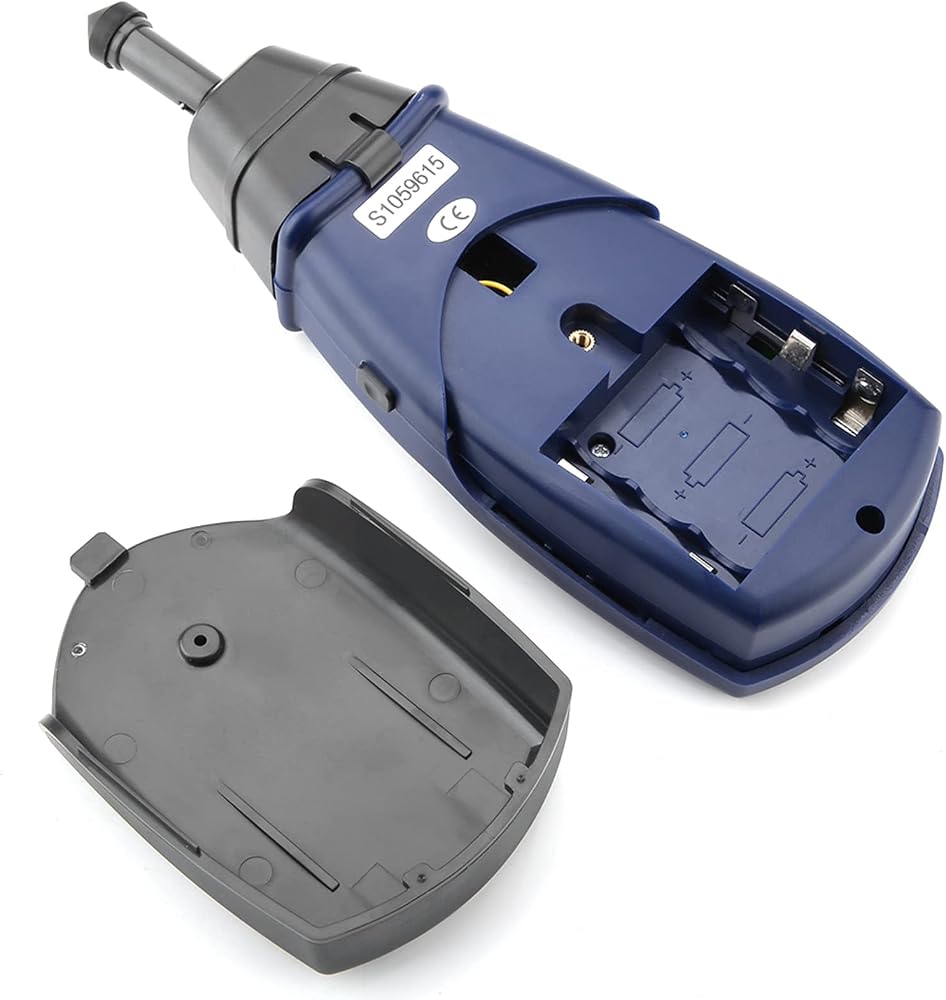

3 x1.5V AA (NOTincluded)
Power Consumption: about 50mA
Color: Black

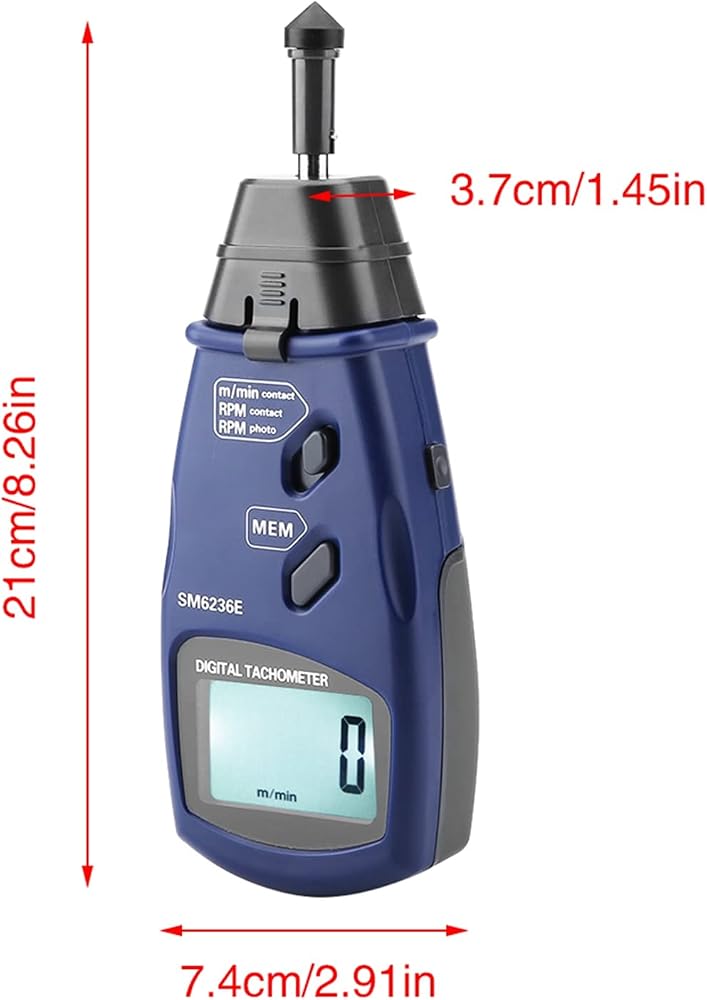

Size (L*W*H): 21*7.4*3.7cm / 8.27*2.91*1.46in
Weight: Approx. 436g/15.4oz

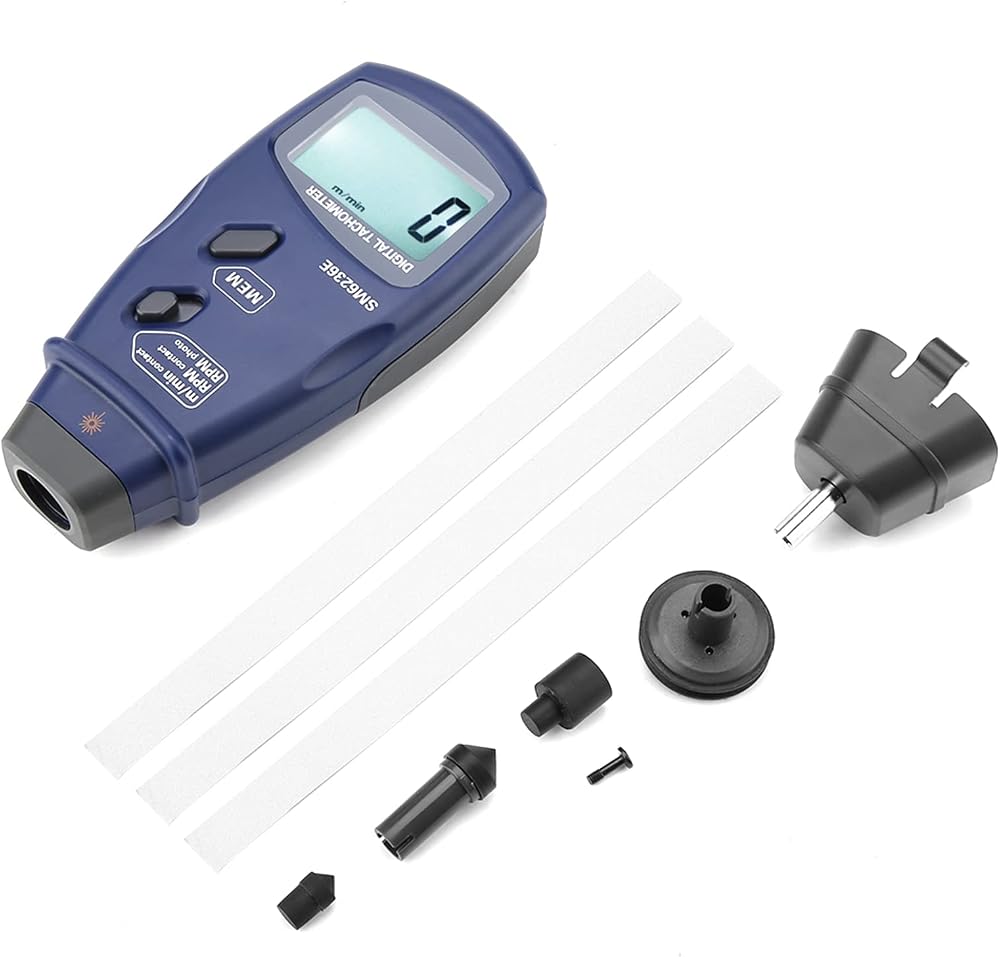

Package list:
1 * Tachometer
1 * User Manual
3 * Reflective Paper
1 * Screw

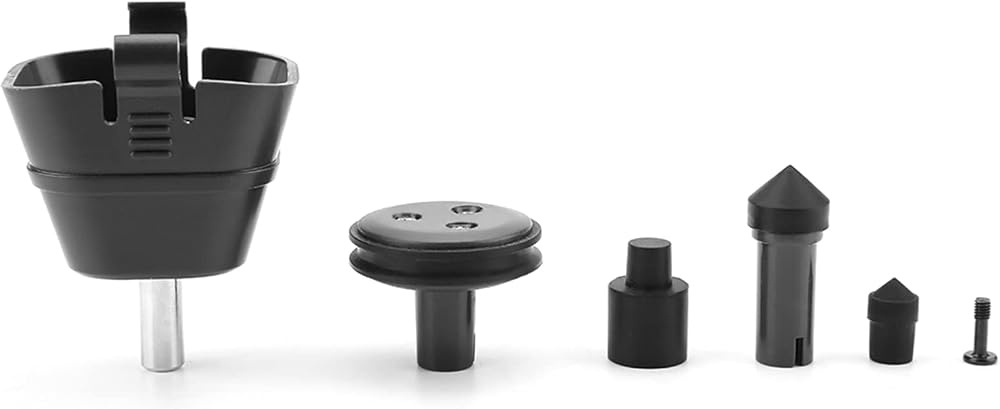

4 * Tach Accessories
1 * Photoelectric Tach Head

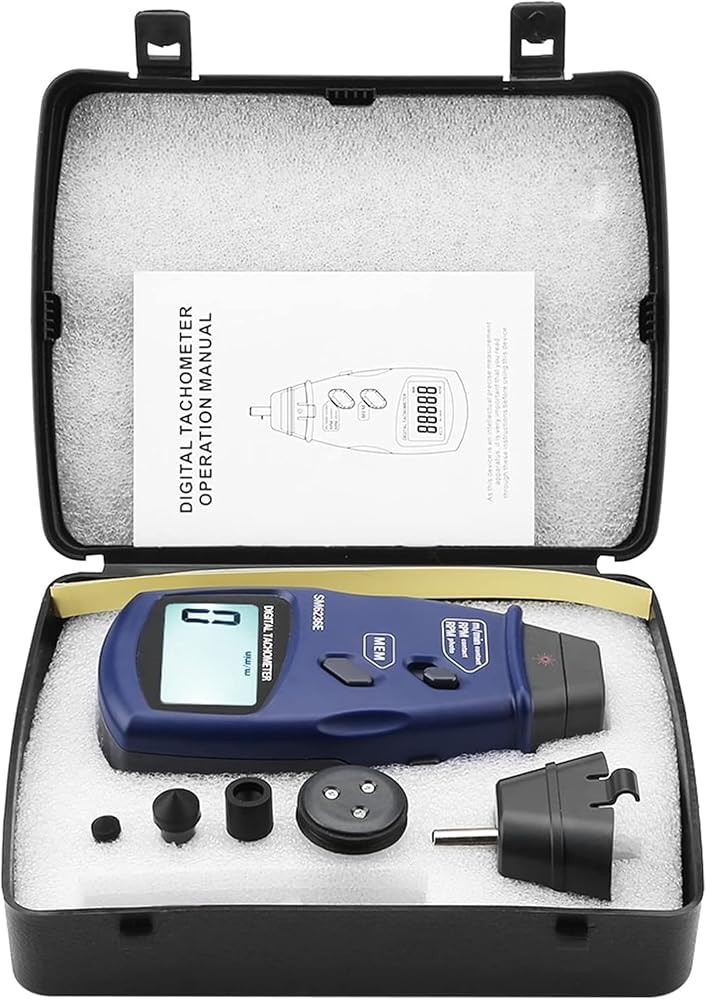

1 * Storage Case

Note:
1. Due to the difference between monitors and light effect, thepictures may not reflect the actualcolor of the item.
2. Please allow slight error due to manual measurement. Thanks foryour understanding.
