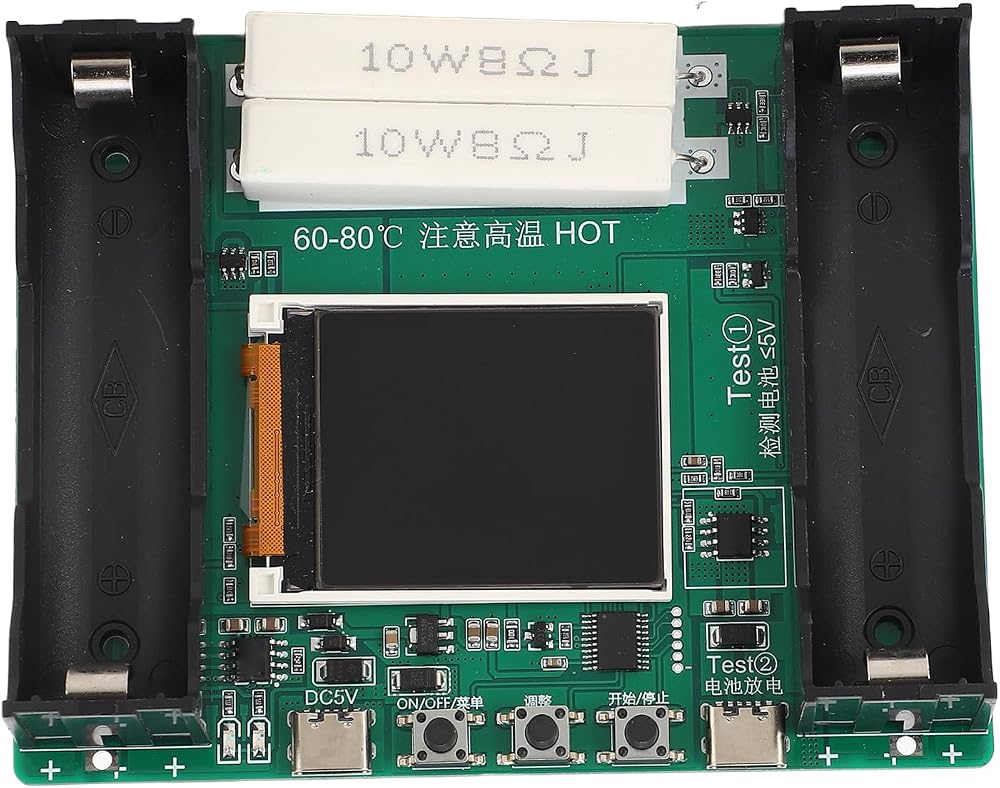

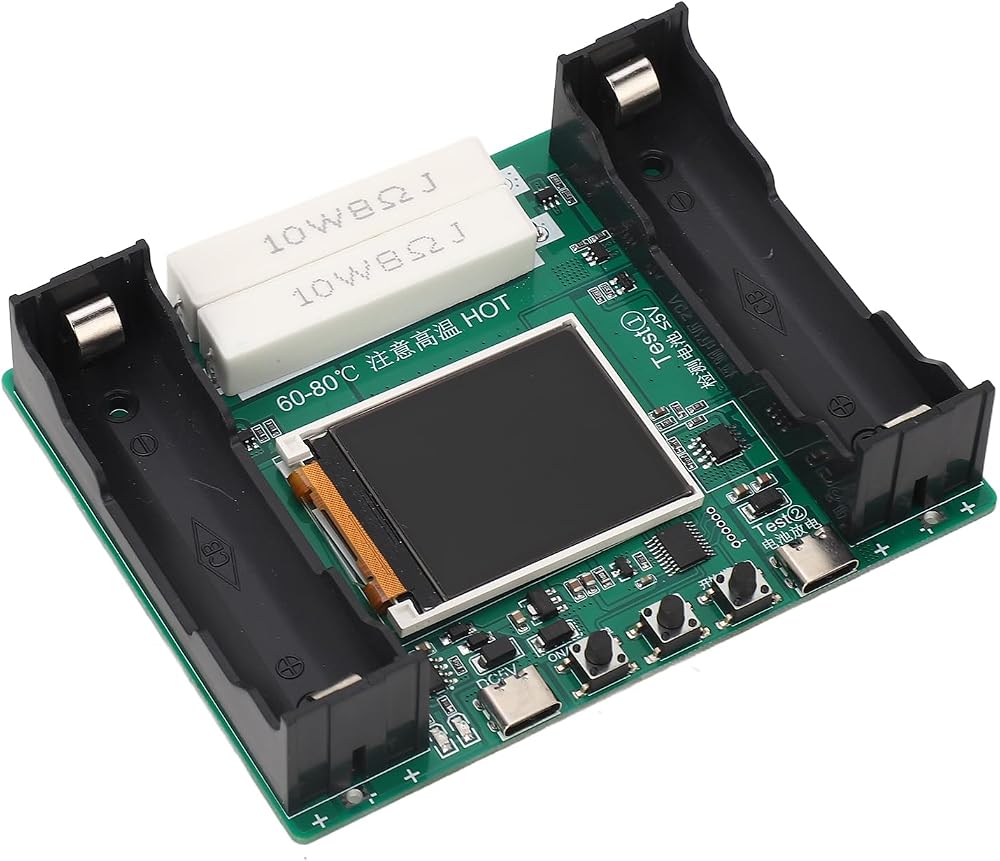

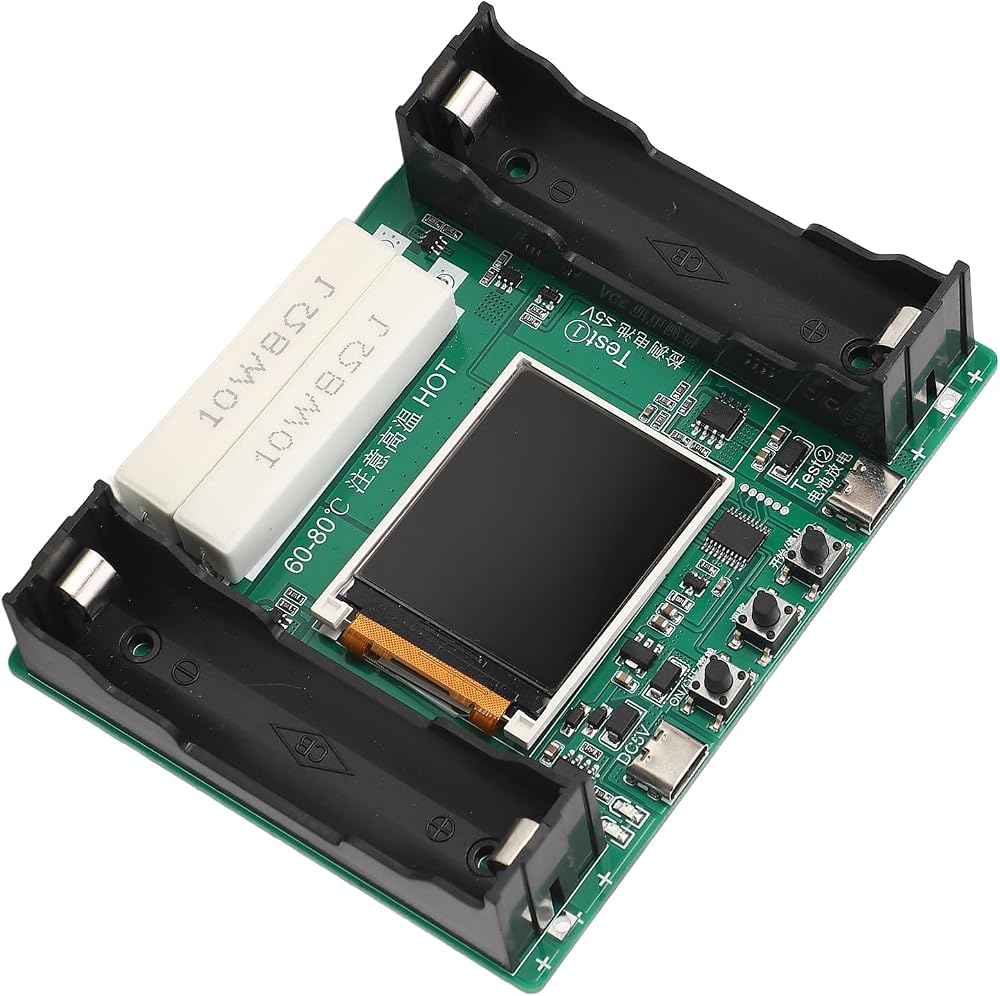

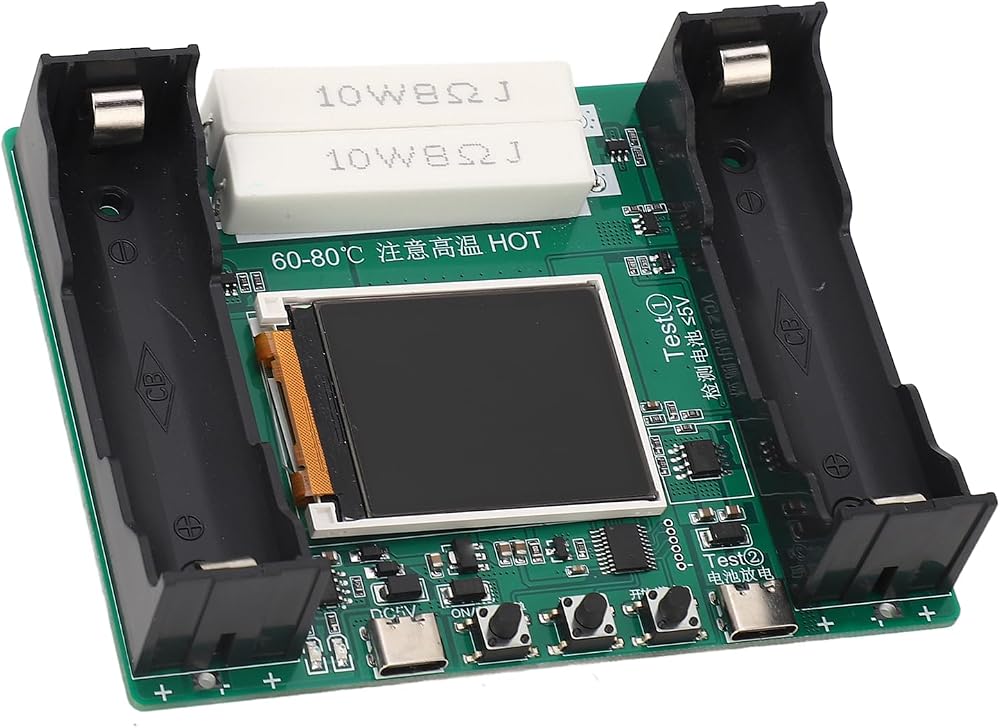

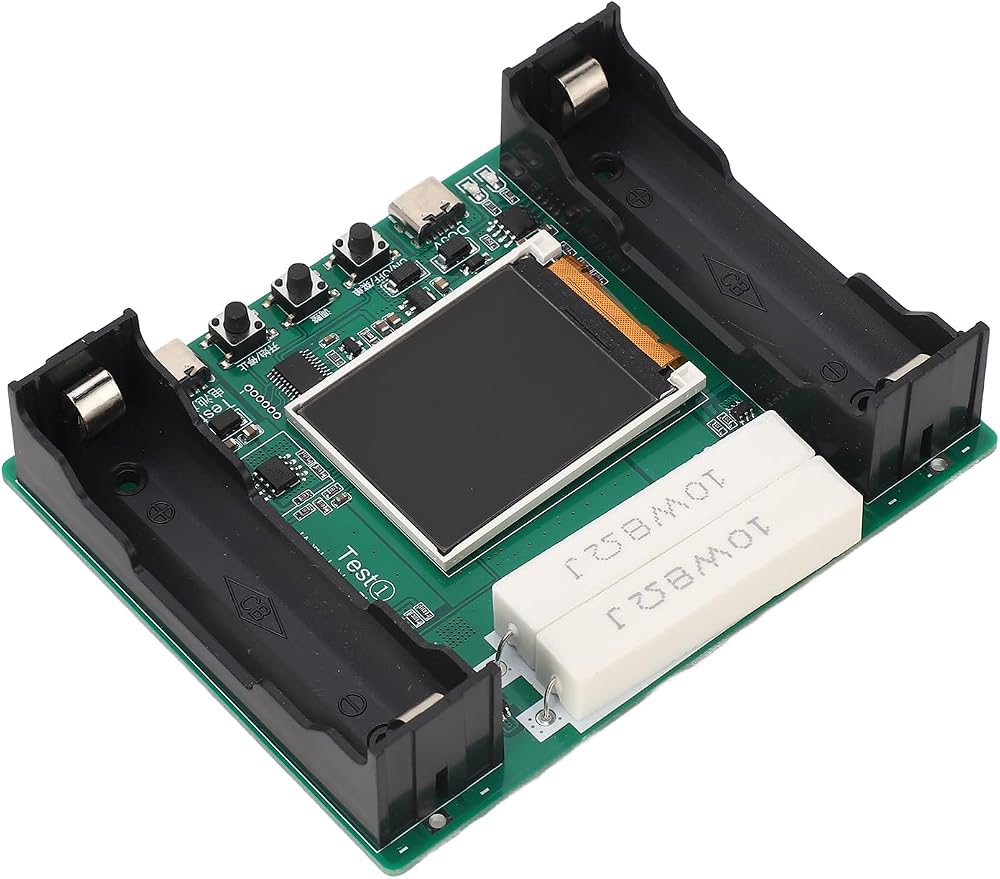

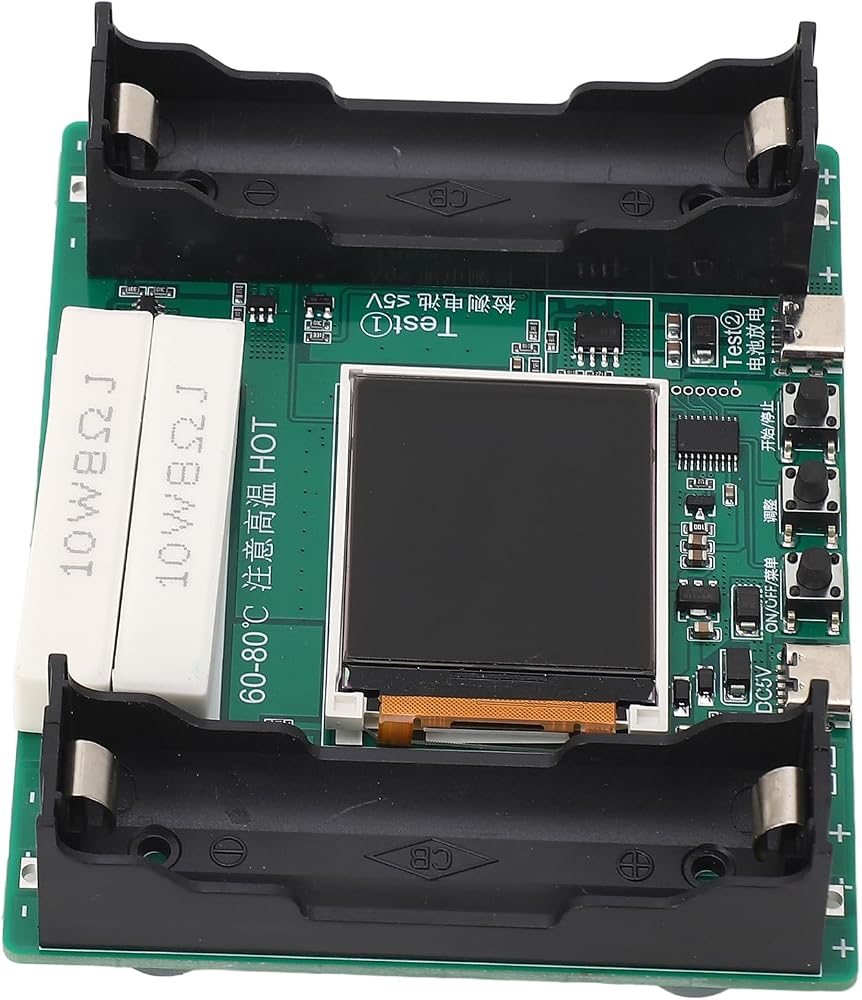

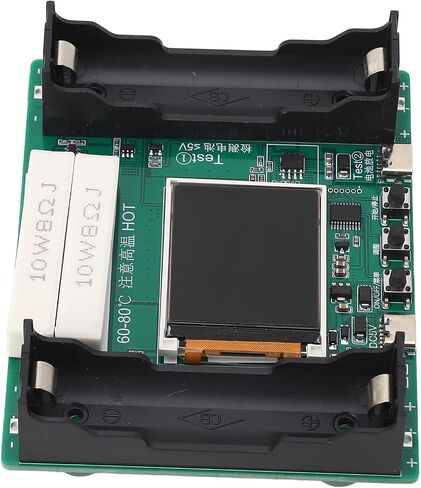

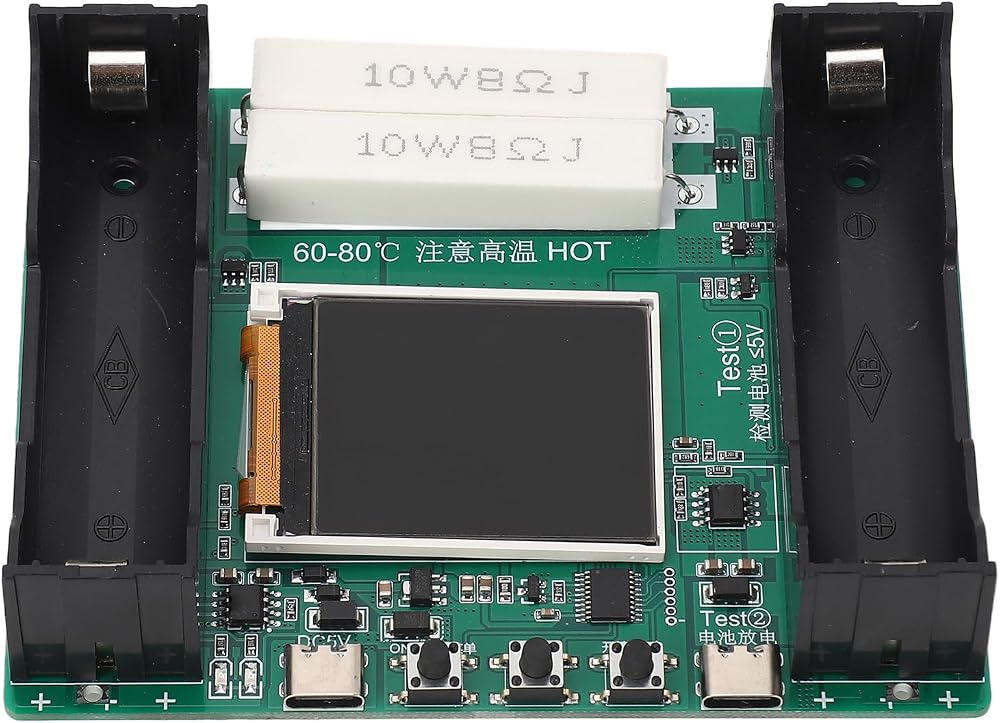

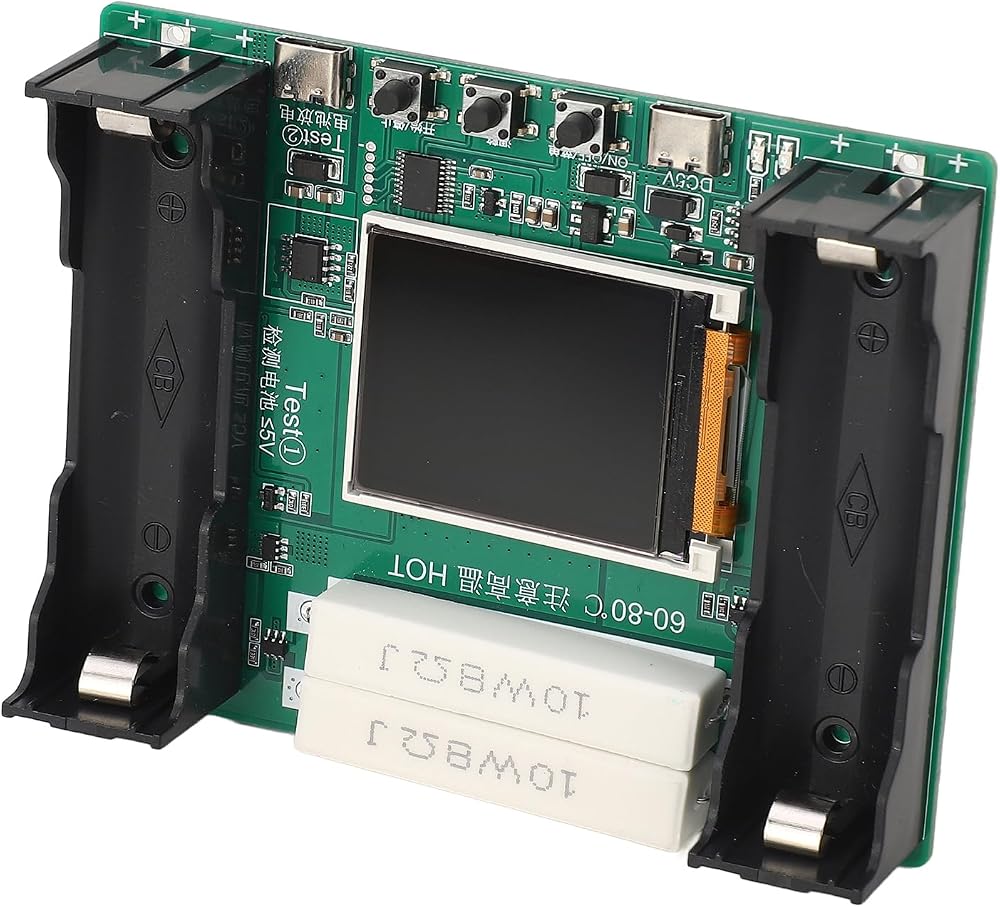

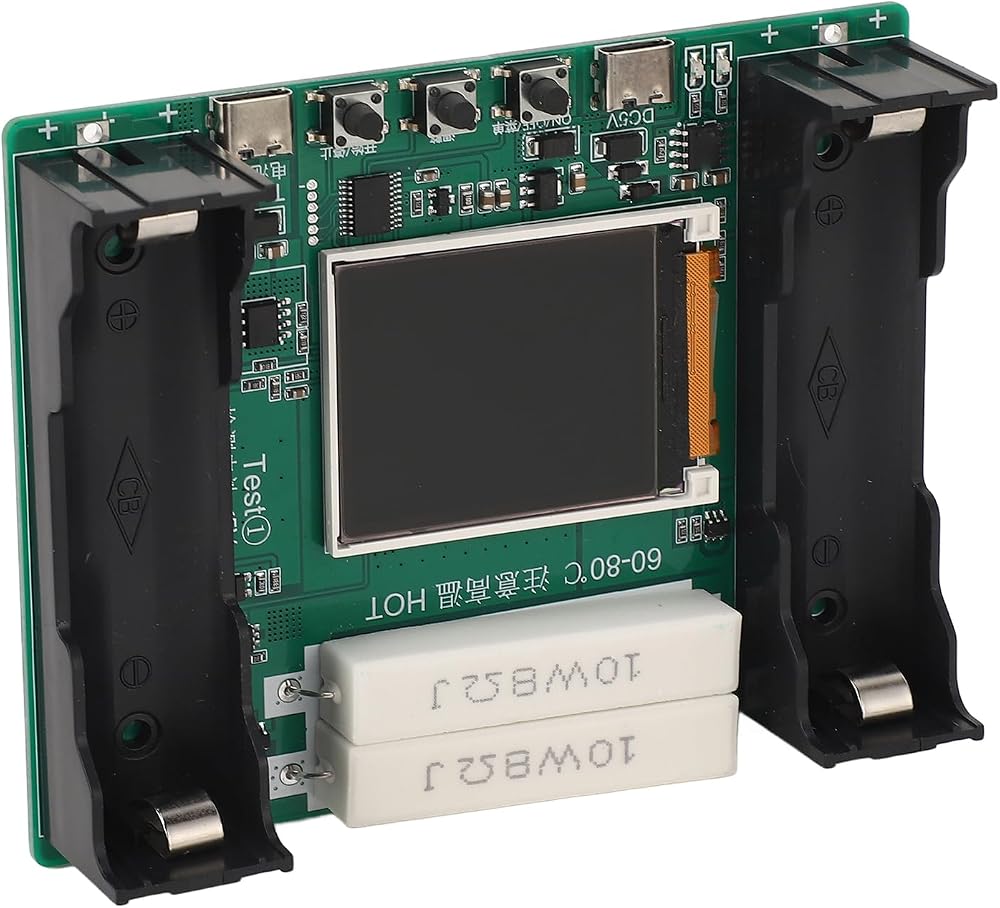

1. FOR BATTERY: This tester is specifically designed to measure the capacity of batteries. 1.77 inch display screen can simultaneously display information such as internal , capacity, voltage, current, battery level.
2. MULTI MODES: The detector supports single channel capacity and internal measurement; Supports separate charging and discharging, with a maximum of 9 charging and discharging cycles in automatic mode.
3. Machined: Using DC 2 wire method to test the internal of the battery, the numerical accuracy is high when the battery is fully charged.
4. DIY METHOD: Method 1: Install a battery holder; Method 2: Conduct testing by connecting an extension cable or crocodile Clamp/Holder to an external battery.
5. DATA RESET: When shutting down or switching modes, the capacity, energy, and time data will automatically reset.

Specification:
Item Type: Battery Internal Tester
Material: PCB
Battery: 2 x lithium batteries (not included) (power supply x 1, testing x 1)
Model: XH M239
Display Accuracy: 0.1
Measurement Accuracy: 1mAH
Standby Current: 5mA
Discharge Current: About 500mA
Load Power: 10W 8Ω
Applicable Batteries: Suitable for batteries meeting stop discharge voltage of 2.5-3.5V, 2.8V start to 4.2V fully charged

How to Use:
Take out the product and install to use.

packing list:
1 x Battery Internal Tester

Notice:
1. When using an extension cable to test the battery externally, the line affects the internal measurement, and the internal test results do not have reference value. After the DIY, only one battery can be tested at a time, and it does not support testing multiple batteries simultaneously. The charging and discharging components are compatible with software algorithms and do not support retrofitting with discharge resistors.
2. During the charging and discharging process, some components may generate local high temperatures. Please ensure that the use environment is open and uncovered, and it is best to increase fan heat dissipation.
